FC32
OVERVIEW TECH SPECS DOWNLOADS

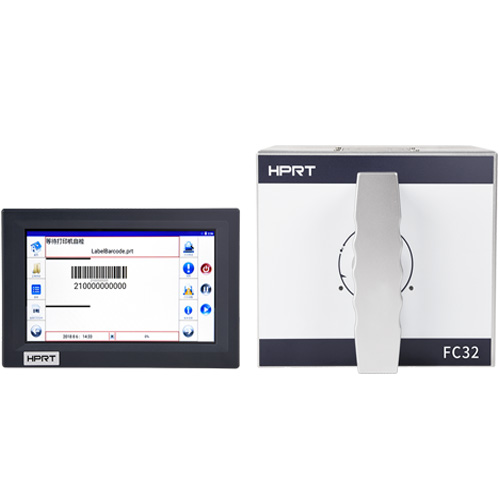

Fc32

TTO Printer

•  All-metal structure, strong and durable
•  Support multiple ribbon-saving modes
•  Easy ribbon loading design

•  Support different languages
•  Convenient to edit the data on controller
•  Detect printer status automatically

Fc32

.

ItemsFC32-LiFC32-RiFC32-LcFC32-Rc
Structure

All-metal structure

Printing Method

Thermal transfer printing

Resolution

300 dpi (12 dots/mm)

Printing Speed

40-600mm/s

Printing Width

32 mm (300dpi)

Print Area32*75mm32*75mm32*100mm32*100mm
Processor

32-bit RSIC processor

Flash Memory

8MB (minimum)

Dynamic Memory

16MB (minimum)

Real-time Clock Function

STD, battery discharge life is at least 3 years

Sensor

Ribbon tension detection; thermal head position detection; cover open detection;

TPH over temperature detection; ribbon break detection

Flexible Packaging Inspection

Electromagnetic induction or synchronizer

Flexible Packaging Materials

PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, CPP, PE,

VMPET, VMCPP and other films and composite films

Ribbon Capacity1 ”mandrel with a maximum length of 1100 meters
Ribbon TypeType: Wax / Resin;Resin width: 20 mm (0.79 ") to 55 mm (2.17")
Ribbon Saving

Support interlaced, radial, multiple print signals, digital ribbon saving printing,

ribbon back and other ribbon saving modes;The minimum ribbon interval

between two lines of printing is not more than 0.5mm

Air SupplyMax. 6 bar/90 psi
Air ConsumptionAs low as 4 ml / print at 2.5 bar
Print Density LevelLevel 31
USB InterfaceSTD, 1 port, type B connector, USB device 2.0
USB Main InterfaceSTD, 1USB disk connection port ; USB Host 2.0, automatic detection and setting of connections
Serial PortSTD 1 port, female D-SUB 9-pin connectorDefault 9600, 8/N/1, variable baud rate and format
Ethernet InterfaceSTD 1 port, RJ-45 connector, IEEE802.3 10/100BASE-T
Hardware Interface PortInput: "Print Start" and a configurable input ; Outputs: fault, warning and 2 configurable outputs
Power SupplyInternal switching power supply module, I / P: AC90V-264V, 47/63 Hz; 150 VA
SoftwareHPRT Format Designer
Environmental Conditions

Operation: 0 to 40 ° C @ humidity 10% to 90% non-condensing

Storage: -40 to 60 ° C @ humidity 10% to 90% non-condensing

Machine Dimension

Printer: height less than 190 mm, width less than 220 mm, depth less than 236 mm

Controller: height less than 170 mm, width less than 263 mm, depth less than 190 mm

Machine WeightPrinter: less than 8 kg ;Controller: less than 5 kg
Warranty

Printer: 3 years ; Controller: 3 years ;

Thermal head: 6 months or 50 KM;Platen: 5 years
