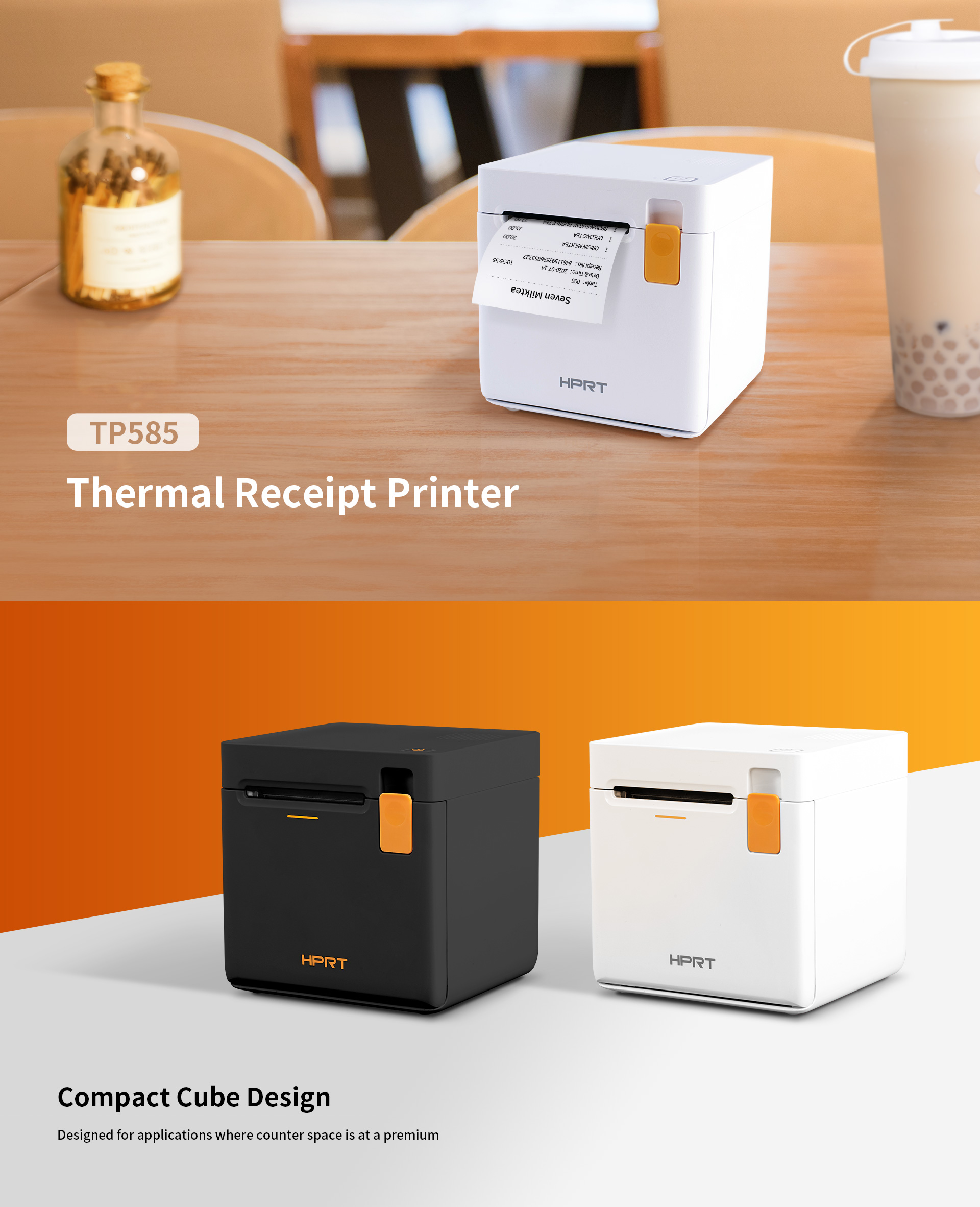

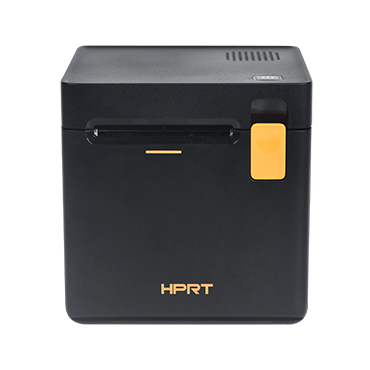

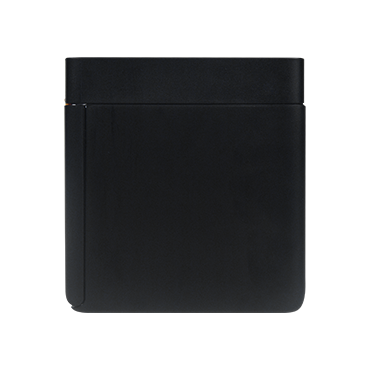

TP585-2"Thermal Receipt Printer

    •   Compact Cube Design

    •   Light and Fashion

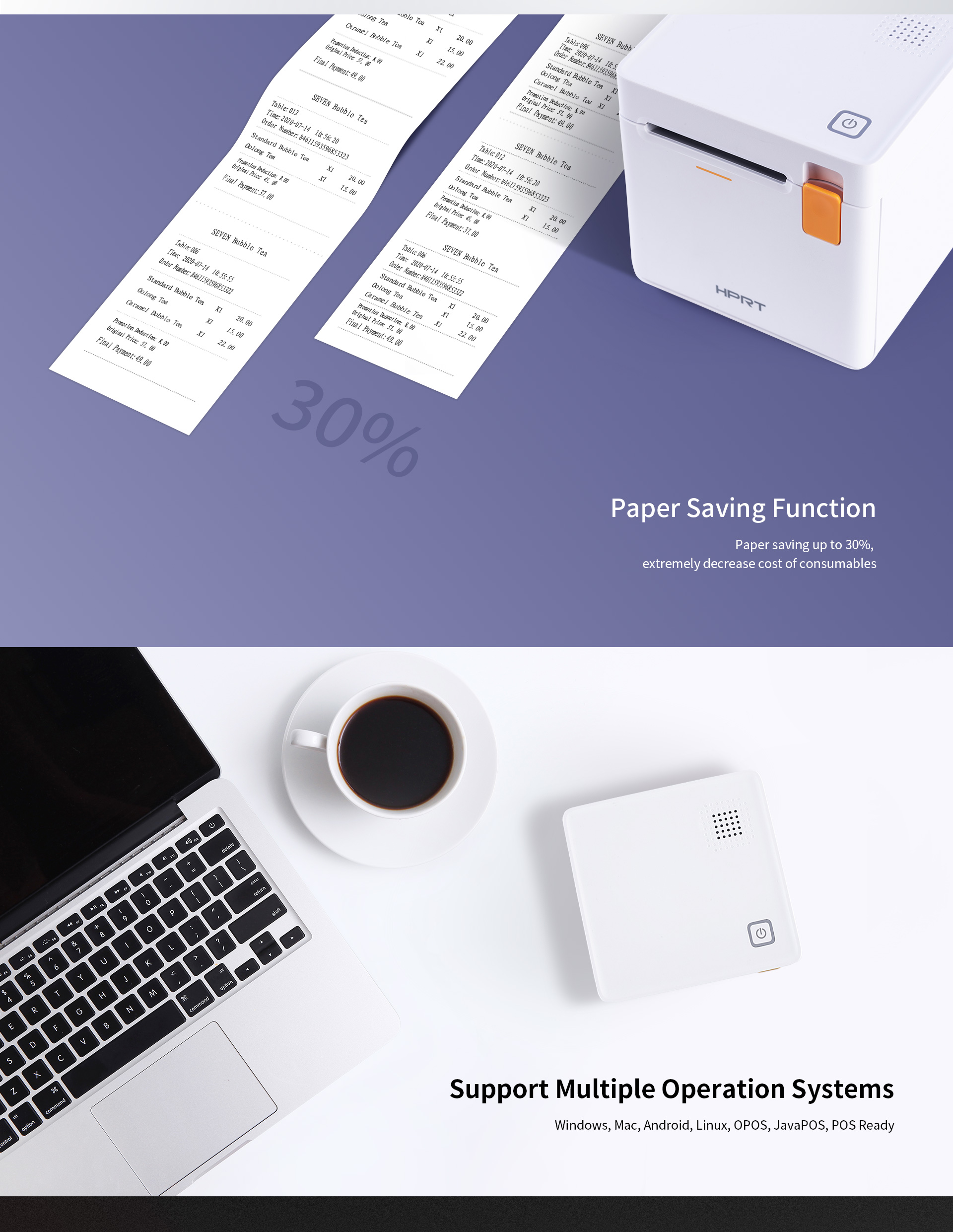

    •   Support Multiple OS

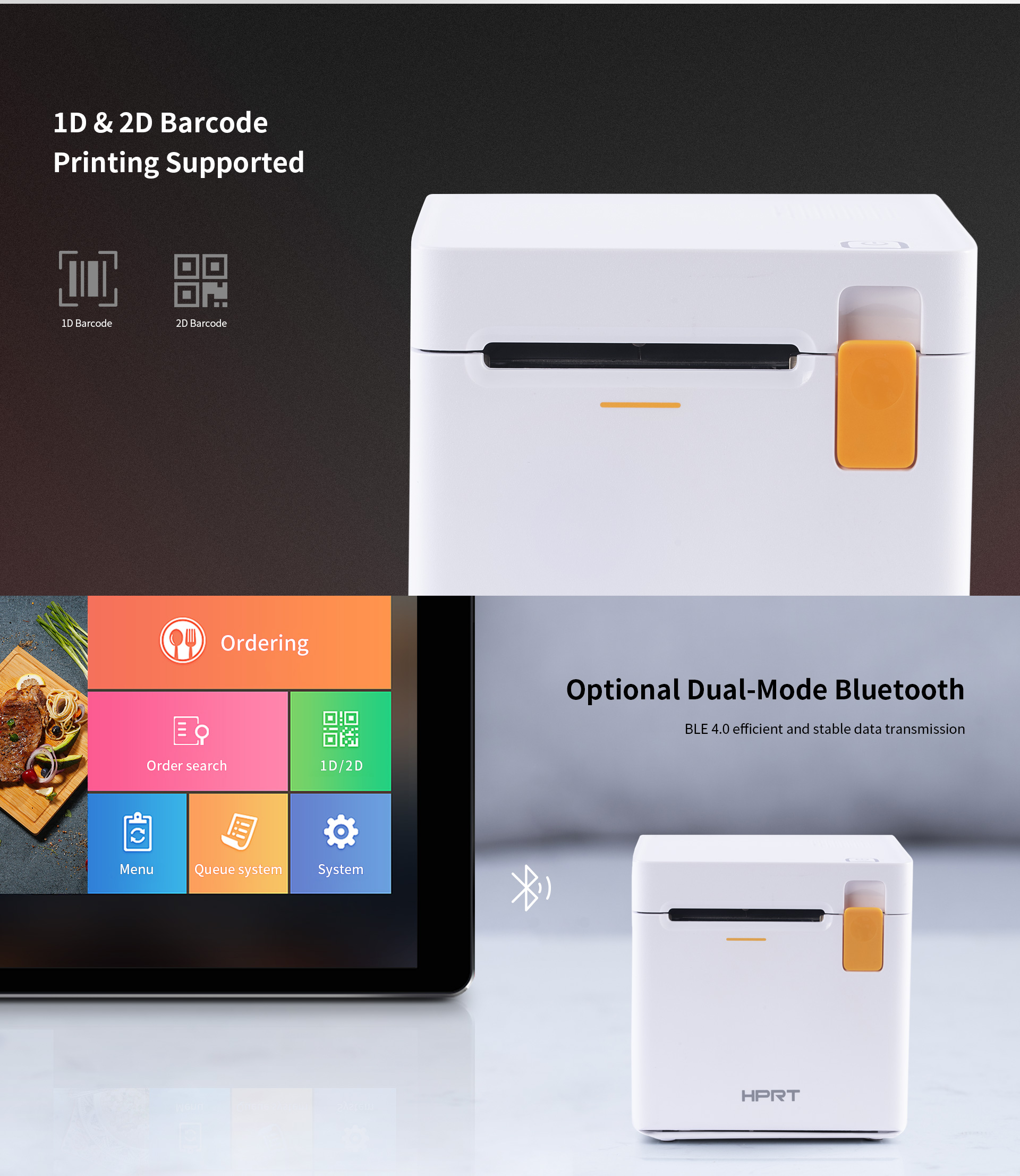

    •   Bluetooth Option

    •  Error Reprint

    •  Clear Printing

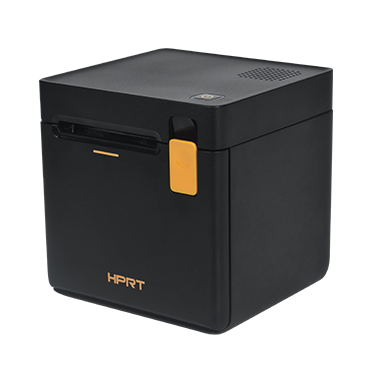

    • 1D Barcode Printing

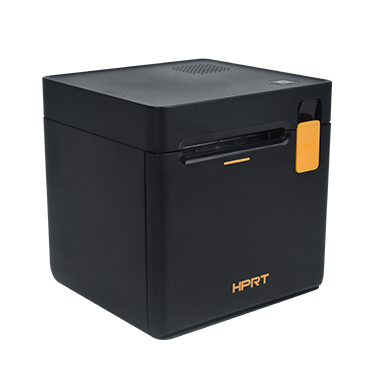

    •   2D Barcode Printing

TP585详情页-英文版-03_01.jpgTP585详情页-英文版-03_02.jpgTP585详情页-英文版-03_03.jpgTP585详情页-英文版-03_04.jpgTP585详情页-英文版-03_05.jpg



585585L
Print
Specification
Print MethodDirect ThermalDirect Thermal
Resolution203dpi203dpi
Print Speed100mm/s (Max.)100mm/s (Max.)
Print Width48mm48mm
CommandESC/POSESC/POS
Page ModeSupportDo Not Support
Paper Feeding DirectionForwardForward
Paper
Specifications
TypeThermal receipt paperThermal receipt paper
Width58mm58mm
Thickness50~80µm50~80µm
Max. Outer Diameter of Paper Roll60mm60mm
Characters
and Barcode
CharactersSimplified Chinese/Traditional Chinese/Korean/
Japanese, 47 codepages
Simplified Chinese/Traditional Chinese/Korean/
Japanese, 47 codepages
Barcode1DUPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,
CODEBAR, CODE128, CODE93
UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF,
CODEBAR, CODE128, CODE93
2DQR code, PDF417QR code
SensorOut-of-paper detection, cover opening
detection, over temperature detection, over
voltage detection
Out-of-paper detection, cover opening
detection, over temperature detection, over
voltage detection
Communication
Interface

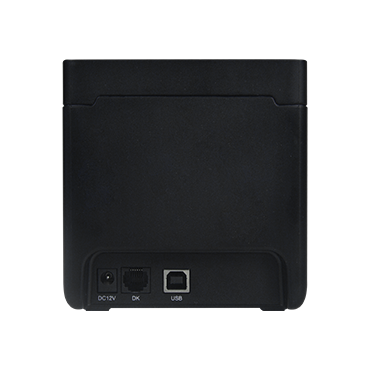

StandardB-type USB, 24V cash drawerB-type USB, 24V cash drawer
OptionaDual-mode Bluetooth、 serial interfaceDual-mode Bluetooth

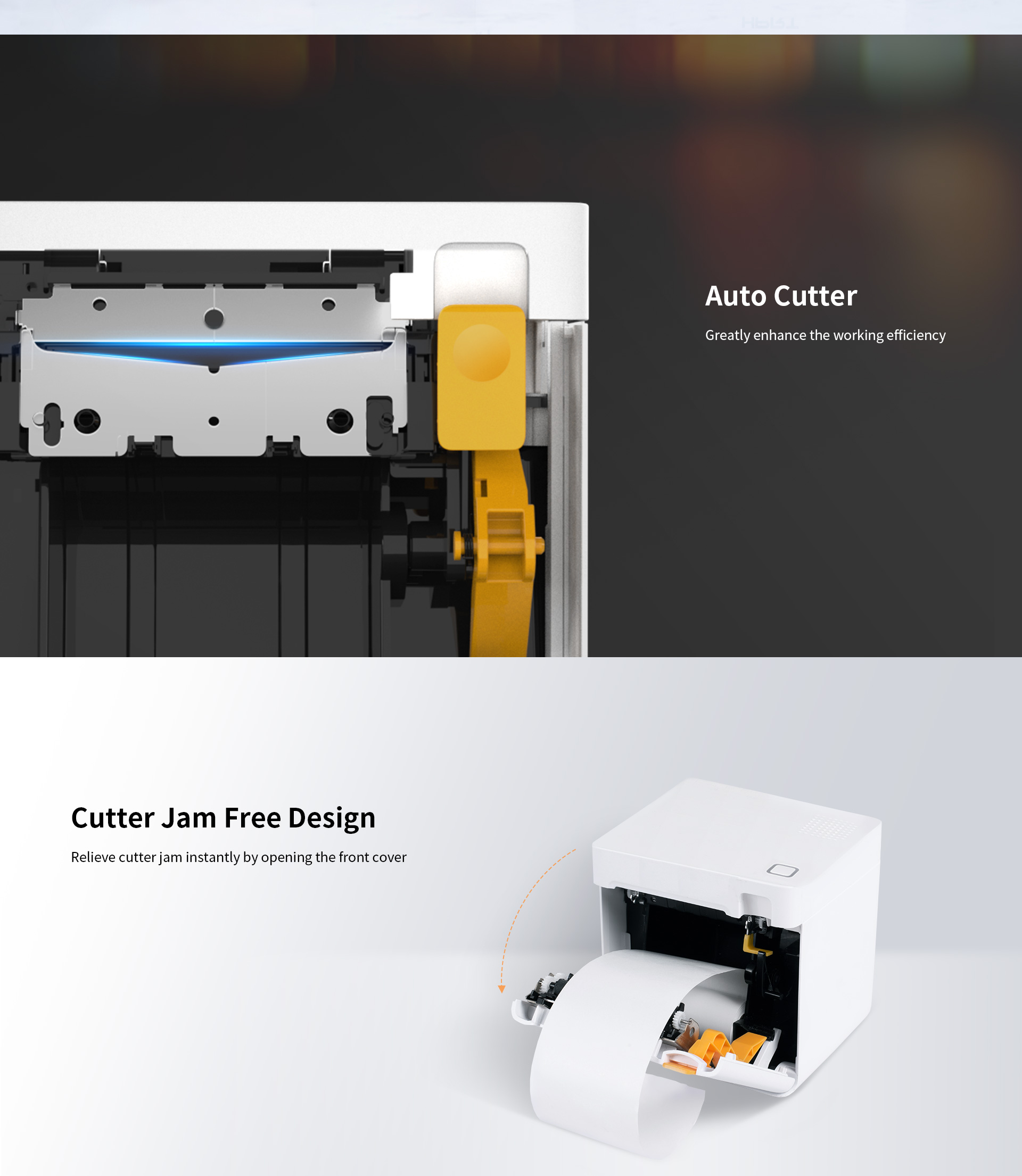

CutterTypeSlide-type dual cuttersTear Bar
Cutting MethodPartial cut
Solution for cutter jamAuto cutter retreat with opening cover
MemoryRAM2MB256KB
Flash4MB4MB
Electrical
Parameters
InputAC 100~240V, 50/60HzAC 100~240V, 50/60Hz
OutputDC 12V, 2ADC 12V, 2A
ReliabilityTPH Lifetime50KM50KM
Cutter Lifetime1 million1 million
Environmental
Requirements
Operation: 0 to 40℃@ humidity 20% to 85% non-condensing
Storage:-20 to 60℃@ humidity 5% to 95% non-condensing
Operation: 0 to 40℃@ humidity 20% to 85% non-condensing
Storage:-20 to 60℃@ humidity 5% to 95% non-condensing
Dimension
(L×W× H, mm)
110mmX106mmX114mm110mmX105mmX114mm
Safety
Standard
CCC、CECCC、CE
