DC24A-E
OVERVIEW TECH SPECS DOWNLOADS
Intelligent Thermal Transfer Overprinter
HPRT Intelligent Thermal Transfer Overprinting
Smart TTO Printer
HPRT soft packaging overprinter

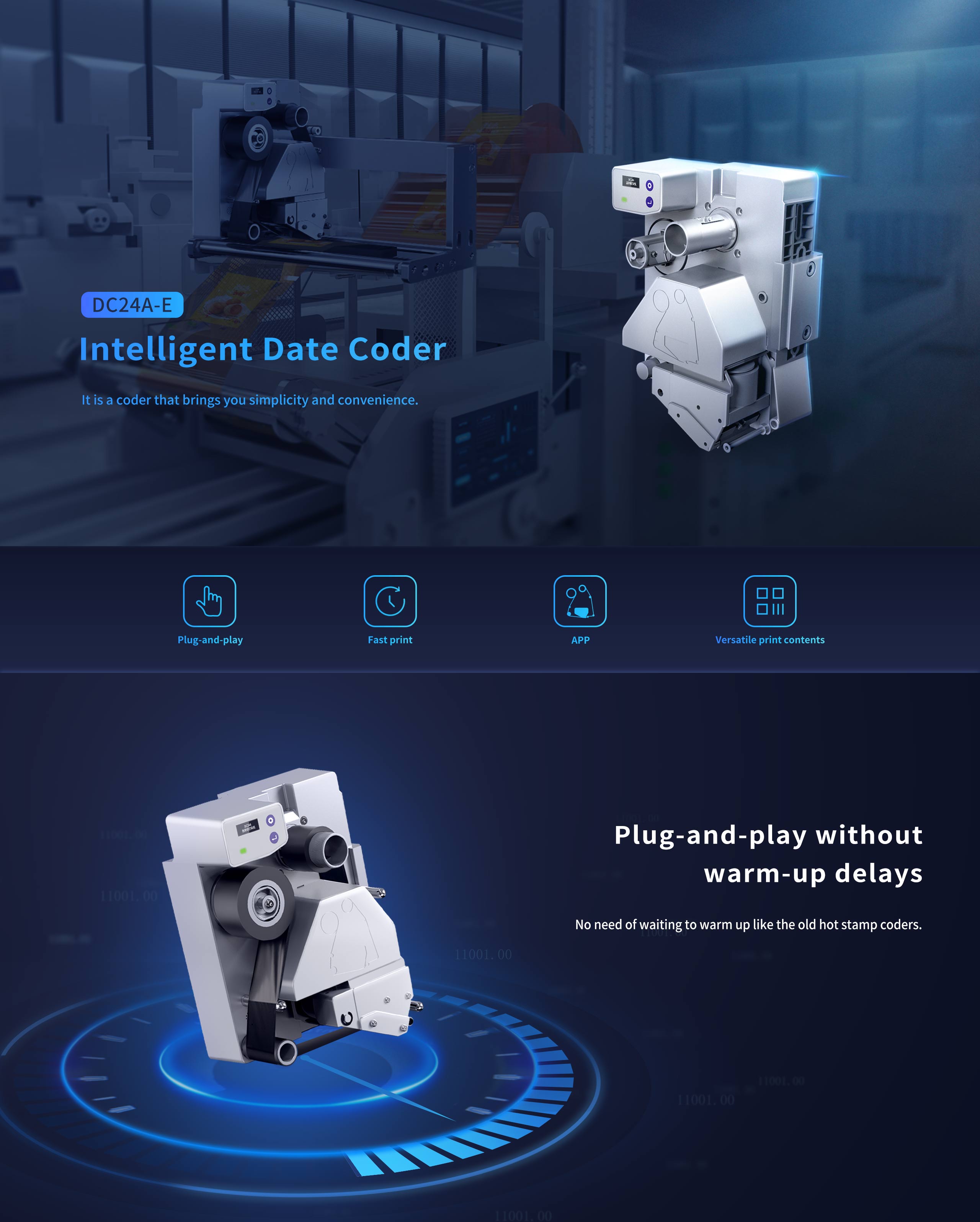

Intelligent Date Coder

•  Start and play immediately without heating

•  High speed and clear printing

•  Low print cost
•  Content customization and diversification

•  Able to freely edit 1Dcode, 2D code, serial number,

    any Chinese and English characters, numbers,

    punctuation, etc. in the printing area

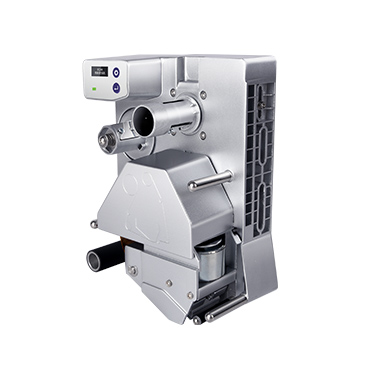

Intelligent Thermal Transfer Overprinter

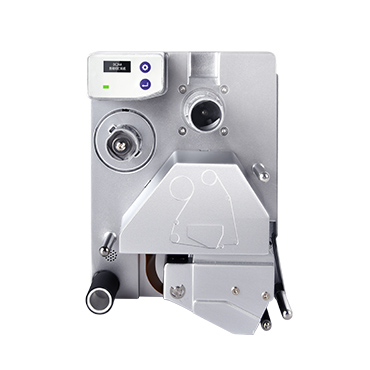

HPRT Intelligent Thermal Transfer Overprinting

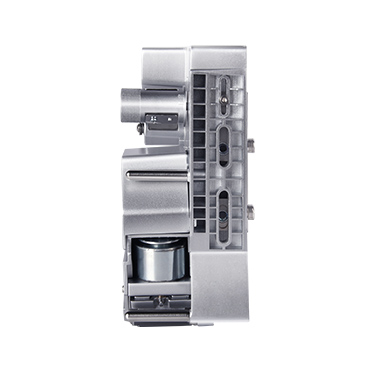

Smart TTO Printer

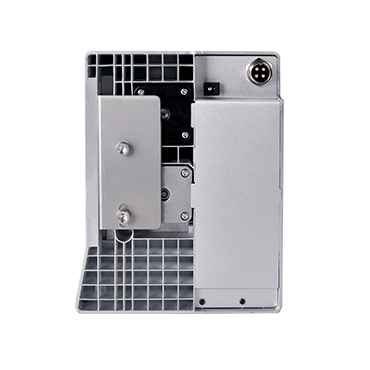

HPRT soft packaging overprinter

Intelligent Date Coder

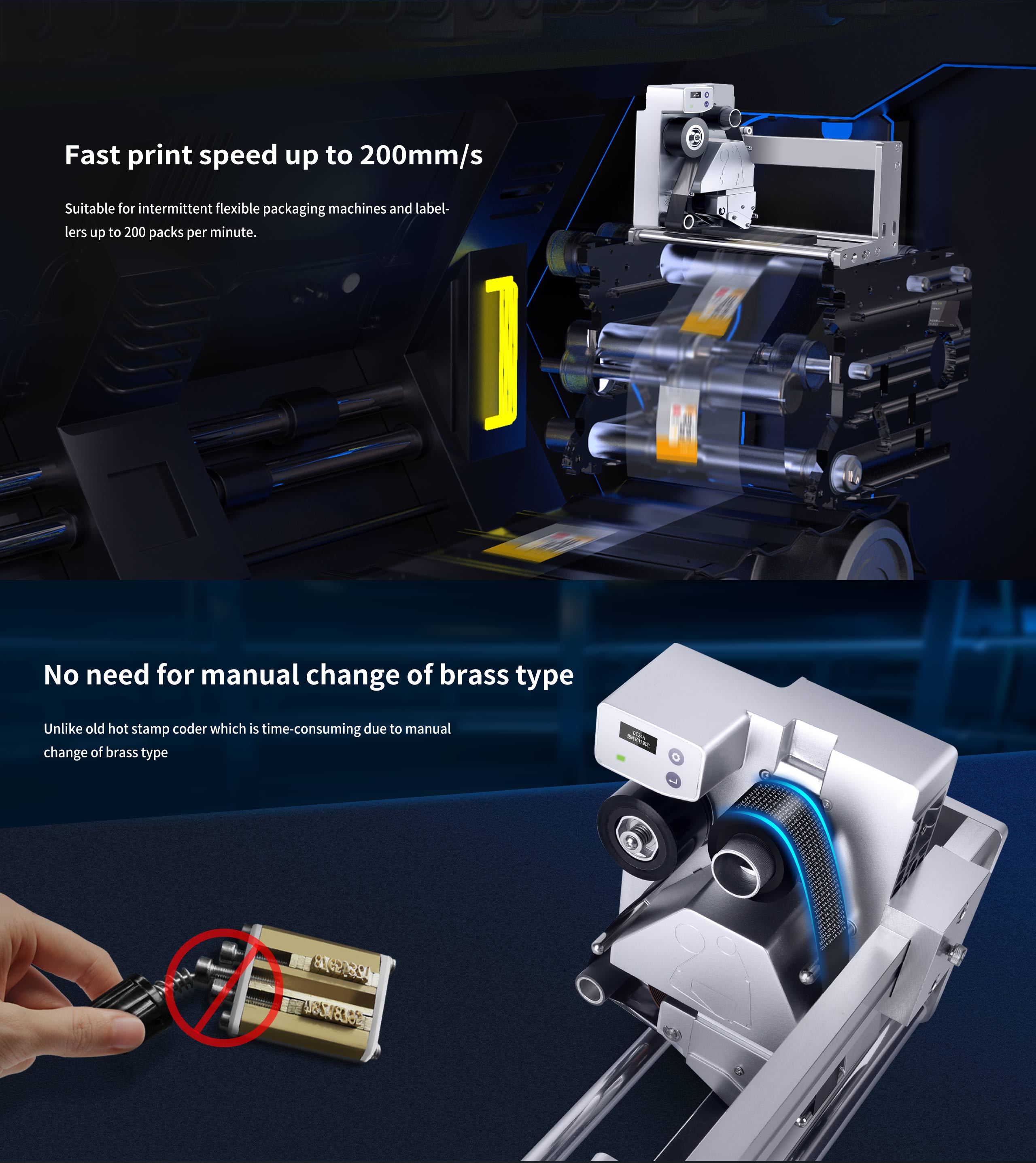

Date Coding Machine

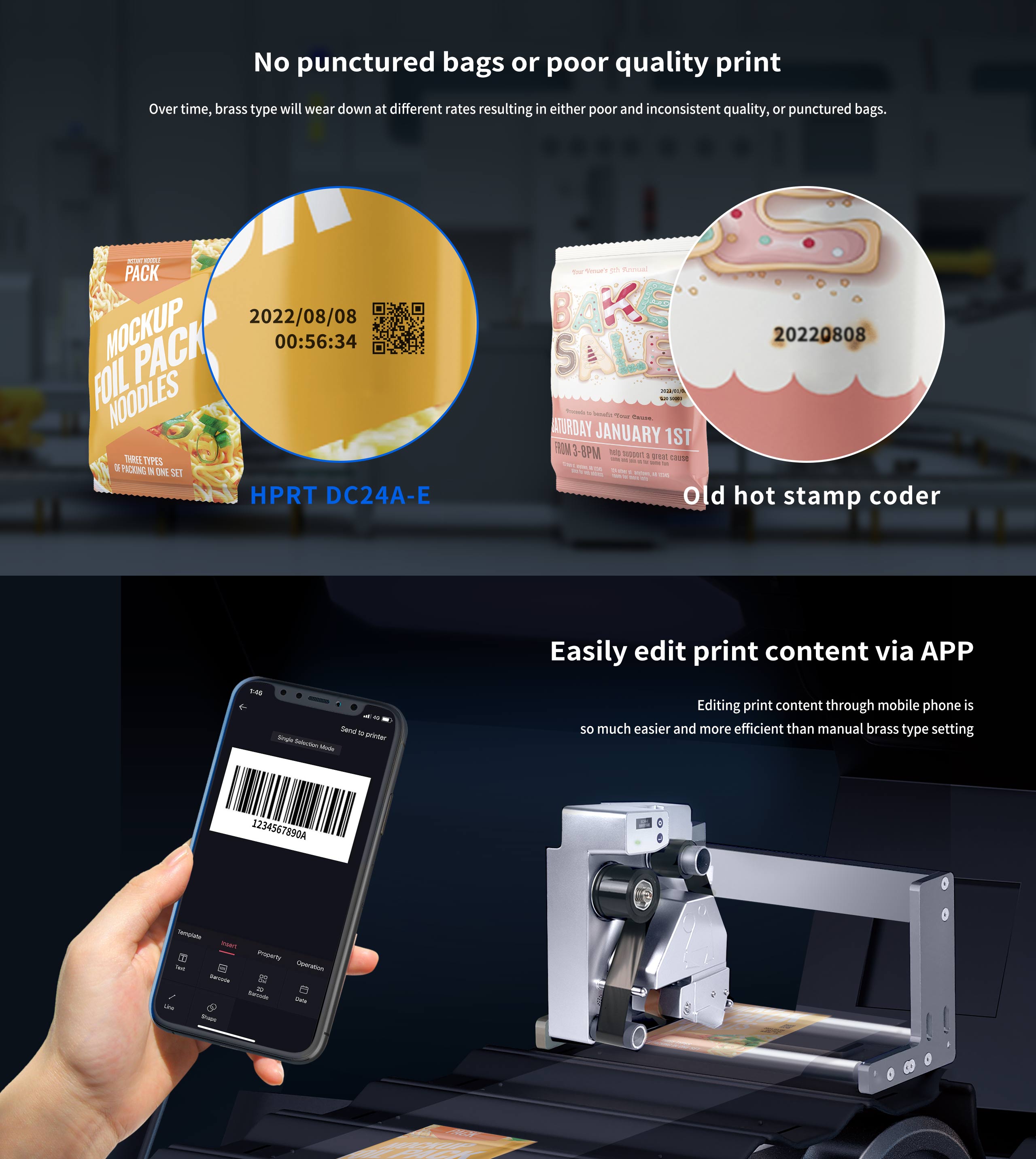

print date

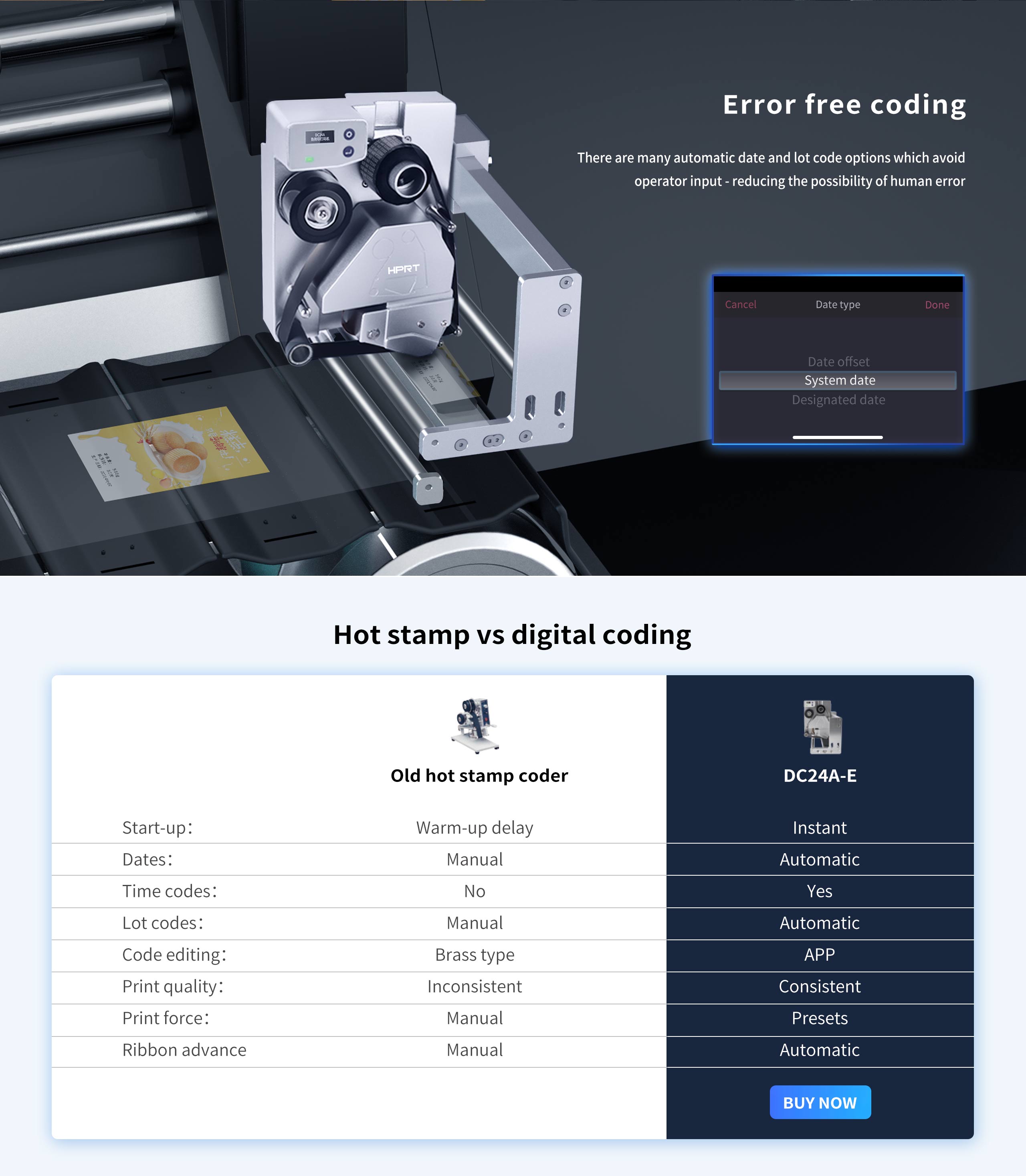

error free coding

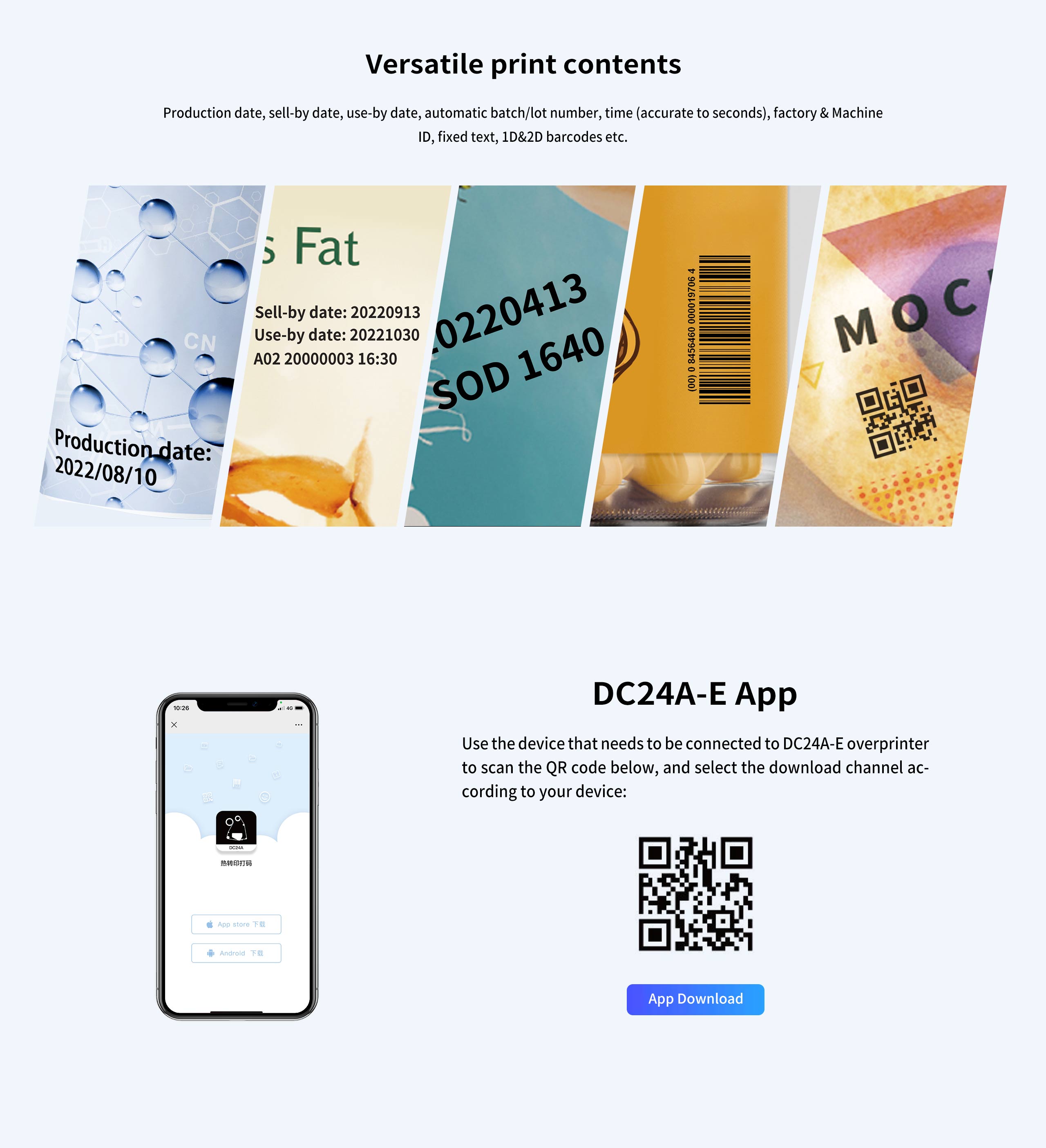

versatile print contents

ItemsSpecifications
Code Length15mm
Code Width24mm
Print MethodThermal transfer
Print Area24mm*15mm
Resolution203dpi(8 dots/mm)
Print Speed20mm/s-200mm/s
Character SizeVector font can be enlarged (BOLD)
Character TypeChinese and English characters, numbers, punctuation
Coding Direction0° or 180°
Printing Time100ms (minimum residence time of packaging film)
Applicable ScopeApplicable to vertical packaging equipment (such as vertical packaging machine, labeling machine)
Applicable Equipment Capacity200 packets/min (print fixed content with a length of 15mm)
Coding TypeBar code: 1D code, 2D code
Production date, shelf life and sales period
Automatic batch number and batch code
Time (accurate to seconds)
Factory number
Machine number
Custom text
External InputSensor signal output: NPN/PNP (DC 12V-24V), switch-type sensor
External OutputBorderless contact
Ribbon Length200m
Ribbon TypeWax/Resin, Resin
Type of Flexible Packaging MaterialVarious films and composite films such as Pvdcpet, PE, NY, CPP, OPP, BOPP,BOPET, BOPA, PE, VMPET, VMCPP, etc.
Working Temperature and Humidity5- 40, 10%-90%RH, non-condensing
IP ClassIP40
Power SupplyAdapter input: AC 100-240V±10%, 50-60Hz, maximum output current 4A
I/O InterfacePrint signal, fault relay, 0V/COM, DC 24V
