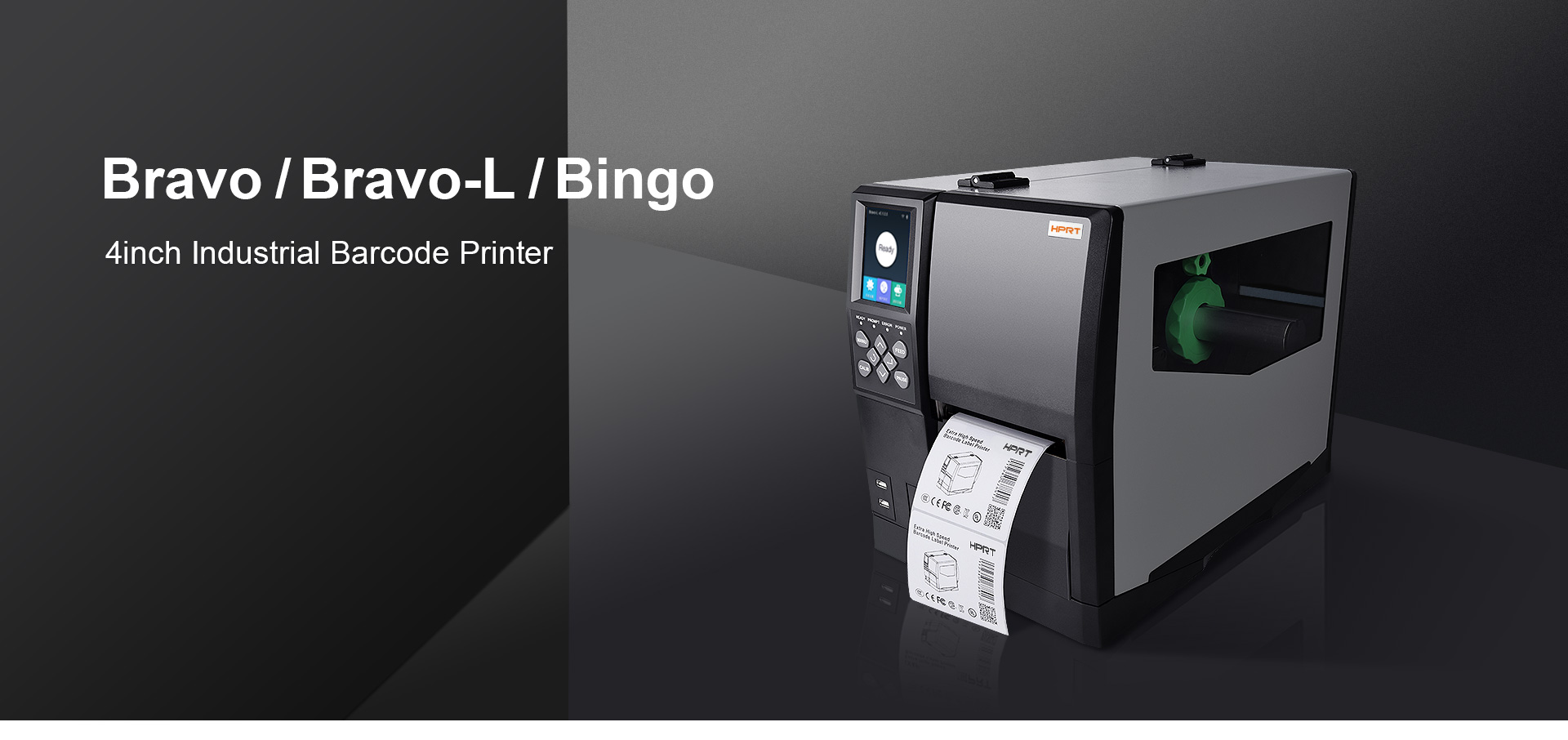

Bravo/ Bingo/ Bravo-L
OVERVIEW TECH SPECS DOWNLOADS

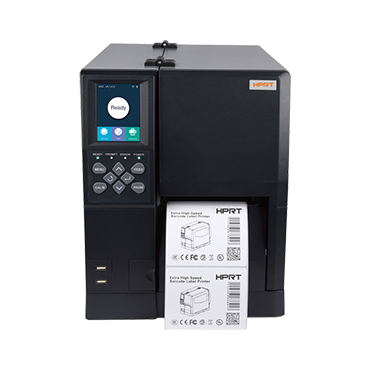

Industrial Barcode Label Printer
Industrial Barcode Printer
Digital Thermal Transfer Printer
Industrial Label Printer

Industrial Barcode Printer

• High-speed and mass printing for big labels

• Accurate and stable printing for small labels

• Color display screen for visualized operation

• Upgraded touch screen (only available for Bingo)

• Abundant optional accessories

• Up to 600 meters ribbon length

Industrial Barcode Label Printer
Industrial Barcode Printer

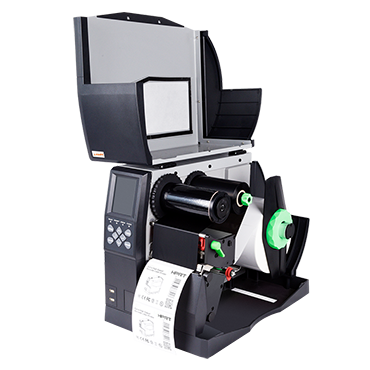

Digital Thermal Transfer Printer

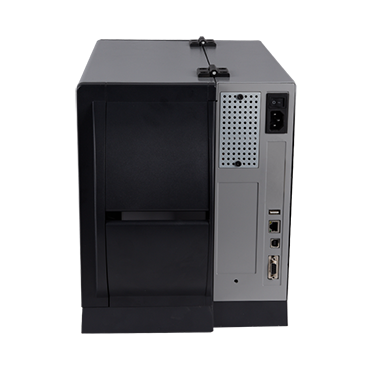

Industrial Label Printer

HPRT Industrial Grade Label Printer Bravo-L

HPRT Bravo-L

Industrial Grade Label Printer Bravo-L

HPRT Industrial Thermal Transfer Printer

HPRT Industrial Label machine

Industrial Thermal Transfer Printer interface

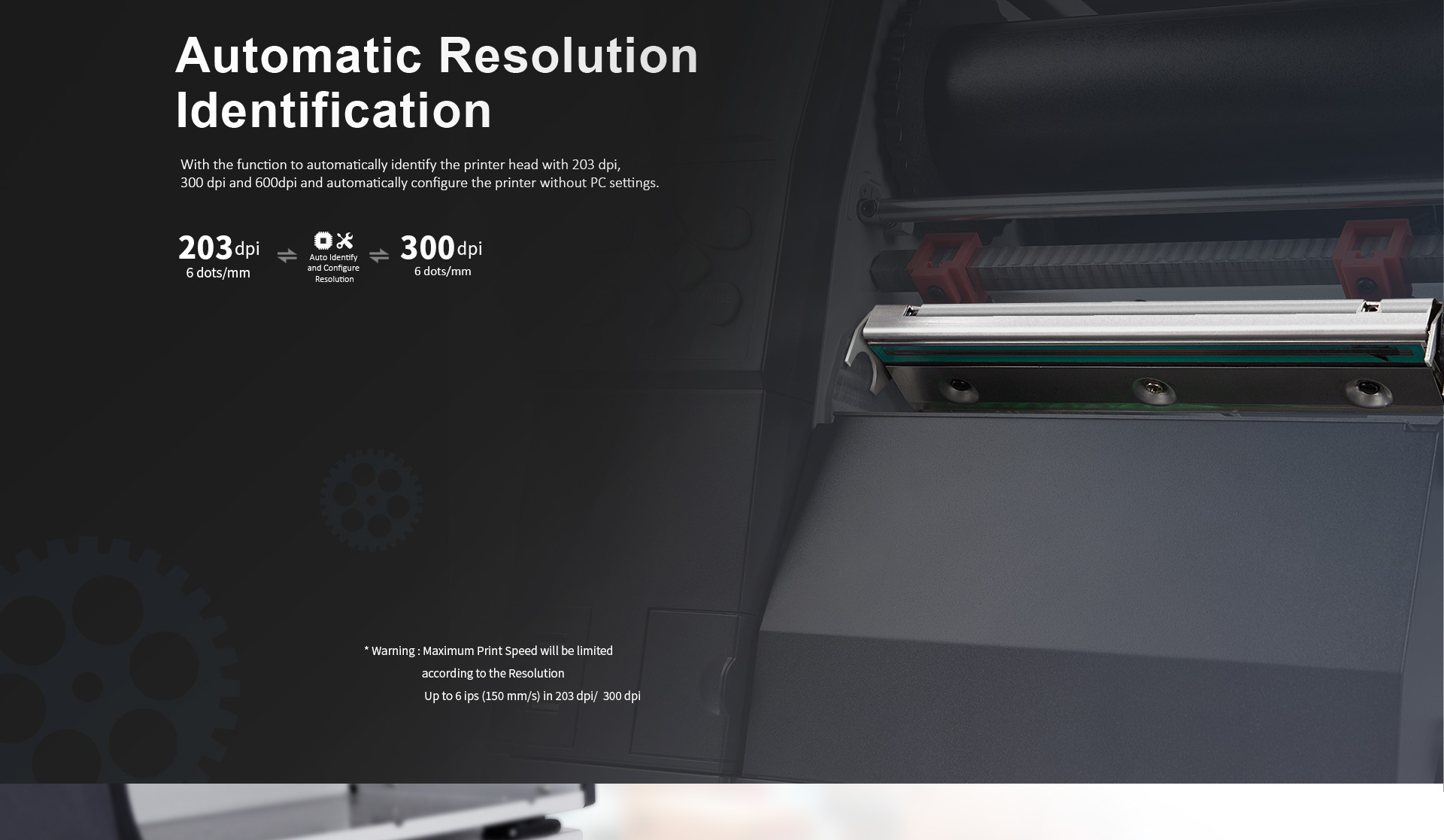

Automatic resolution identification label printer

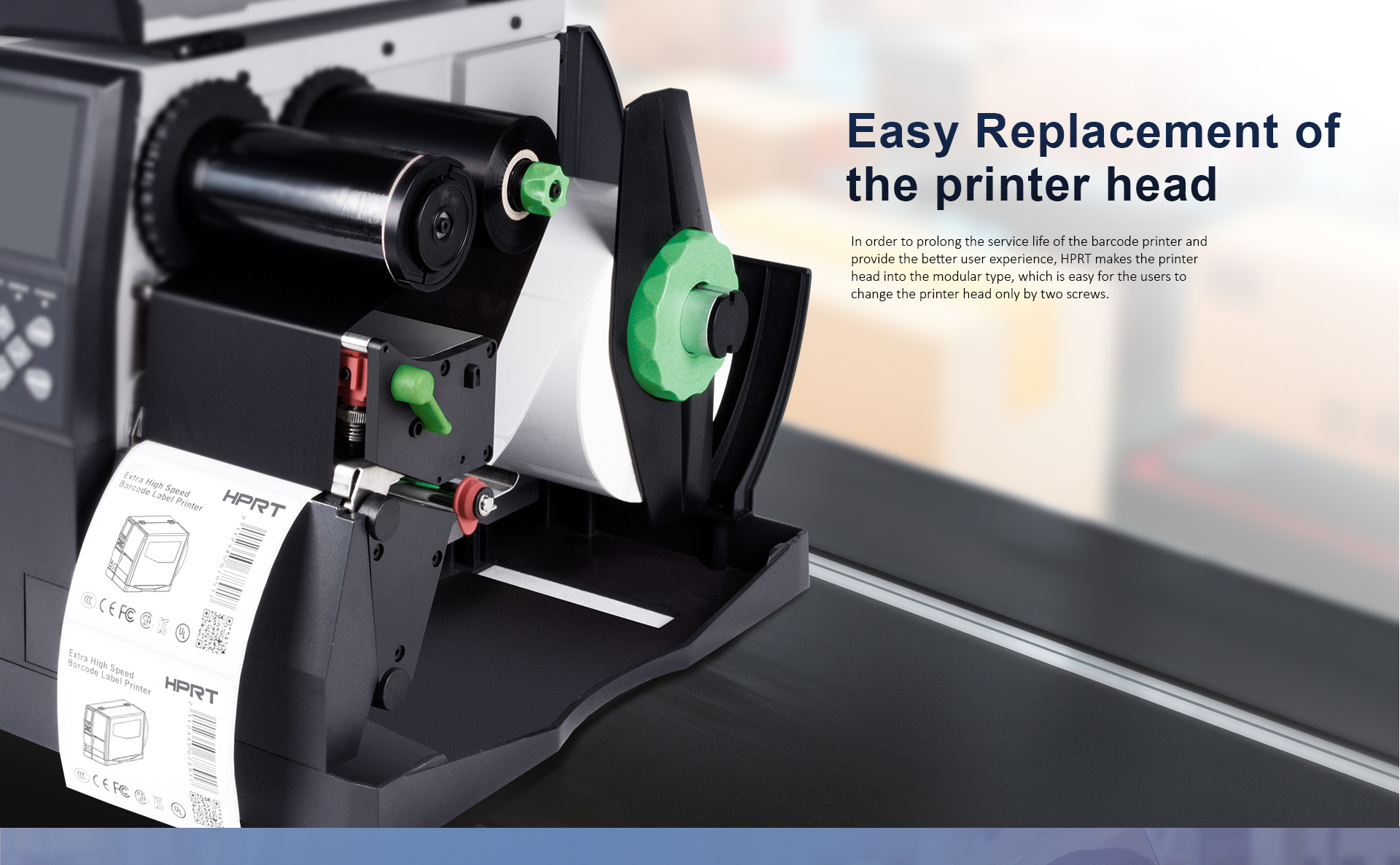

HPRT Bravo-L Industrial Label Printer Printer Head

Industrial Barcode Label Printer

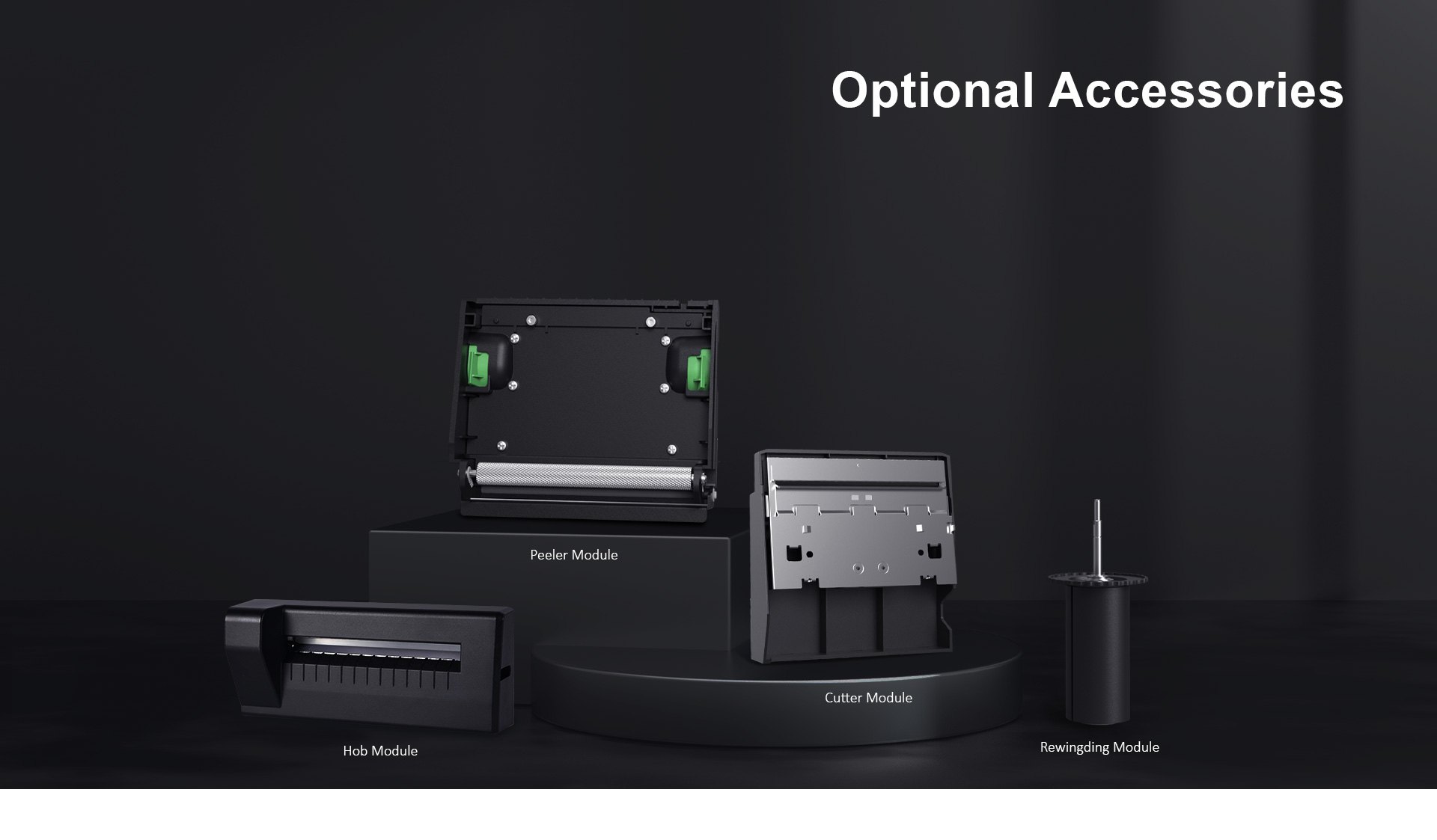

hprt optional accessories

printer applied fields

ModelBravoBingo
Bravo-L
Printing MethodThermalTransfer /  Direct Thermal
Resolution203 dpi/8 ips203 dpi/14 ips203 dpi/6 ips
Max.Printing SpeedOptional 300 dpi/6 ipsOptional 300 dpi/8 ips or 600 dpi/4 ipsOptional 300 dpi/6 ips
Max.Printing Length2286mm(203 dpi)
1524mm(300 dpi)
Max.Printing Width104mm
PictBridgeZPL+DPL+EPL+TSPLZPL+DPL+EPL+TSPLZPL+DPL+EPL+TSPL
Printing Media TypeContinuous paper, seam label paper, Black Label paper, punched paper, environmental protection thermal label paper, special coated paper, synthetic fiber label paper, textile belt
Printing Media Diameter

1.5 inches/3 inches inner diameter

Maximum 10-inch outer diameter
Printing Media Thickness 80μm~250μm
Printing Media  Width25mm~120mm
Ribbon TypeWax, Resin, Wax and resin mixture
Ribbon Core Diameter1 inch
Ribbon Width30mm~110mm

Ribbon

 Length

Standard
450m450m450m
Opional600m600m600m
Sensor ConfigurationPrint mechanism off detection, Ribbon off detection, Media off detection, thermal over-temperature detection, Seam label/punched label/Black label positioning detection, motor over-temperature detection

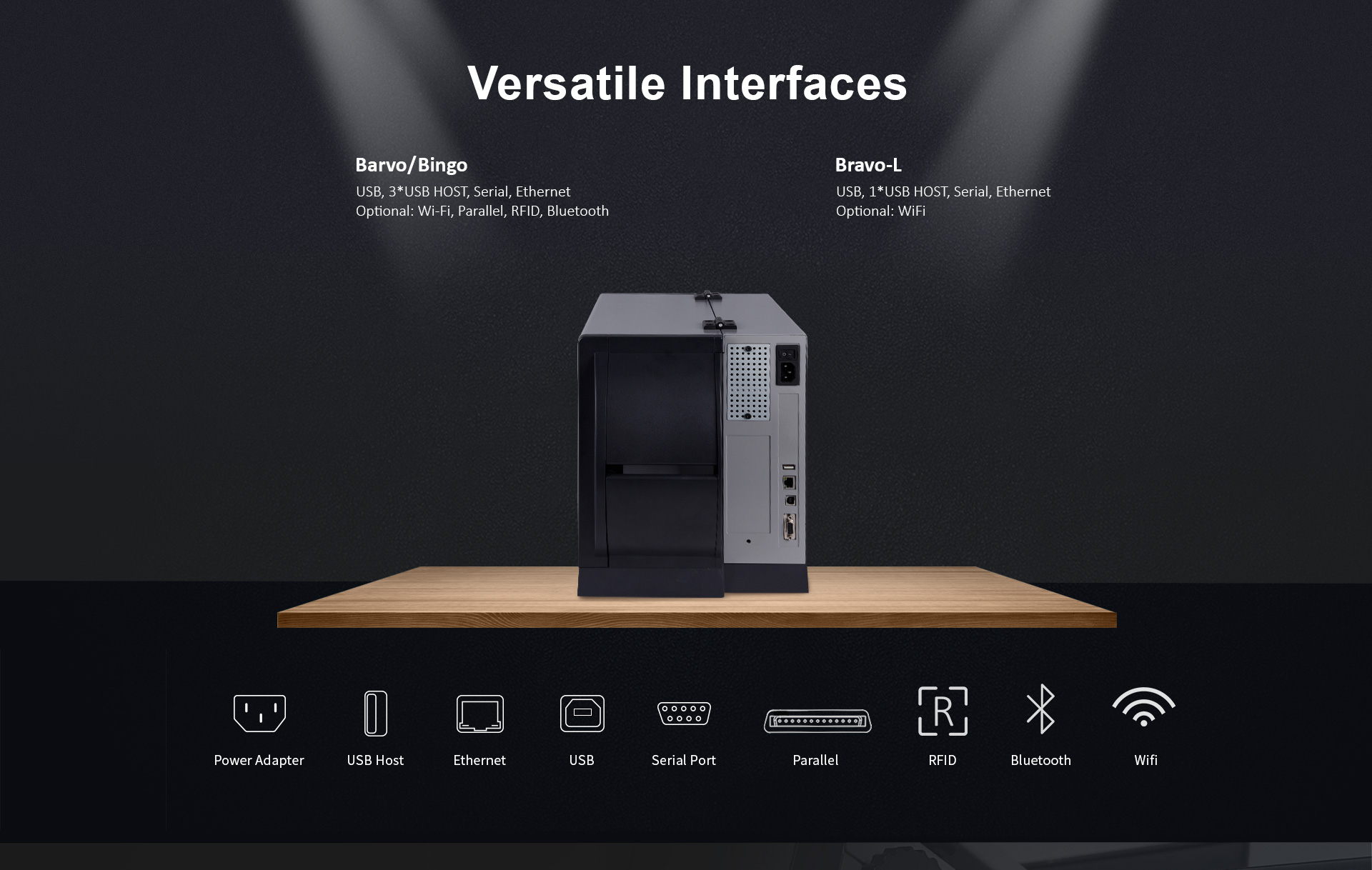

Standard   Interfaces

USB Type B+3*USB HOST+Serial+EthernetUSB Type B+3*USB HOST+Serial+EthernetUSB Type B+USB HOST+Serial+Ethernet
Optional InterfacesWi-Fi, Parallel, applicator interface, RFID(UHF) reader/encoder
Wi-Fi, Parallel, applicator interface, RFID(UHF) reader/encoderWi-Fi
RAM512 MB512 MB32 MB
Flash256 MB256 MB128 MB
Operation Panel4 status lights, 8 buttons4 status lights, 6 buttons4 status lights, 8 buttons

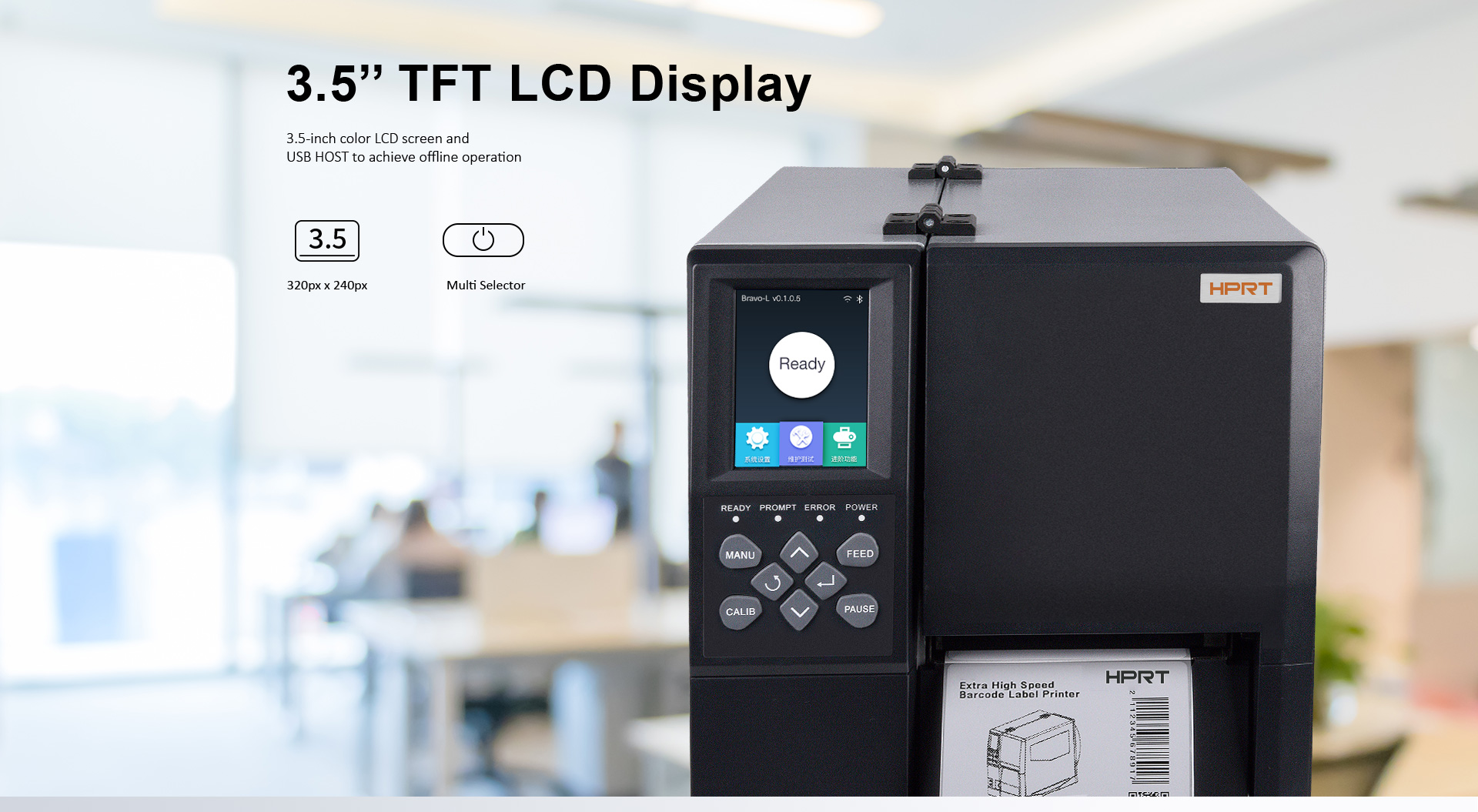

3.5-inch colour non-touch display3.5-inch colour touch display3.5-inch colour non-touch display
Optional AccessoriesPeeler, cutter, label liner rewinder

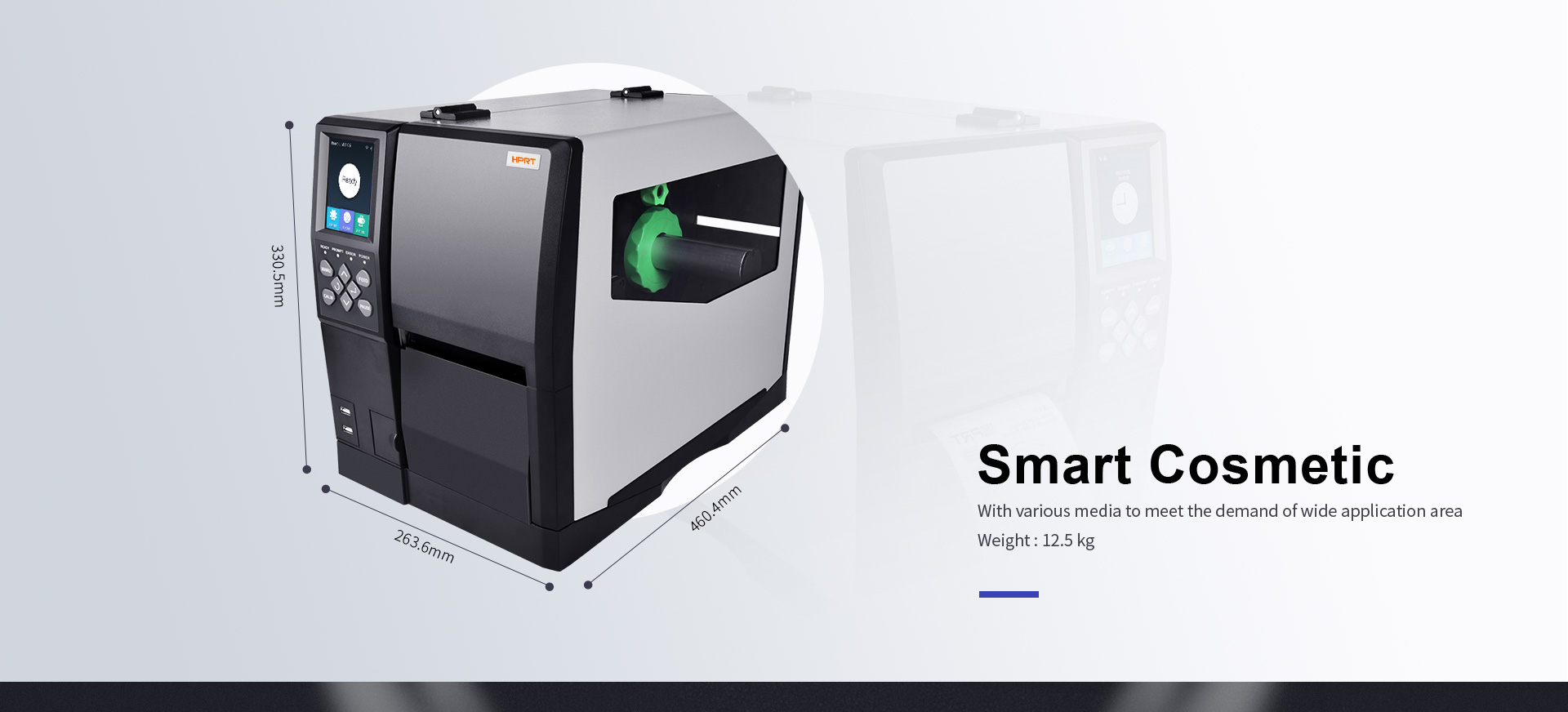

Dimension(L*W*H)460.4x263.6x330.5 mm
Weight12.5 kg
Security SpecificationCE, FCC, CCC, CB, UL, RoHS, WEEE



Drivers and Manuals

Stay up-to-date with the latest downloads for your HPRT Printer
