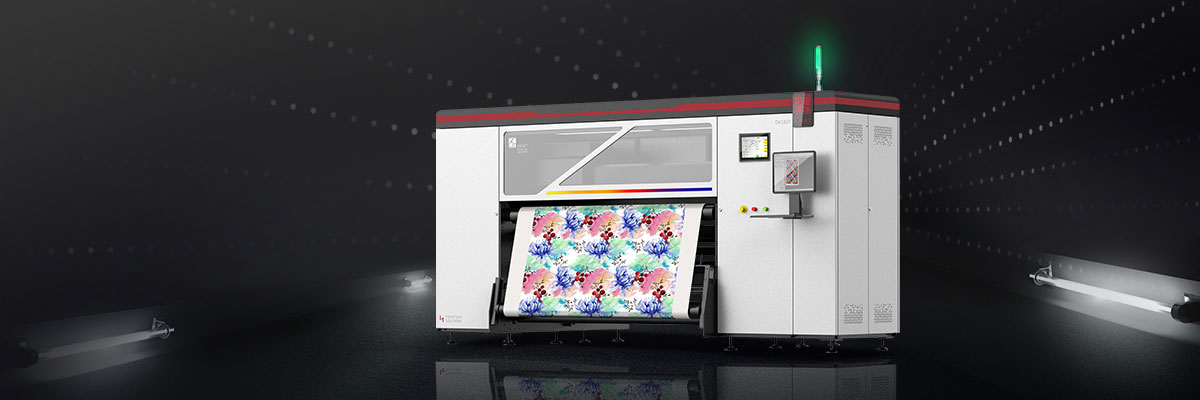

High-Speed Roll to Roll Dye Sublimation Digital Textile Printer - HPRT DA182T Series
8 Kyocera industrial print heads, print speed up to 650㎡/h
The dye sublimation printing process improves the printing speed, gets the pattern splicing coherent and exquisite, and enables the color more gorgeous. The excellent printing quality will enhance the consumer experience, and empower the industry users to achieve win-win situation in the quality and cost.
Superior print head for higher productivity
The huge daily order volume requires the equipment with the higher productivity. DA182T series textile printer adopts industrial high-speed Kyocera print head, and maximizes the productivity of the print head through the special combination and the control system, which improves the printing efficiency in an all-round way.
Combination of the quality and speed, high definition output
Through unique drive design and ink supply system design, DA182T series printing machines can use disperse ink, high temperature disperse ink, etc. to realize more accurate ink droplet injection, bringing out image-level printing quality.
Shown with ingenuity, easy to operate
The design of automatic cleaning system and moisturizing system can reduce the risk of print head blockage, which will improve the output stability of the equipment, making it possible for only one person to operate the machine.
Reduce printing cost, impeccable
The large-capacity floor-mounted ink supply system can greatly reduce the ink replacing frequency, and can support a minimum of 31g/㎡ of thin paper printing, which enables to reduce the material loss and the printing cost, from the proofing to the mass production.
|Name||High-speed Roll to Roll Dye Sublimation Digital Textile Printer|
|Print head||Kyocera Print head 8pcs|
|Max. Print Width (mm)||1850|
|Max. Paper Width (mm)||1900|
|Max. Diameter of Internal|
Rewind and Unwind Paper Holder (mm)
|Φ500(400Kg/1,000m roll) or Φ1000(1200Kg/10,000m roll) optional|
(Multiple modes available)
|High speed mode 1 @360*600DPI|1pass：650|
|General mode 1 @508*600DPI|1pass：540|
|General mode 2 @600*600DPI|1pass：480|
|Quality mode 1 @508*1200DPI|2pass：270|
|Quality mode 2 @600*1200DPI|2pass：240|
|High precision mode 1 @508*1200DPI|3pass：180|
|High precision mode 2 @600*1200DPI|3pass：160|
|Color Mode||4-color mode|
|Ink Type||Disperse; high temperature disperse|
|Ink Color||C, M, Y, K|
|Print medium||Sublimation paper/Grainy paper/Film paper/Wallpaper|
|Drying method||Hot air with constant temperature|
|RIP System||HPRT PRINT,Neostampa (Optional)|
|Dimensions: L*W*H (mm)||3860*1844*1910|
|Weight (kg)||2500(Without packing box)|
|Power Supply||Printer: AC380V| three-phase five wire system| 28A(6KW)|50Hz/60Hz|
|Drying machine: AC380V| three-phase five wire system|26A(16.8KW)|50Hz/60Hz|
|Compressed Air Supply||0.6MPa|1m³/hr (Dry, oil-free and vapor-free)|
|Operating Humidity||45%-75% (Non-condensing)|
