• Built-in Web server for custom Web applications
• Built in Arm-Linux platform to enable the function of peripheral hubs
• Connect to multiple devices and cloud servers
• Print from web-based apps with HiPOS SDK (Windows, iOS and Android)
• Enables Cloud services without the need of legacy POS integration, no driver needed

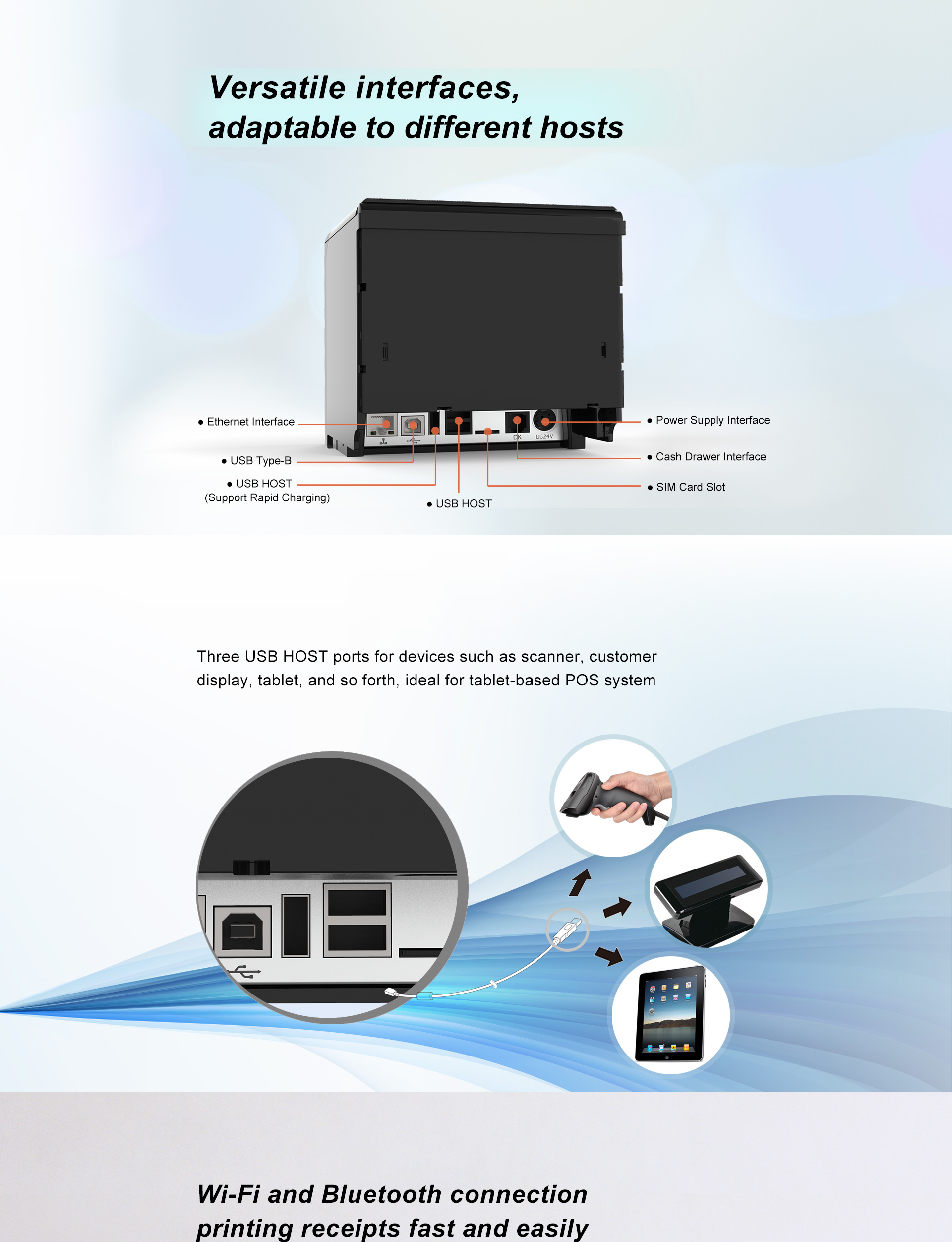

• Three USB host ports for devices such as scanner, customer display, tablet, and more, ideal for tablet-based POS system
• One fast charging USB host port keeps you out of the concern of Tablet battery life
• Optional WiFi & Bluetooth dongle
，
| Printing | Print Method | Direct Thermal | |
| Resolution | 203 dpi | ||
| Print Speed | Max. 260 mm/s | ||
| Print Width | Max. 80 mm | ||
| Page Mode | Support | ||
| Media Type | Paper Type | Thermal Receipt Paper | |
| Paper Width | 58/80 mm | ||
| Paper Thichness | 50～130 um | ||
| Roll Paper Diameter | 83 mm | ||
| Scanning Device | Option | 2D Scanner | |
| Programming Language | ESC/POS,XML | ||

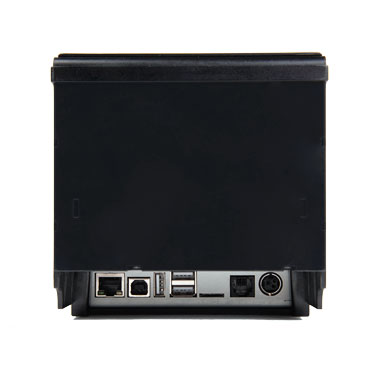

| Interfaces | Standard | Ethernet，USB Type-B，3*USB HOST，Drawer，micro-SIM Slot | |
| Option | Wi-Fi，4G | ||
| Graphics | Type | Auto Cutter | |
| Paper Cut | Partial cut or Full cut | ||
| Sensors | Standard | Paper out Detector, Head up Detector, TPH Over Heat Detect | |
| Option | Black Mark Detector，Paper near end sensors | ||
| Processor & Memory | CPU | ARM9+ARM Cortex-m4 | |
| Paper | 32 MB | ||
| FLASH | 256 MB | ||
| Power Supply | Input | AC 100V ~ 240V, 50/60Hz | |
| Output | DC 24V, 2A | ||
| Environment | Operating | 0°C ~ 45°C, 10% ~ 85% R.H, no-condensation | |
| Storage | -20°C ~ 60°C, 10% ~ 95% R.H, no-condensation | ||
| Physical Characteristics | Dimensions | 137.3(L)×132(W)×130.5(H) mm | |
| Weight | 1.35 kg | ||
| Reliability | TPH | 150 km | |
| Cutter | 2 million cuts | ||
