Delight/Delta
OVERVIEW TECH SPECS DOWNLOADS

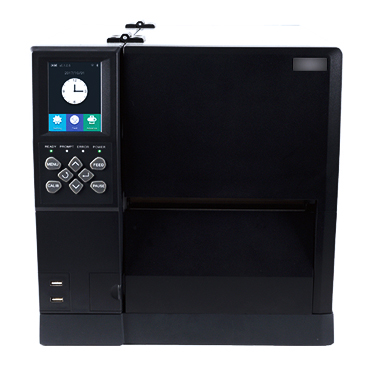

Industrial Label Printer

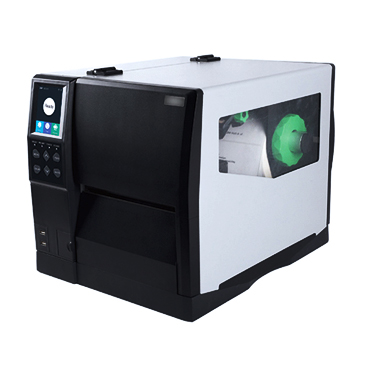

Thermal Transfer RFID Industrial Printer

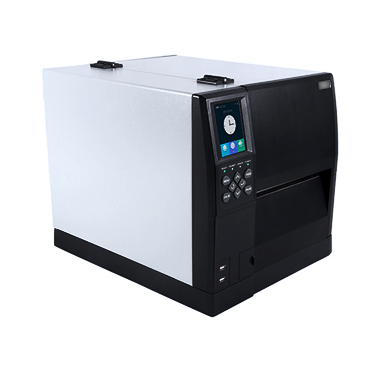

High Speed Barcode Printer

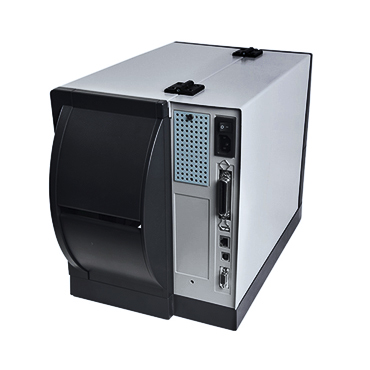

Packaging Label Printer

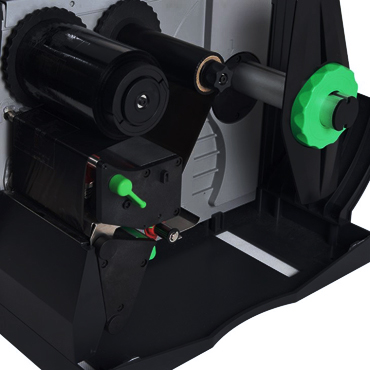

Thermal Transfer Industrial Printer

6" Thermal Transfer Industrial Printer

•  Supports more than 10 kinds of printing consumables, and has a wide range of applications

•  Equipped with 3.5 inch color tough screen for easy operation

•  Optional Wi-Fi

•  Smart Printing function to support label format input and print without PC

•  Easy operation and maintainance, and the TPH module is easily replaced and configured automatically.

•  Supporting print media 3 inch inside diameter and 8 inch outer diameter

•  Multiple communication interfaces: USB type B, USB Host, Ethernet, Serial port


Industrial Label Printer
Thermal Transfer RFID Industrial Printer
High Speed Barcode Printer
Packaging Label Printer
Thermal Transfer Industrial Printer

.

ModelDelight  Delta
Printing MethodDirect Thermal/Transfer Thermal
Resolution203 dpi/7 ips203 dpi/12 ips
Max.Printing SpeedOptional 300 dpi/5 ipsOptional 300 dpi/10 ips
Max.Printing Length3121mm(203 dpi)
1387mm(300 dpi)
Max.Printing Width168mm
ProtocolZPL+DPL+EPL+TSPL
Media TypeContinuous paper, Gap, Black mark Sensor, Punched Hole Label, ECO Thermal Labels, Coated Semi-gloss Art Label, PP/PVC/PET/BOPP Film Label, Synthetic Paper Label, Vinyl, Textile ribbon
Media Core Diameter

3"(ID.); Max.8"(OD.)

Media Thickness 80μm~254μm
Media  Width50.8mm~175mm
Ribbon TypeWax, Wax/Resin, Resin
Ribbon Core Diameter3 inch1 inch
Ribbon Width58mm~172mm
Ribbon Length450m450m
600m600m
Sensor Print Frame Open Detector, Ribbon End Detection, Media End Detection, TPH Temp Detection, Power Temp Detection, Motor Temp Detection

Standard Interfaces

1 USB Type-B, 3 USB HOST, 1 RJ45, RS232(9-pin)
Optional Interfaces36-pin Parallel Port, D-Sub(15-pin), Wi-Fi
RAM512 MB
Flash256 MB
Display3.5-inch Colour Display3.5-inch Colour Touch Screen
Optional & AccessoriesPeeler Module,  Cutter Module, External Label Roll Holder
Dimension(L*W*H)460.4x322x330.5 mm
Weight14.5 kg
Security SpecificationCE, FCC, CCC, BIS, CB, UL, RoHS, WEEE
