LPG4
OVERVIEW TECH SPECS DOWNLOADS
Thermal Label Printer
Thermal transfer Label Printer
Small Thermal Transfer Printer

4" Thermal transfer Label Printer

•  Thermal transfer technology
•  Big capacity of ribbon
•  Adjustable paper width
•  Low printing noise

Thermal Label Printer
Thermal transfer Label Printer
Small Thermal Transfer Printer

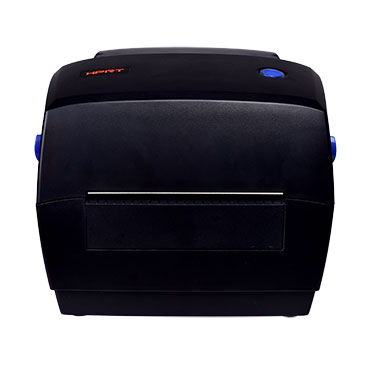

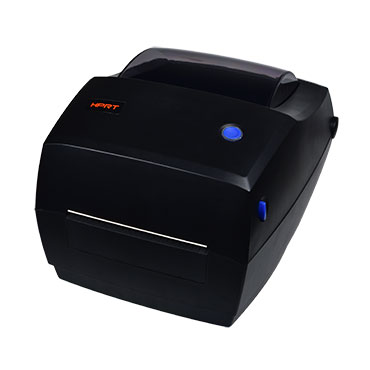

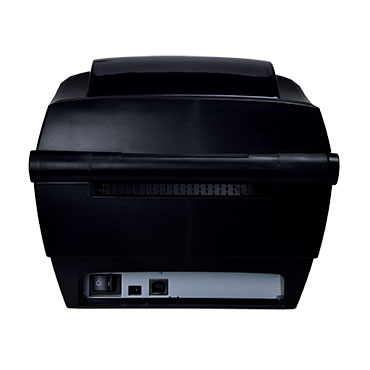

HPRT LPG4 thermal label printer

ModelLPG4
Printing MethodDirect Thermal / Thermal Transfer
Resolution203 dpi(8 dots/mm)
Printing Speed2 ips ~ 4 ips
Printing Width25.4 mm ~ 108 mm
Programming LanguageTSPL
BarcodeLinear Barcodes

CODE 39, CODE 93, CODE 128, EAN-8, EAN-13, ITF, I25, MSI, UPC-A, UPC-E, UCC/EAN-128

2D Barcodes
QR Code, PDF417
Printing Length15 mm ~ 300 mm
MediaTypeRoll-fed or fan-fed, die cut or continuous direct thermal labels with or without black mark, Continuous Label, Tag stock, Continuous Receipt Paper
Diameter(Media Roll)127 mm
Thickness0.003"(60 μm) ~ 0.007"(180 μm)
Diameter(Core)0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
RibbonTypeWax, Wax/Resin, Resin
Length100 m
Diameter(Core)0.5"(12.7 mm)
SensorsGap SensorTransmissive (Fixed, Center)
Black Mark Sensor
Reflective (Adjustable, Full-Range)
OtherHead-Up Sensor, Ribbon End Sensor, Paper Out Sensor
InterfaceStandardUSB Type-B
OptionSerial Port, Ethernet
HICButtonFeed
Indicator LightLED (Three colours)
Power AdapterInputAC 100V ~ 240V, 50/60Hz
OutputDC 24V, 2A
ReliabilityTPH50 km
MemoryRAM2 MB
Flash2 MB
SoftwaresDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
Options and AccessoriesExternal 8-inch Label Roll Holder
Physical Characteristics284.9 (L)×225.8 inches (W)× 170.9 (H) mm
Empty Weight2.26 kg
Agency ApprovalsCCC, FCC, CE
