HT100/HT130
OVERVIEW TECH SPECS DOWNLOADS
bluetooth label printer
Portable Label Printer
Thermal transfer barcode printer
Thermal transfer printer

4" Thermal transfer Label Printer

•  Auto label type detection
•  Large media capacity
•
Support multi-type media


bluetooth label printer
Portable Label Printer
Thermal transfer barcode printer
Thermal transfer printer

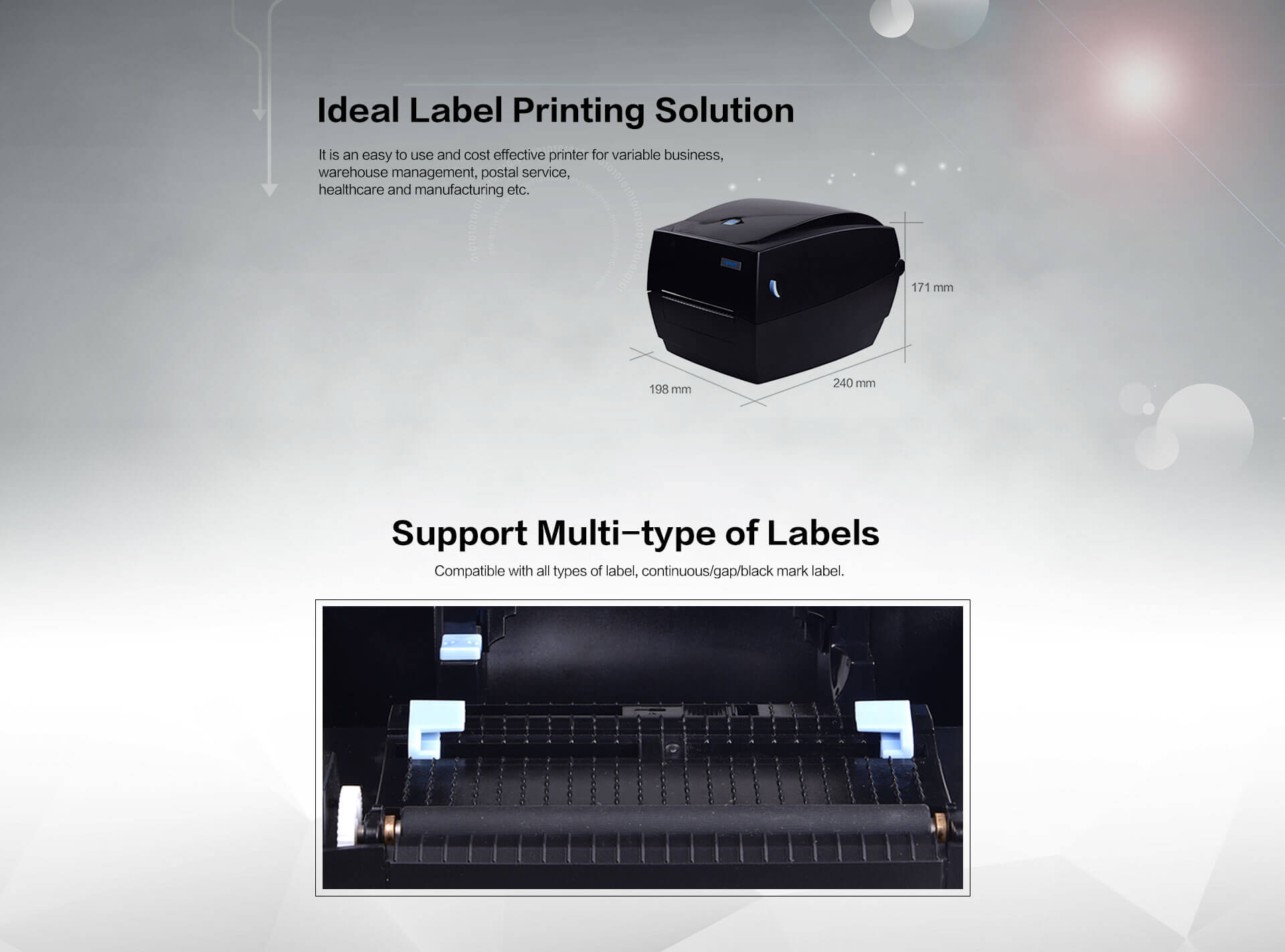

HPRT HT100 HT130 label printing solution

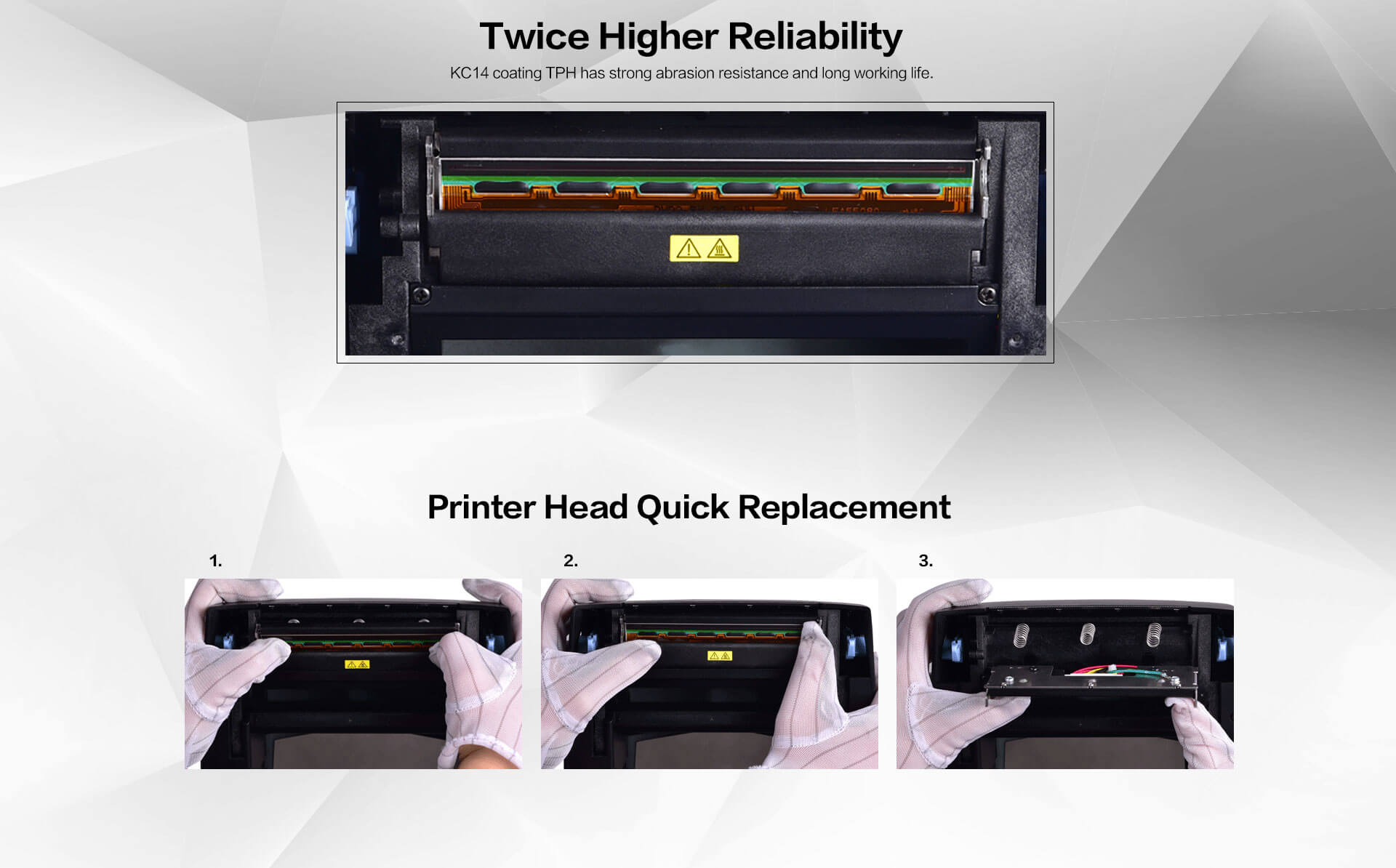

high quality TPH label printer

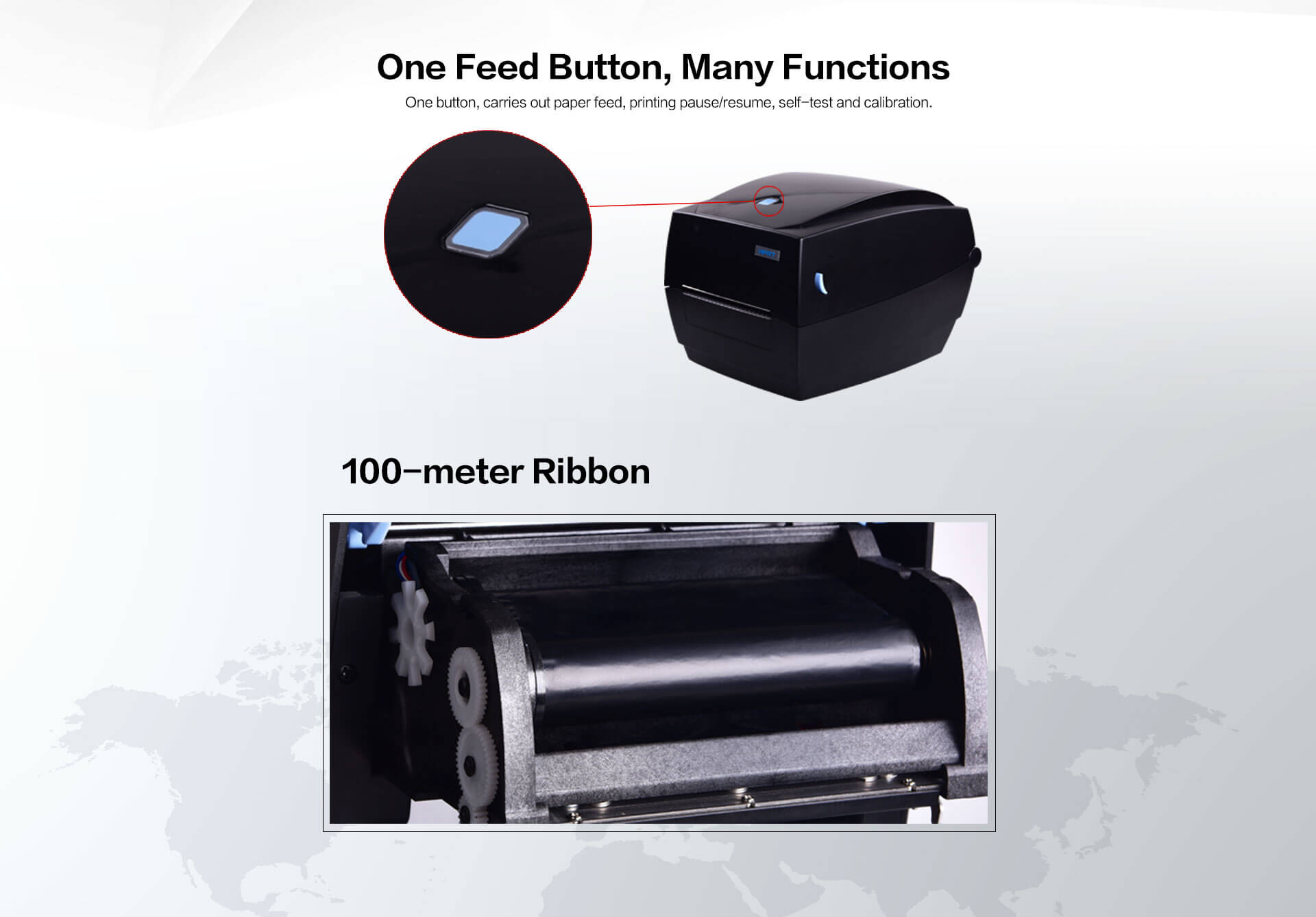

one-button thermal label printer

continuous gap black mark label printer

ModelHT100HT130
Printing MethodDirect Thermal / Thermal Transfer
Resolution203 dpi(8 dots/mm)300 dpi(12 dots/mm)
Printing Speed2 ips ~ 5 ips2 ips ~ 4 ips
Printing Width20mm~108mm20mm~106mm
Programming LanguageTSPL, ZPL
BarcodeLinear BarcodesCode 39, Code 93, Code 128UCC, Code 128, Codabar, Interleave 2 of 5, EAN8, EAN13, UCC/EAN128, UPC-A, UPC-E, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11
2D BarcodesQR Code, PDF417, DataMatrix, Aztec
Printing Length15 mm ~ 1200 mm
MediaTypeRoll-fed or Fan-fed, Die cut or Continuous direct thermal labels with or without black mark, Tag stock
Width0.79''(20mm) – 4.65''(118mm)
Diameter(Media Roll)127 mm
Thickness76.2 μm ~ 177.8 μm
Diameter(Core)0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
RibbonTypeWax, Resin/Wax, Resin
Length100 m
SensorsGap SensorTransmissive (Fixed)
Black Mark SensorReflective (Adjustable, Half-Range)
OtherHead-Up Sensor, Ribbon End Sensor, Paper Out Sensor
InterfaceStandardUSB Type-B, Serial Port, Ethernet
OptionBluetooth
HICButtonFeed
Indicator LightLED (Three colours)
Power AdapterInputAC 100 ~ 240V, 50/60 Hz
OutputDC 24V, 2.5A
ReliabilityTPH50 km
MemoryRAM32 MB
ROM16 MB
SoftwaresDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac

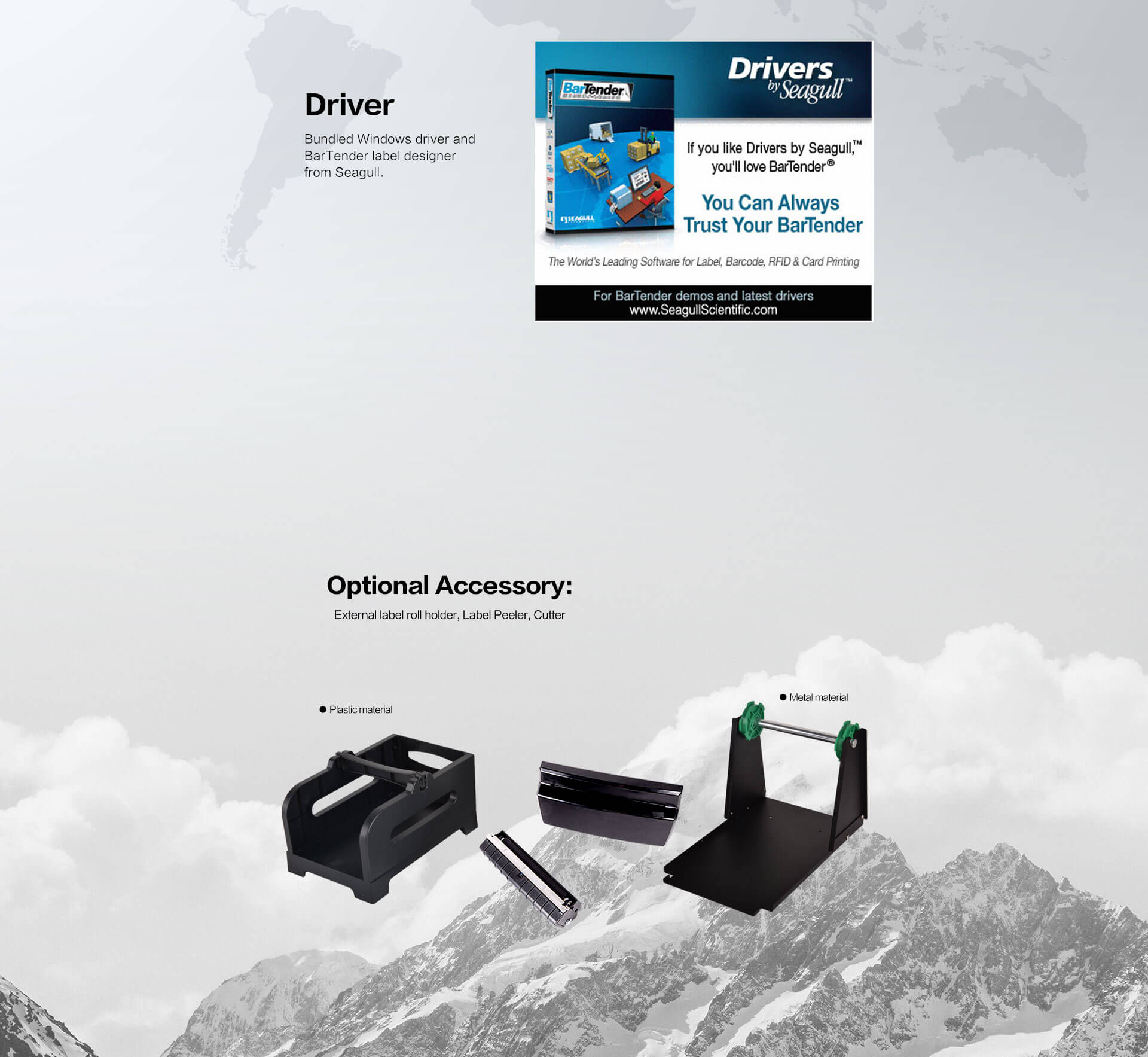

Options and AccessoriesExternal 8-inch Label Roll Holder
Cutter Module (G4GC, Black)
Peeler Module (G4P, Black)
Physical Characteristics240(L)×225(W)×171(H) mm
Empty Weight2.26 kg
Agency ApprovalsCCC, FCC, CE

Drivers and Manuals

Stay up-to-date with the latest downloads for your HPRT Printer
