4" Thermal Transfer Label Printer

•  Print speed up to 8 ips.

•  With the unique dual transmissive sensors for accurate positioning and efficient printing.

•  The modular design of printer head makes the disassembly and assembly easy.

•  With the function to automatically identify the printer head with 203 dpi and 300 dpi and automatically configure the printer without PC settings.

•  With super large storage, DDR2 RAM 128 MB, Flash 256 MB.

•  Cool black housing with printer mechanism, stable and durable.

•  With various media to meet the demand of wide area.

•  With free label editing software Bartender to make the label editing convenient and easy.

Warehouse Label Printer
Takeaway order printer
Smart Express Printer
Professional Label Printer

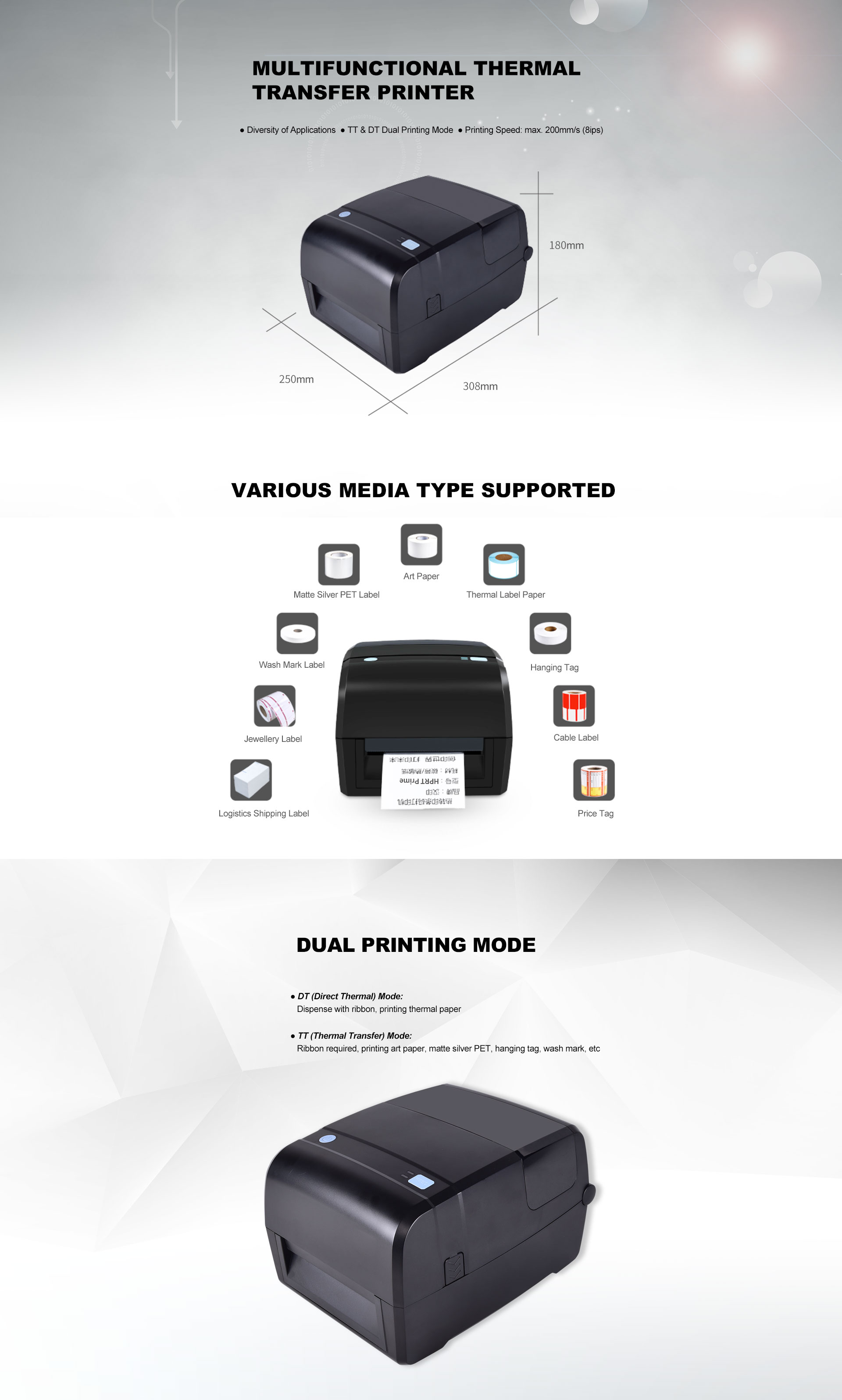

Multifunctional thermal transfer label printer HPRT Prime

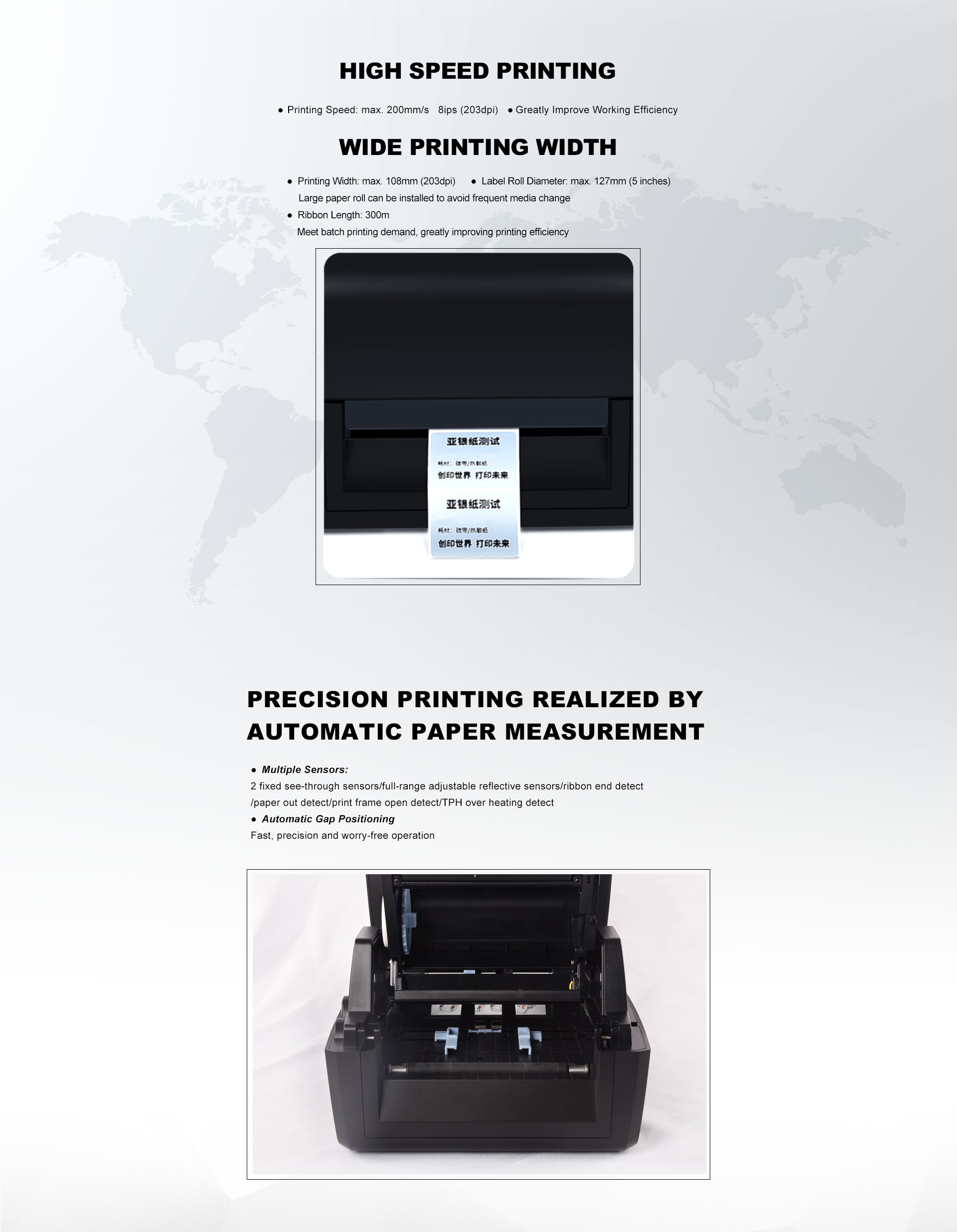

wide printing width label printer

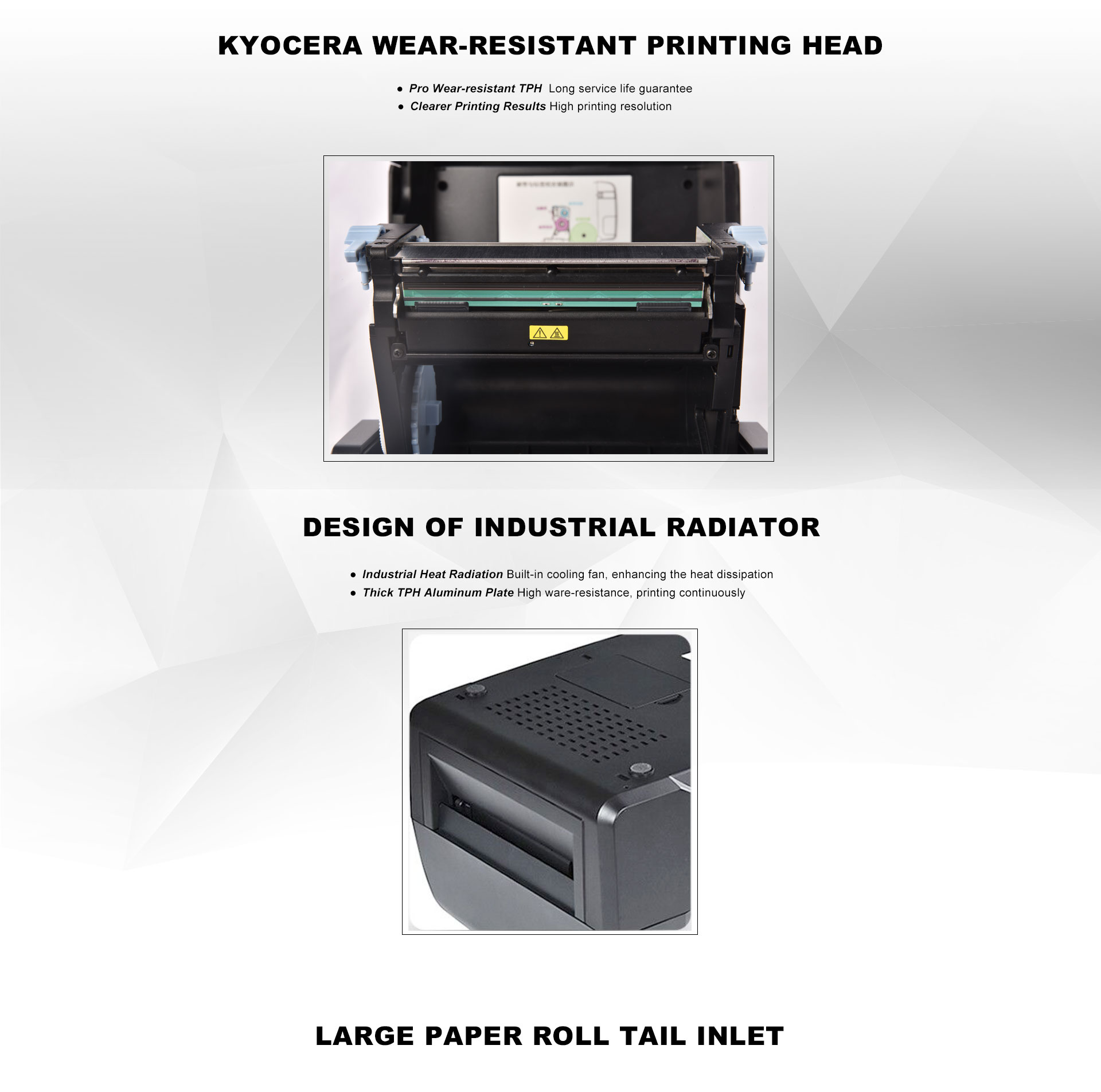

label printer with KYOCERA TPH

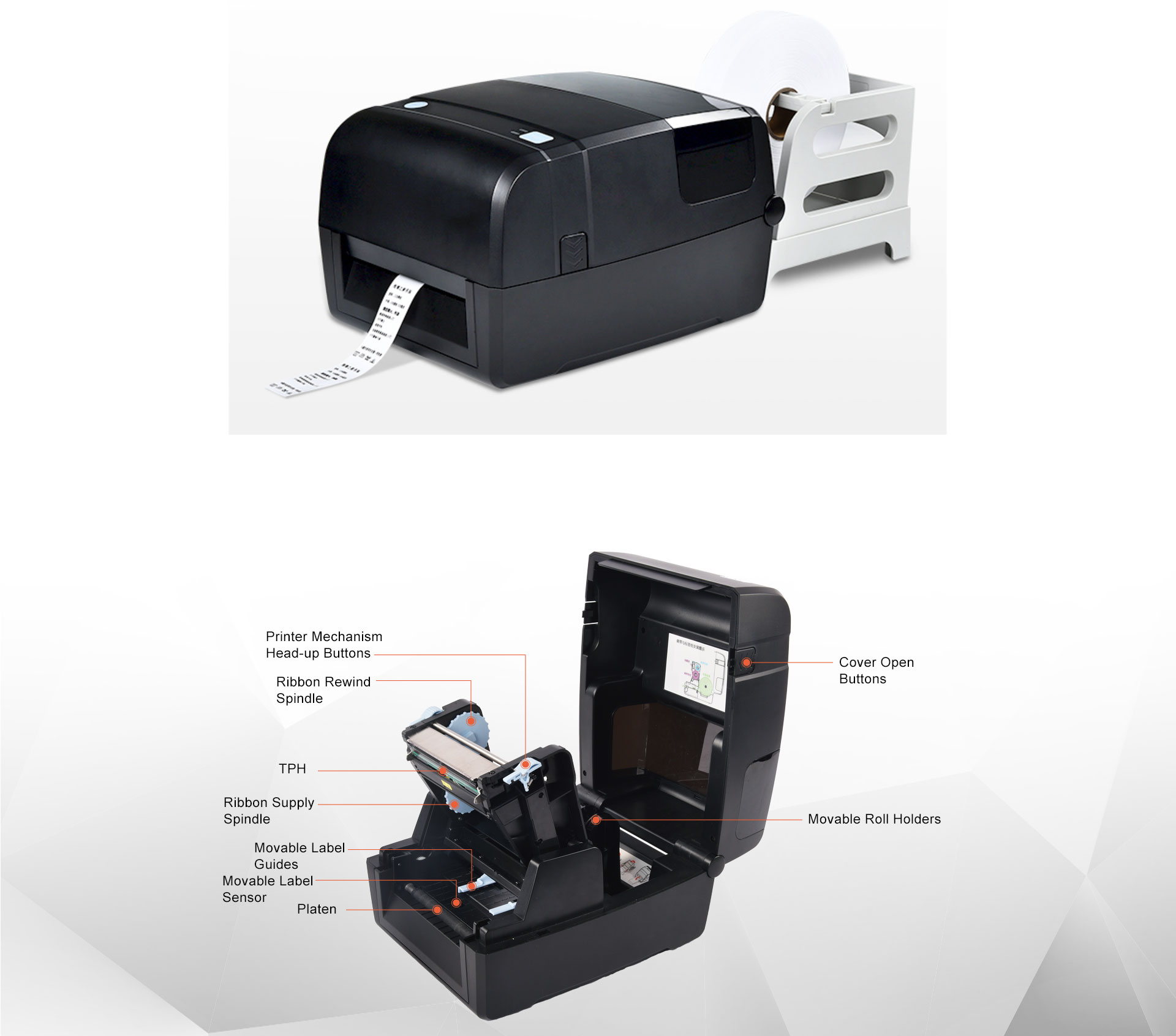

Prime label printer

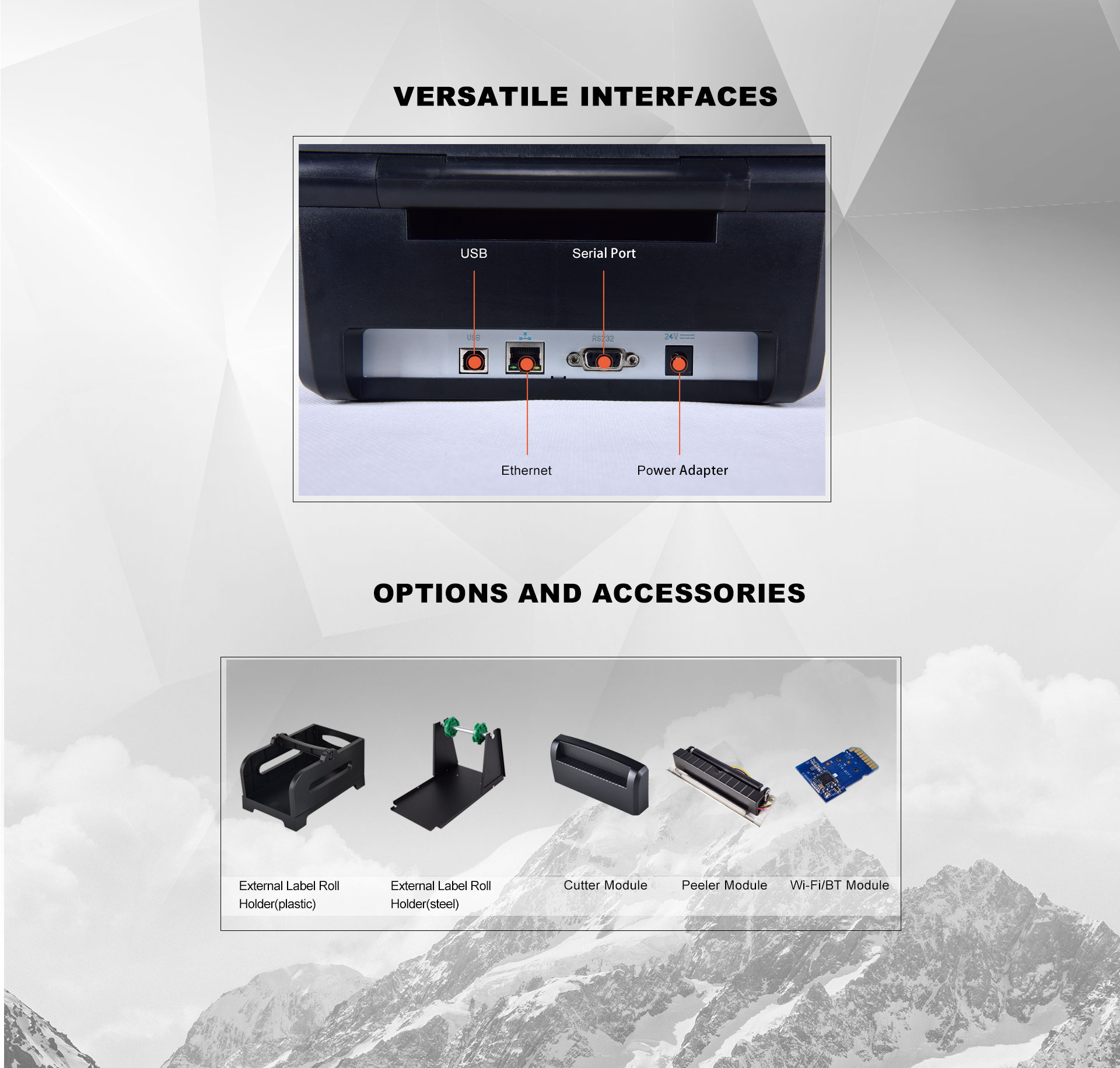

Prime label printer interfaces


PrintingPrinting MethodThermal transfer
Resolution203 dpi /300 dpi

Max.Printing

Speed

8 ips (203dpi)
6 ips (300dpi)

Max.Printing

Width

108 mm(203dpi),106 mm(300dpi)

Max.Pringting

Length

2286 mm(203dpi),1524 mm(300dpi)
ProtocolCompatible ZPL-II, EPL2, DPL
InterfaceStandardUSB Type B, RS232, Ethernet
OptionalBluetooth, Wi-Fi
MemoryRAM128 MB
Flash256 MB
MediaWidth1''(25.4)-4.65''(118 mm)
Thickness0.002''(60μm)-0.01''(250μm)

Label Roll

Diameter

5''(127 mm) Max
Ribbon
TypeWax, Wax/Resin, Resin
Width1.18''(30 mm)-4.33''(110 mm)
Max.Length984'(300 m)
Core Diameter1''(25.4 mm)
Software

Label Design

Software

Bartender Ultralite
DriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
FontsResident FontsAlphanumeric, simplified Chinese, traditional Chinese, 29 international character sets
Download FontsSupport
BarcodesLinearUPC-A, UPC-E, EAN128, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13, Japanese Postnet, Interleaved 2 of 5, Standard 2 of 5,  Industrial 2 of 5, Logmars, CODE11
2DCODE49, CODABLOCK, PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec
SensorGap SensorTransmissive (Fixed, Dual)
Black mark SensorReflective (Adjustable, Full-Range)
OtherPaper out detect, Ribbon out detect, Print head left detect, Print head temperature detect
ElectricalInputAC 100~240 V, 50/60 Hz
OutputDC 24 V, 2.5 A
Environment Operation5 to 50℃@ humidity 25% to 85% non-condensing
Storage-40 to 60℃@ humidity 10% to 90% non-condensing
Physical Characteristic

Dimension

(L×H×W)

308×250×180 mm
Weight2.8 kg
Options & AccessoryBlack T4P External label Peeler Module, Black T4GC External Cutter Module, External Label Roll Holder
Agency ApprovalCE EMC(55022 Class B), FCC EMC(Class A), CCC, RoHS
