HT800/HT830
OVERVIEW TECH SPECS DOWNLOADS

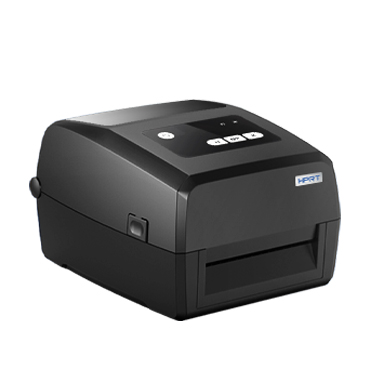

Thermal Transfer Desktop Barcode Printer

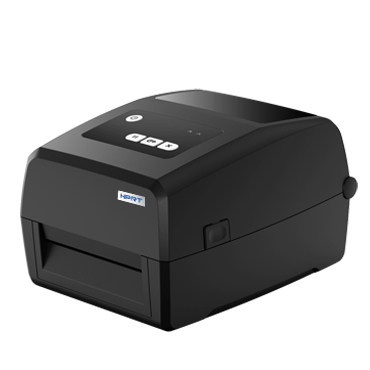

Smart Label Printer

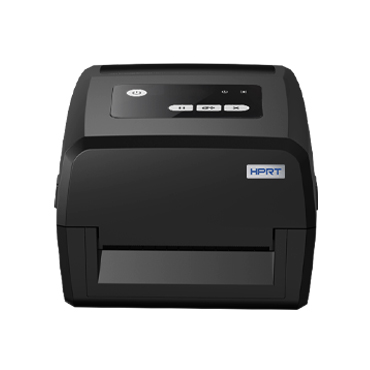

4 Inch Thermal Transfer Label Printer

4" Thermal Transfer Barcode Printer

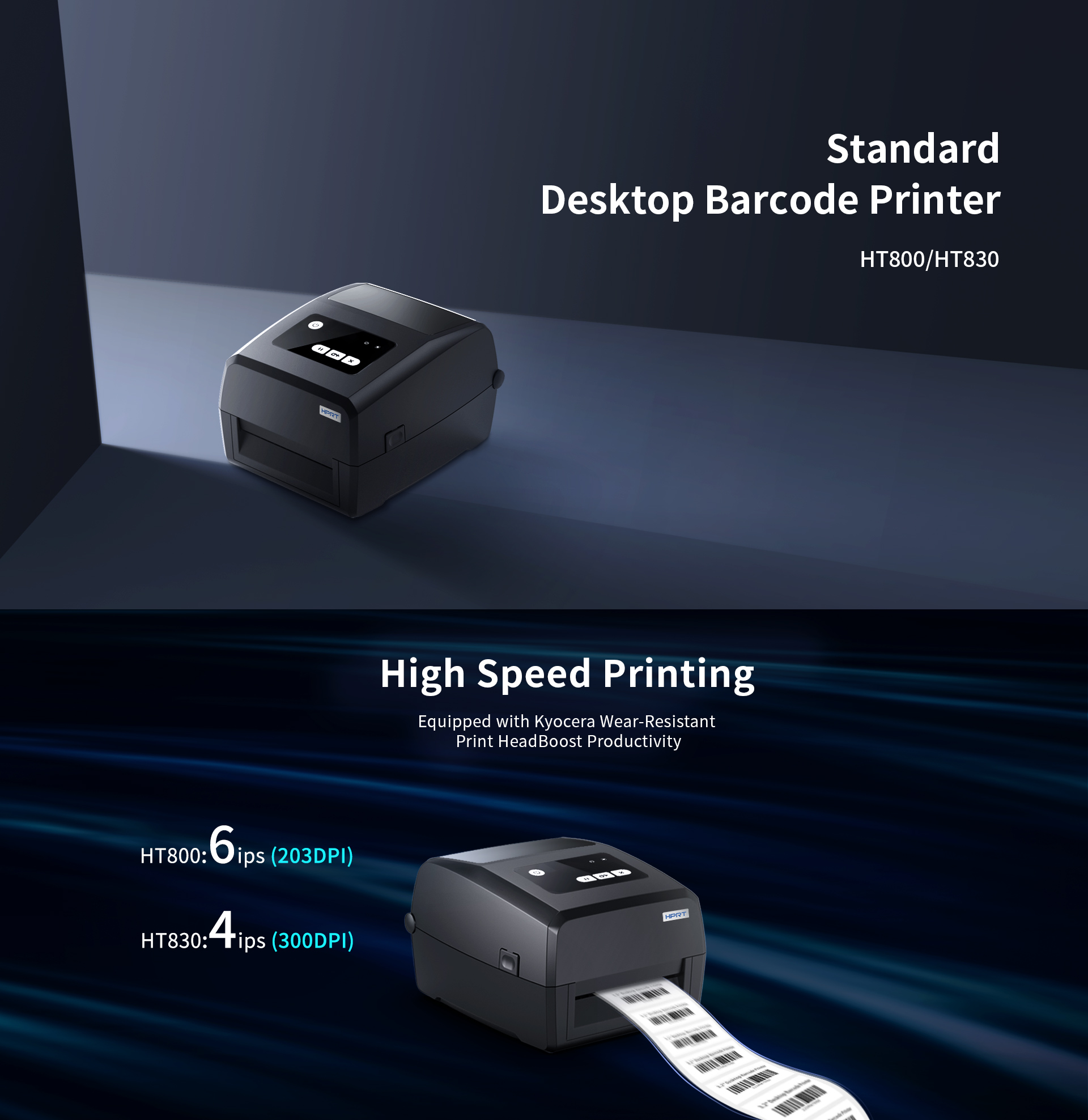

• Max 6ips with 203dpi

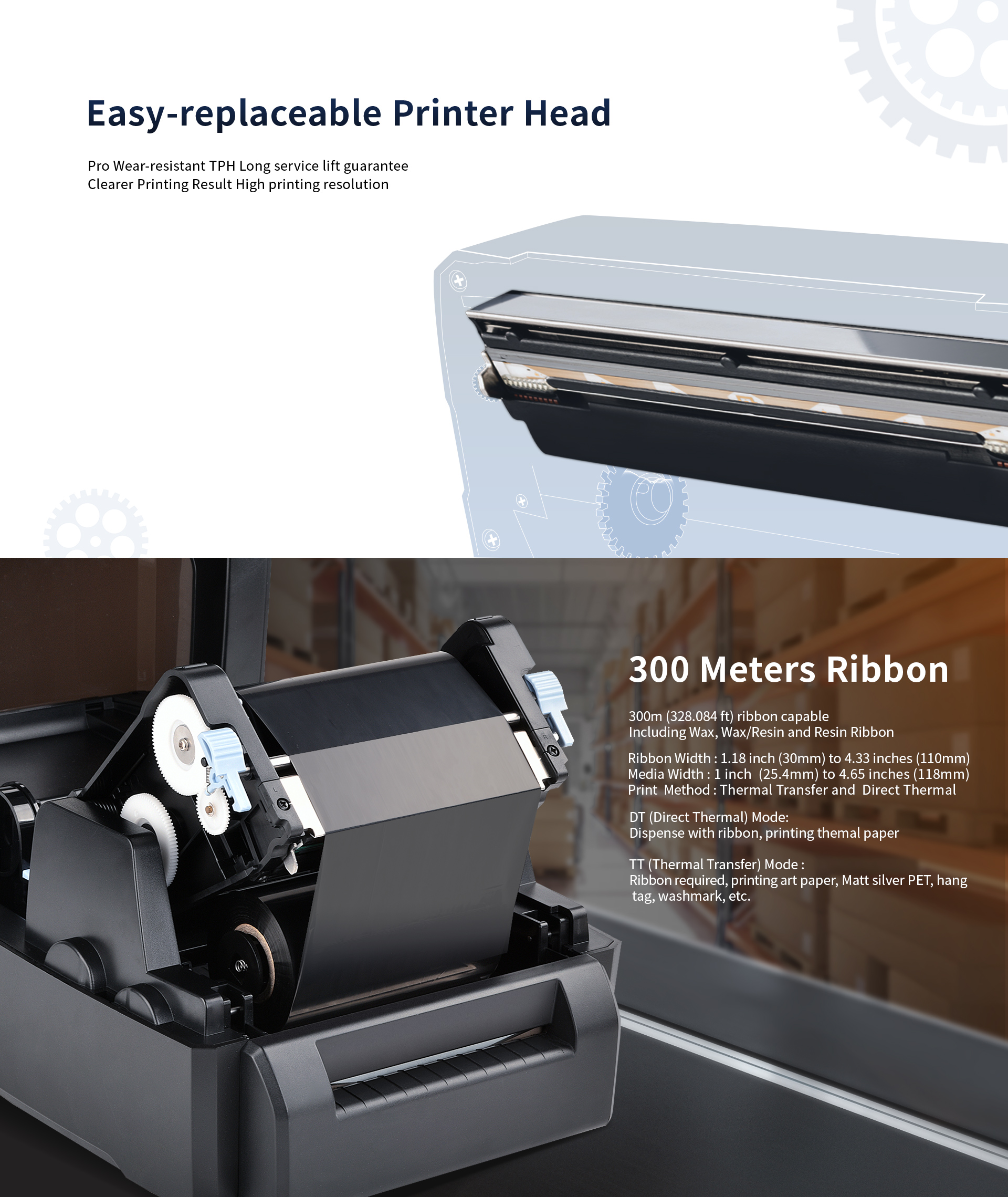

• 300m ribbon length

• Dual-wall frame, robust and sturdy structure

• Plug-and-play Wi-Fi/BT mode

• Compatible with ZPL, EPL, and TSPL protocols

• Bundled with Bartender software and Seagull Windows Driver

• Optional cutter, peeler and paper stand

Thermal Transfer Desktop Barcode Printer
Smart Label Printer
4 Inch Thermal Transfer Label Printer

HT800-HT830-EN首图方案_01HT800-HT830-EN首图方案_02HT800-HT830-EN首图方案_03HT800-HT830-EN首图方案_04

Item
HT800HT830
PrintingPrinting MethodThermal transferThermal transfer
Resolution203DPI300DPI
Max. Printing Speed152mm/s100mm/s
Max. Printing Width108mm106mm
Max. Printing Length1200mm1200mm

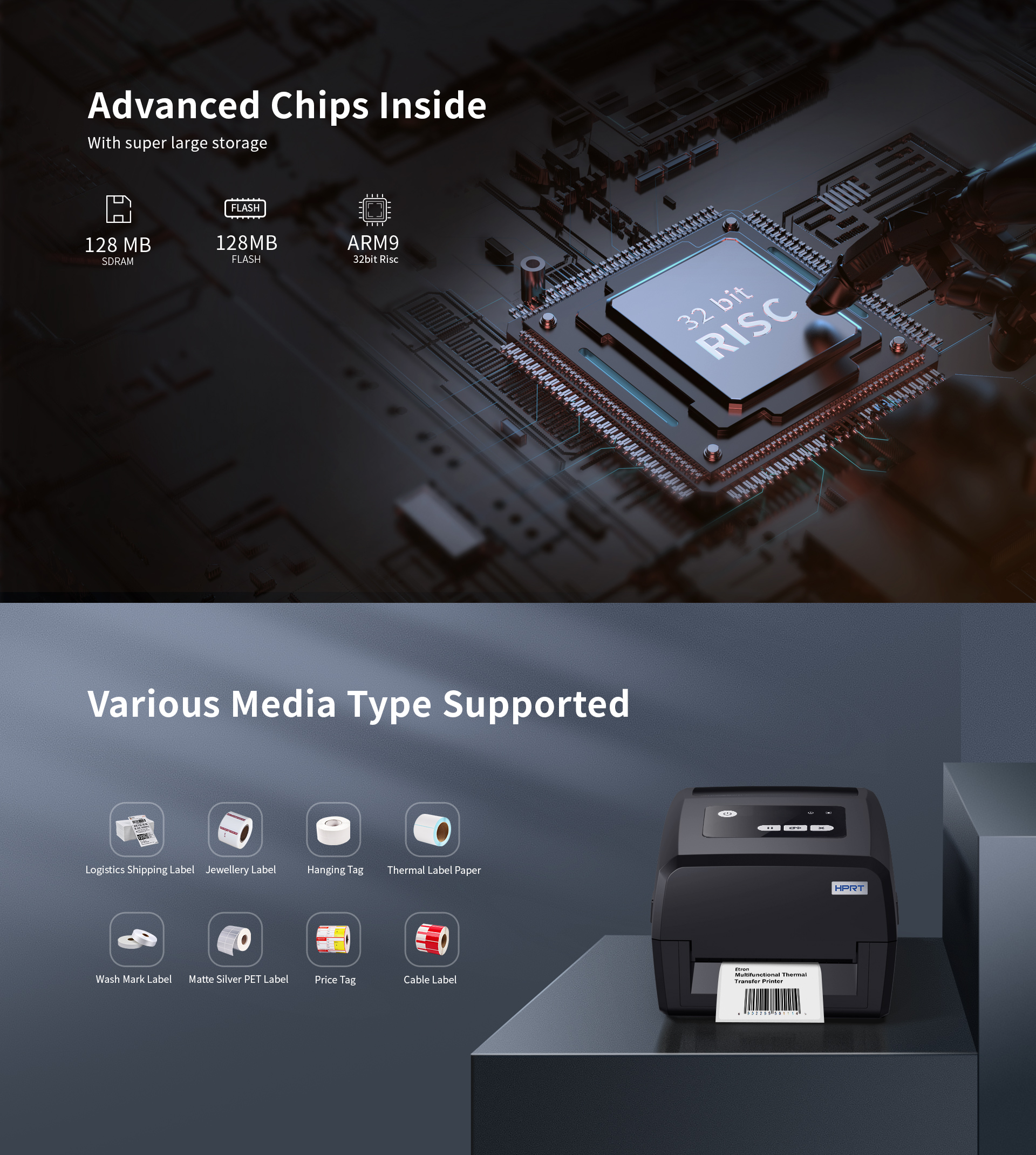

CPU32-bit RISC CPU
MemoryRAM128MB
Flash256MB

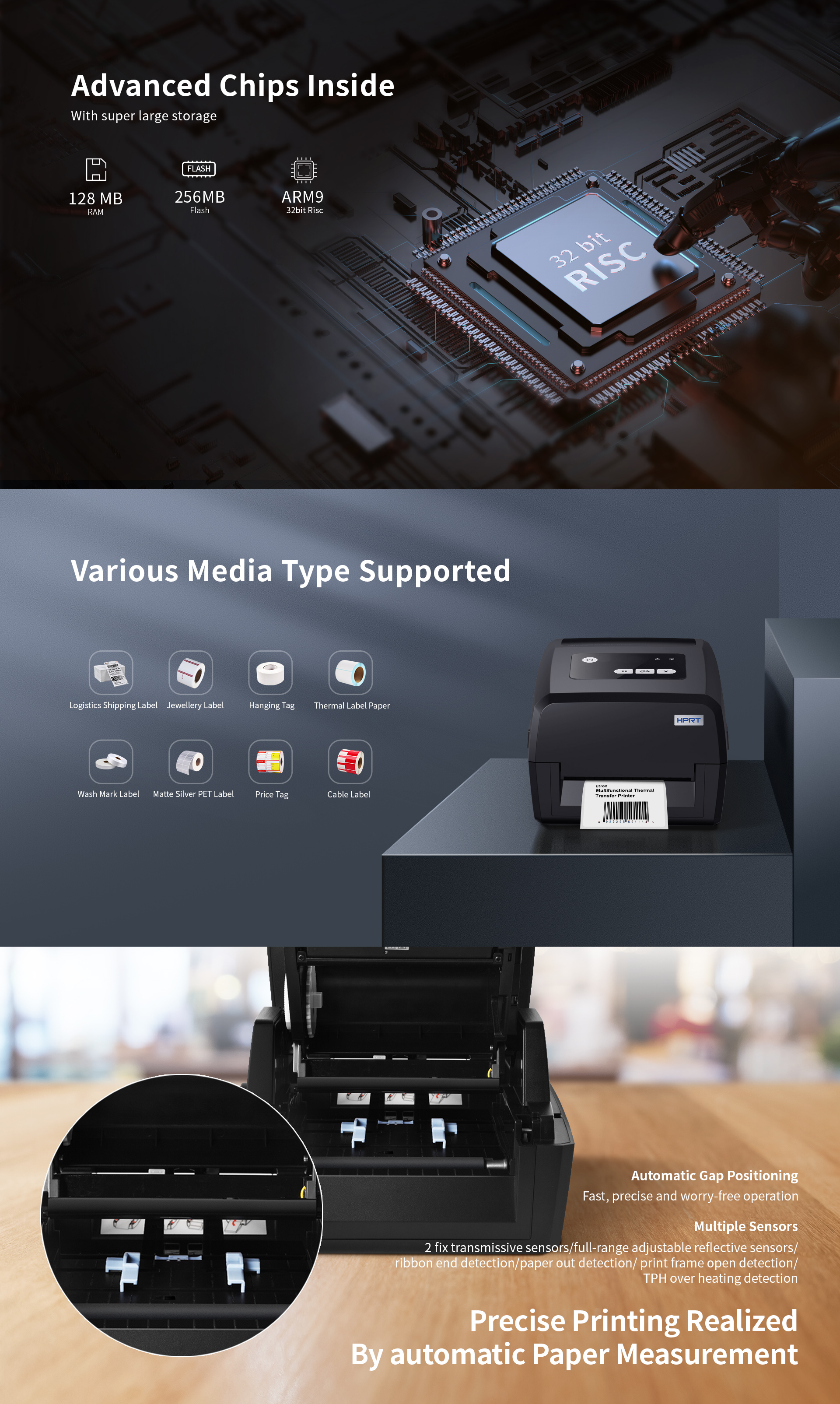

DetectionSensorOut-of-paper detection, gap detection, ribbon detection, black mark
detection, cover-opening detection
MediaTypesBlack mark label, punched hole label, folding or rolling die cutting label
Width1"(25.4mm) ‒ 4.33"(110mm)
Height0.0787"(20mm) ‒ 9.84"(250mm)
Thickness0.002"(60um) - 0.01"(250um)
Label Roll Diameter5"(127 mm)Max
Core Diameter0.5"(12.7 mm),1"(25.4 mm).1.5"(38 mm)
RibbonTypeWax, Wax/Resin, Resin
Width2"(50mm) ‒ 4.38"(118mm)
Length984'(300m)
Core Diameter1"(25.4 mm)
Programming Language
ZPL,TSPL,EPL,DPL
SoftwareLabel Design SoftwareHPRT BarTender Ultralite (professional and higher versions are
available for trial)
DriverWindows Vista7,8,10, Server 2012/2016/2018
Resident FontsBitmap fonts6,8,12,16,32,OCR A & B. 90°,180°,270° rotatable and 10 magnification.
TTF fontsCG Triumvirate™times expandable in horizontal and vertical
directions, simplified Chinese.
Code Pages
DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866,
Windows 1250,1251,1252,1253,1254,1255,1256,1257,1258,
ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15
Barcodes1DCode 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave
2 of 5, EAN-8, EAN-13, EAN-128,UPC-A, UPC-E, EAN and UPC 2 (5) digits
add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11
2DPDF417, Maxicode, DataMatrix, QR Code, Aztec

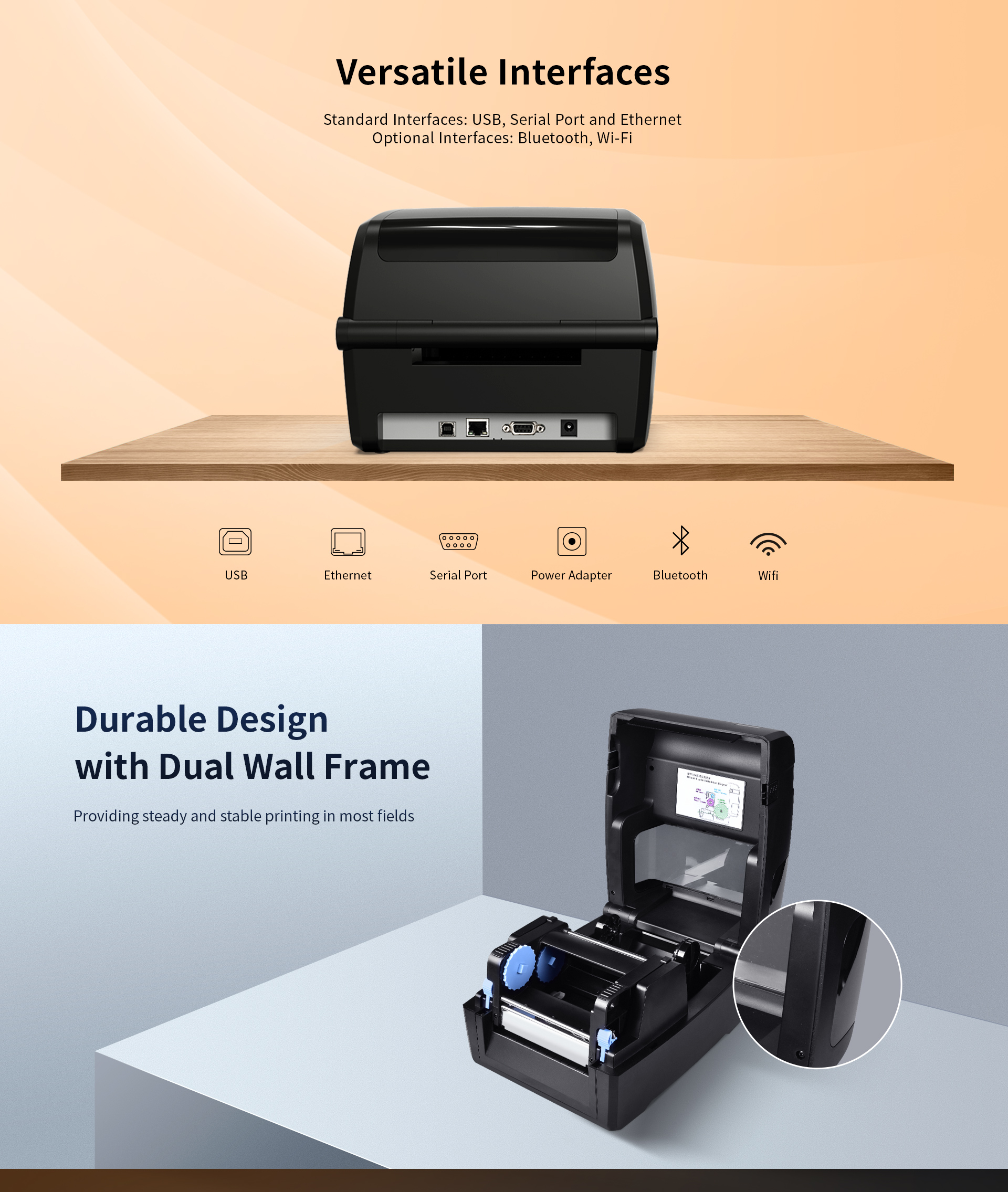

InterfacesStandardUSB, Serial,Ethernet
OptionalBluetooth 4.0/BLE, WiFi

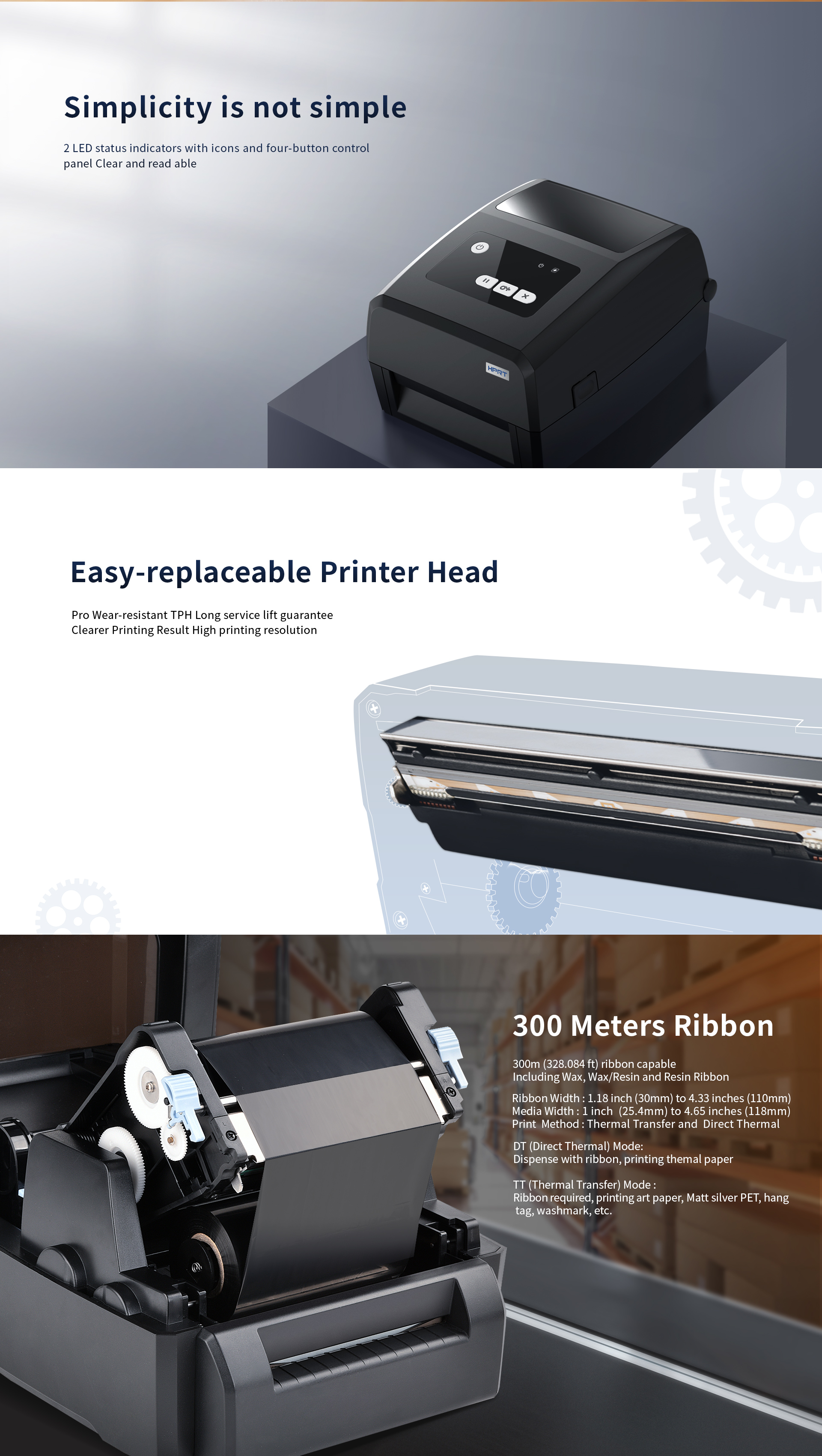

Control Panel
Two-color status light: power indicator, status indicator
Four control buttons: power button, pause button, feed button, cancel button
Power Supply
Power Switch

Input: AC 100-240 V, 50/60 Hz

Output: DC 24 V / 2 A
EnvironmentOperation41℉(5℃) to 104℉(40℃) , humidity 30% to 85% ,non-condensing
Storage-4℉(-20℃) to 122℉(50℃), humidity 10% to 90% ,non-condensing
PhysicalDimension(L*H*W)308*250*180mm
CharacteristicWeight2.8kg, excluding media

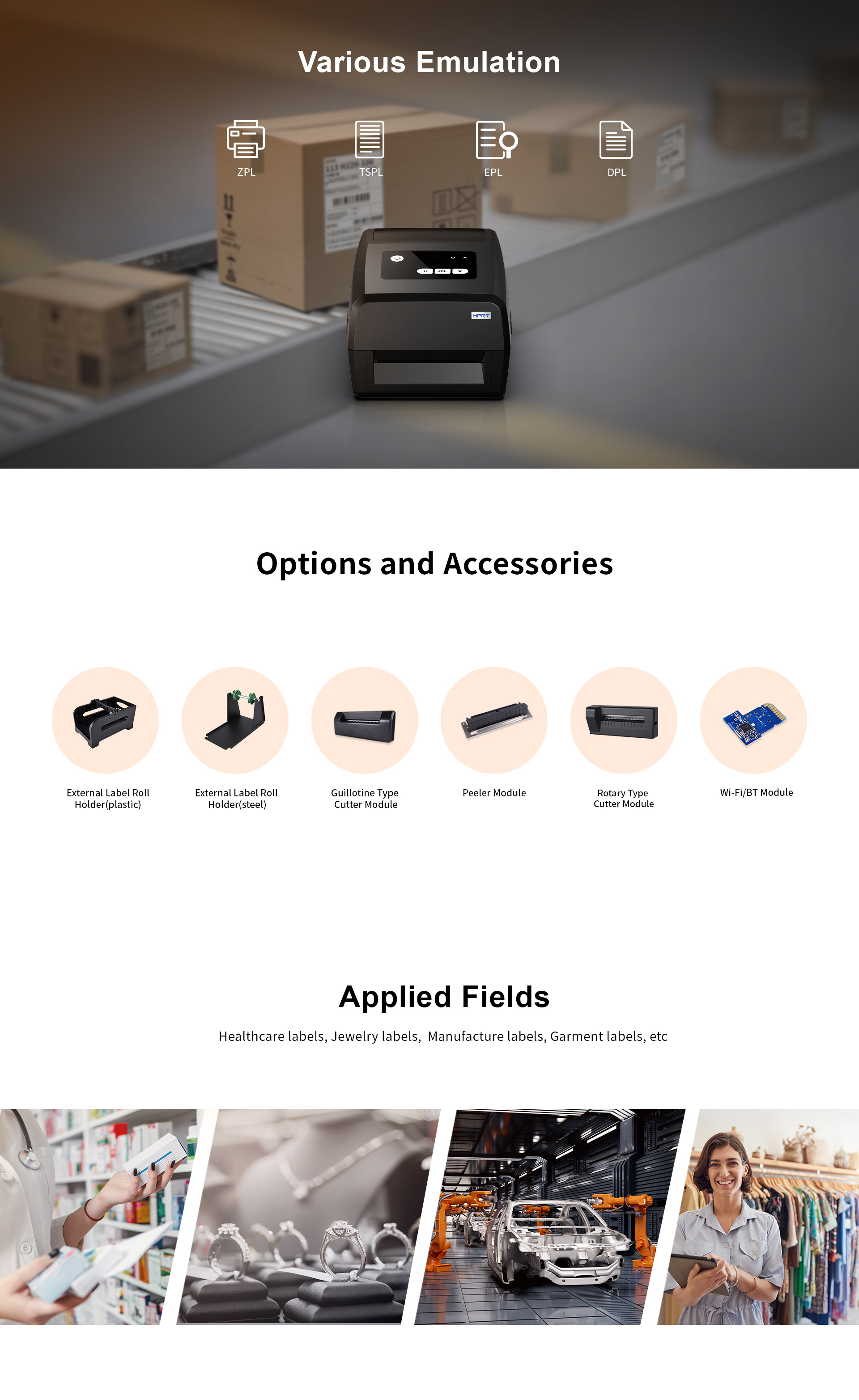

Options & Accessory
Peeler module, cutter module, external label roll holder
Agency Approval
CCC,CE,FCC,RoHS
