Glory-L/ Gala
OVERVIEW TECH SPECS DOWNLOADS
4 inch Industrial Barcode Printer
4 inch Industrial Label Printer
Direct Thermal Industrial Barcode Printer
Industrial Barcode Printer

4 inch Industrial Barcode Printer

• High-speed and mass printing for big labels

• Accurate and stable printing for small labels

• Color display screen for visualized operation

• Upgraded touch screen (only available for Gala)

• Abundant optional accessories

• Up to 600 meters ribbon length

4 inch Industrial Barcode Printer
4 inch Industrial Label Printer
Direct Thermal Industrial Barcode Printer
Industrial Barcode Printer

Industrial Label Printer.jpg

Industrial Label Printer.jpg

Industrial Barcode Printer.jpg

Barcode Printer.jpg

Direct Thermal Industrial Barcode Printer.jpg

Direct Thermal Industrial Printer.jpg

Direct Thermal Industrial Label Printer.jpg

4 inch Barcode Printer.jpg

4 inch Industrial Label Printer.jpg

Label Printer.jpg

Model nameGlory-LGala
Printing MethodDirect Thermal / Transfer Thermal Direct Thermal / Transfer Thermal
Resolution/Max. Printing Speed203 dpi / 6 ips203 dpi / 14 ips
Optional 300 dpi / 6 ipsOptional 300 dpi / 8 ips or 600 dpi / 4 ips
Max.Pringting Length2286 mm(203 dpi)2286 mm(203 dpi)
1524 mm(300 dpi) 1524 mm(300 dpi) ; 762 mm(600 dpi)
Max.Printing Width104 mm104 mm
ProtocolZPL, TSPLZPL, DPL, EPL, TSPL
Printing Media TypeContinuous paper, Gap paper, Continuous paper, Gap paper,
Black mark paper, Punched hole paper, Black mark paper, Punched hole paper,
ECO thermal label, ECO thermal label,
Coated semi-gloss art label, Coated semi-gloss art label,
Synthetic fiber label, Textile ribbon, VinylSynthetic fiber label, Textile ribbon, Vinyl
Printing Media Diameter1.5 inches/ 3 inches inner diameter 1.5 inches/ 3 inches inner diameter
Maximum 10-inch outer diameter Maximum 10-inch outer diameter
Printing Media Thickness80 um ~ 250 um 80 um ~ 250 um
Printing Media Width25 mm ~ 120 mm 25 mm ~ 120 mm
Ribbon Type Wax, Resin, Wax and resin mixture Wax, Resin, Wax and resin mixture
Ribbon Die1 inch 1 inch
Ribbon Width30 mm ~ 110 mm30 mm ~ 110 mm
Ribbon Length450/600 meters 450/600 meters
Sensor ConfigurationPrint mechanism off detection,Print mechanism off detection,
Ribbon off detection,Media off detection,Ribbon off detection,Media off detection,
thermal over-temperature detection,thermal over-temperature detection,
Seam label/ punched label/Black labelSeam label/ punched label/Black label
positioning detection,positioning detection,
motor over-temperature detectionmotor over-temperature detection

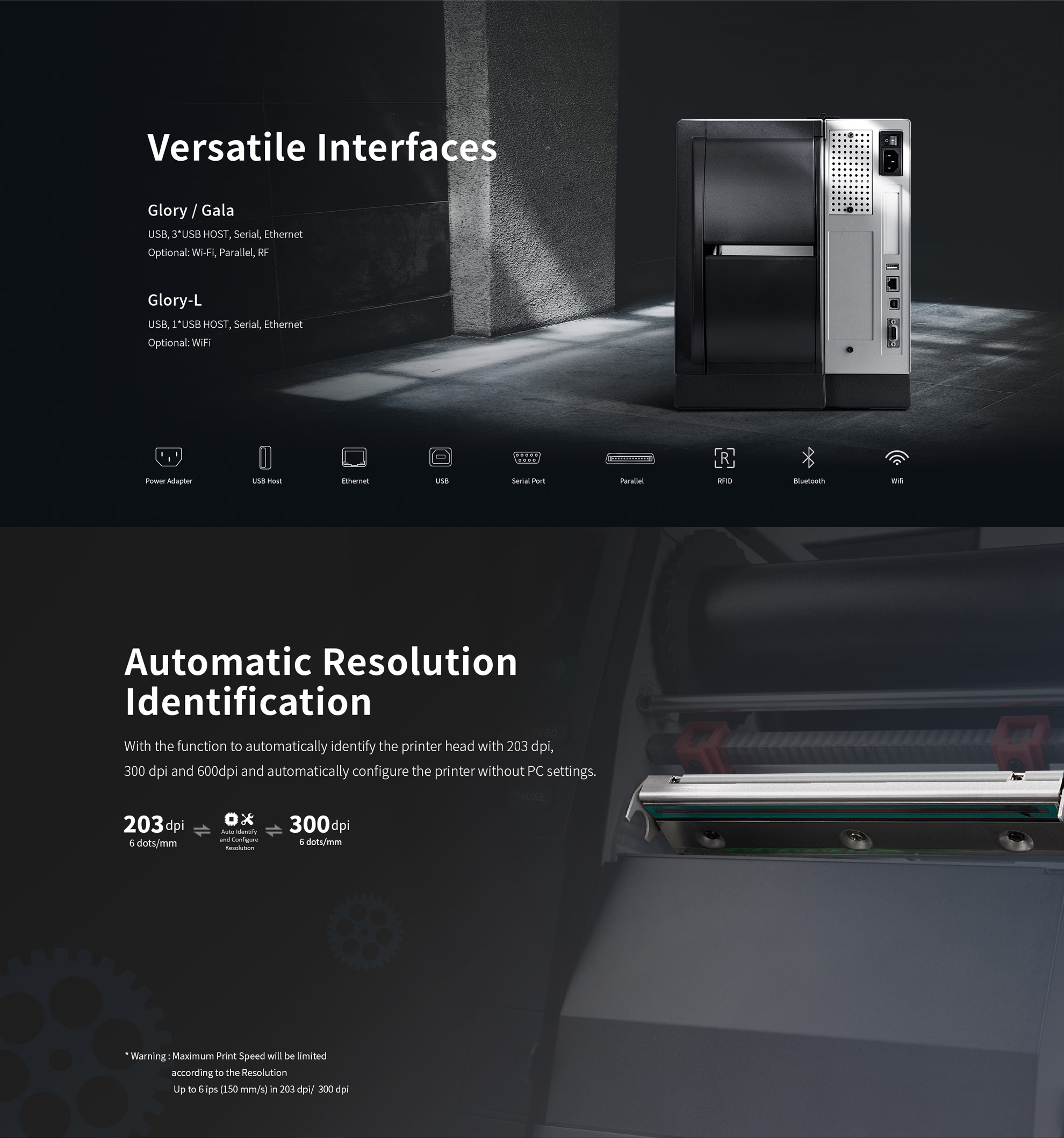

Standard Communication Port1 USB-B, 1 USB HOST 1 USB-B, 3 USB HOST
1 Ethernet Port, 1 RS232 Serial Port 1 Ethernet Port, 1 RS232 Serial Port
Optional Communication PortWiFi , BTParallel Port or Labeller Port, WiFi

UHF RFID , BT

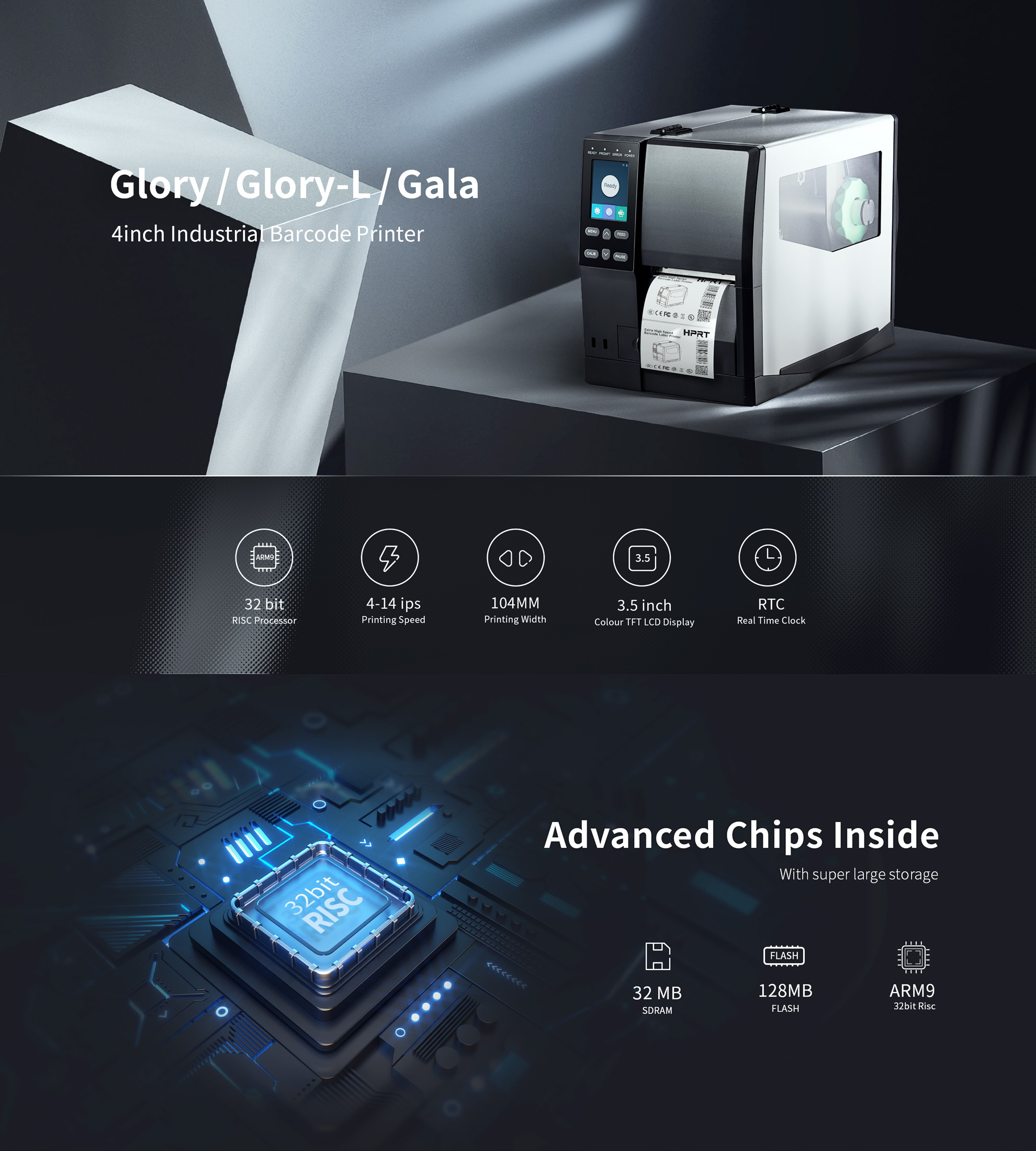

RAM32 MB512 MB
Flash128 MB256 MB
Operation window4 status lights, 8 buttons 4 status lights, 6 buttons

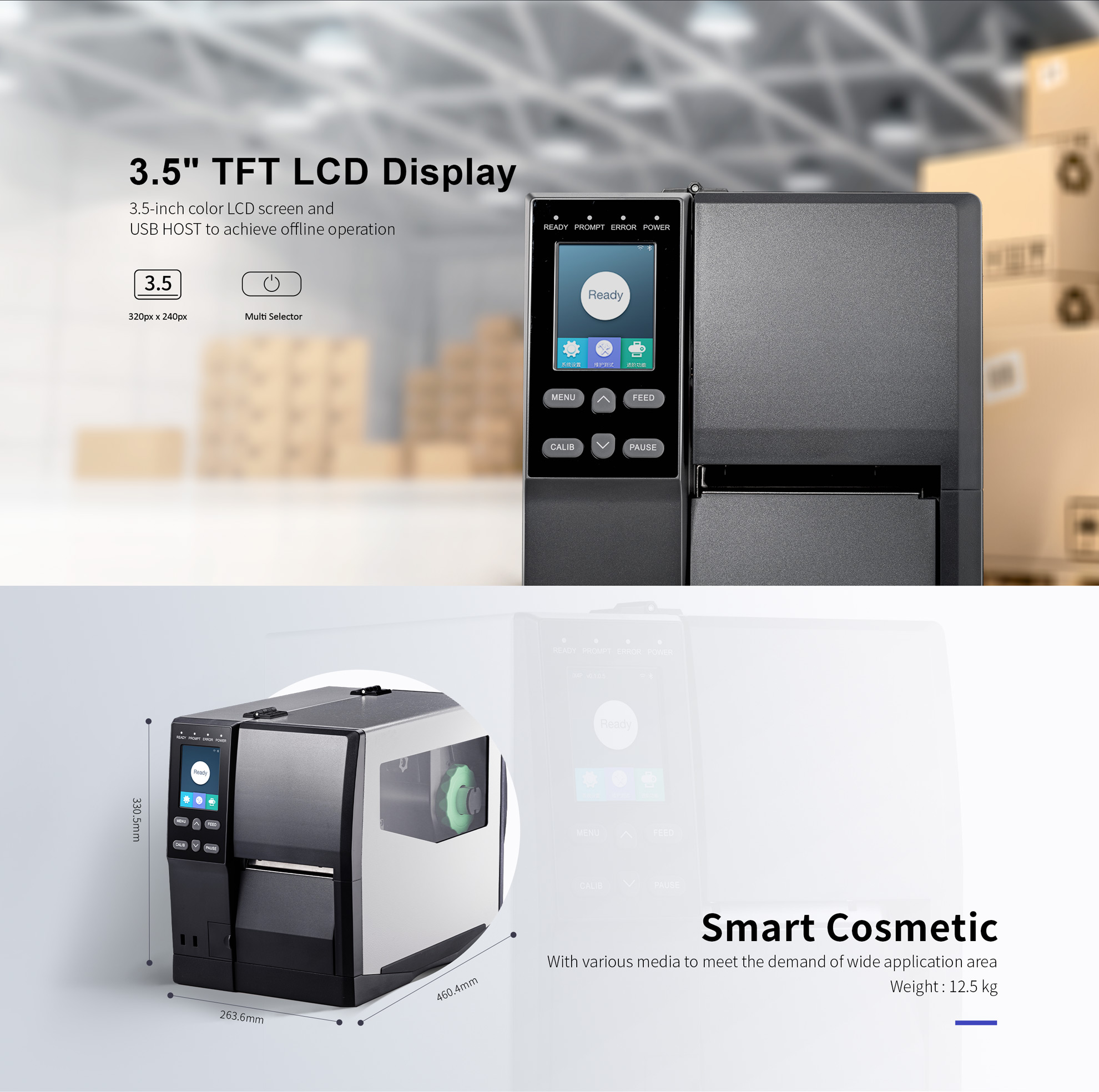

3.5 inches color screen 3.5 inches color screen
Optional accessoriesLabel peeling moduleLabel peeling module
label liner rewinding devicelabel liner rewinding device
Cutting ModuleCutting Module
External Label Roll HolderExternal Label Roll Holder
Dimension (L*W*H)460.4 x 263.6 x 330.5mm460.4 x 263.6 x 330.5mm
Weight12.5KG12.5KG
CertificateCE, FCC, CCC, CB, UL, RoHS, WEEECE, FCC, CCC, CB, UL, RoHS, WEEE


Drivers

Stay up-to-date with the latest downloads for your HPRT Printer
