HD100/HD130
OVERVIEW TECH SPECS DOWNLOADS
Direct Thermal Label Printer

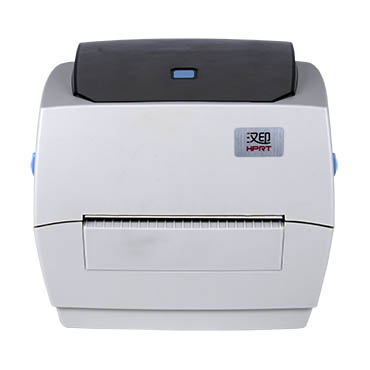

shipping label thermal printer
best thermal shipping label printer
thermal shipping label printer

4" Direct Thermal Label Printer

•  Direct thermal Printing

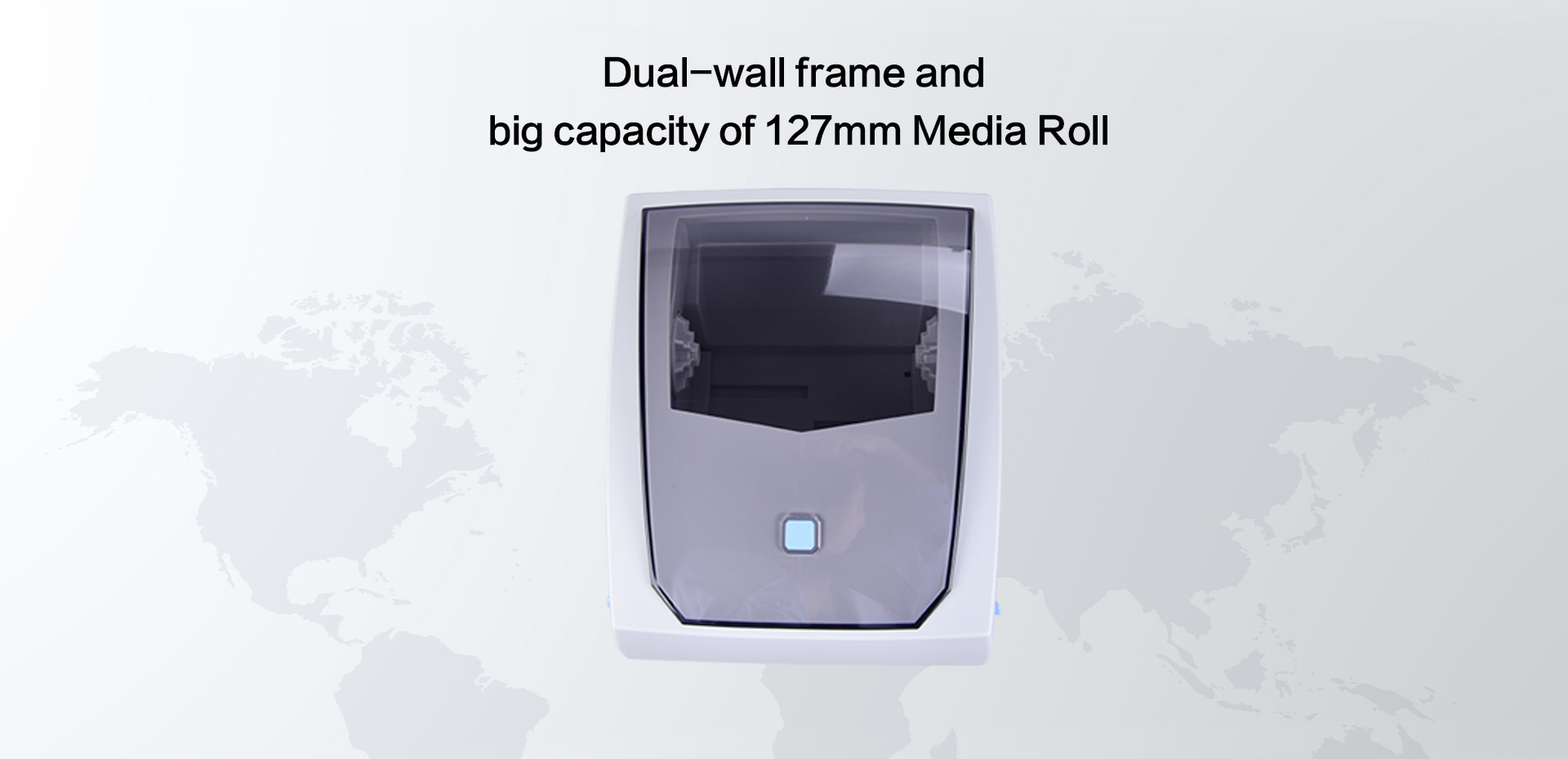

•  Big capacity of 127mm Paper Roll
•  High printing speed
•  Double type sensors

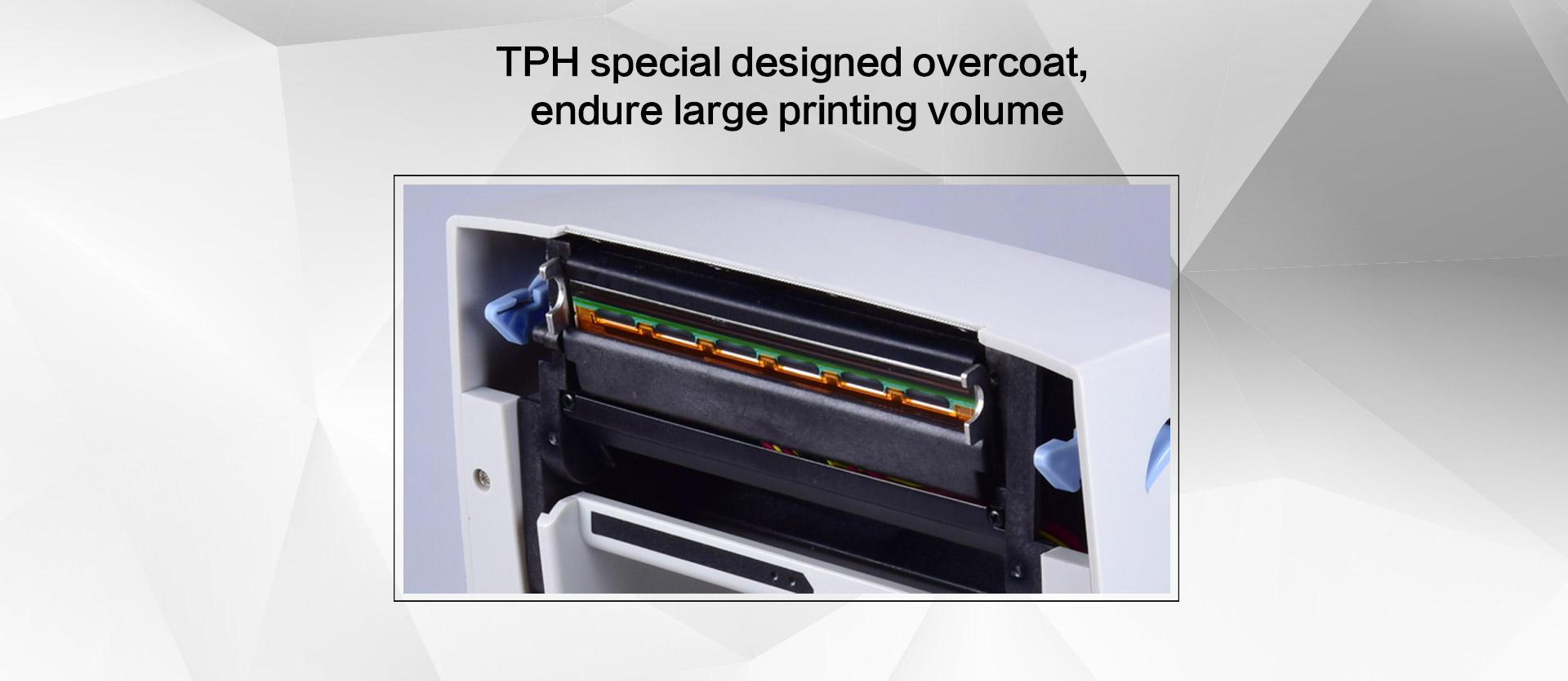

•  TPH special designed overcoat

Direct Thermal Label Printer

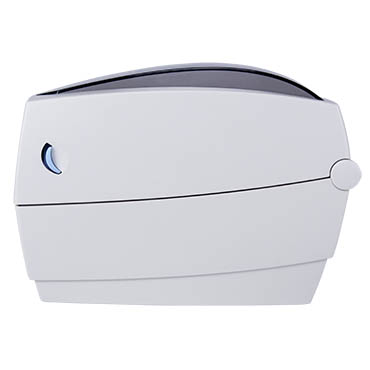

shipping label thermal printer
best thermal shipping label printer
thermal shipping label printer

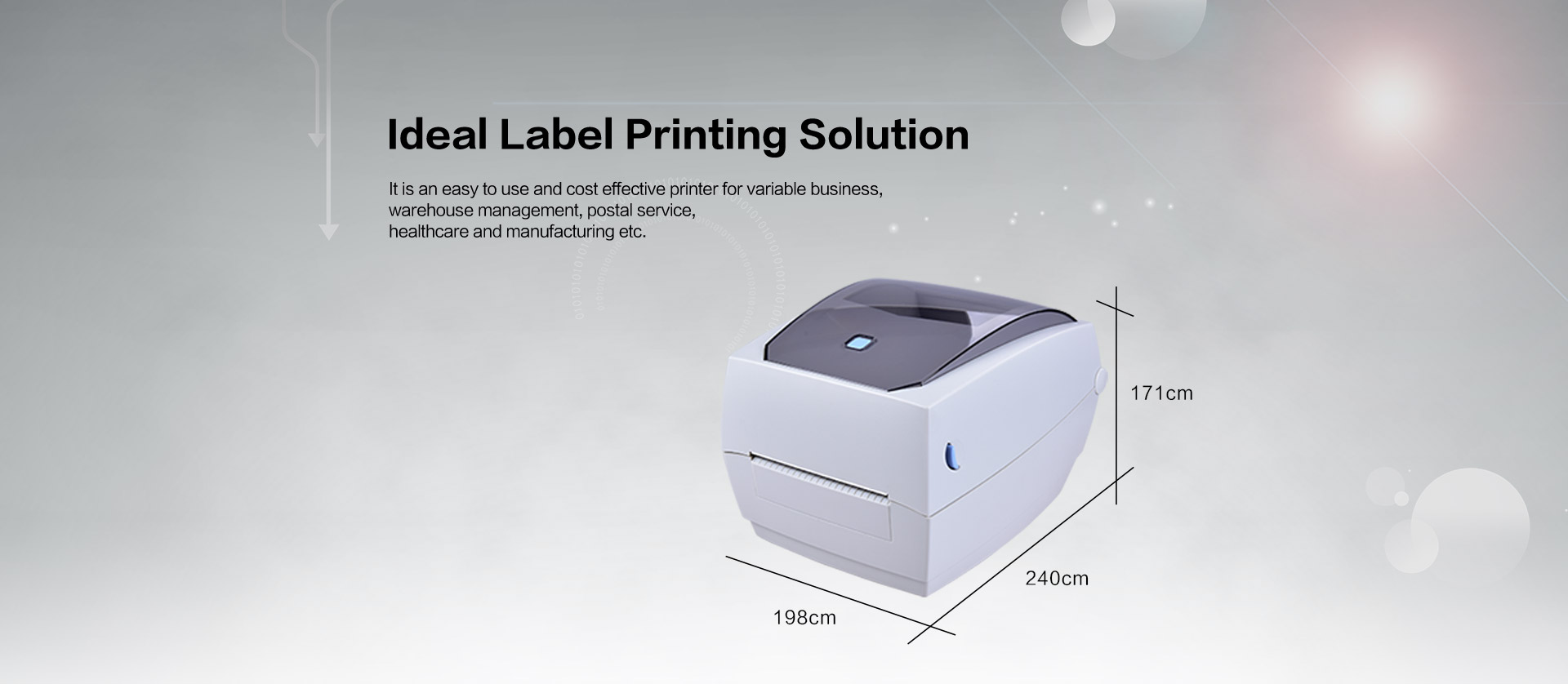

HPRT label printing solution

adjustable label width printer

thermal printing head

easy to use label printer

label printer with big paper roll container

bartender label printer

label printer paper roll holder

ModelHD100HD130
Printing MethodDirect Thermal
Resolution203 dpi(8 dots/mm)300 dpi(12 dots/mm)
Printing Speed2 ips ~ 5 ips2 ips ~ 4 ips
Printing Width25.4 mm ~ 108 mm25.4 mm ~ 106 mm
Programming LanguageTSPL, ZPL
BarcodeLinear BarcodesCode 39, Code 93, Code 128UCC, Code 128, Codabar, Interleave 2 of 5, EAN8, EAN13, UCC/EAN128, UPC-A, UPC-E, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11
2D Barcodes
QR Code, PDF417, DataMatrix, Aztec
Printing Length15 mm ~ 1200 mm

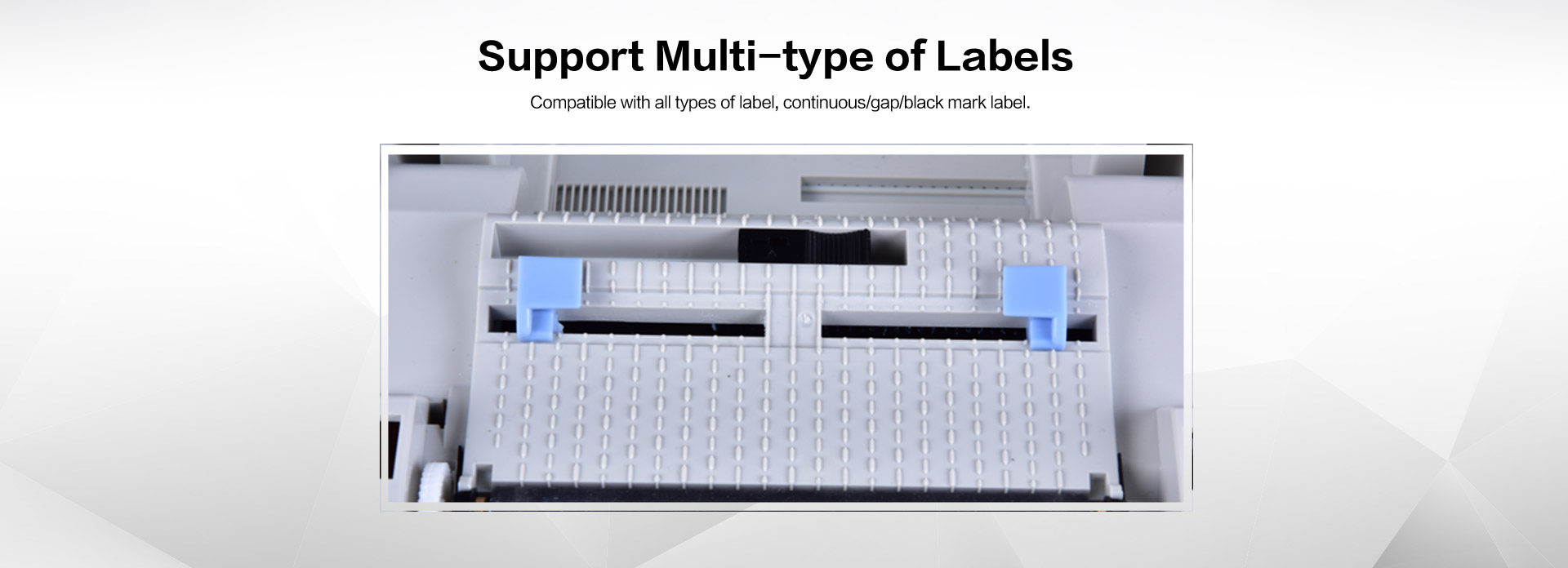

MediaTypeRoll-fed or Fan-fed, Die cut or Continuous direct thermal labels with or without black mark, Tag stock
Diameter(Media Roll)127 mm
Thickness76.2 μm ~ 177.8 μm
Diameter(Core)0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
SensorsGap SensorTransmissive (Fixed)
Black Mark Sensor
Reflective (Adjustable, Half-Range)
OtherHead-Up Sensor, Ribbon End Sensor, Paper Out Sensor

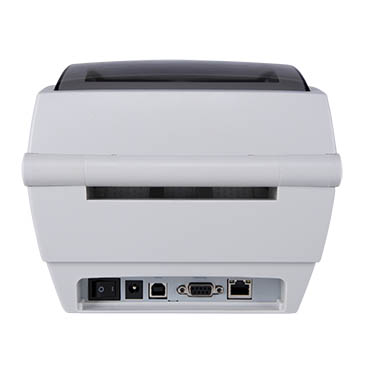

InterfaceStandardUSB Type-B, Serial Port, Ethernet
OptionBluetooth

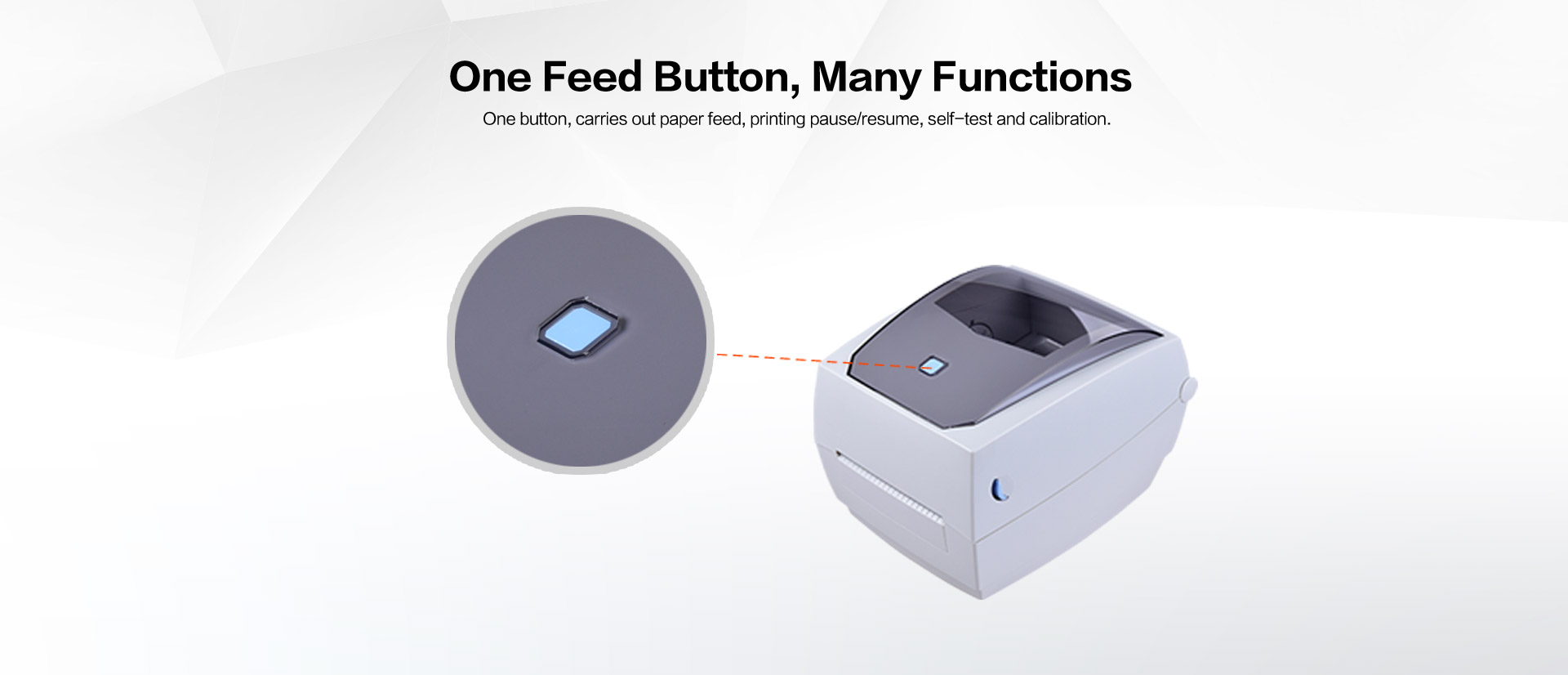

HICButtonFeed
Indicator LightLED (Three colours)
Power AdapterInputAC 100 ~ 240V, 50/60 Hz
OutputDC 24V, 2.5A
ReliabilityTPH50 km
MemoryRAM32 MB
ROM16 MB
SoftwaresDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac

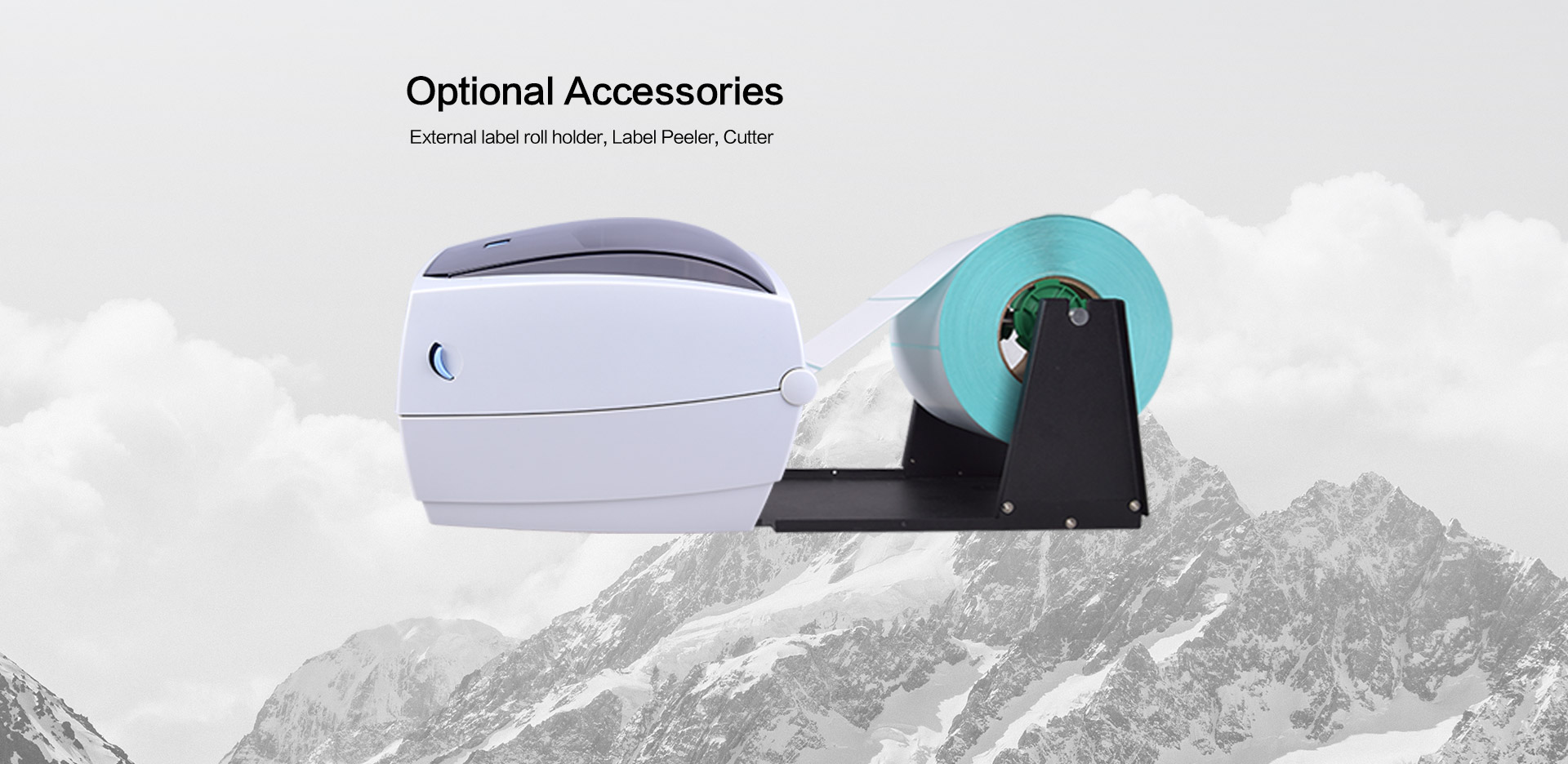

Options and AccessoriesExternal 8-inch Label Roll Holder
Cutter Module (G4GC, White)
Peeler Module (G4P, White)
Physical Characteristics240(L)×225(W)×171(H) mm
Empty Weight2.26 kg
Agency ApprovalsCCC, FCC, CE
