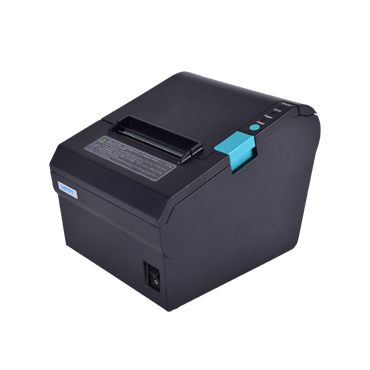

3" Thermal Receipt Printer

•  Reliable quality and cost-effective

•  All-metal structure

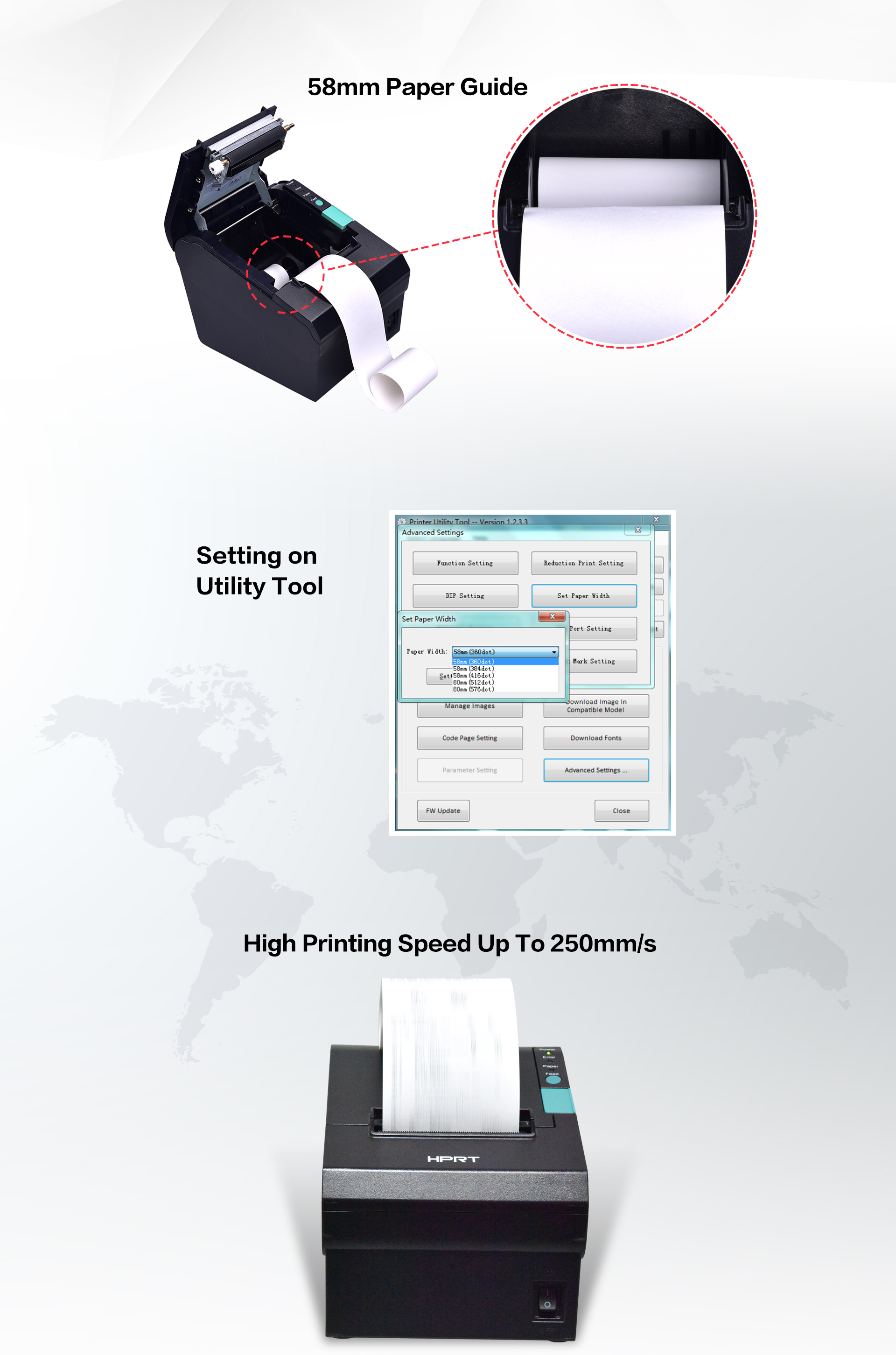

•  High printing speed up to 250mm/s
•  Support 2D barcode, such as QR code/PDF417

•  Support 58mm, 80mm paper width

•  Provide Windows/Linux/OPOS/Java POS/MAC driver

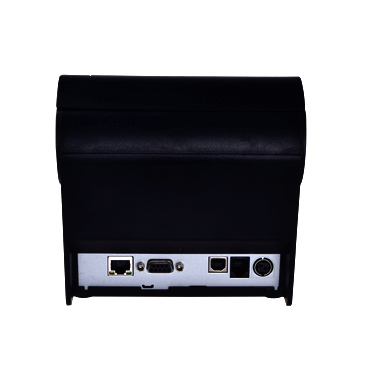

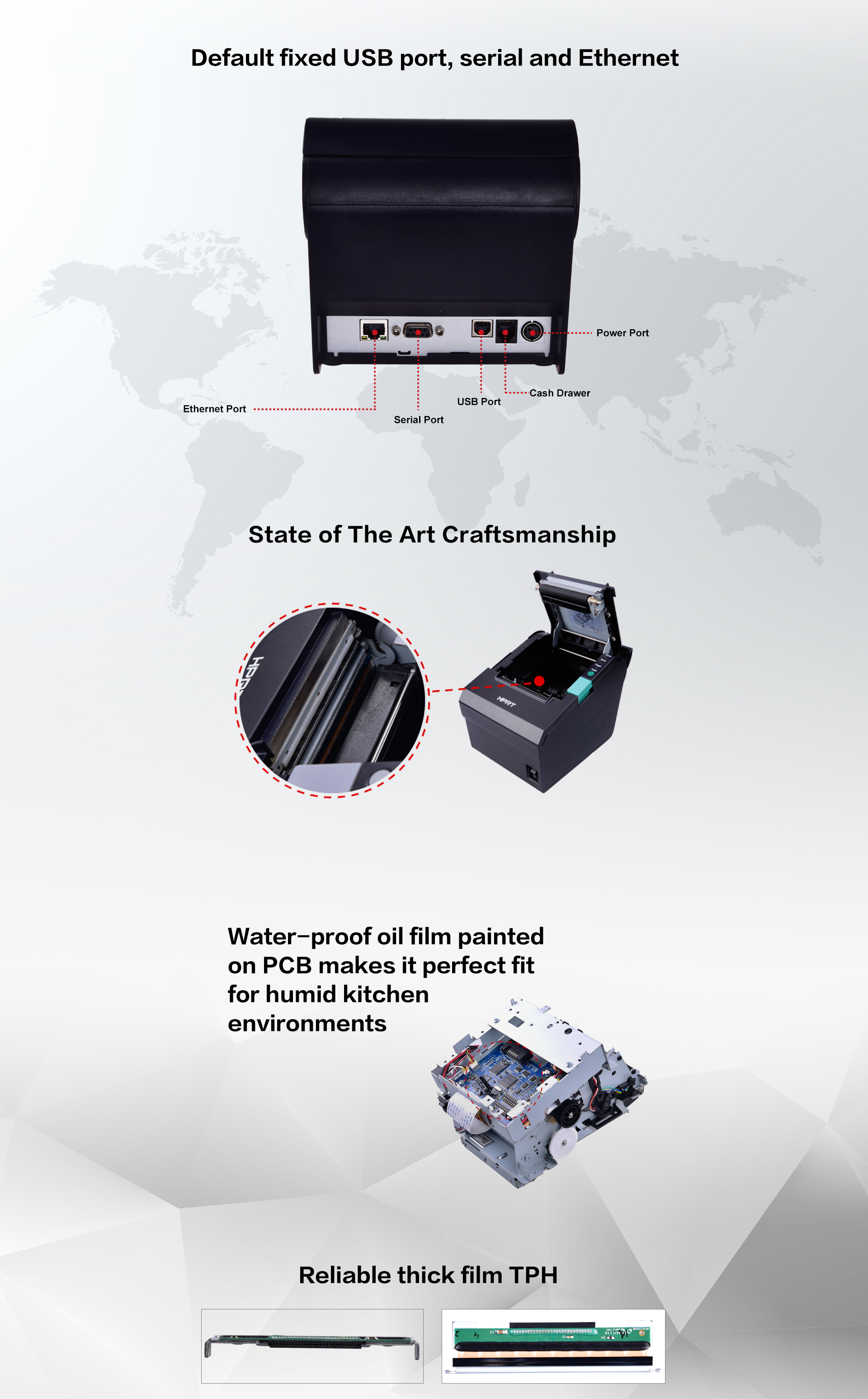

•  Fixed USB+serial+ethernet interface

5830183d3ad1e5e1cc96c653c5d4e73d
b948ff4fd7a0293113d171a2b552e74c
f17439b472513f60d477ec6ccaa1f386
1add67d3a54ee16192e49a1a49d16506
c8755d9d84223142b960bd4f75abee1c
4e6717b1187e8e363ca9681c3c7355fe







PrintingPrint MethodDirect Thermal Line Printing
ResolutionStandard 203 dpi (8 dots/mm), Emulated 180 dpi (7 dots/mm)
Print SpeedMax.250 mm/s
Printing Width48 mm/72 mm
InterfaceStandardUSB+Serial+Ethernet
Page ModeSupport
Fonts
ChineseGBK 24x24dots
AlphanumericASCII 9x17, 12x24dots
User-definedYES
Codepage48
Barcode1DUPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE128, CODE93
2D PDF417, QR Code
GraphicsSupport bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 K, the total size of bitmap is 256 K)
DetectionSensorsPaper out detection,  cover open detection
Memory
RAM
2 MB
Flash
4 MB
LED IndicatorPowerGreen LED
Paper outRed LED
ErrorRed LED
Dip switchHardwareNo
SoftwareYes
Power SupplyInputAC 100V-240V 56-60HZ
OutputDC 24V/2.5A
PaperPaper TypeThermal Receipt Paper
Paper Width58mm/80mm
Paper Thickness0.056 ~ 0.1mm
Roll Paper DiameterMax. 83 mm (O.D.)
Paper LoadEasy paper loading
Paper cutPartial cut
Environment
Operation0 °C ~ 40 °C, 20% ~ 85% R.H
Storage-20 °C~70 °C, 5% ~ 95% R.H
Physical CharacteristicsDimension195(L)×147(W)×147(H) mm
Weight1.8 kg

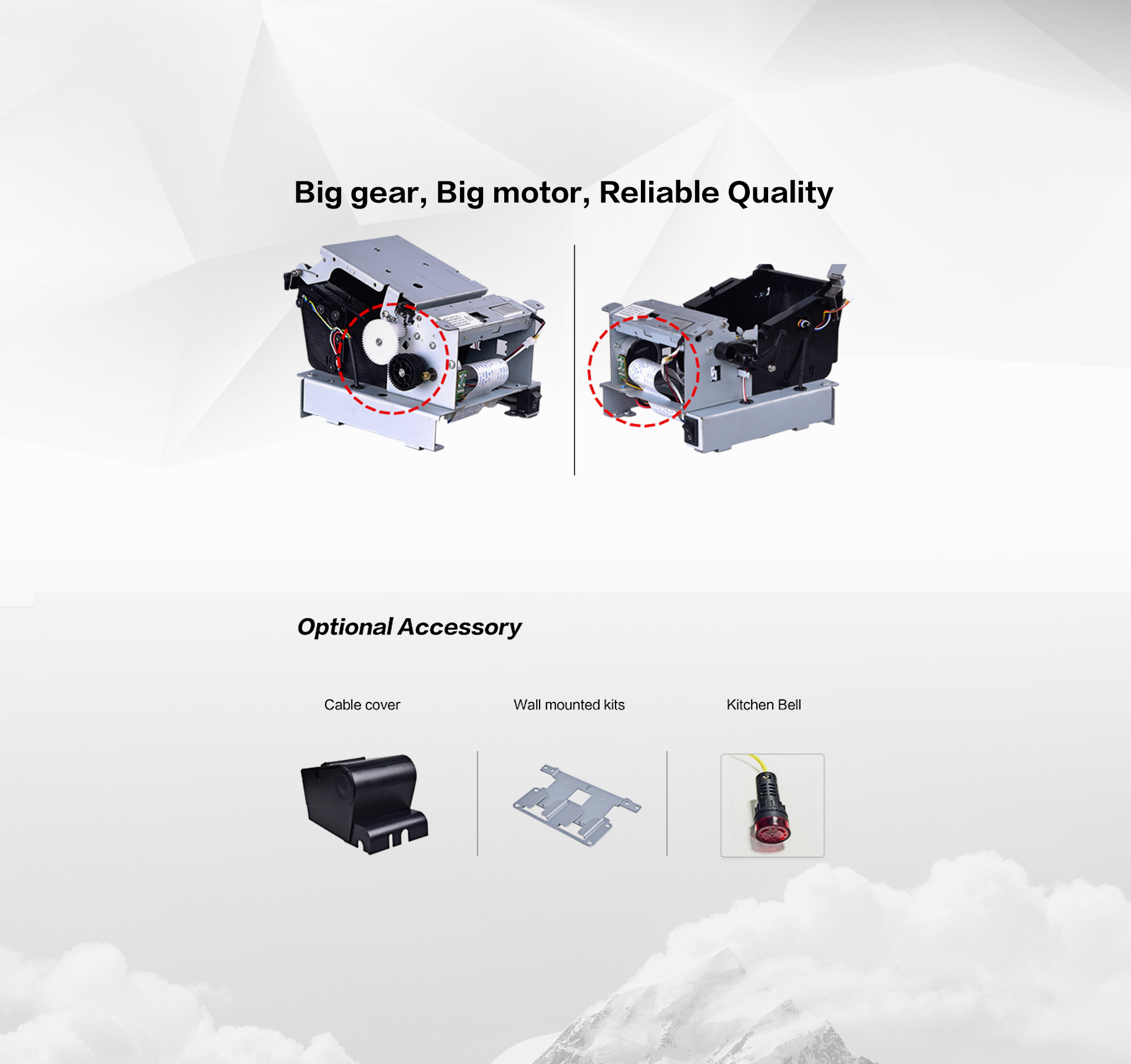

Options and AccessoriesUSB/Serial/Parallel Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide
ReliabilityTPH life150 km
Cutter life1.5 million cuts
SoftwareEmulationESC/POS
DriverWindows (win10/win8/win7/XP/POS Ready/vista), Linux, OPOS, Java POS
SDKWinCE, Win Mobile, Android, iOS
