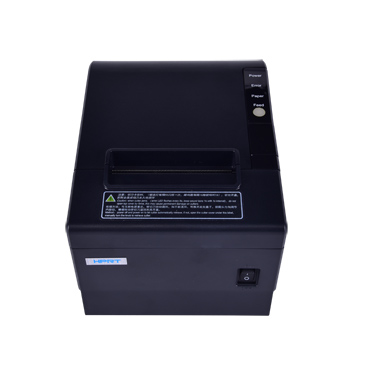

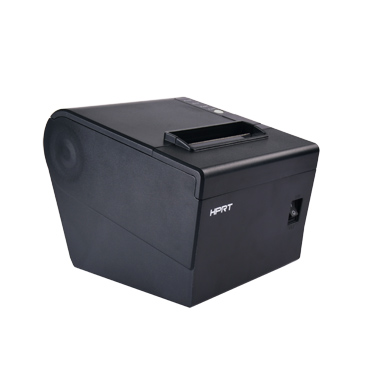

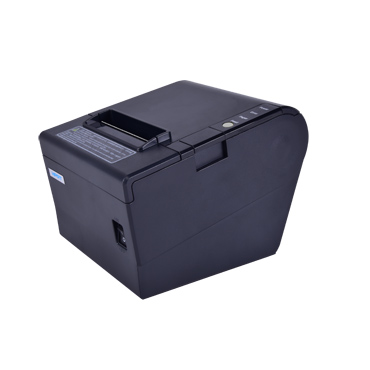

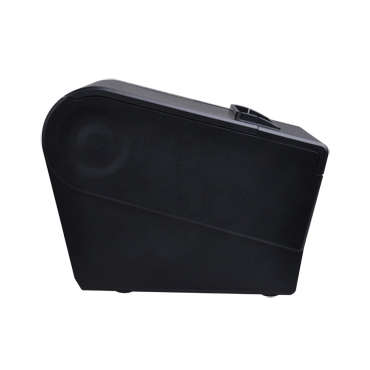

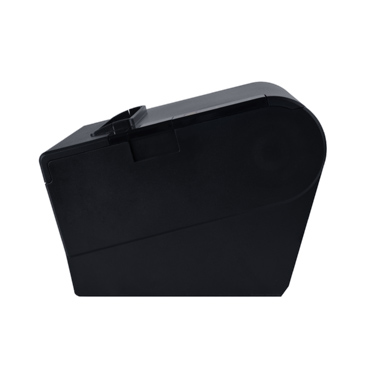

3" Thermal Receipt Printer

• Provide Windows/Linux driver

• Provide complete OPOS driver

• Support page mode printing

• With double cash drawer driver

• High printing speed up to 250mm/s

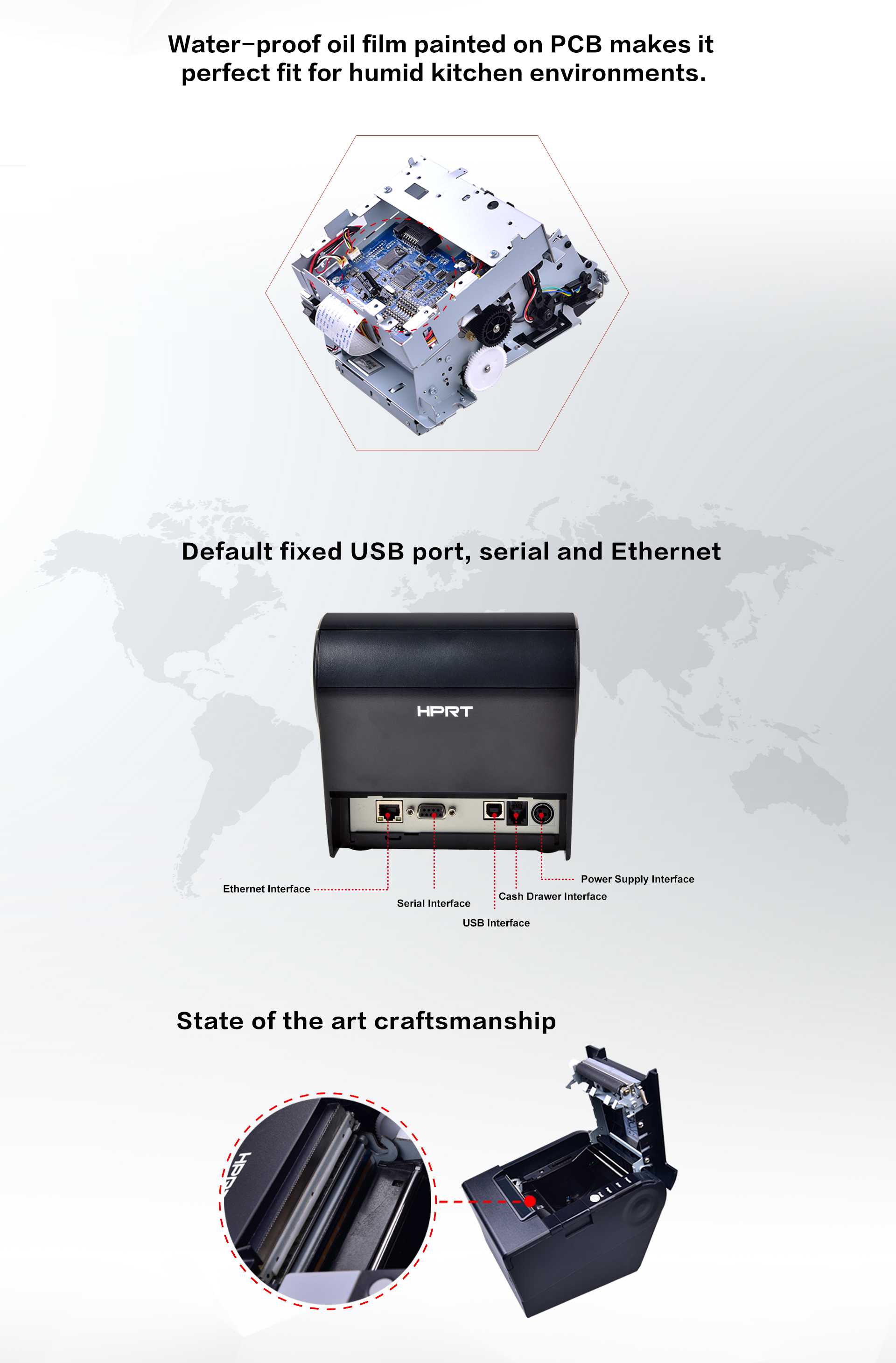

• Three-in-one interface, including RS232, Ethernet and USB

• Embedded with 2D barcode edition algorithm which supports the 2D barcode common in the market, such as QRcode/PDF417

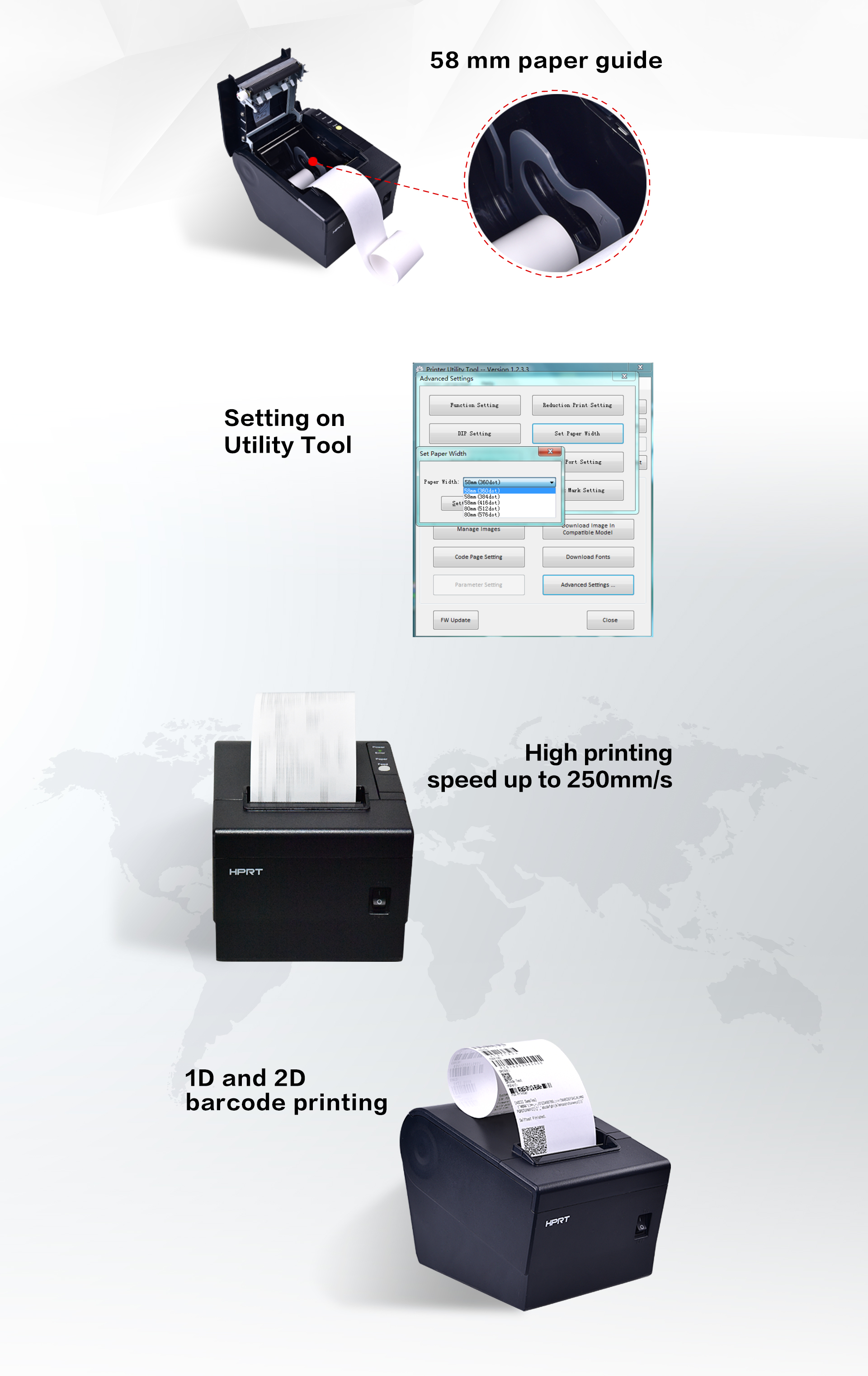

• Movable paper guard plate design which supports 58mm, 80mm wide thermal paper

Send Inquiry

，

Printing	Print Method	Direct Thermal Line Printing
	Resolution	Standard 203 dpi (8 dots/mm)
	Print Speed	Max.250 mm/s
	Printing Width	48 mm/72 mm
Interface	Standard	USB+Serial+Ethernet
Page Mode		Support
Fonts	Chinese	GBK 24x24dots
	Alphanumeric	ASCII 9x17, 12x24dots
	User-defined	YES

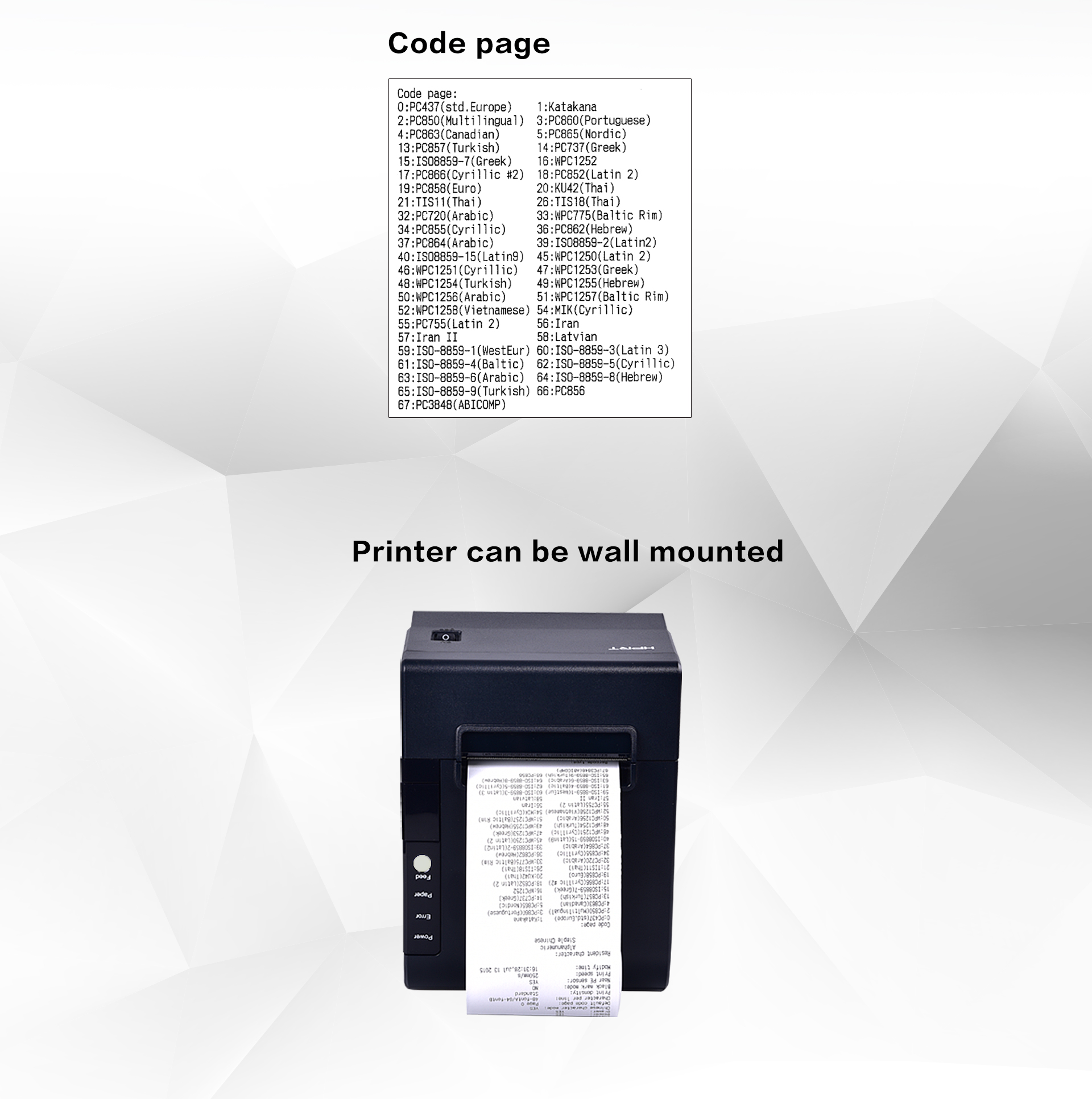

	Codepage	48
Barcode	1D	UPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE128, CODE93
	2D	PDF417, QR Code
Graphics		Support bitmap printing with different density and user defined bitmap printing. (Max.64K for per bitmap, and Max.256K for total)
Detection	Sensors	Paper out detection, cover open detection
Memory	RAM	2 MB
	Flash	4 MB
LED Indicator	Power	Green LED
	Paper out	Red LED
	Error	Red LED
Dip switch	Hardware	No
	Software	Yes
Power Supply	Input	AC 100V-240V 56-60HZ
	Output	DC 24V±5%， 2.5A
Paper	Paper Type	Thermal Receipt Paper
	Paper Width	58mm/80mm
	Paper Thickness	0.056 ~ 0.1mm
	Roll Paper Diameter	Max. 83 mm (O.D.)
	Paper Load	Easy paper loading
	Paper Cut	Manual tear or Auto-cutter
Environment	Operation	0 °C ~ 40 °C, 20% ~ 85% R.H
	Storage	-20 °C~70 °C, 5% ~ 95% R.H
Physical Characteristics	Dimension	145(L)×197(W)×146(H) mm
	Weight	1.8 kg

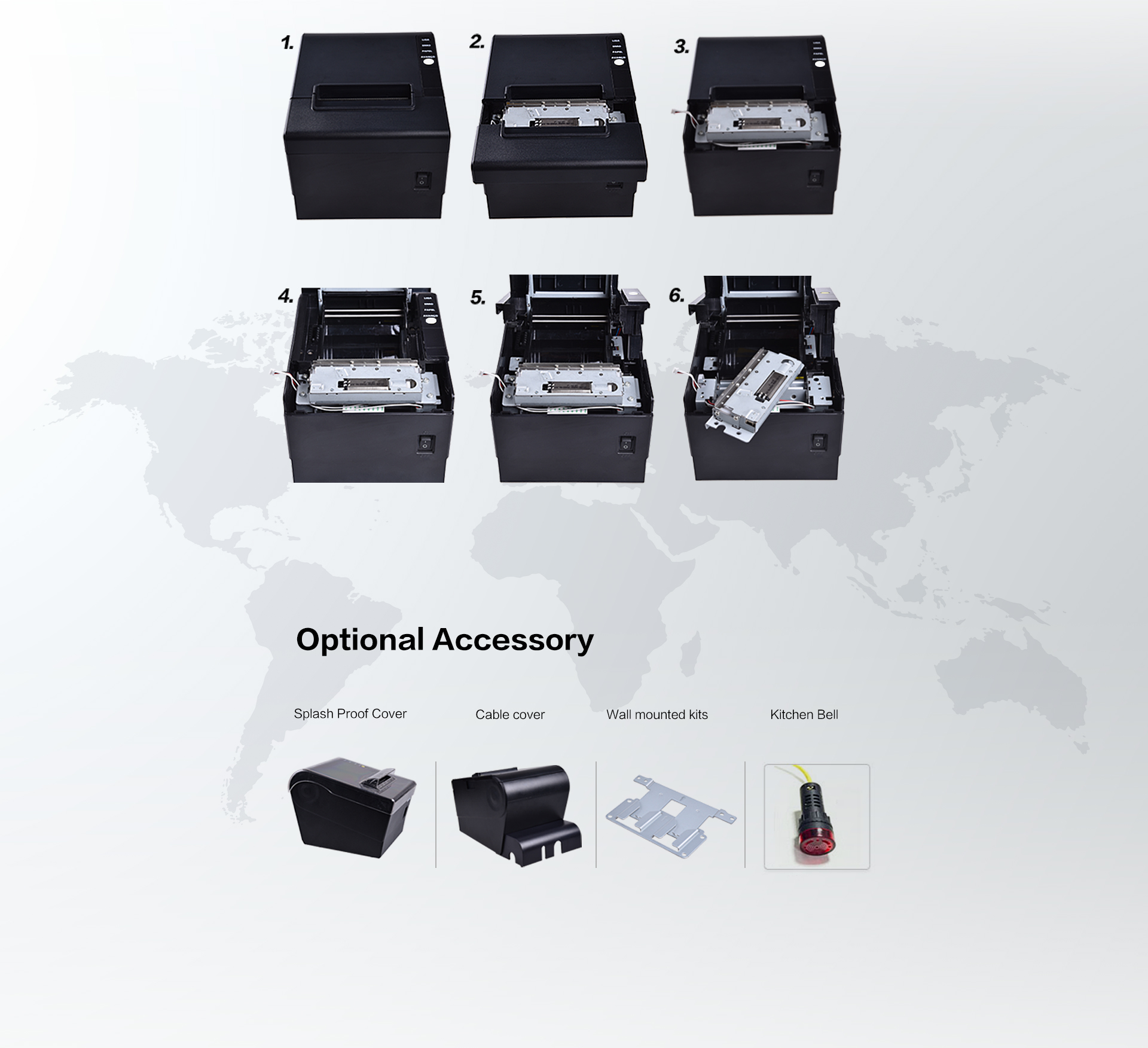

Options and Accessories		USB/Serial/Parallel Cable, Paper Roll, Power Adapter, Power Cord, CD, Quick Start Guide

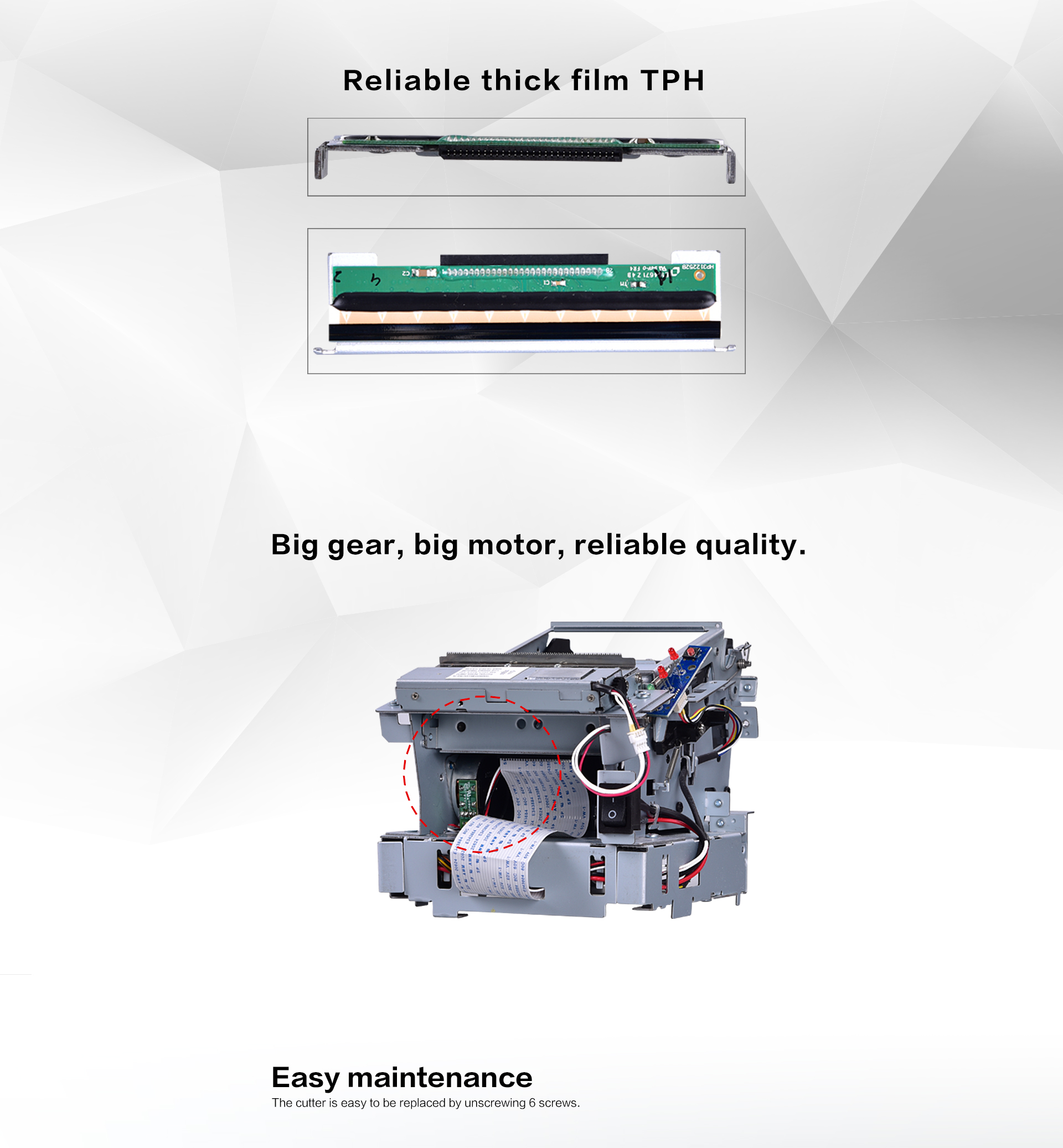

Reliability	TPH life	150 km

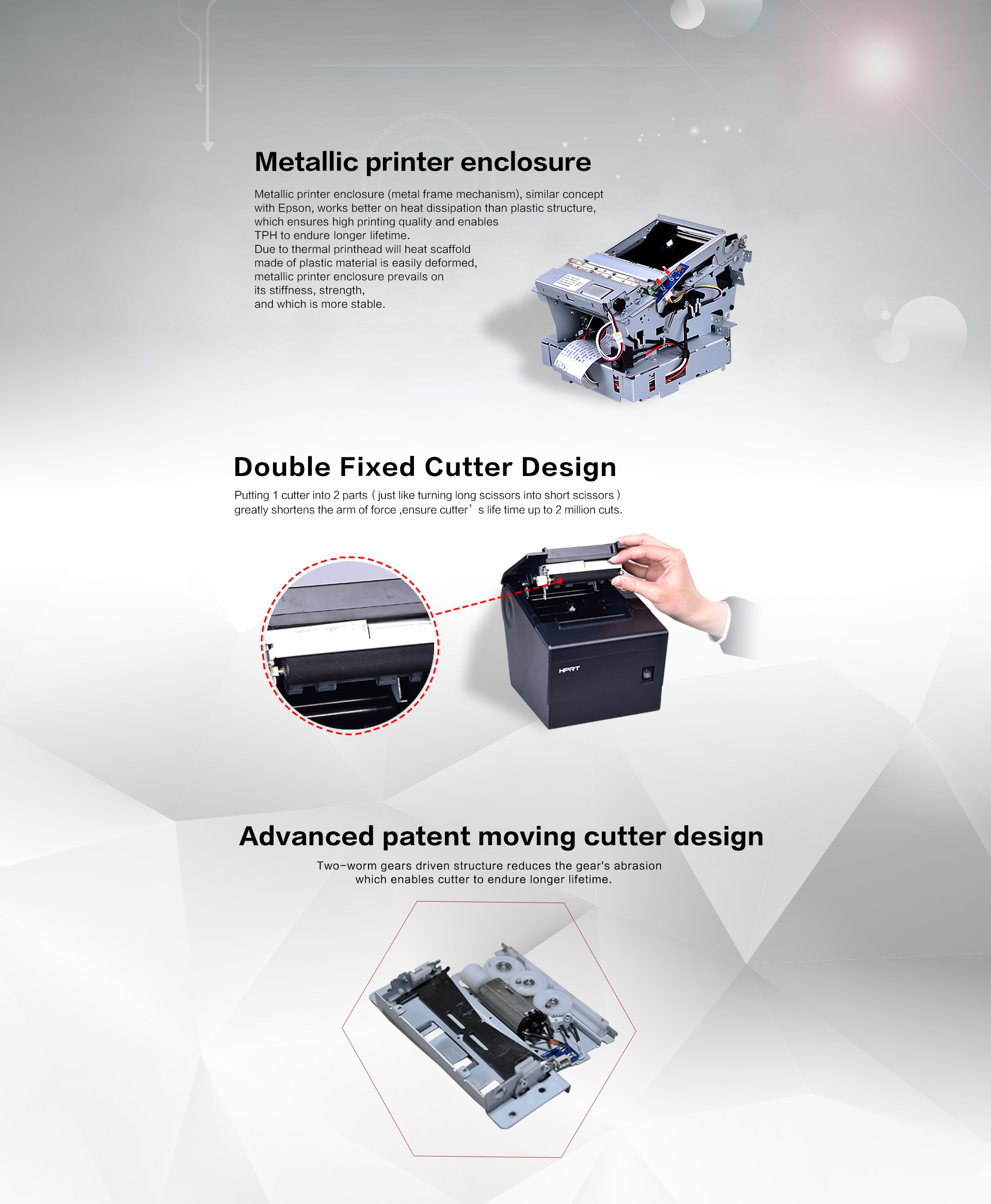

	Cutter life	2 million cuts
Software	Emulation	ESC/POS
	Driver	HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac
	SDK	WinCE, Win Mobile, Android, iOS
