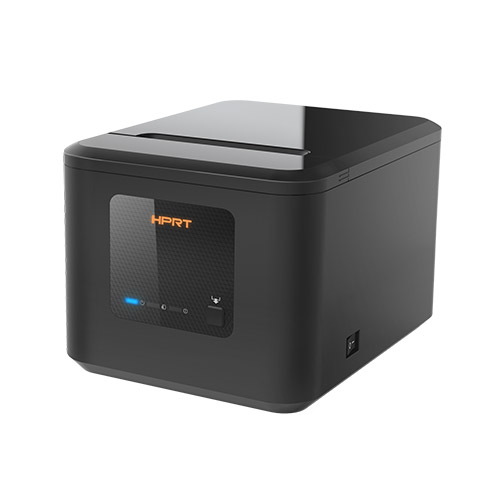

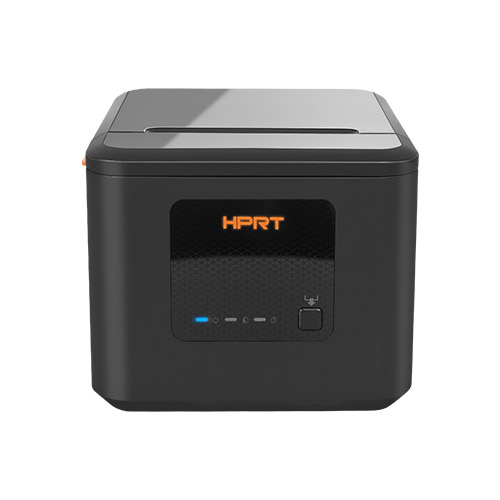

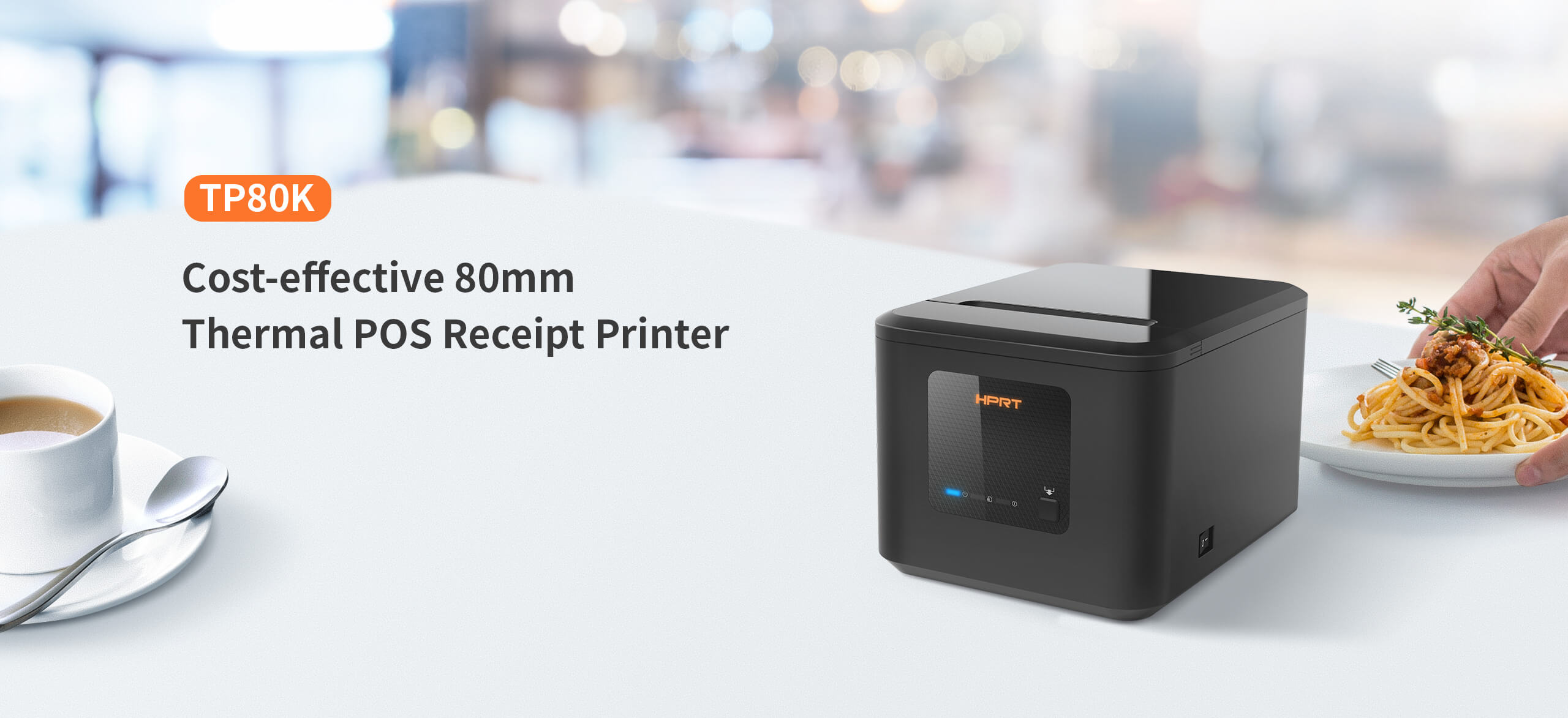

• 3" compact receipt printer with high printing speed 230mm/s

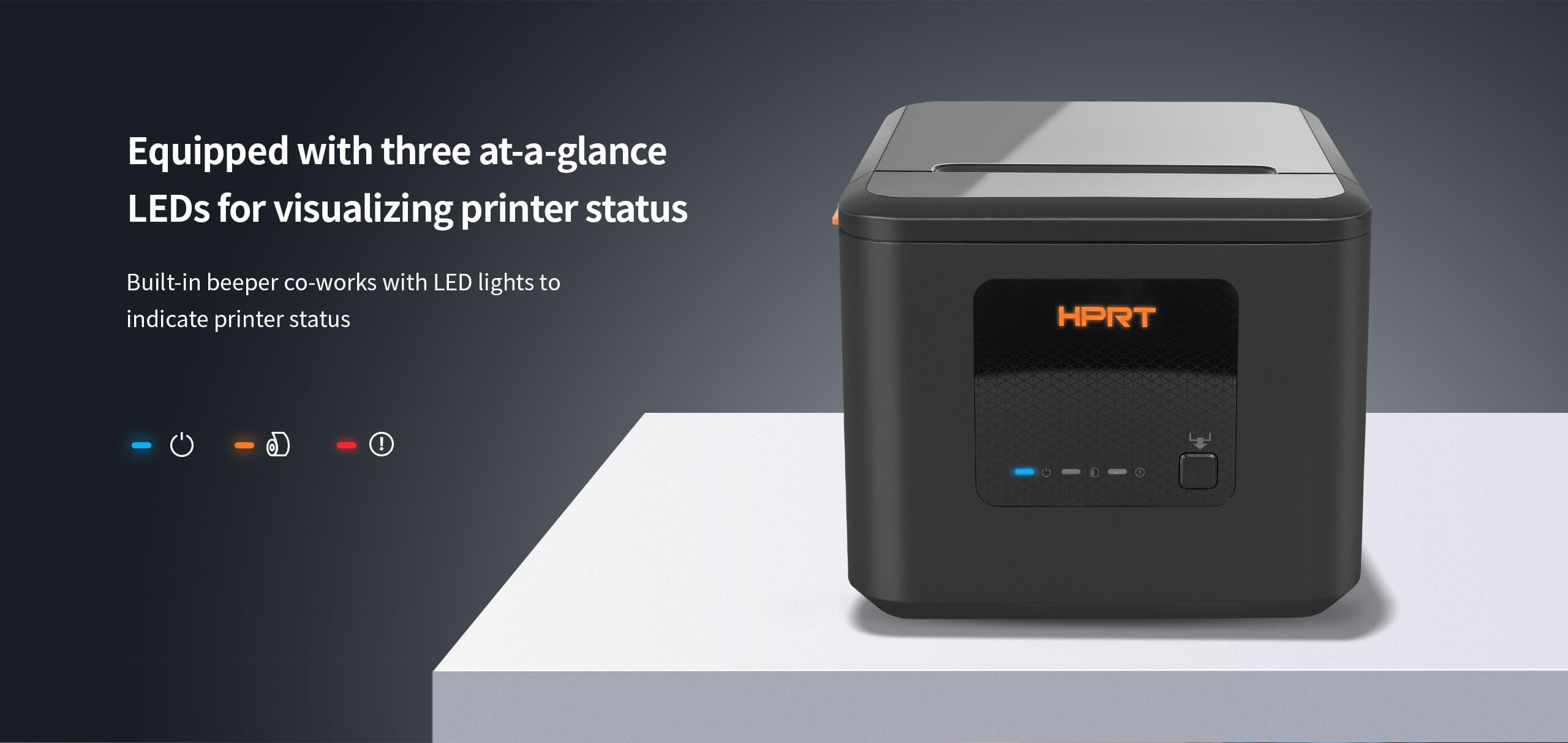

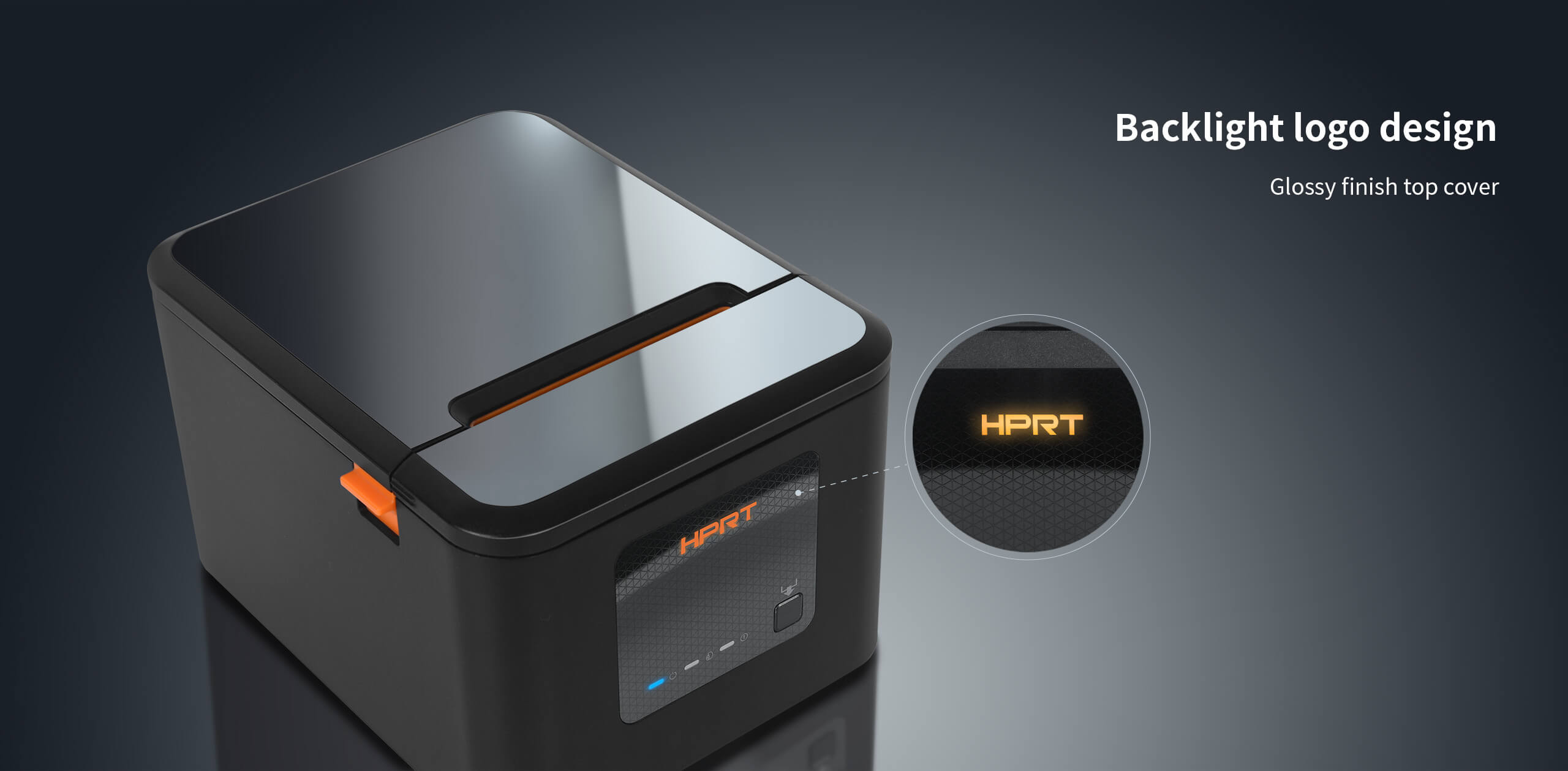

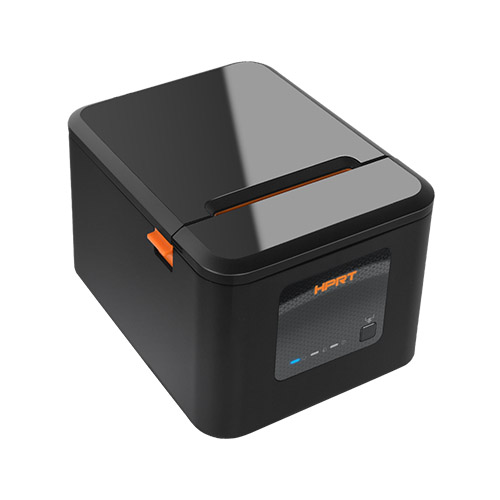

• Backlight logo design and glossy finished top cover, three
LEDs for visualizing printer status

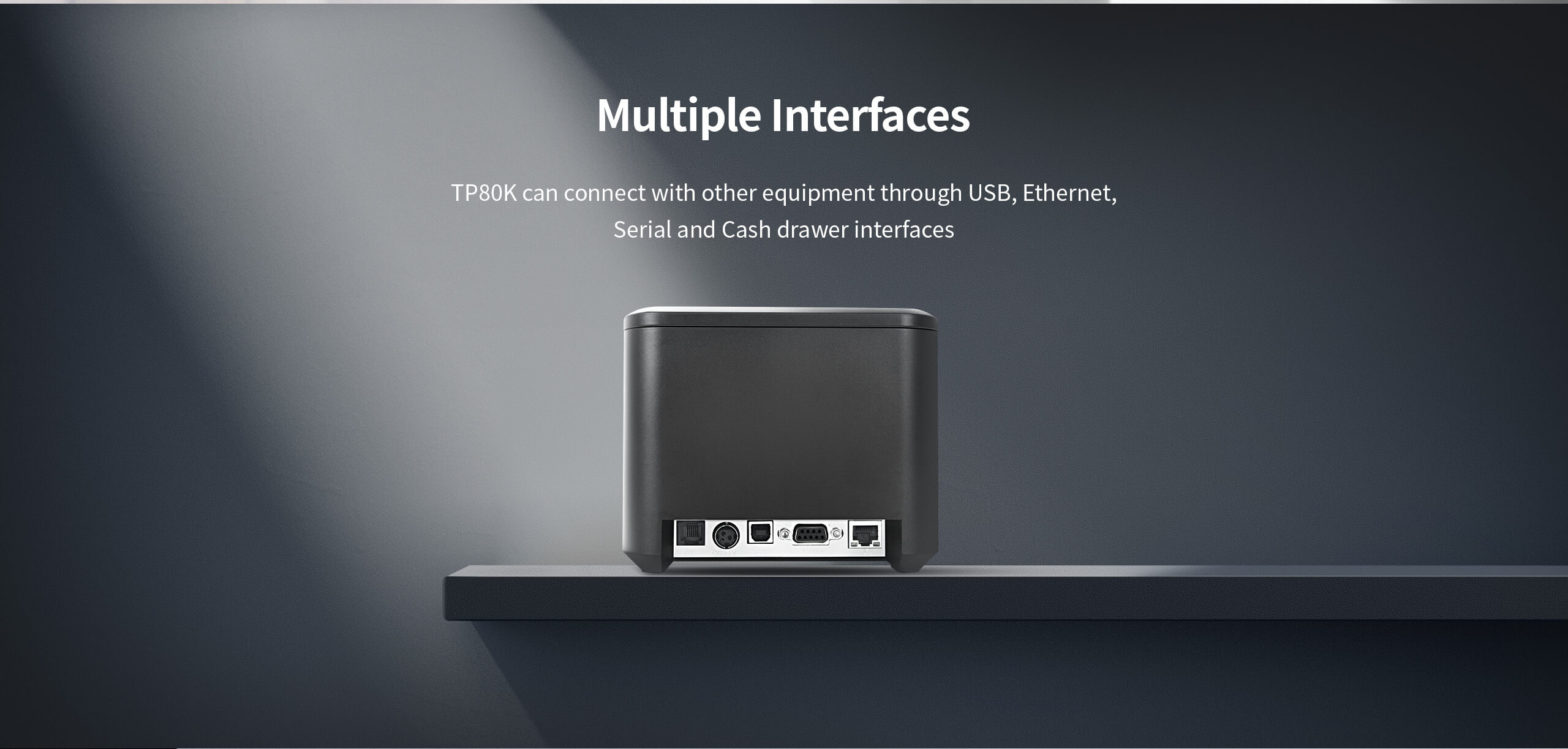

• Defaulted USB, Serial, and Ethernet, optional Bluetooth and
wireless, an exemplary choice for retail and hospitality
segments

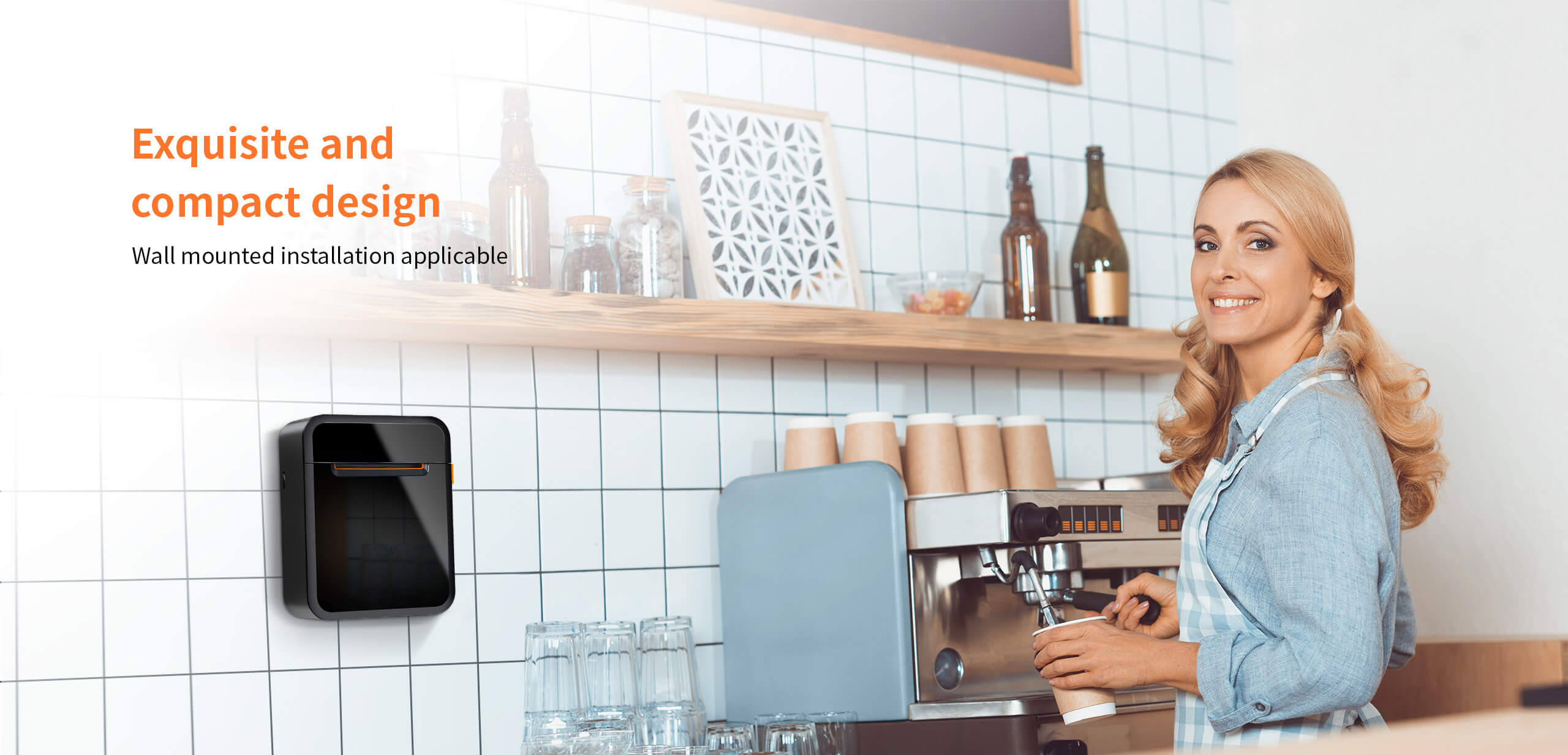

• Desktop and wall-mounted supported

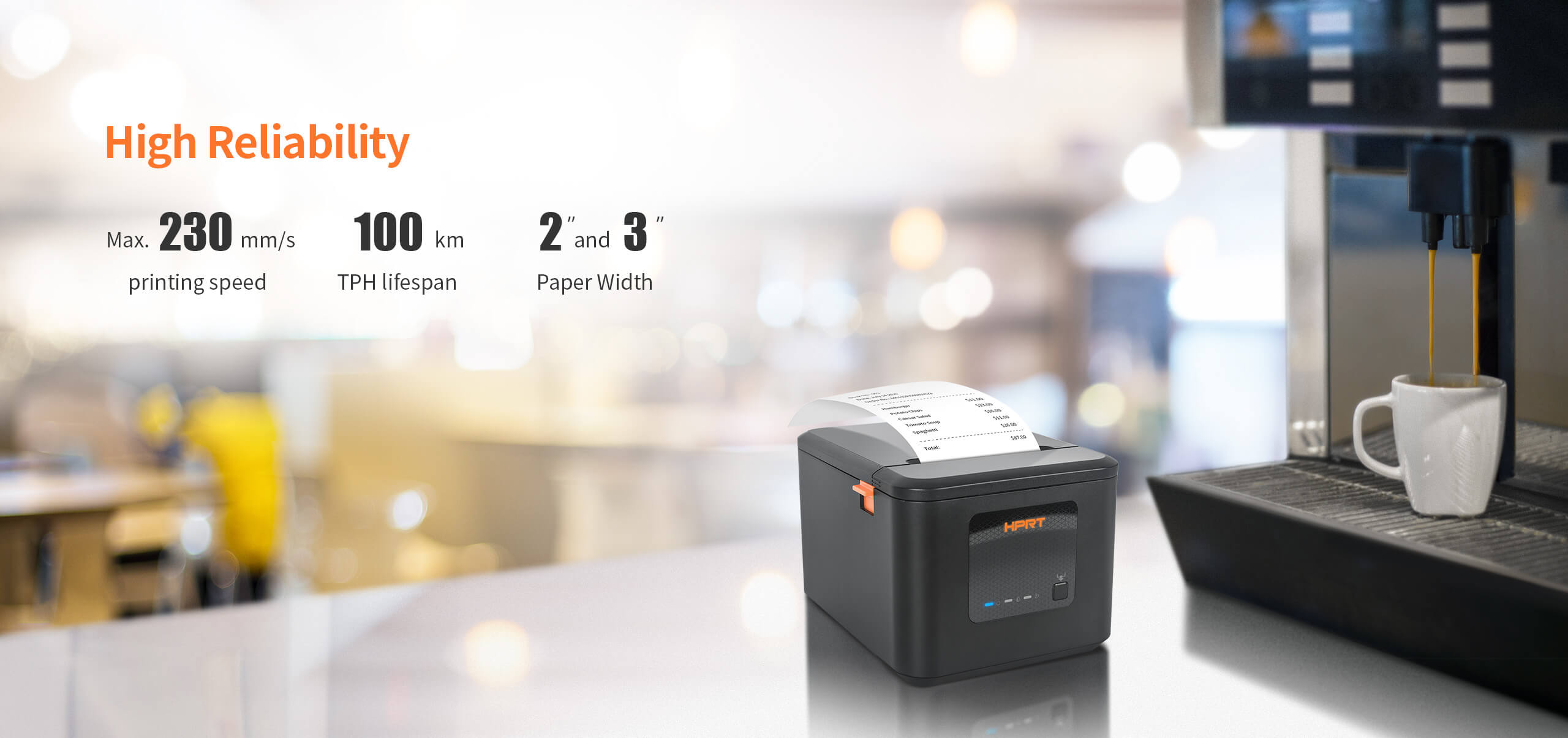

• High reliability: 100km TPH lifespan and 1.5 million cuts
cutter life

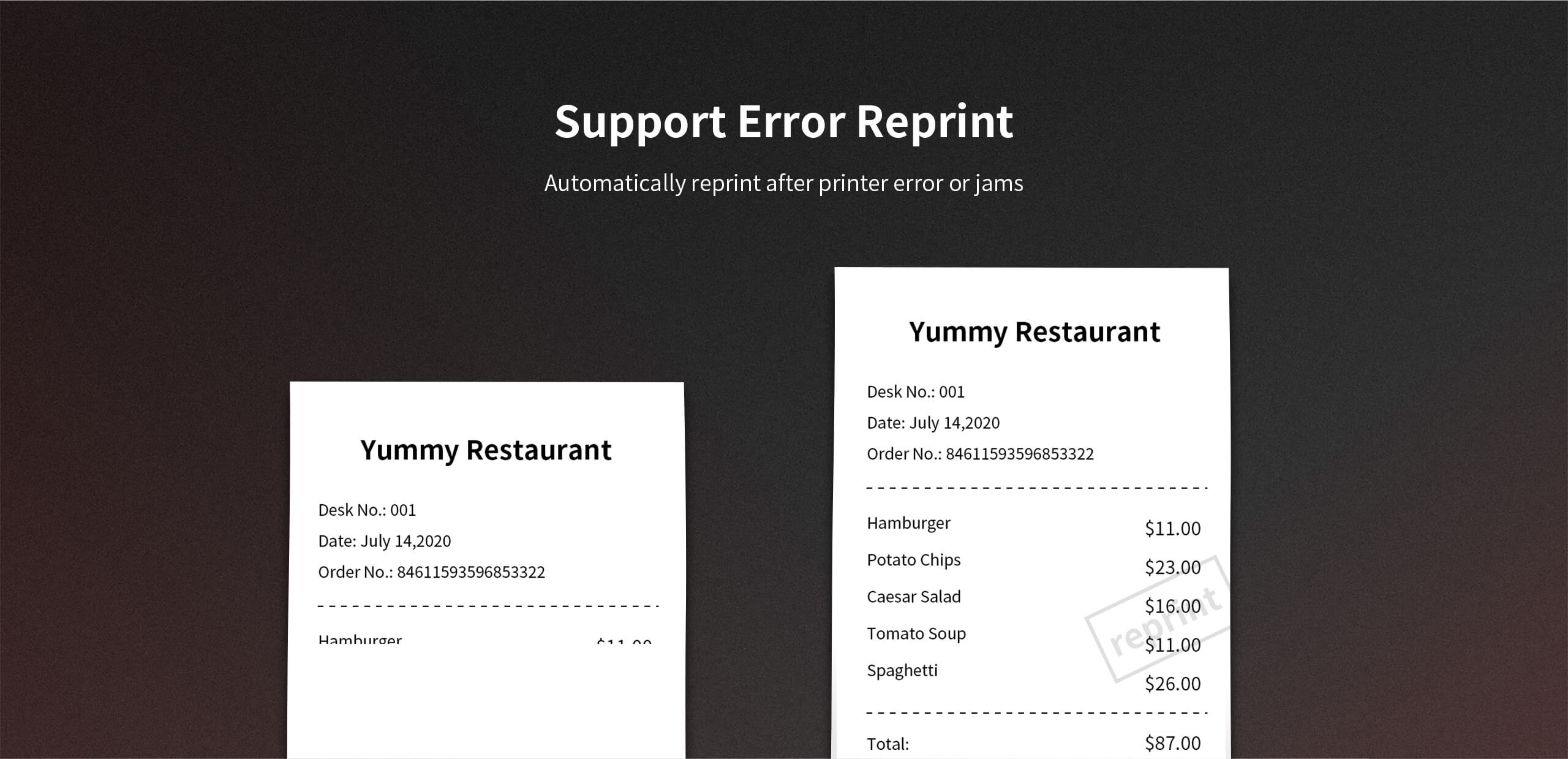

• Support error reprint, making sure no order being missed
| Model | TP80K | TP80K-L | |
| Print Specifications | Print Method | Direct Thermal | |
| Resolution | 203 dpi (8dots/mm) | ||
| Print Speed | Max. 230mm/s | ||
| Print Width | 72mm(default)/48mm | ||
| Page Mode | Support | ||
| Commands | ESC/POS | ||
| Paper Feeding Direction | Upward | ||
| Paper Specifications | Type | Thermal receipt paper | |
| Width | 80mm/58mm | ||
| Thickness | 0.056-0.13mm | ||
| Max. Outer Diameter of Paper Roll | Max. Φ83mm | ||
| Characters | Characters | Traditional Chinese (BIG-5), Simplified Chinese(GB18030), Japanese (S-JIS), Korean (KS-X1001) | |
| 47 codepages | |||
| Barcodes | 1D | UPC-A, UPC-E, Code 39, Code 93, Code128, EAN128, EAN8, EAN13, Interleaved 2 of 5 | |
| 2D | QR code, PDF417 | ||
| Sensors | Standard | TPH over-heat, Paper end, cover open and cutter jam sensors | |
| Optional | Black mark sensor | ||

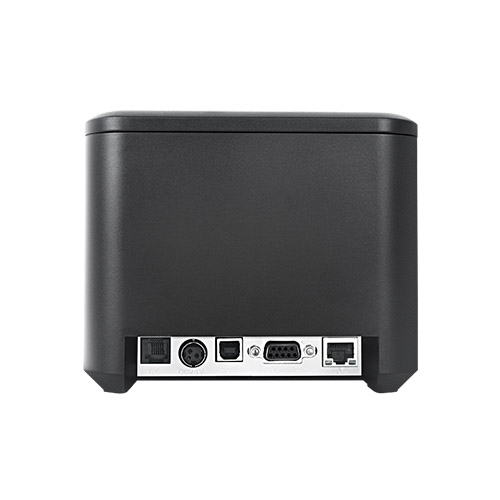

| Communication Interfaces | Standard | Type-B USB 2.0, Ethernet, RS232, Cash drawer | Type-B USB 2.0, Ethernet, Cash drawer |
| Buzzer | Type | Internal buzzer | |
| External audible & visual alarm (Optional) | |||

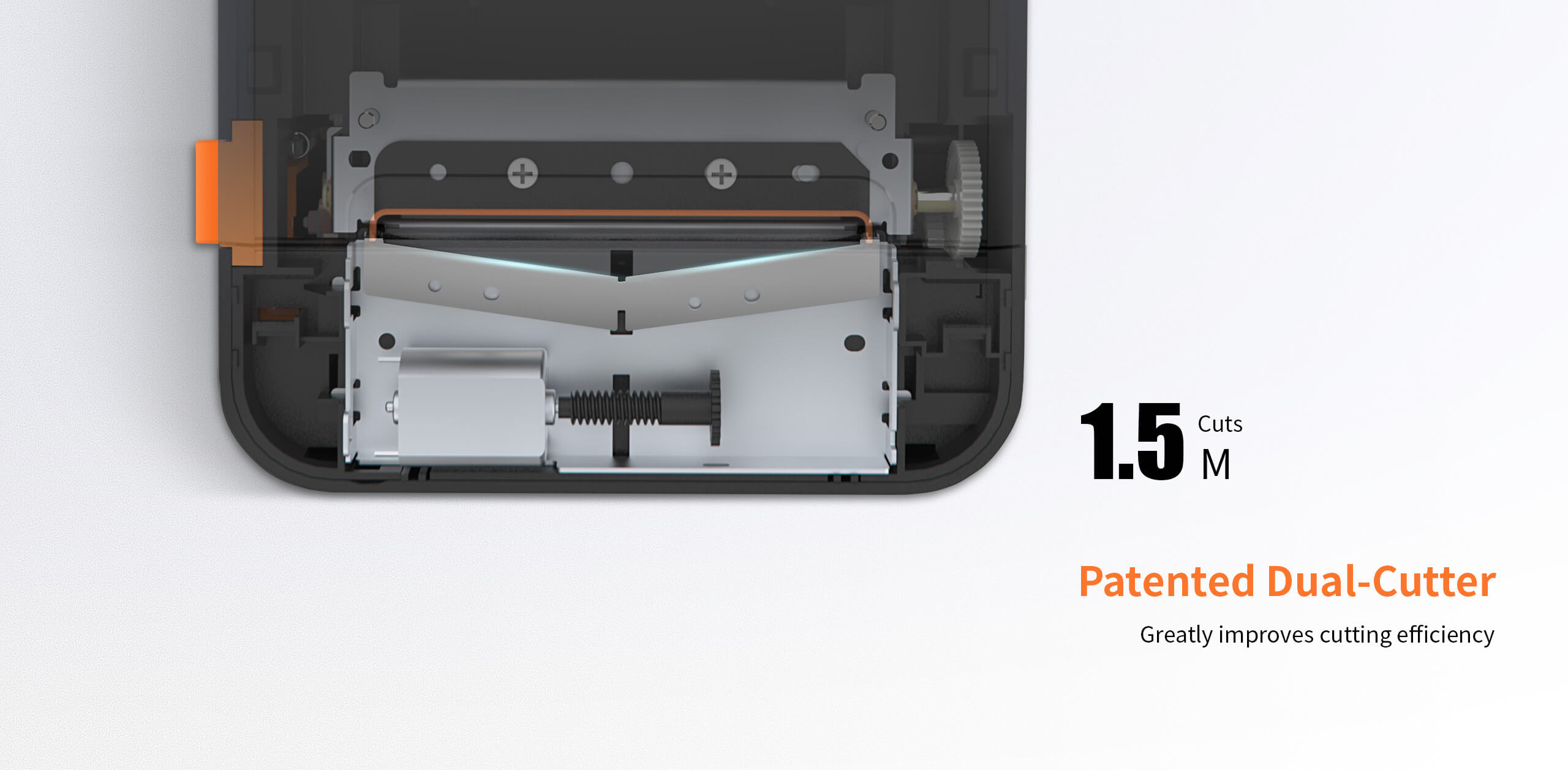

| Cutter | Type | Slide-type dual cutters | |
| Cutting Method | Partial cut | ||
| Solution for cutter jam | Auto cutter retreat with opening cover | ||
| Memory | RAM | 4MB | |
| Flash | 4MB | ||
| Electrical Parameters | Input | AC 100~240V, 50/60Hz | |
| Output | DC 24V±5%, 1.5A | ||
| Reliability | TPH Lifetime | 100KM | |
| Cutter Lifetime | 1.5 Million | ||
| Drop Test | 1.0 meter | ||
| Environmental Requirements | Operation | 0℃to 45℃, Humidity 5% to 95%,non-condensing | |
| Storage | -20℃ to 70℃, Humidity 15% to 95%,non-condensing | ||
| LED Indicators | Power Supply | Blue | |
| Feed | Orange | ||
| Error | Red | ||
| Dimension (L×W×H) | 179mmX140mmX117mm | ||

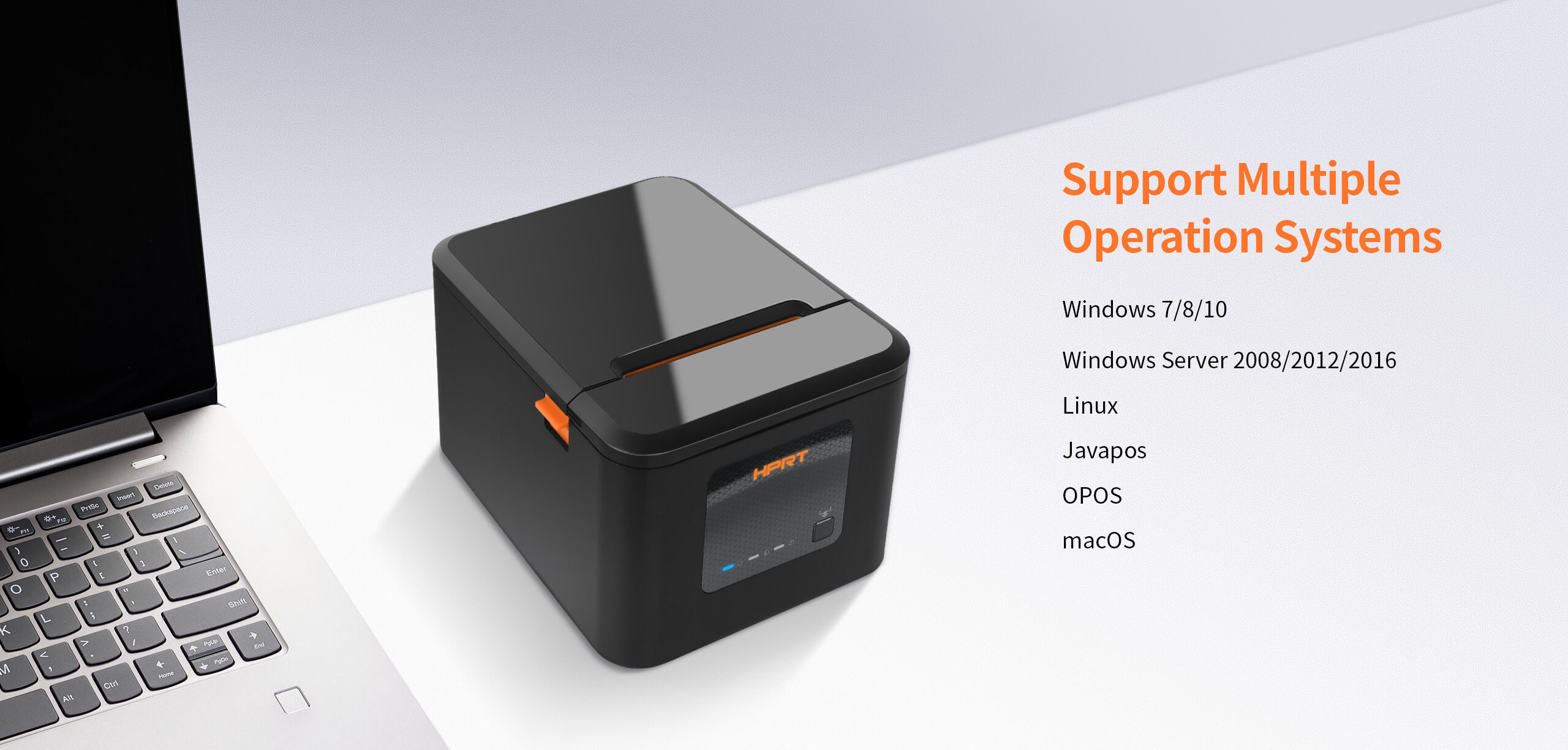

| Software | Driver | Windows 7/8/10, Windows Server 2008/2012/2016, Linux, Javapos, OPOS, MacOS | |
| Utility Tool | Windows 7/8/10, Windows Server 2008/2012/2016 | ||
