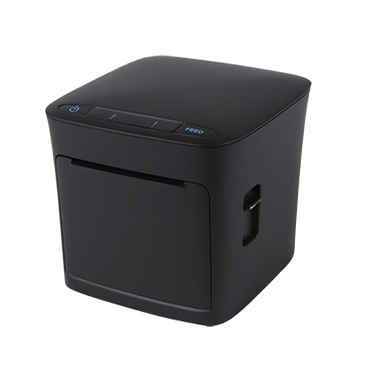

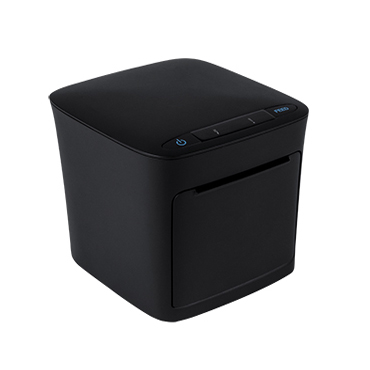

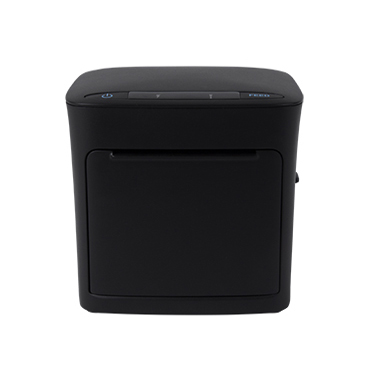

• Stylish cube design
• Front paper loading & feeding
• Dual-blade auto cutter

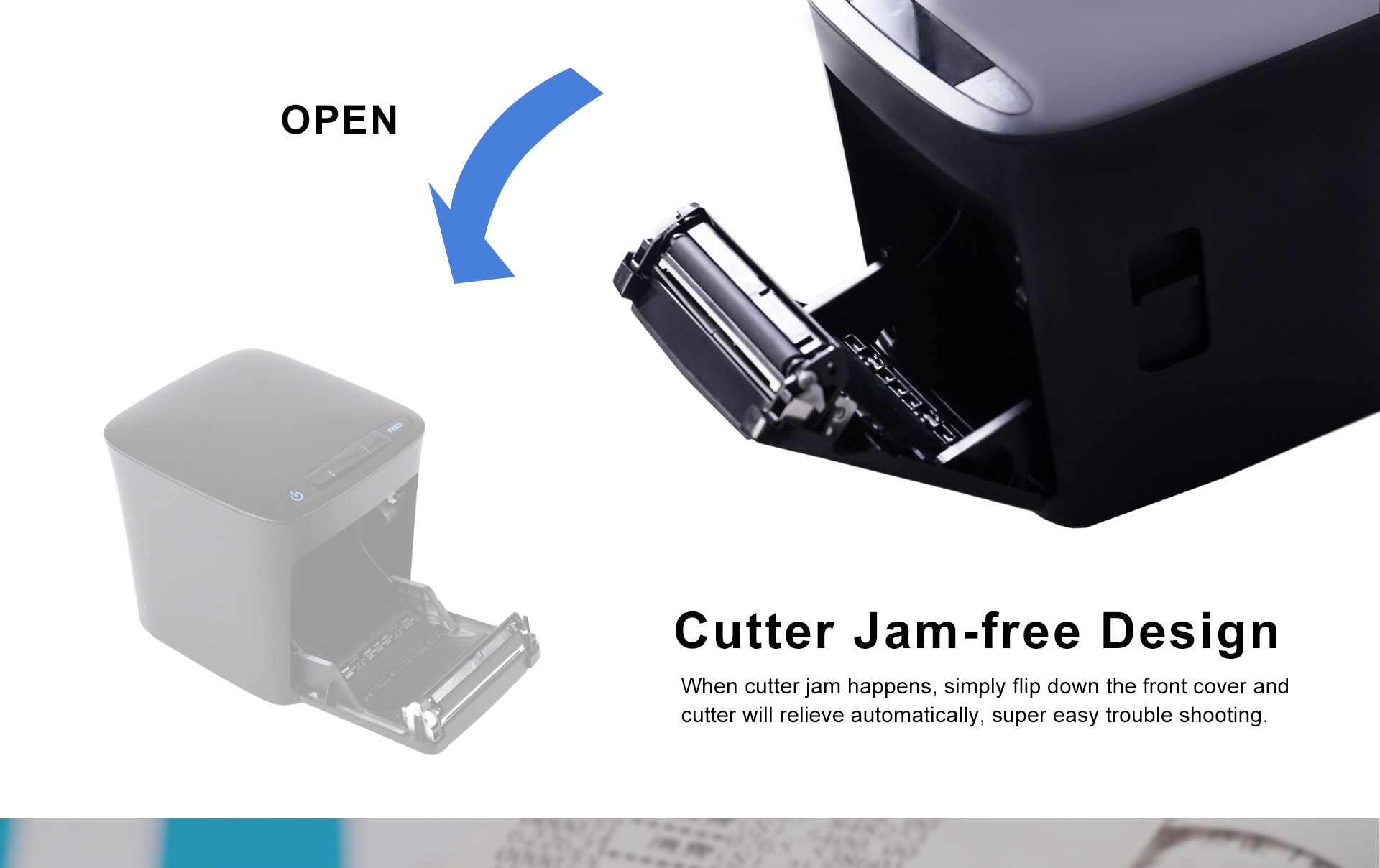

• Cutter jam-free design

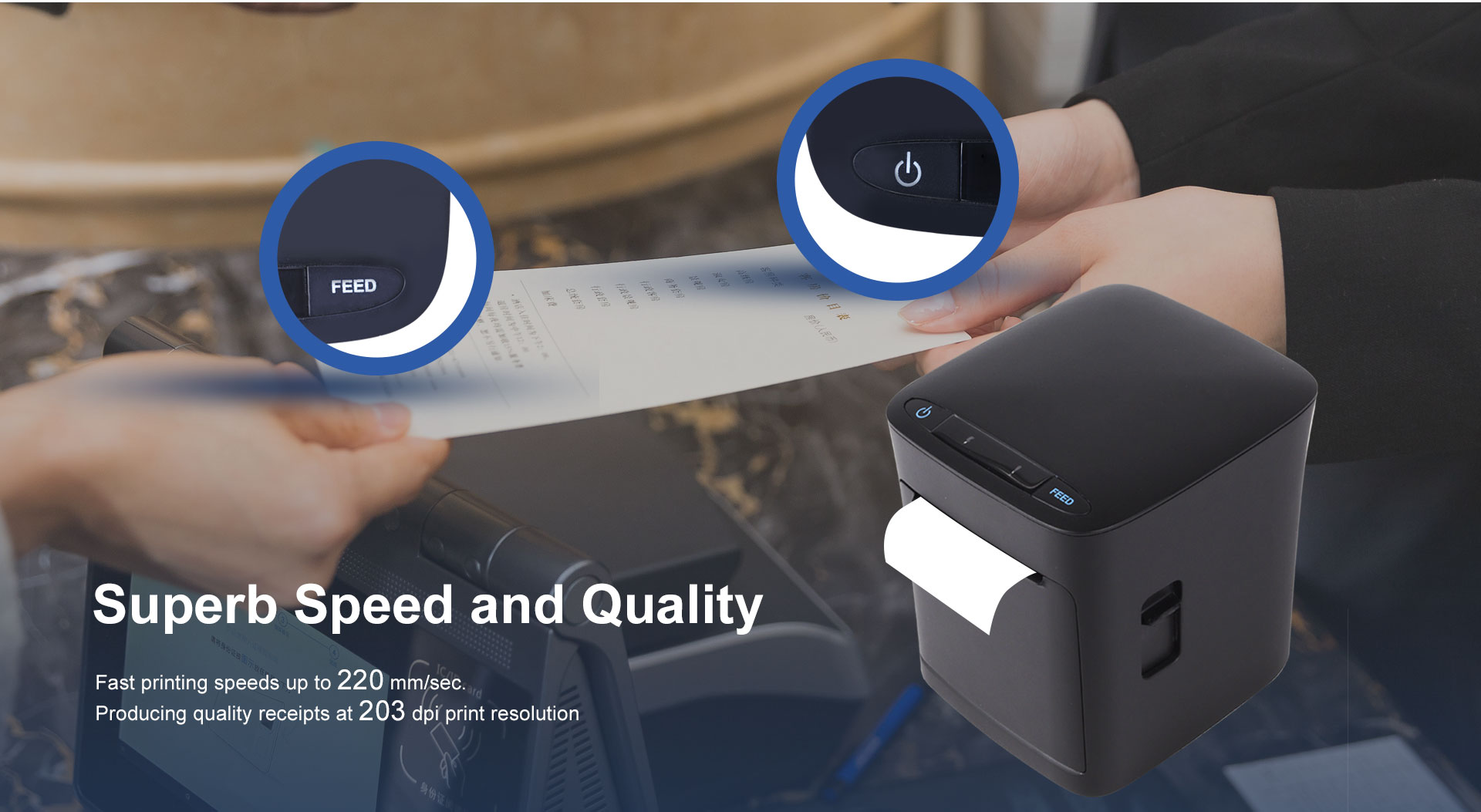

• Up to 220mm/s printing speed
• 576 dots TPH for 72mm Printing Width

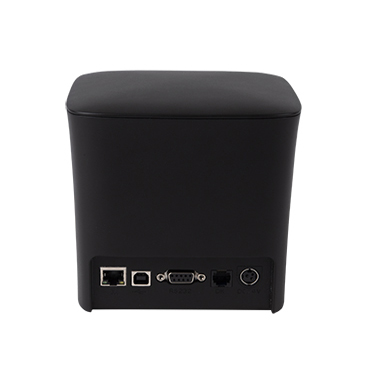

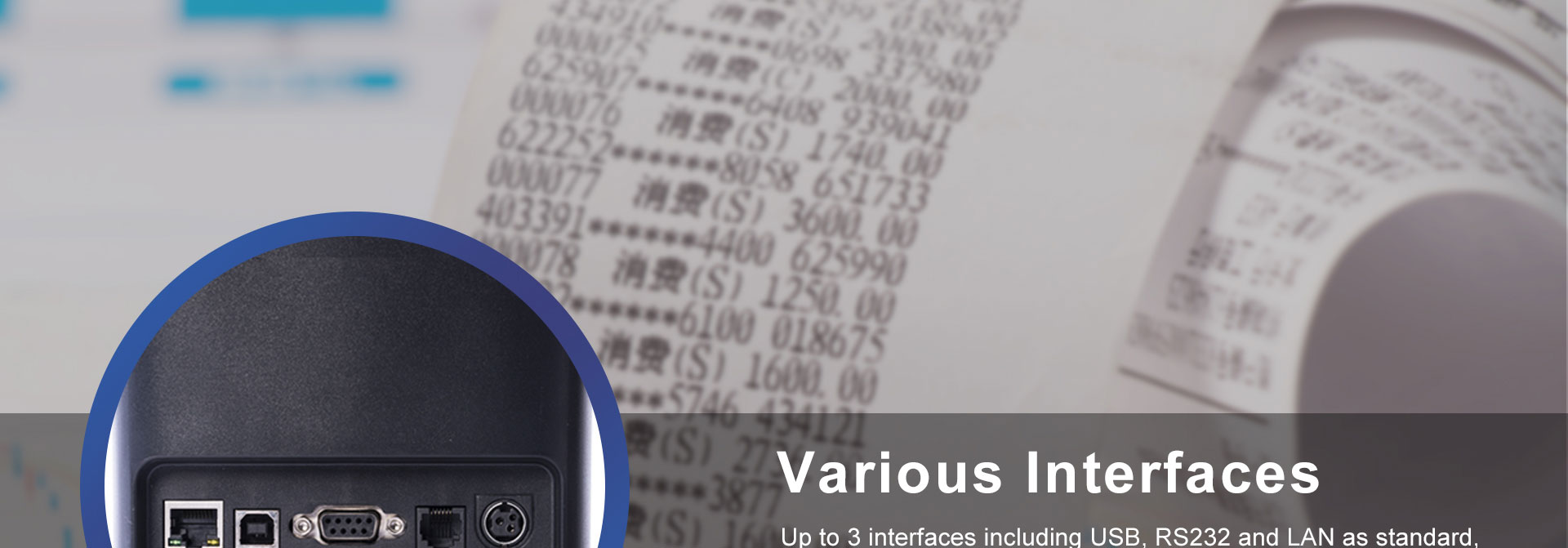

• Default USB+RS232+LAN interfaces
，
| Printing | Print Method | Direct thermal line printing | |
| Resolution | Default 203 dpi (emulated 180 dpi) | ||
| Print Speed | Max. 220 mm/s | ||
| Print Width | 72 mm(576 dots) | ||
| Interface | Default | Bulit-in USB, RS232, LAN | |
| Page Mode | Support | ||
| Memory | RAM | 16 MB | |
| Flash | 4 MB | ||
| Character set | Font | Font A:12*24; Font B:9*17; CHN:24*24 | |
Number of Columns | 48/64 | ||
| Alphanumeric | 95 | ||
| Codepage | 47 | ||
| Barcode | 1D | UPC-A, UPC-E, EAN8, EAN13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93 | |
| 2D | QR code, PDF417 | ||
| Graphics | Support bitmap printing with different density and user defined bitmap printing. (Max.40K for per bitmap, and Max.256k for total) | ||
| Detection | Sensors | Paper Out, Cover Open, Cutter Jam | |
| Power Supply | Input | AC 100V ~ 240V, 50/60Hz | |
| Output | DC 24V±5%, 2 A | ||
| Paper | Paper Type | Standard Thermal Paper | |
| Paper Width | 79.5±0.5 mm | ||
| Paper Thickness | 0.056 mm ~ 0.13 mm | ||
Roll Paper Diameter | Max. 83 mm | ||
| Paper Loading | Front Loading, Easy Loading | ||
| Paper Cut | Partial Cut | ||
| Condition | Operating | 0°C ~ 45°C, 10% ~ 85% R.H | |
| Storage | -20°C ~ 60°C, 10% ~ 90% R.H, no-condensation | ||
| Accessories | Paper roll, Power Adapter, RS232 cables, CD, Quick Start Guide | ||
| Emulation | ESC/POS | ||
| Reliability | TPH | 100 km | |
| Motor Life | 360000 hours | ||
| Cutter Life | 1 million cuts | ||
| Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | ||
| Eco Features | Paper saving mode | ||
| Certifications | CE/CCC | ||
