TP808S
OVERVIEW TECH SPECS DOWNLOADS
ffdf2b65e85555da8b00c8439f8ad498
332aa05137c2a64cd397ccefdfedc4d4
c678d19fb487c4b8364439054123338a
acb421b23288ee023e48cef92b8f44bc
39375d45b7ea44edf909406160b96b71

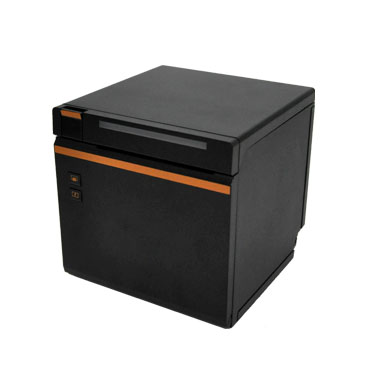

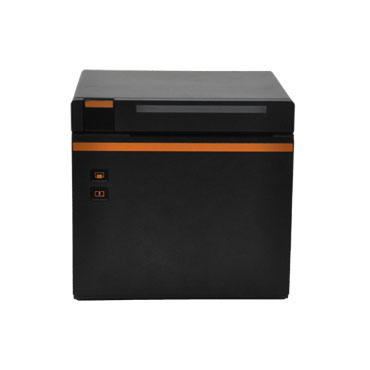

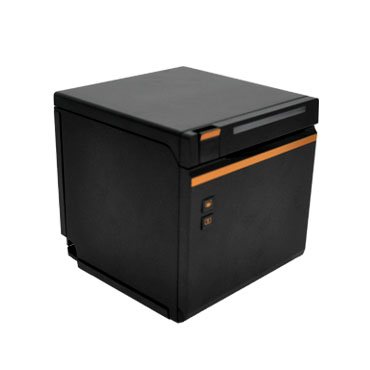

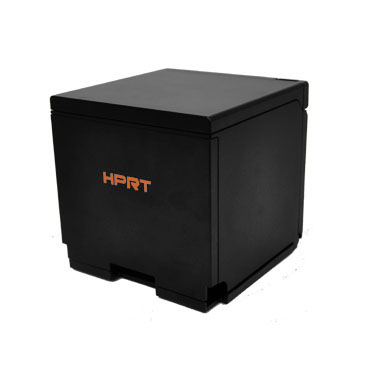

3" Thermal POS Printer

•  Cubic and fashionable design
•  Low printing noise
•  2" and 3" printing paper width available
•  Cutter jam auto-elimination

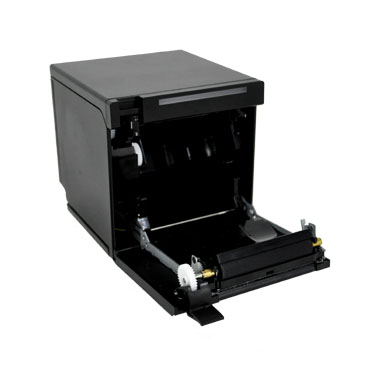

•  Top/Front paper loading/exit

ffdf2b65e85555da8b00c8439f8ad498
332aa05137c2a64cd397ccefdfedc4d4
c678d19fb487c4b8364439054123338a
acb421b23288ee023e48cef92b8f44bc
39375d45b7ea44edf909406160b96b71

.

PrintingPrint MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Print SpeedMax. 260 mm/s
Print WidthMax. 80 mm
InterfaceStandardUSB Type B, Serial Port, Ethernet
OptionBluetooth, Wi-Fi
Page ModeSupport
MemoryRAM4 MB
Flash4 MB
Programming Language
ESC/POS
FontsAlphanumeric; Simplified Chinese, Traditional Chinese; 46 International Character Sets
BarcodeLinear BarcodesUPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
2D BarcodesPDF417, QR code
GraphicsSupport bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 64 KB, the total size of bitmap is 256 KB)
SensorsStandardPaper out Detector, Head up Detector, Paper near end sensors (Dual)
OptionBlack Mark Detector
LED IndicatorPowerBlue
PaperOrange
ErrorRed
Power SupplyInputAC 100V ~ 240V, 50/60Hz
OutputDC 24V, 2.5A
PaperPaper TypeThermal Receipt Paper
Paper Width58 mm/80 mm
Paper Thickness0.056 mm ~ 0.13 mm

Roll Paper

Diameter

Max. Φ83 mm (O.D.)
Paper LoadFront or Top paper loading
Paper CutPartial cut or Full cut
EnvironmentOperating0°C ~ 40°C, 20% ~ 85% R.H, no-condensation
Storage-20°C ~ 70°C, 5% ~ 95% R.H, no-condensation
Physical CharacteristicsDimensions137.3(L)×132(W)×130.5(H) mm
Weight1.35 kg
Options and AccessoriesUSB/Serial Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide
ReliabilityTPH150 km
Cutter2 million cuts
SoftwareDriverWindows XP / 7/ 8/ 10; POS Ready; Linux; OPOS
SDKWinCE, Win Mobile, Android
