Home  >  PRODUCT  >  POS PRINTERS  >  TP806 80mm Thermal POS Printer
TP806
OVERVIEW TECH SPECS DOWNLOADS
HPRT restaurant printer TP806
best thermal printer for pos
thermal pos receipt printer

80mm Thermal POS Printer

• Patent design of unique vertical double auto cutter

• High printing speed up to 300mm/s

• Default USB interface, with RS232, Parallel, Ethernet Bluetooth and WiFi boards optional

• Support 2D barcode printing, such as QR-code and PDF417

• Provide Windows, Linux, OPOS driver

• Support page mode printing

• With paper jam detection and double paper near end detection

• Movable paper guide plate design which supports 58mm, 80mm wide thermal paper

• Waterproof cover optional


HPRT restaurant printer TP806

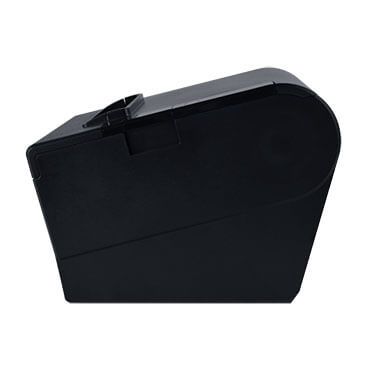

best thermal printer for pos

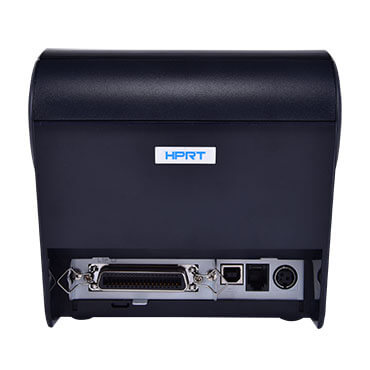

thermal pos receipt printer

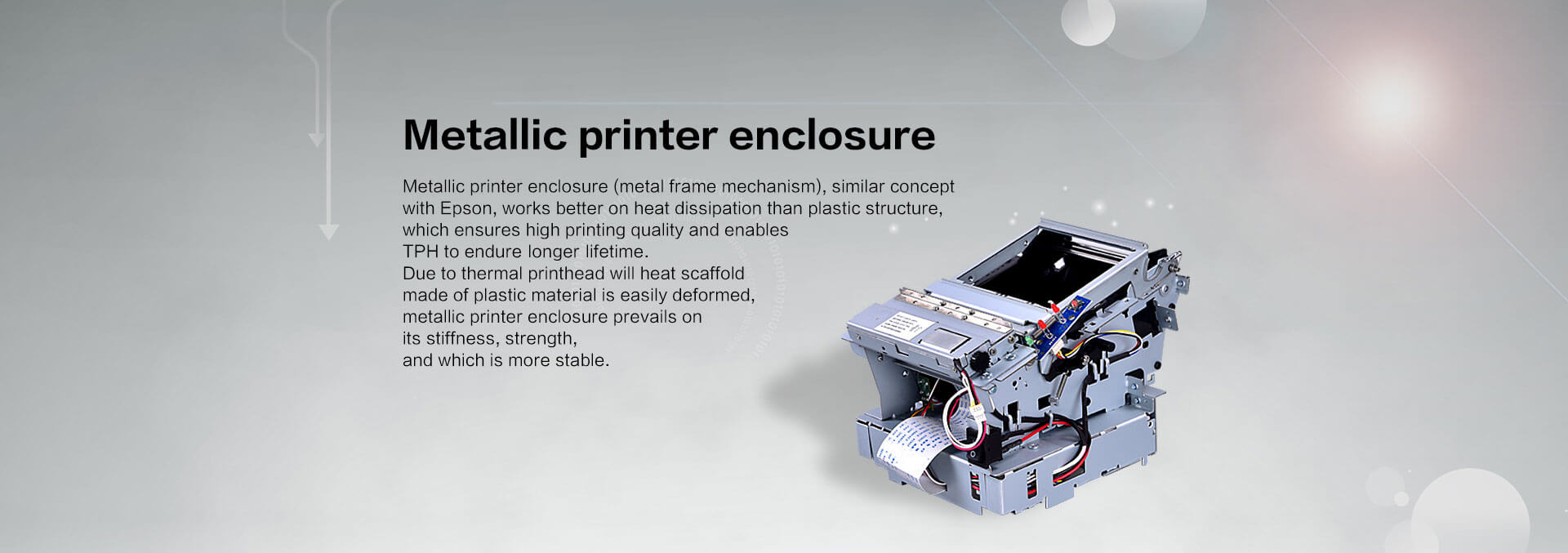

HPRT POS printer TP806 metallic printer enclosure

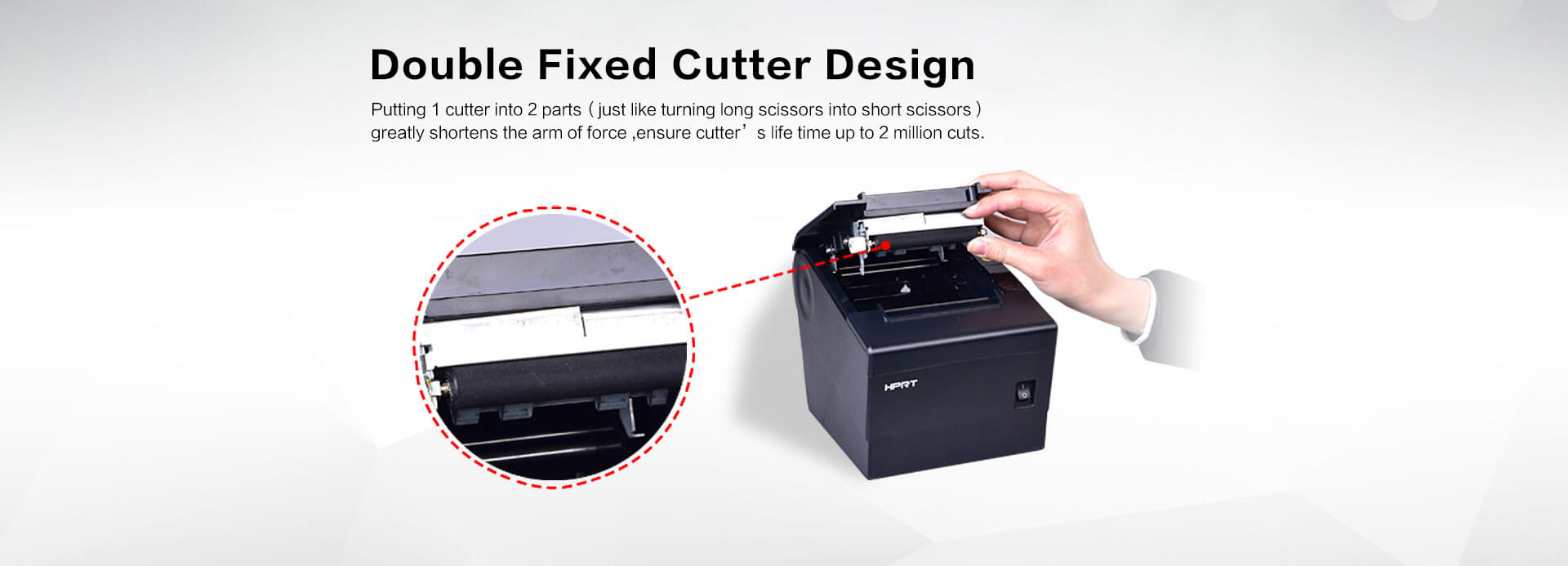

POS printer TP806 double fixed cutter

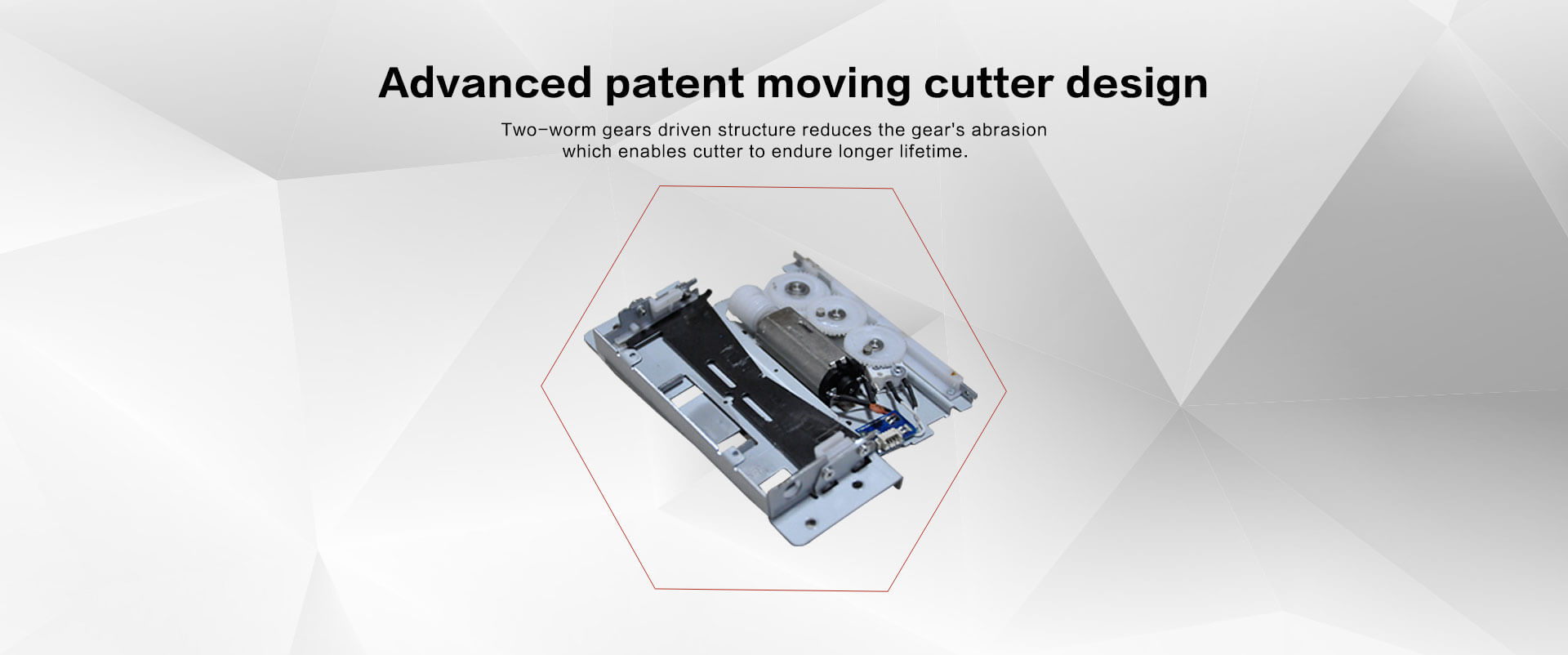

POS printer TP806 moving cutter

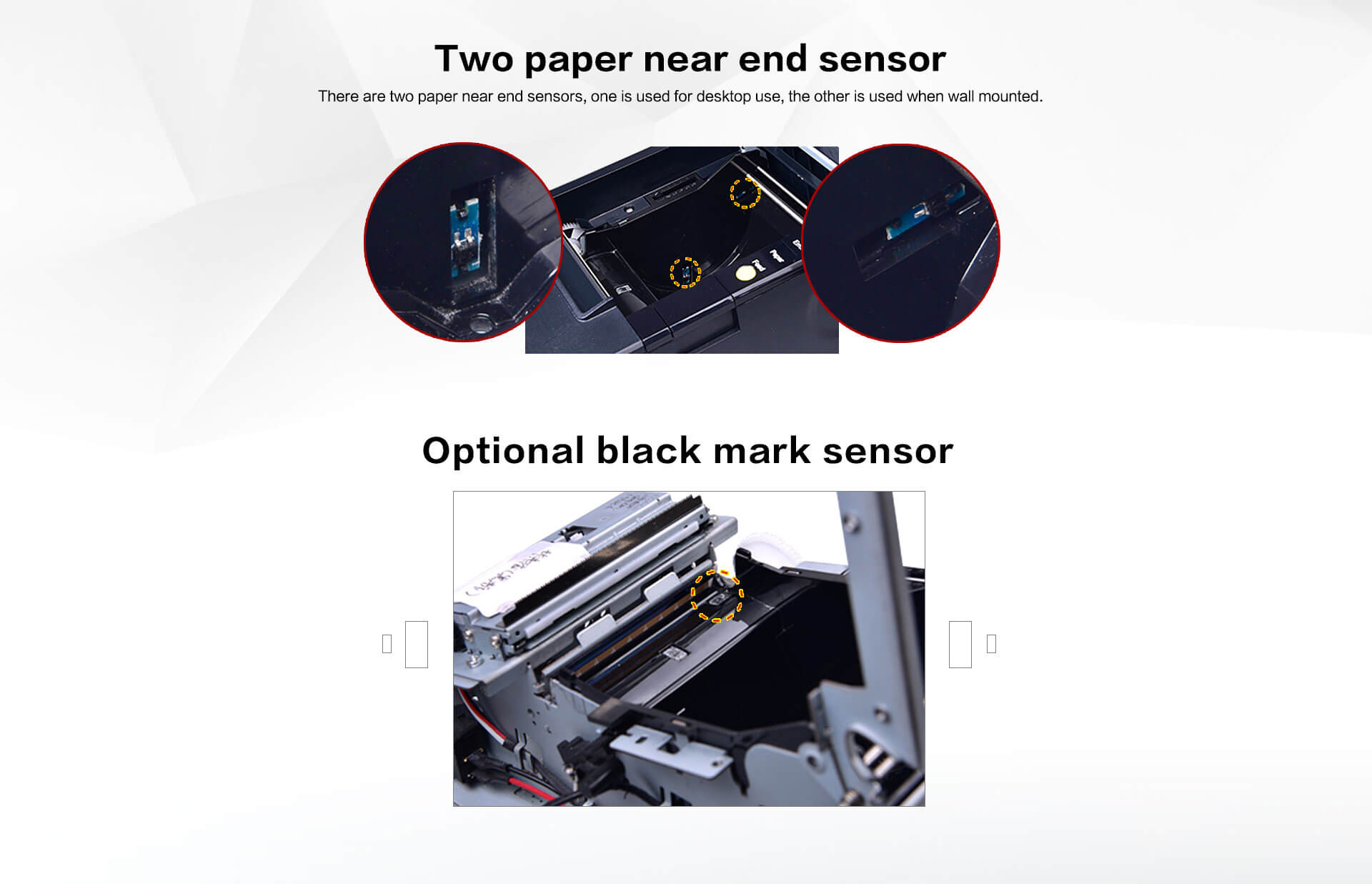

POS printer TP806 paper near end sensor

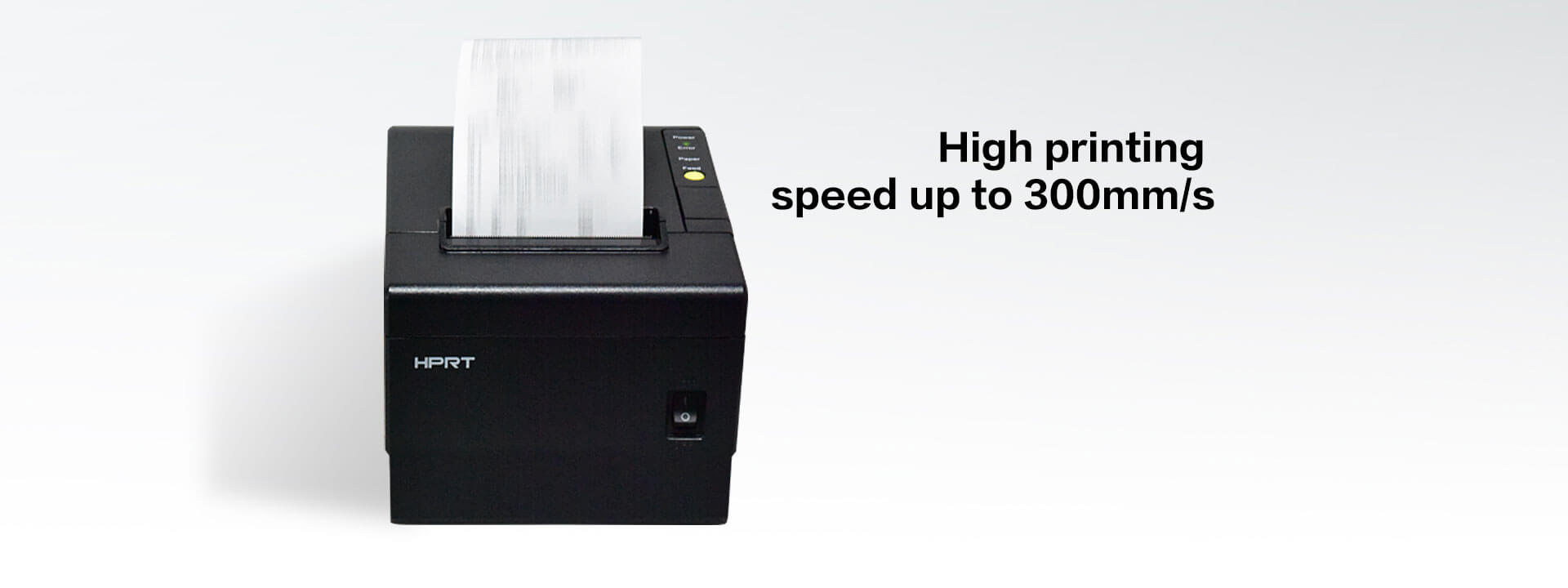

high speed POS printer

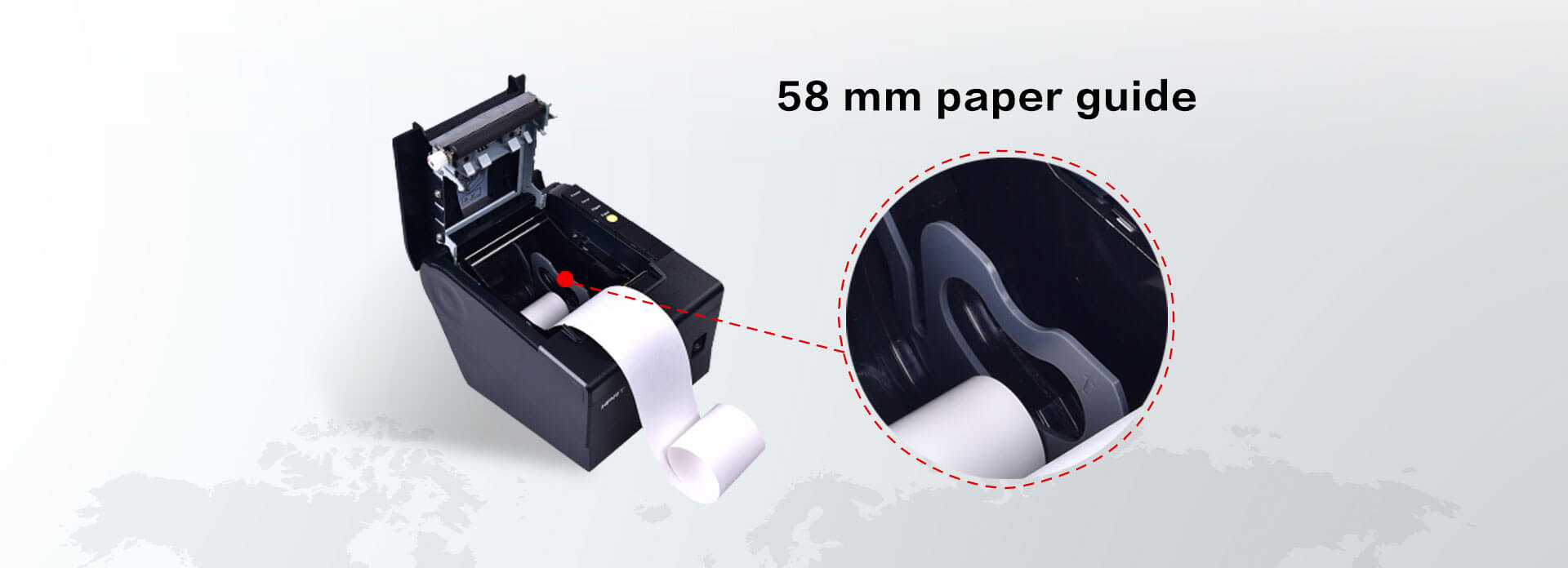

58mm POS printer

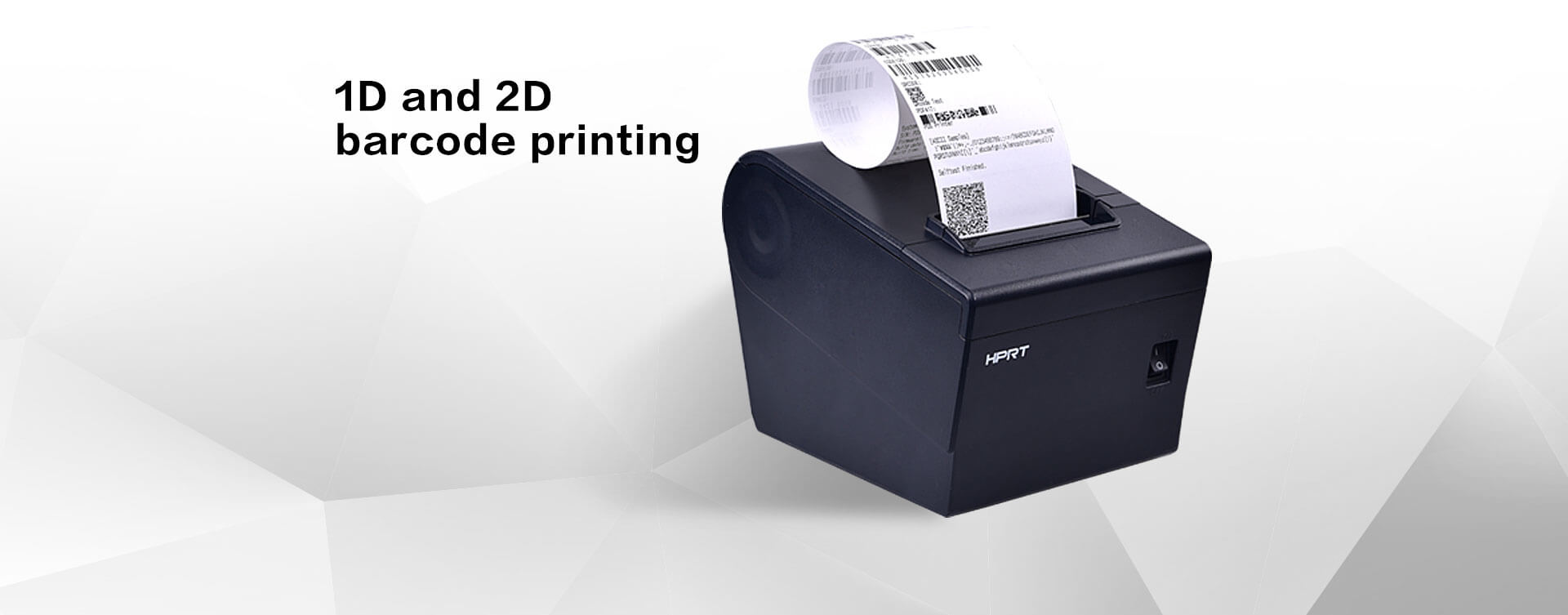

1D 2D code printer

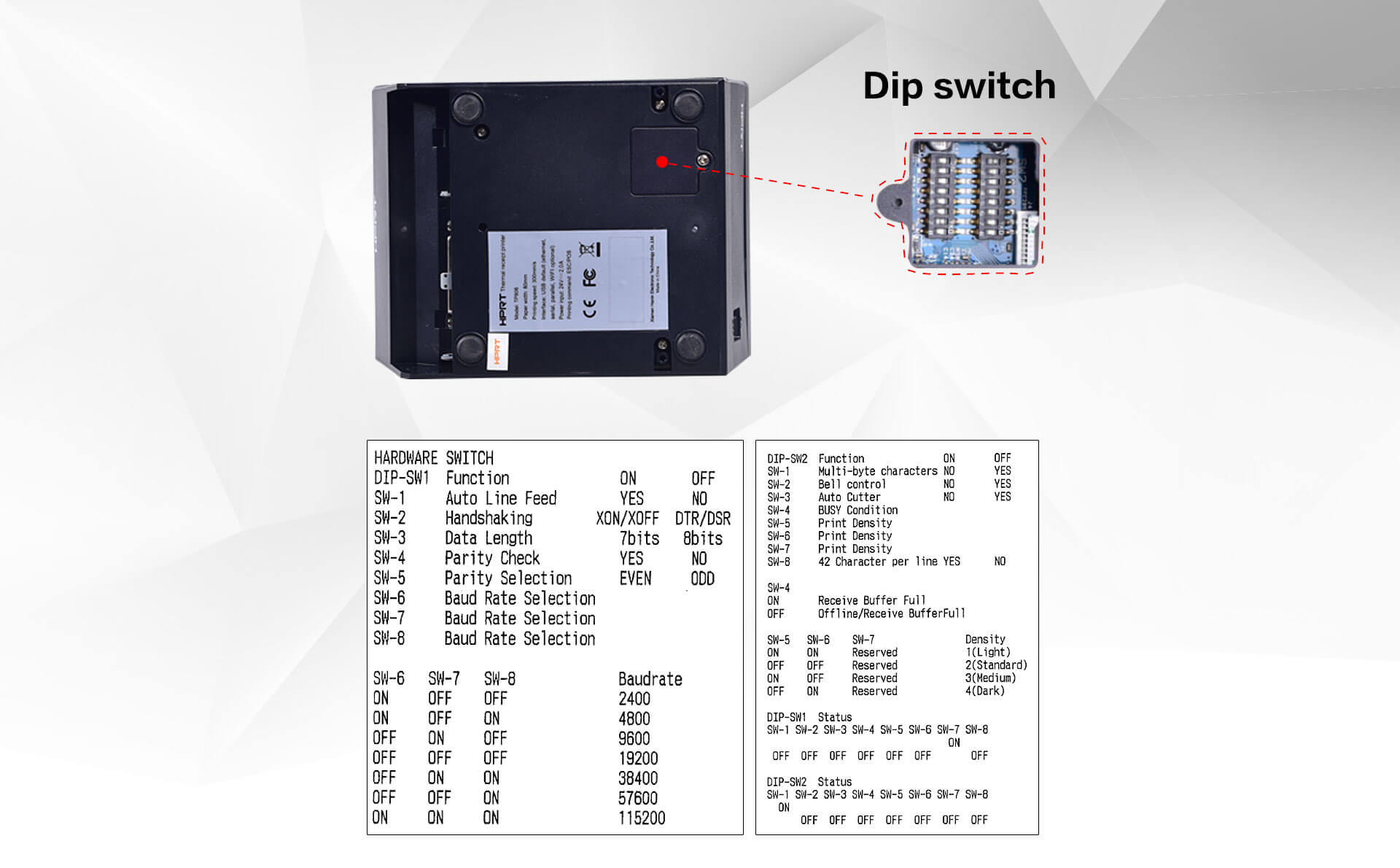

POS printer TP806 Dip switch

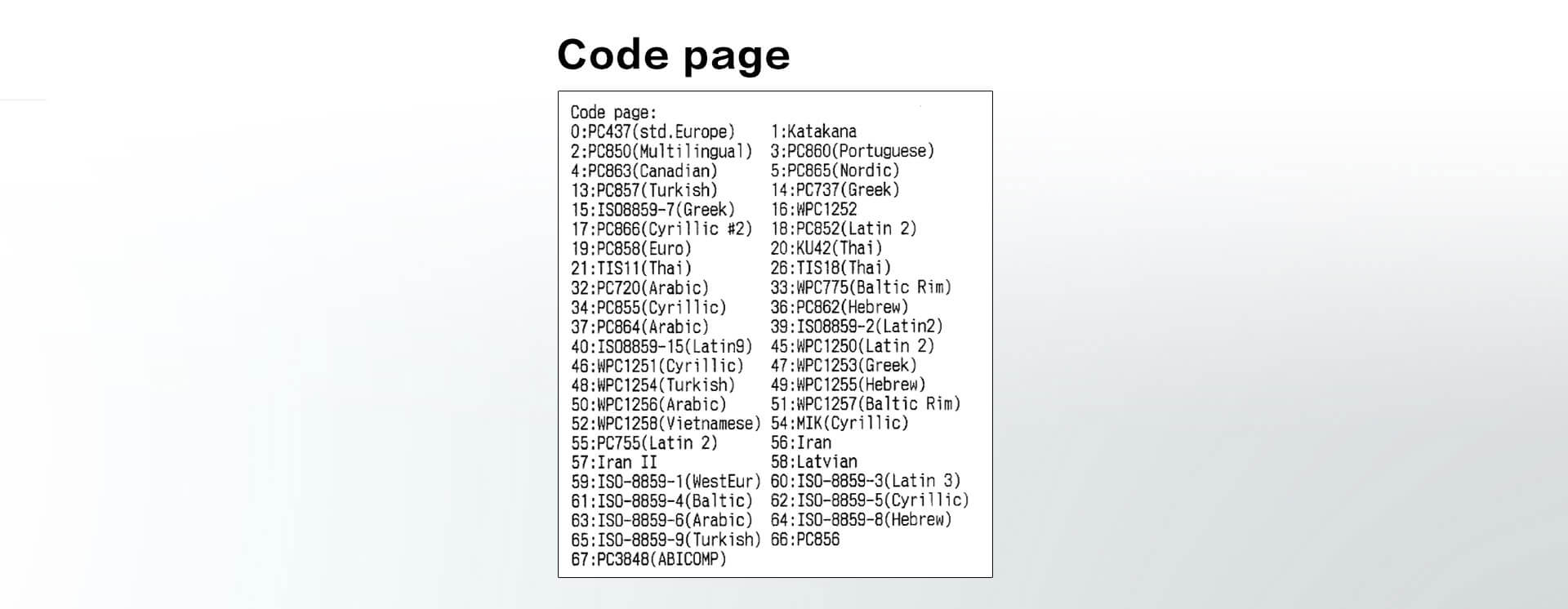

POS printer TP806 code printing

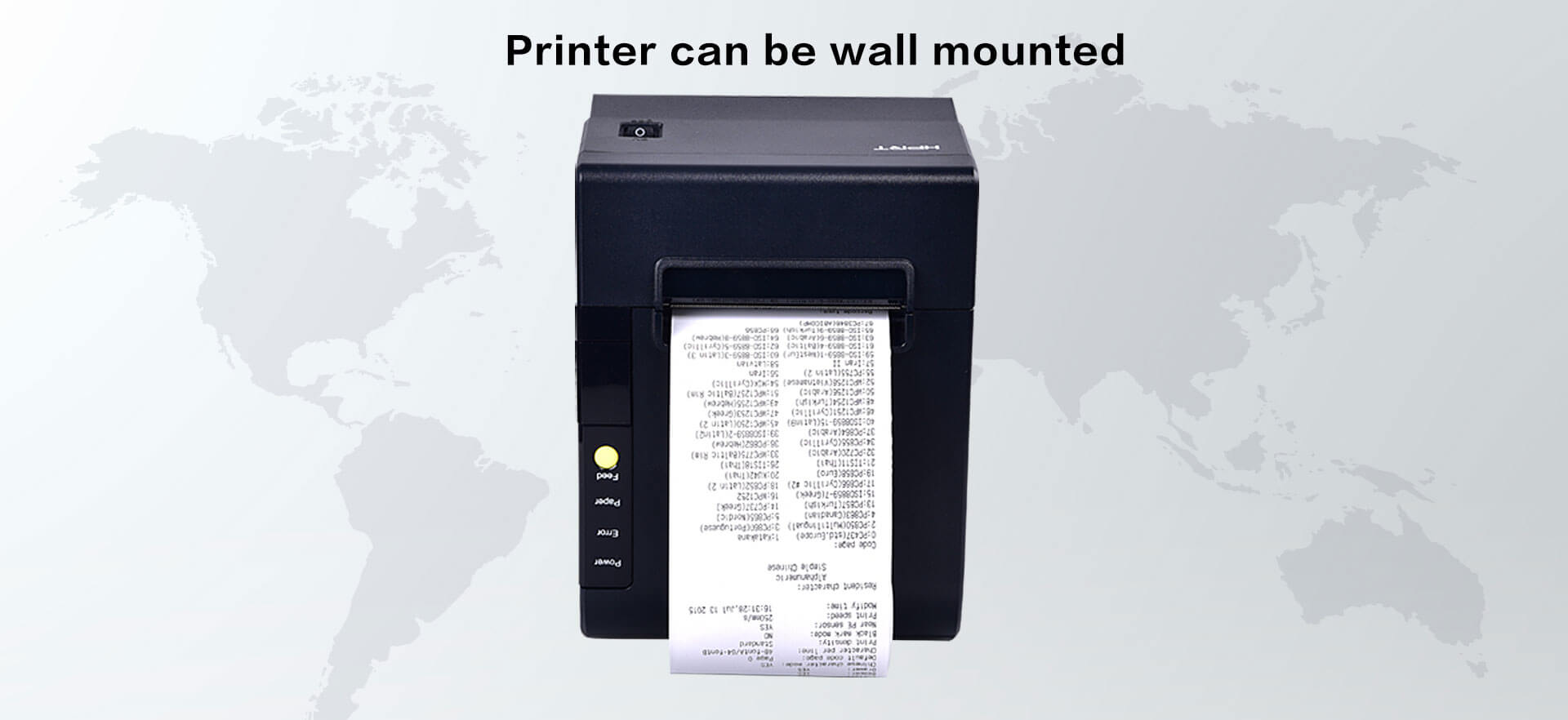

wall mounted POS printer

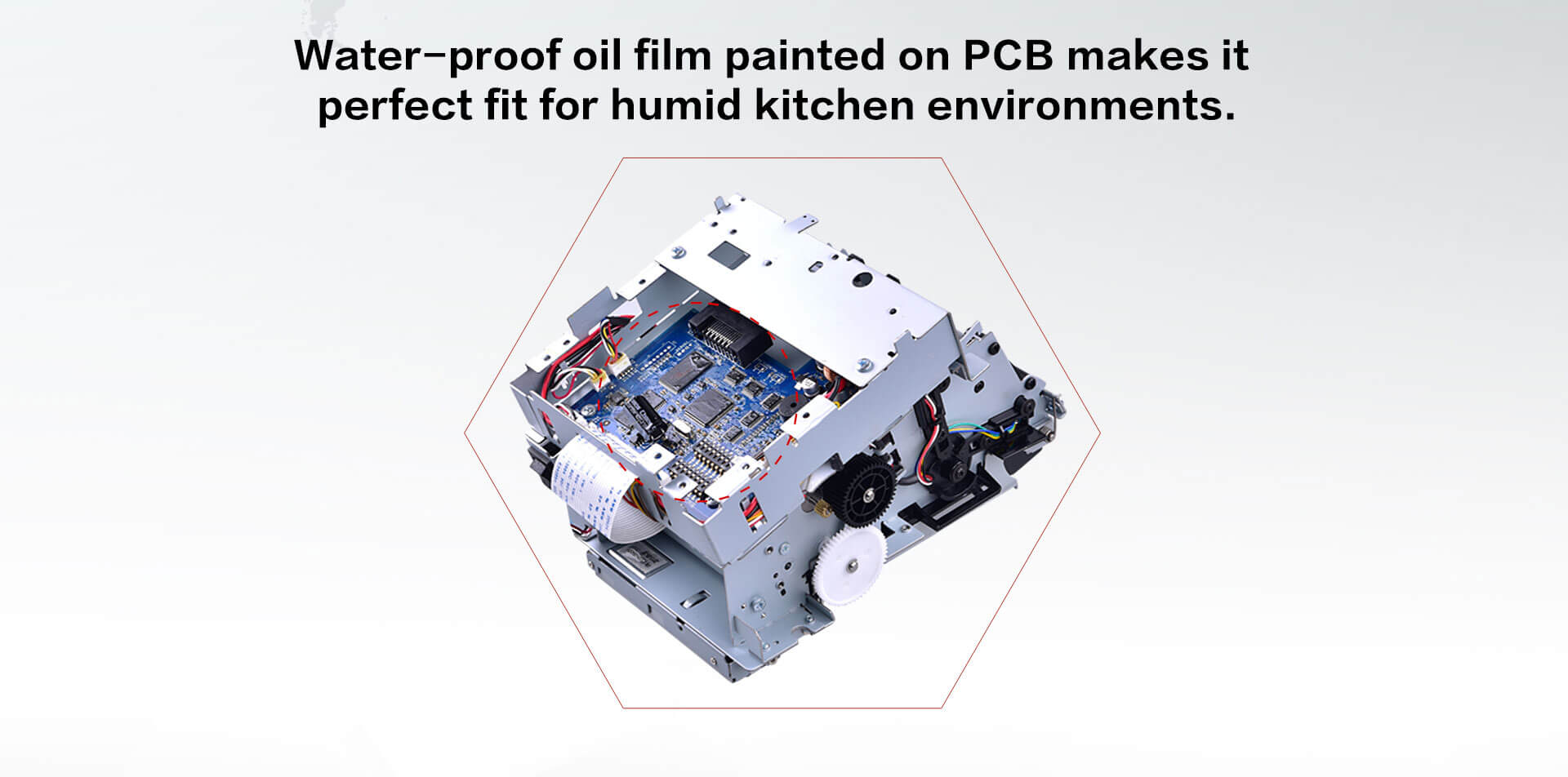

water-proof POS printer

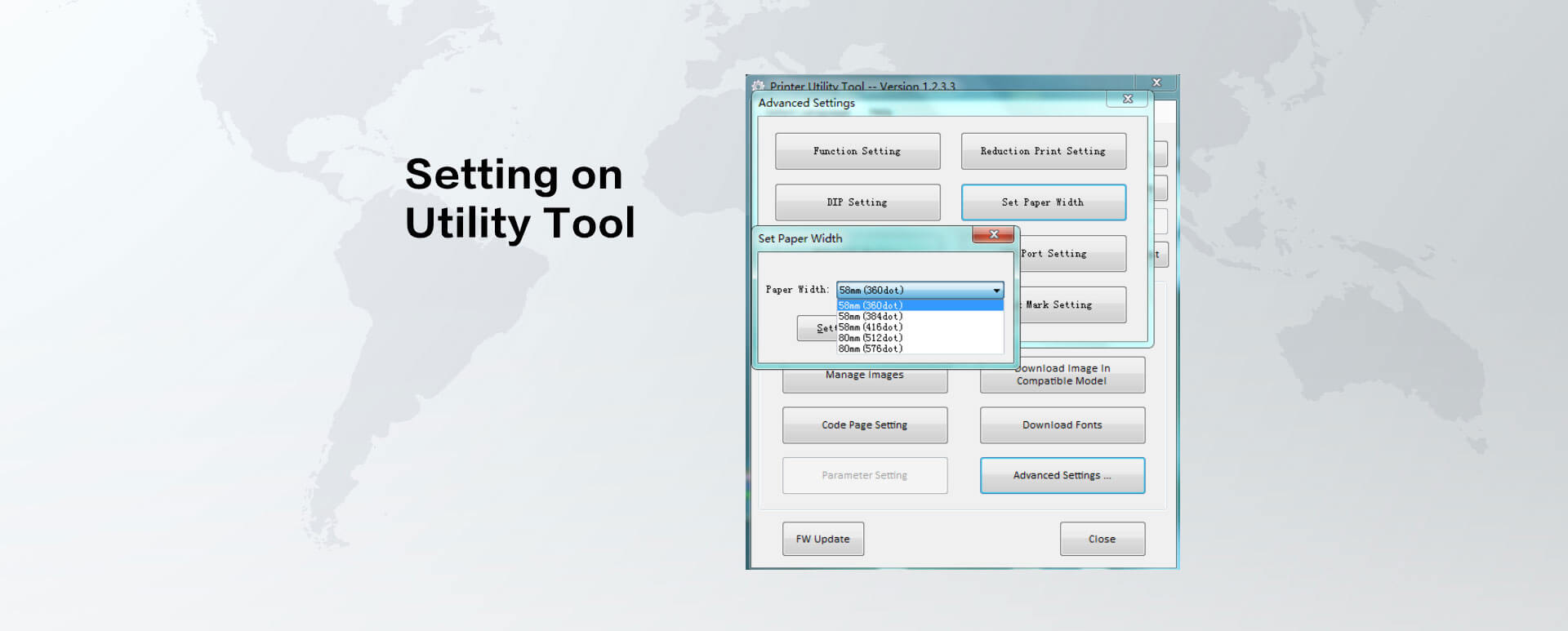

POS printer TP806 setting tool

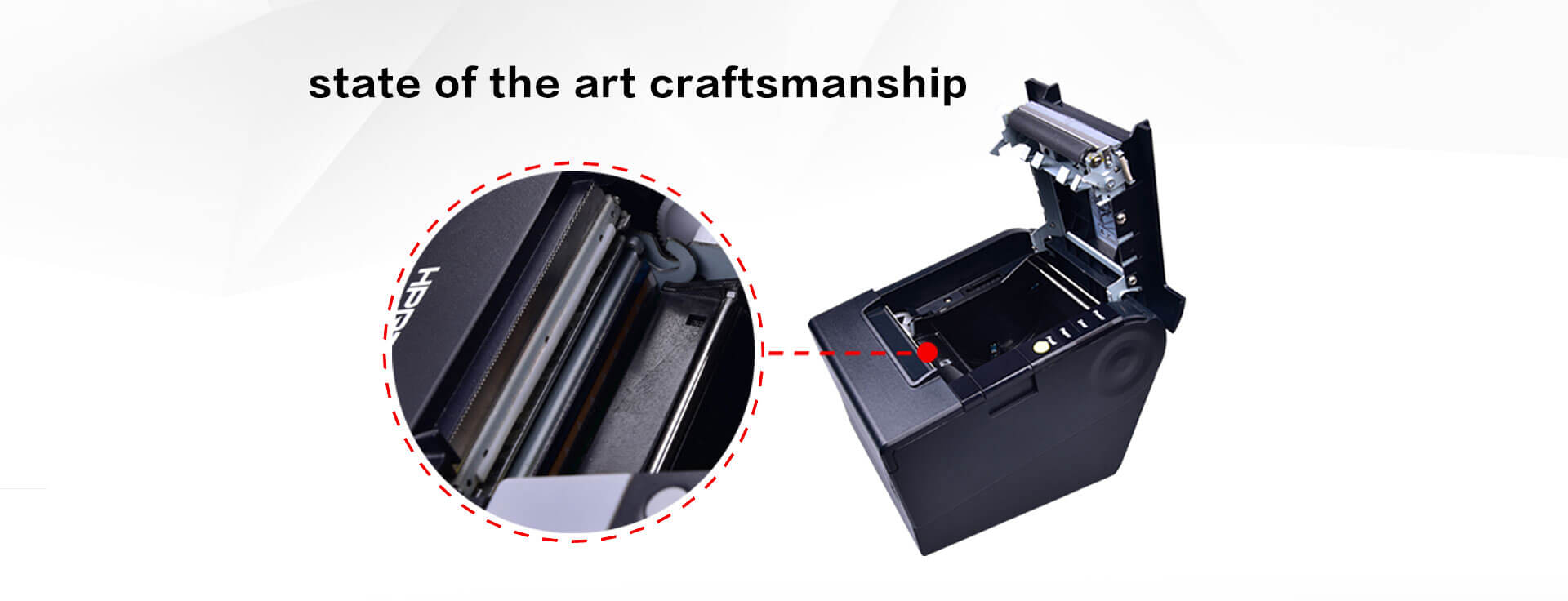

POS printer TP806 design

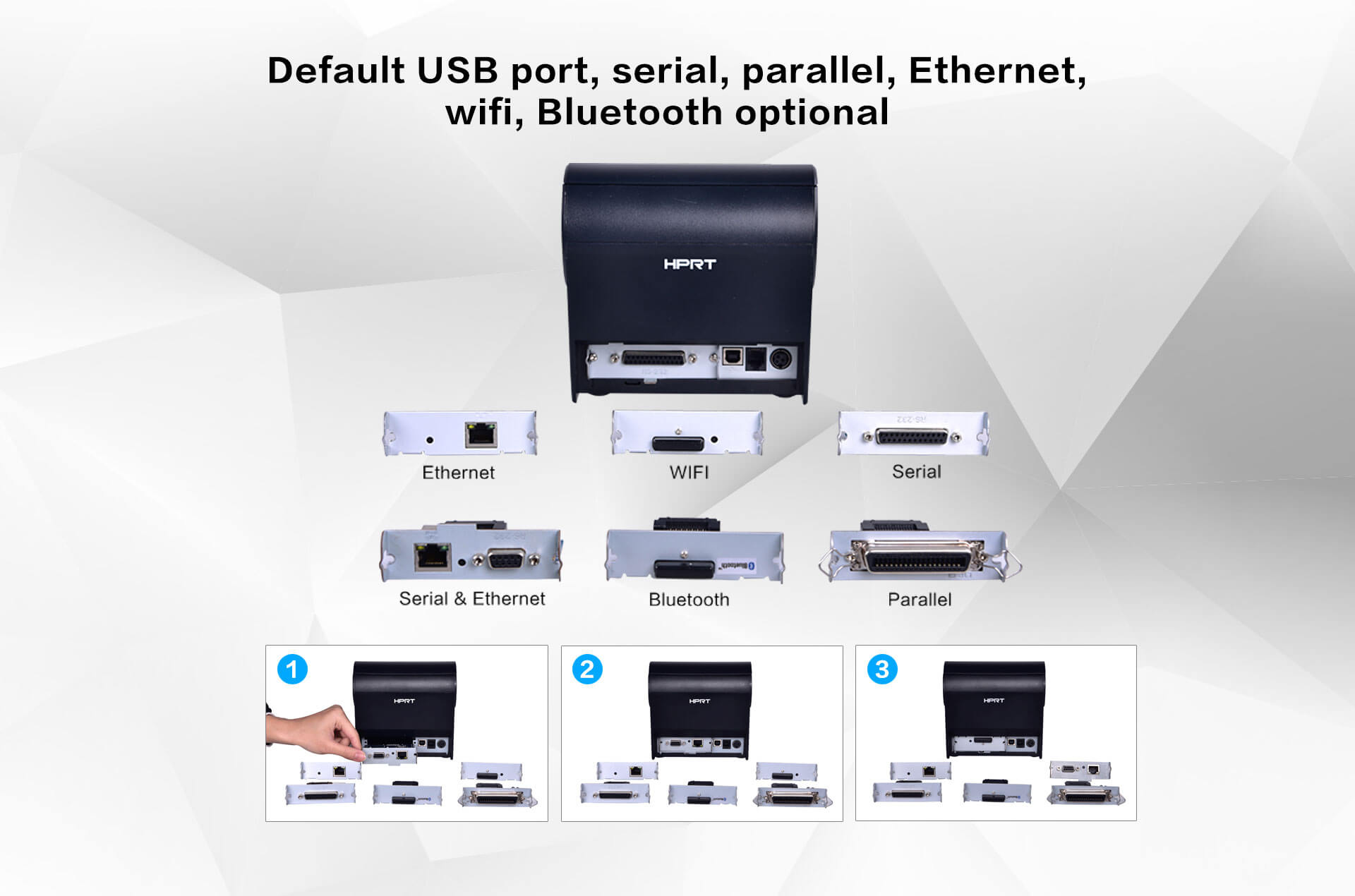

USB WIFI Bluetooth Parallel Ethernet Serial POS printer

POS printer TP806 thick film TPH

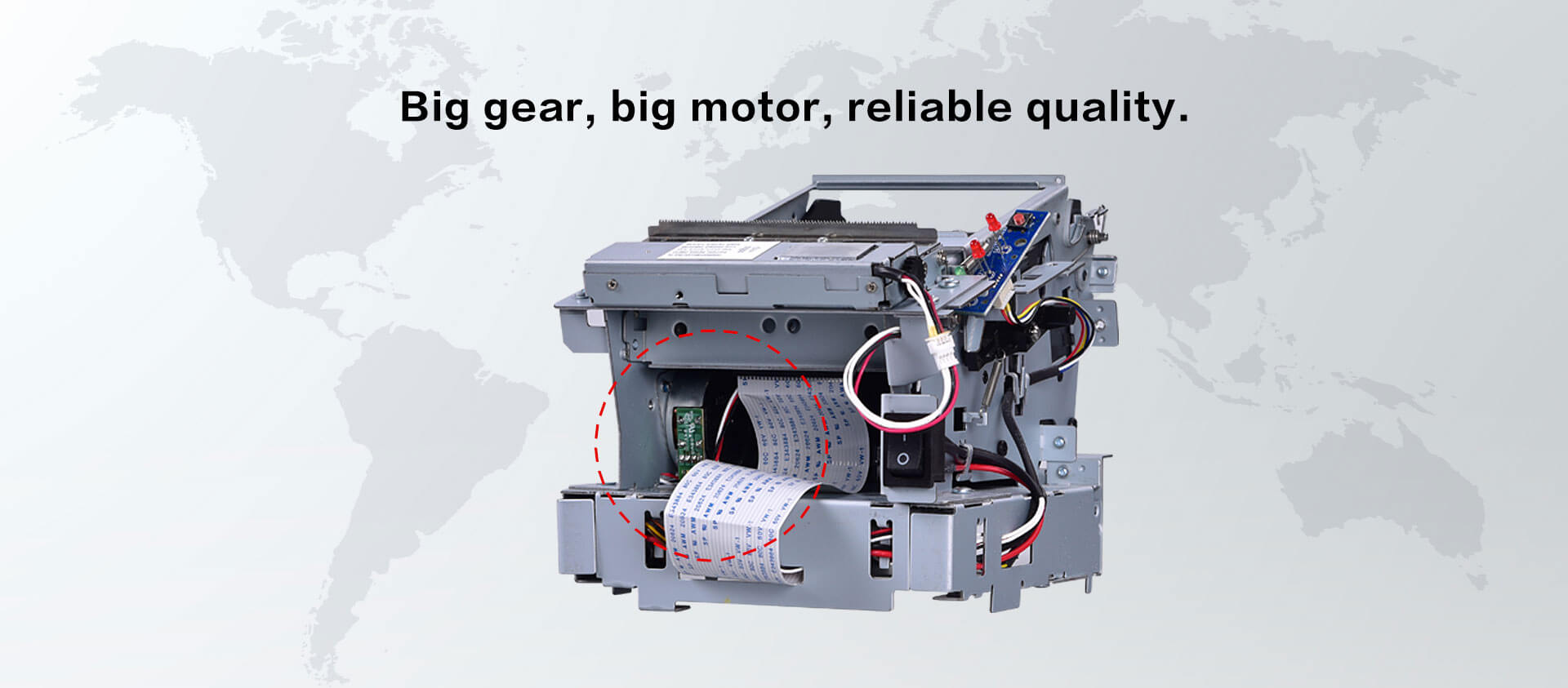

reliable receipt printer

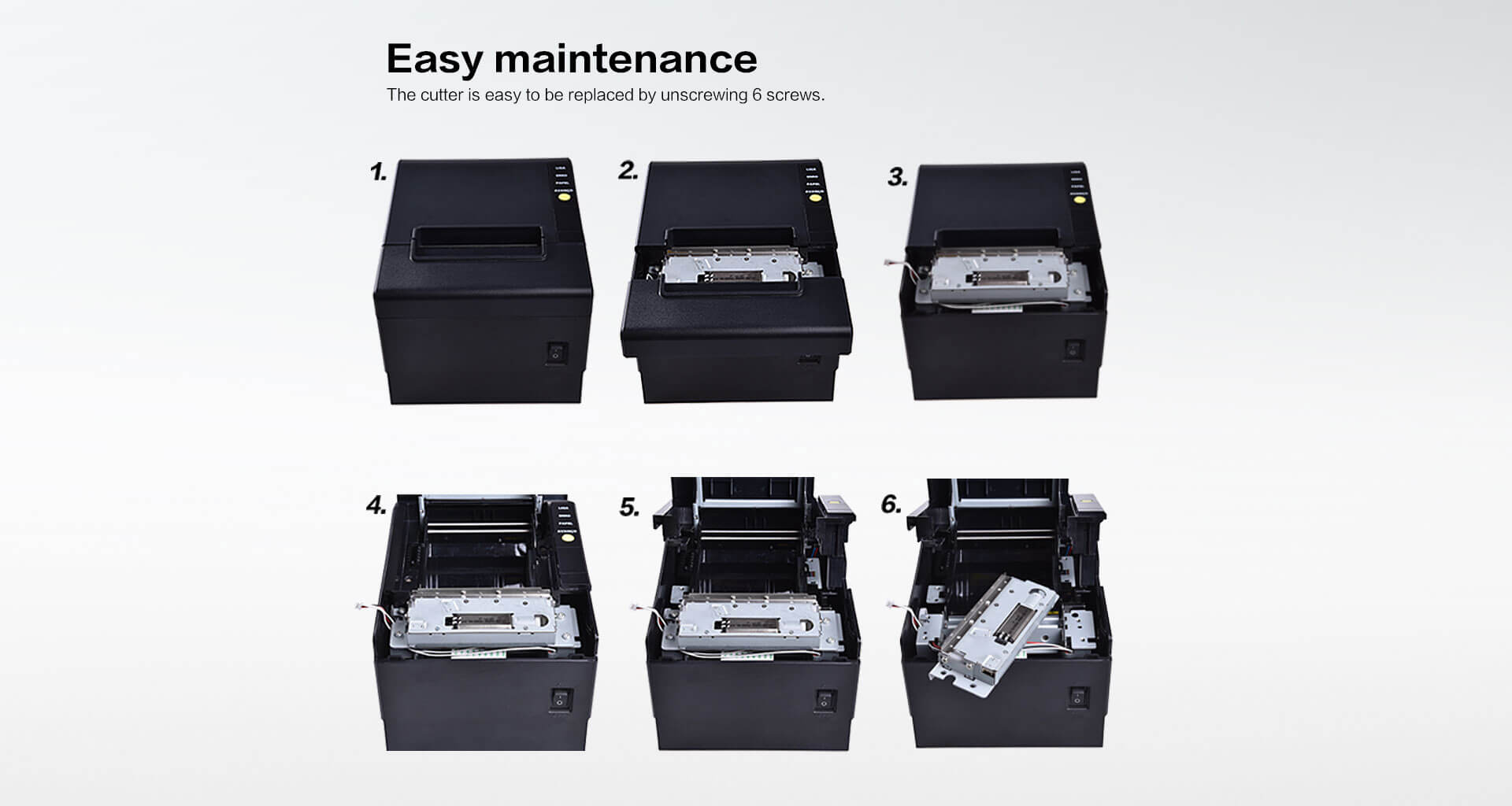

POS printer TP806 easy maintenance

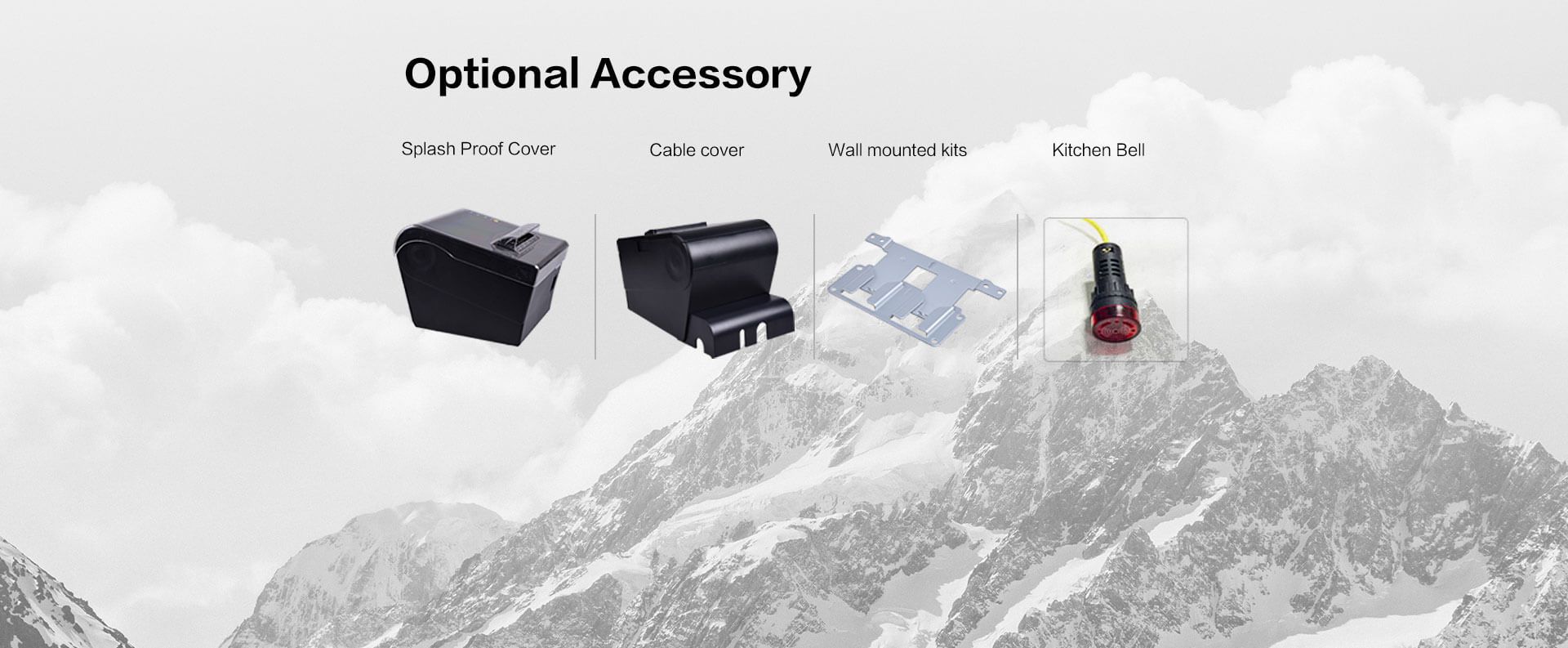

POS printer TP806 accessories

PrintingPrint MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Print SpeedMax. 300mm/s
Printing WidthMax. 72mm
InterfaceStandardUSB Type B, Cash Box
OptionBluetooth, Wi-Fi, Ethernet, Serial Port, Paraller Port, Serial Port and Ethernet (2 in 1)
Page ModeSupport
MemoryRAM2 MB
Flash4 MB
FontsAlphanumeric; Simplified Chinese, Traditional Chinese; 47 codepages
Barcode1DUPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
2DPDF417, QR Code
Graphics Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 KB, the total size of bitmap is 256 KB)
SensorStandard
Paper out Detector, Paper near end Detector, Head up Detector
OptionBlack Mark Detector
LED IndicatorPowerGreen
PaperRed
ErrorRed
Power SupplyInputAC 100V-240V, 50/60Hz
OutputDC 24V, 2A
PaperPaper TypeThermal Receipt Paper
Paper WidthMax. 82.5 mm
Paper Thickness0.05 ~ 0.13 mm
Roll Paper DiameterMax. Φ83mm (O.D)
Paper LoadEasy paper loading
Paper cutPartial cut
Physical CharacteristicsOperating0°C ~ 40°C, 20% ~ 85% R.H
Storage-20°C ~ 70°C, 5% ~ 95% R.H
Dimensions195(L)×145(W)×146(H) mm
Weight1.8 kg
Options Accessories USB/Serial/Parallel Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide
ReliabilityTPH life150 km
Cutter2 million cuts
SoftwareEmulationESC/POS
DriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDKWinCE, WindowsMobile, Android, iOS

Drivers

Stay up-to-date with the latest downloads for your HPRT Printer
