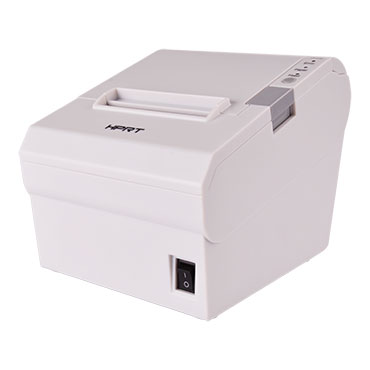

pos printer thermal
3 Inch Thermal POS Printer
Thermal POS Printer

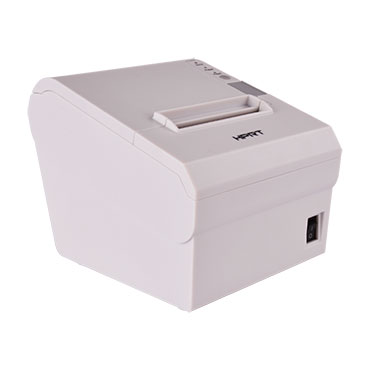

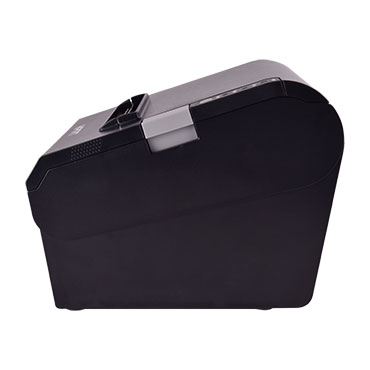

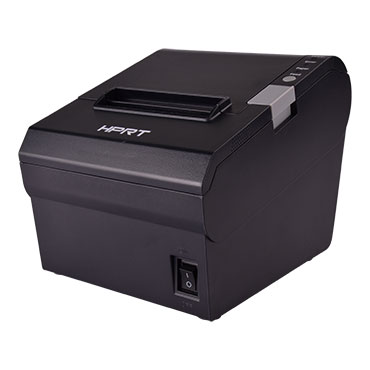

80mm Thermal POS Receipt Printer

• High printing speed up to 250mm/s

• Three-in-one interface, including RS232, Ethernet and USB

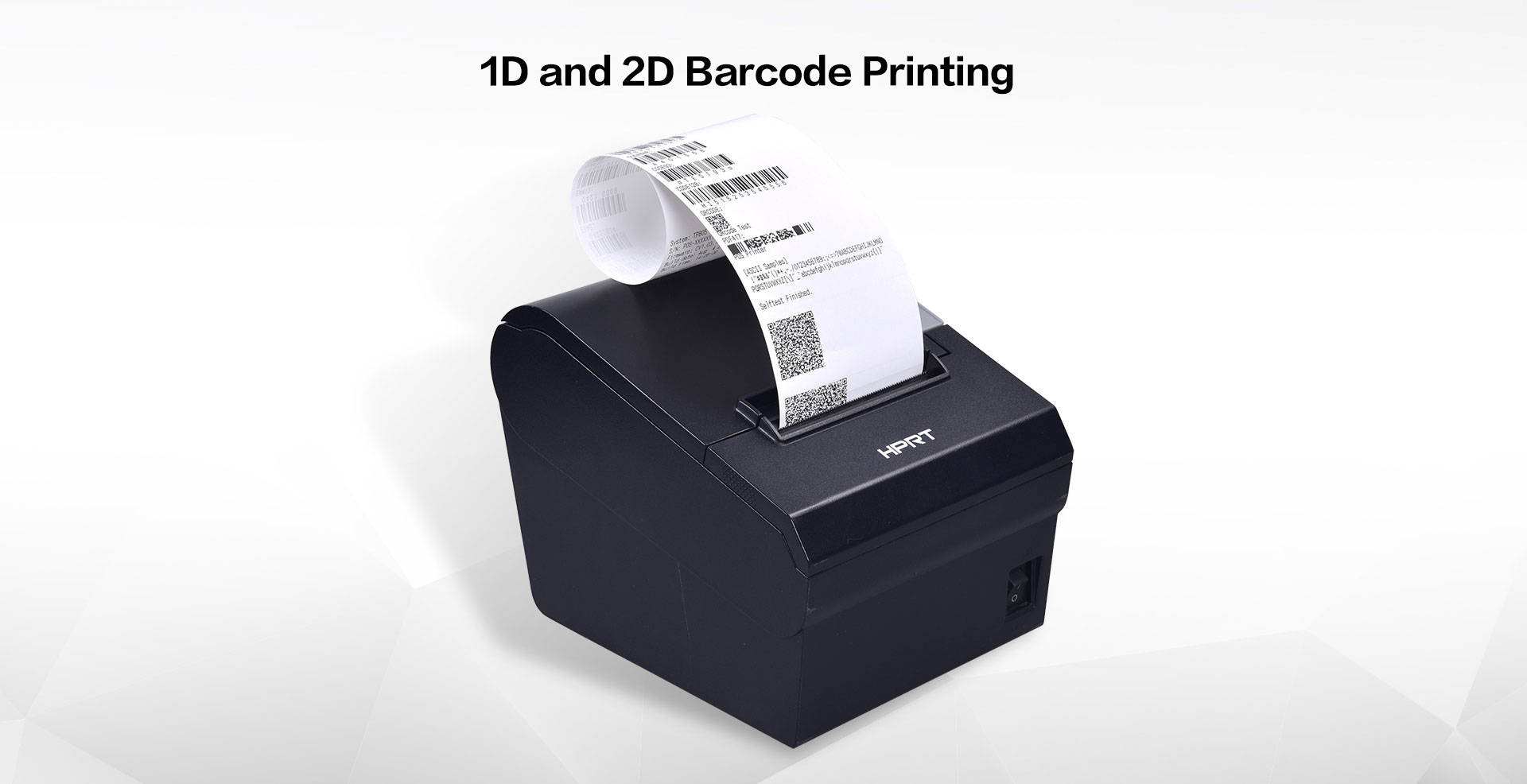

• Support 2D barcode printing, such as QR-code and PDF417

• Provide Windows, Linux, OPOS driver

• Support page mode printing

• Movable paper guard plate design which supports 58mm, 76mm, 80mm wide thermal paper

best pos thermal printer

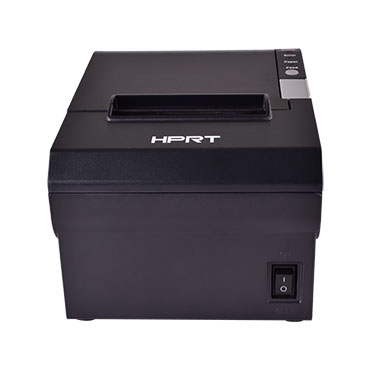

pos receipt thermal printer
pos bluetooth thermal printer
pos printer thermal

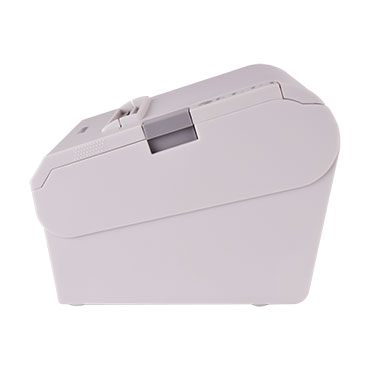

3 Inch Thermal POS Printer
Thermal POS Printer

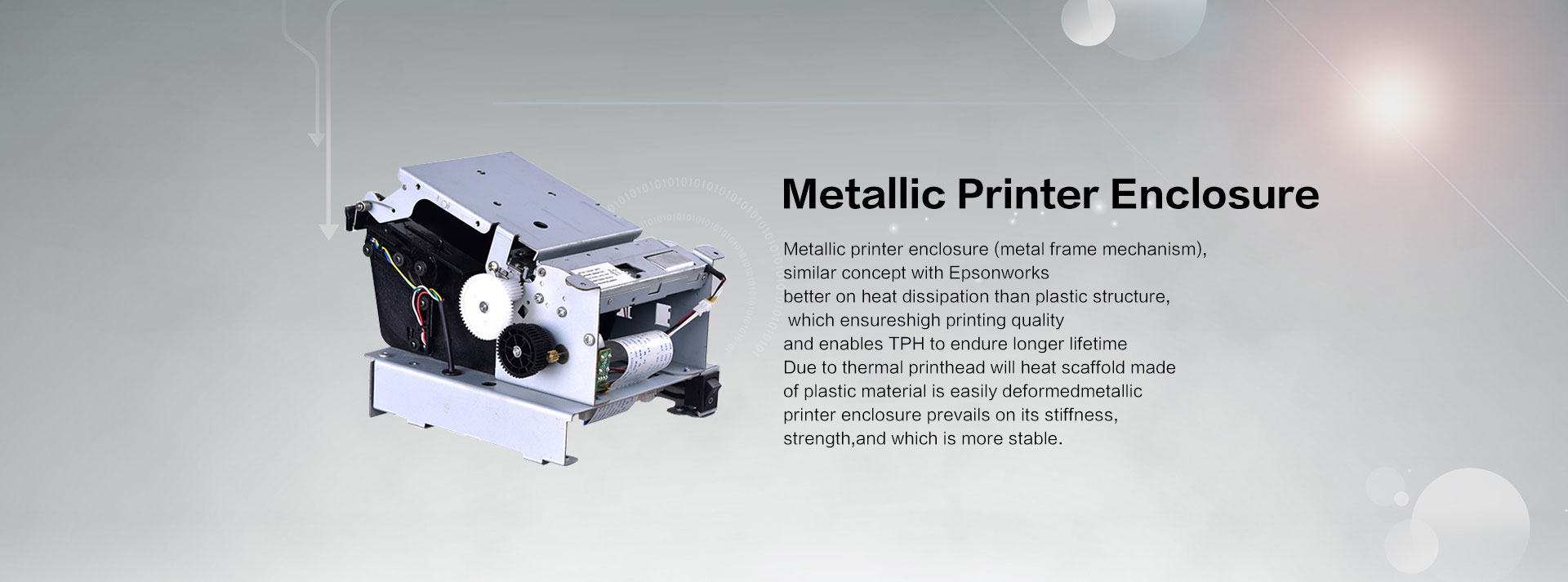

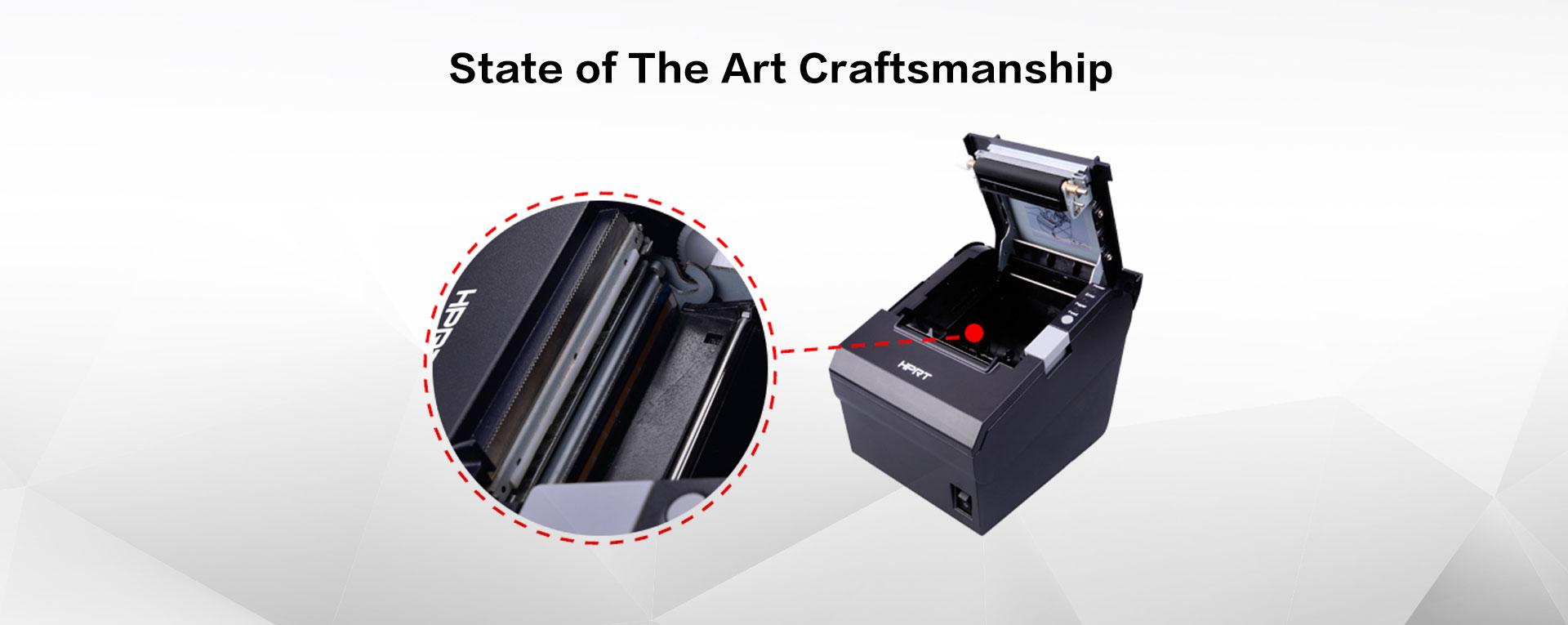

HPRT POS printer TP805 metallic printer enclosure

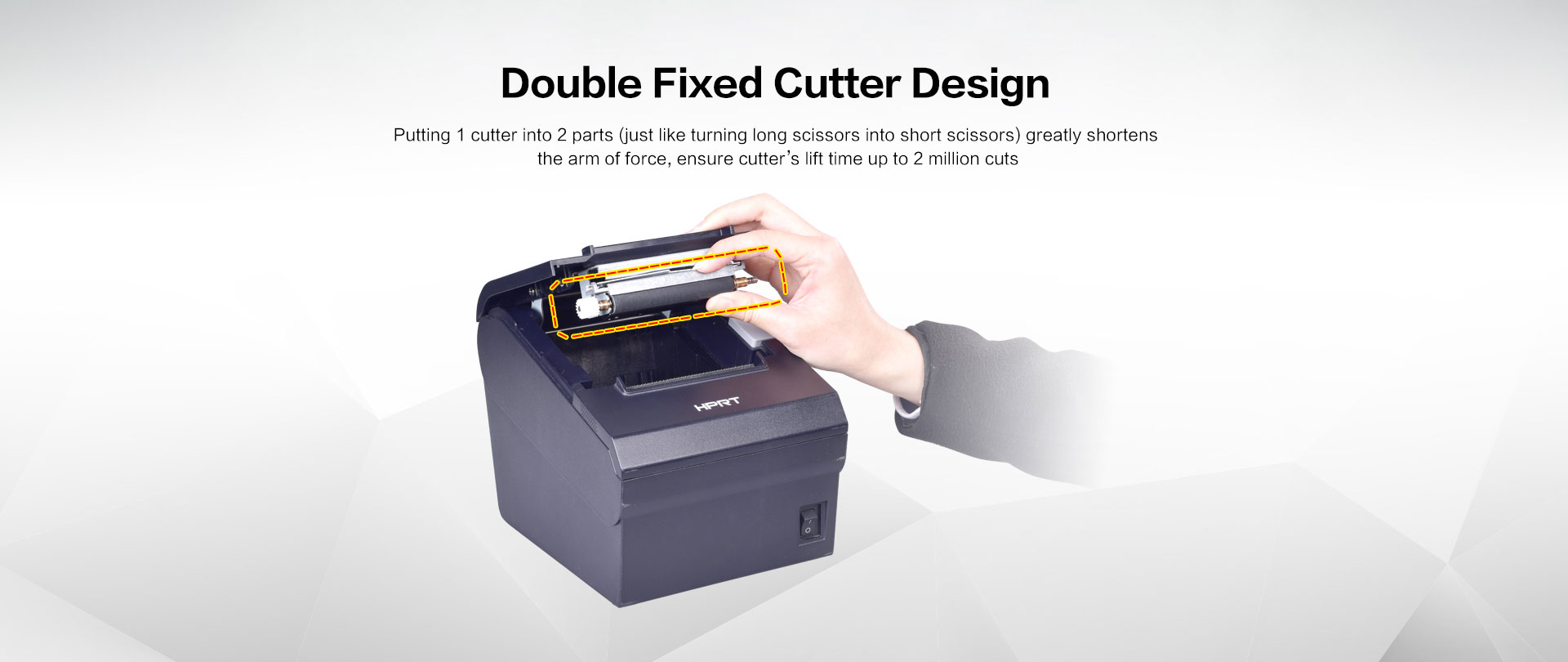

POS printer TP805 double fixed cutter

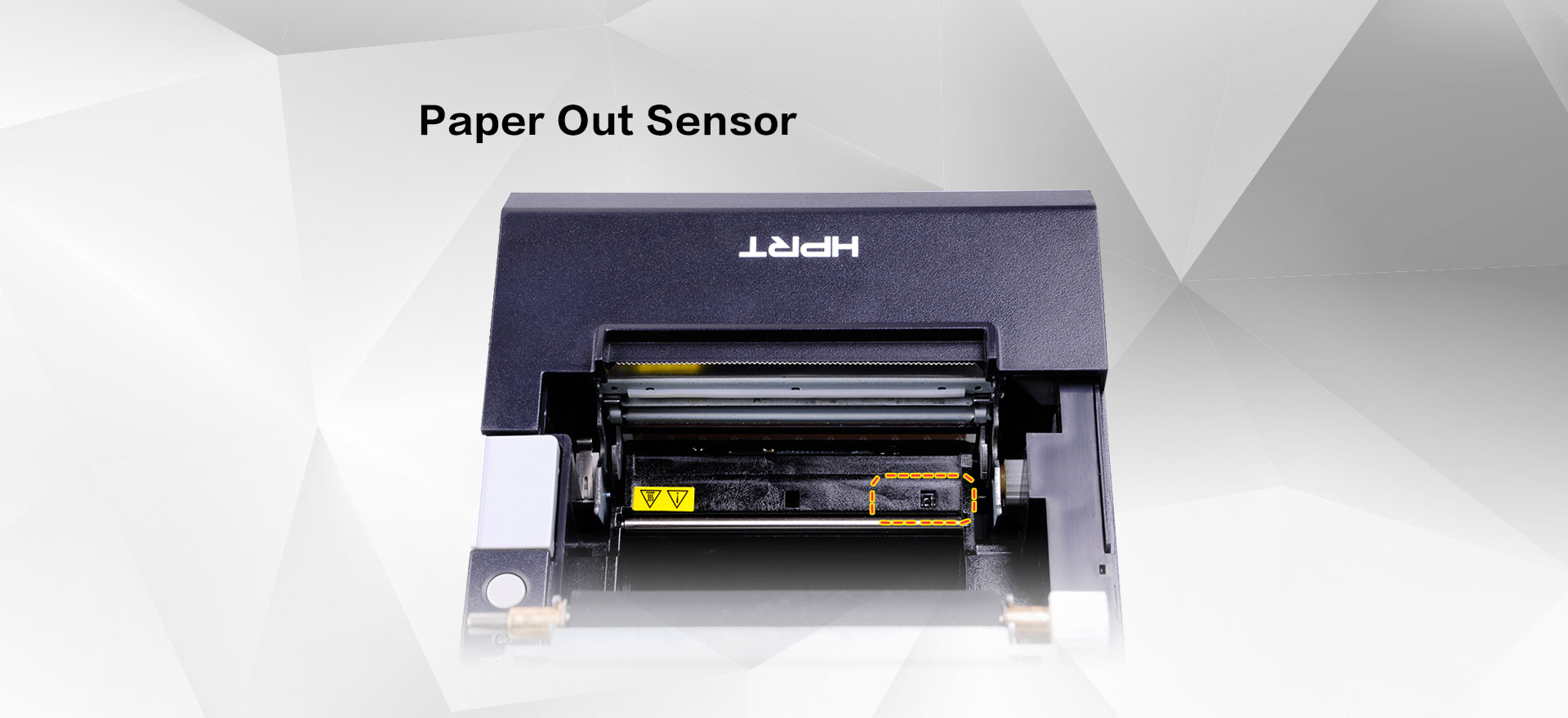

POS printer TP805 paper out sensor

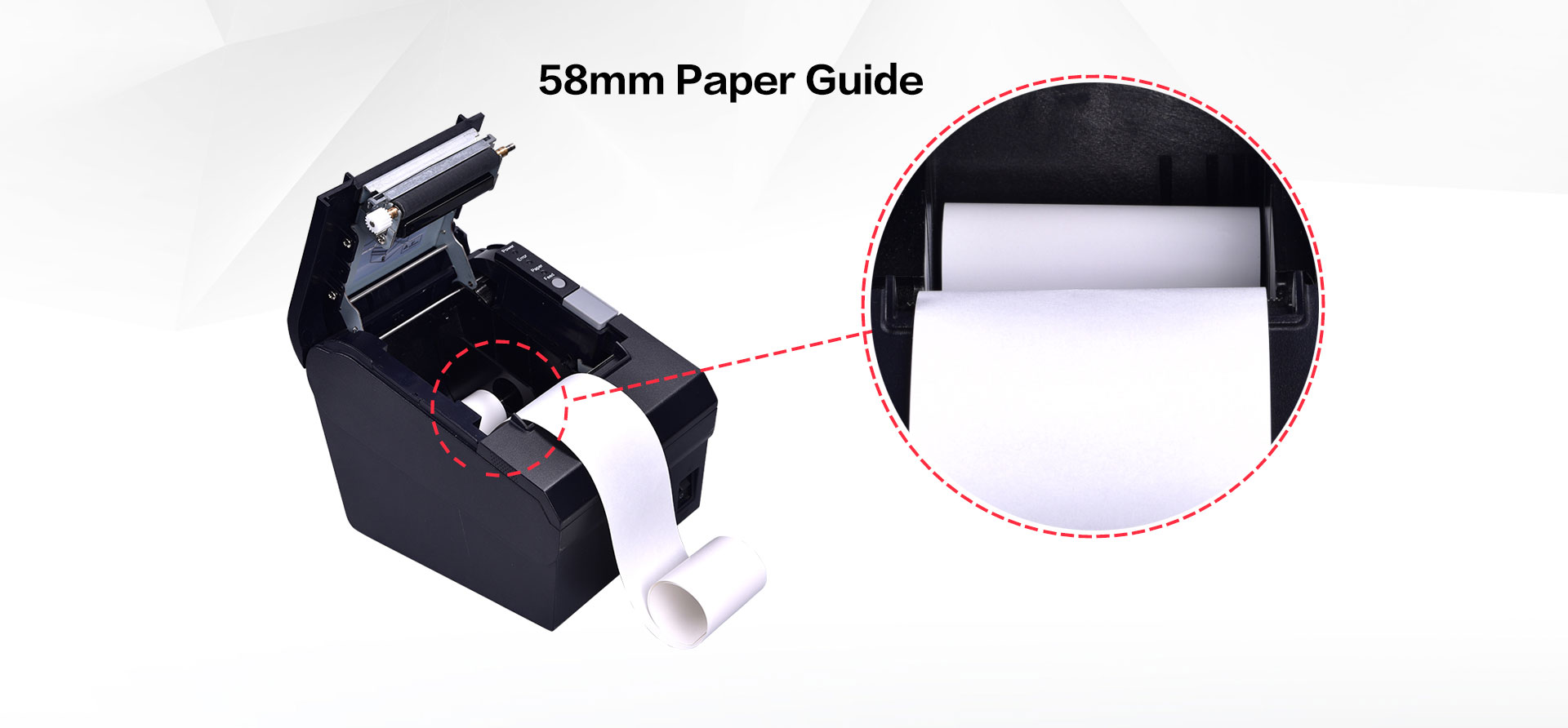

58mm POS printer

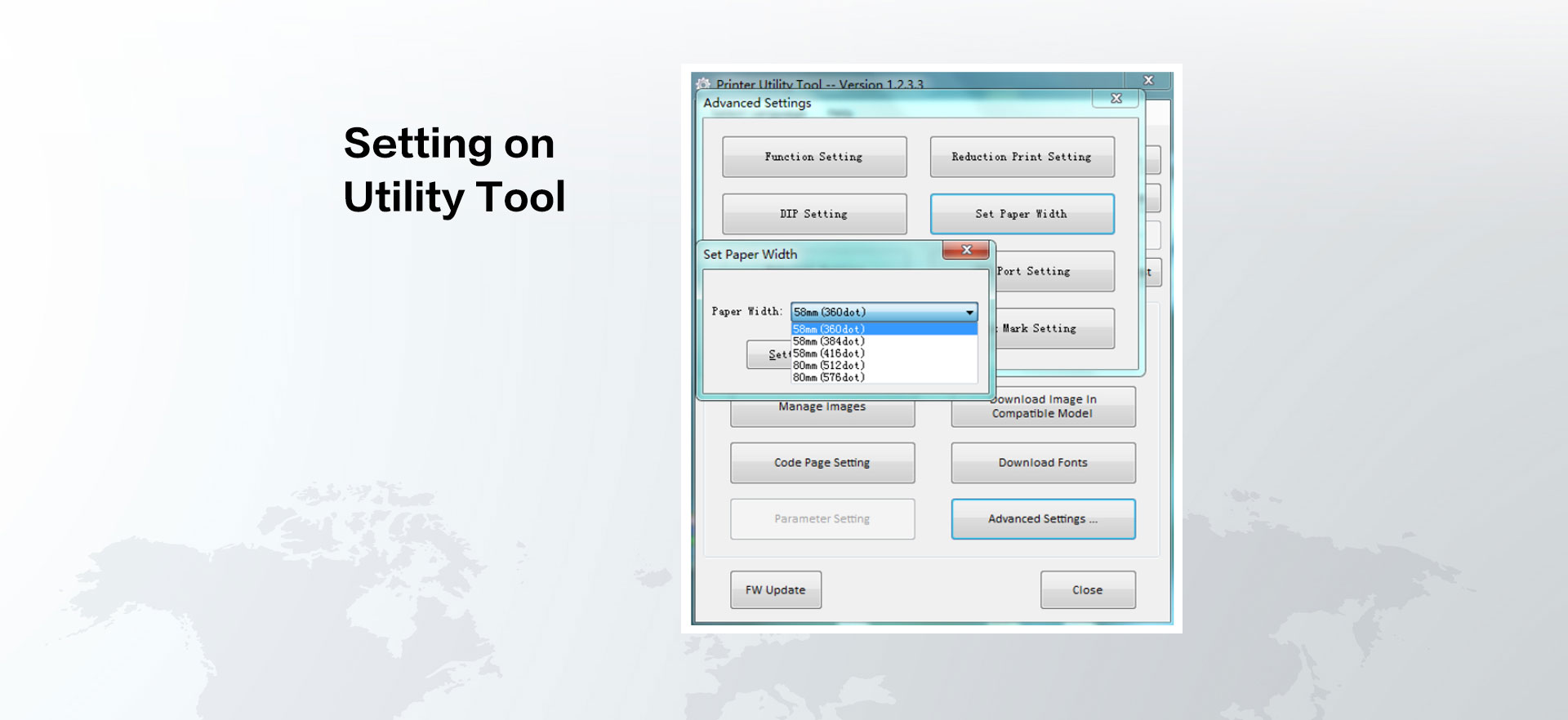

POS printer TP805 setting

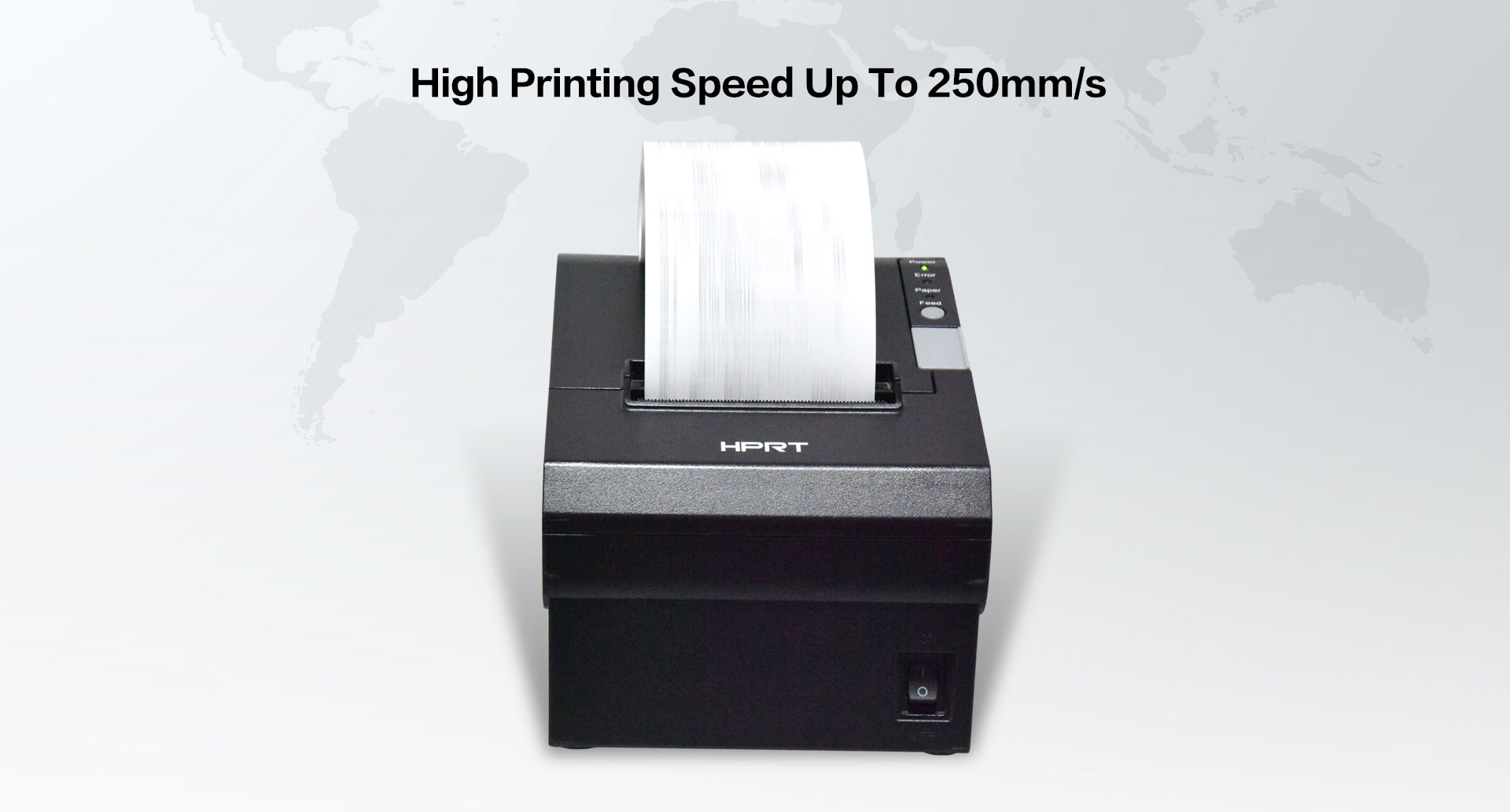

fast POS printer

POS printer TP805 paper out sensor

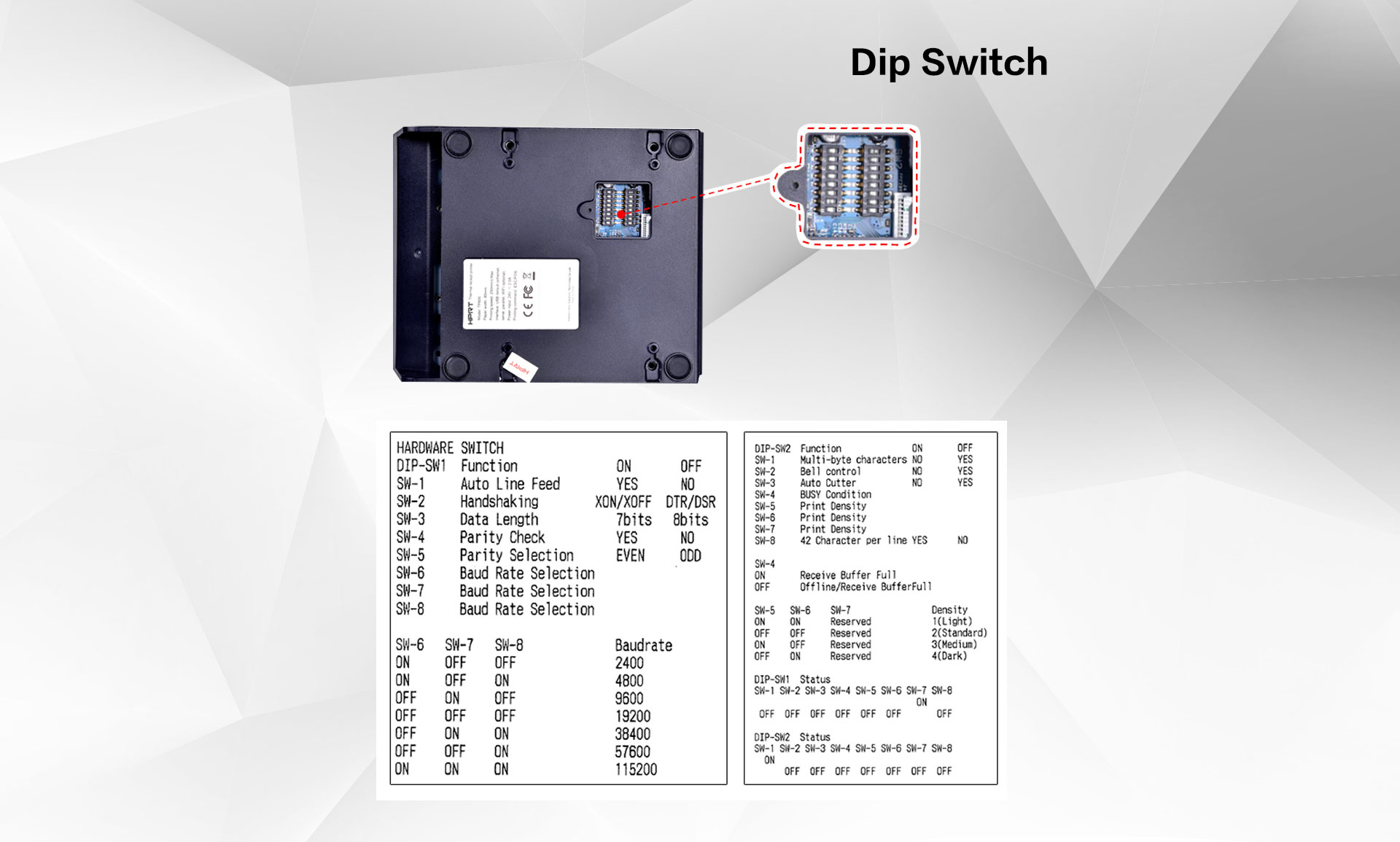

POS printer TP805 Dip switch

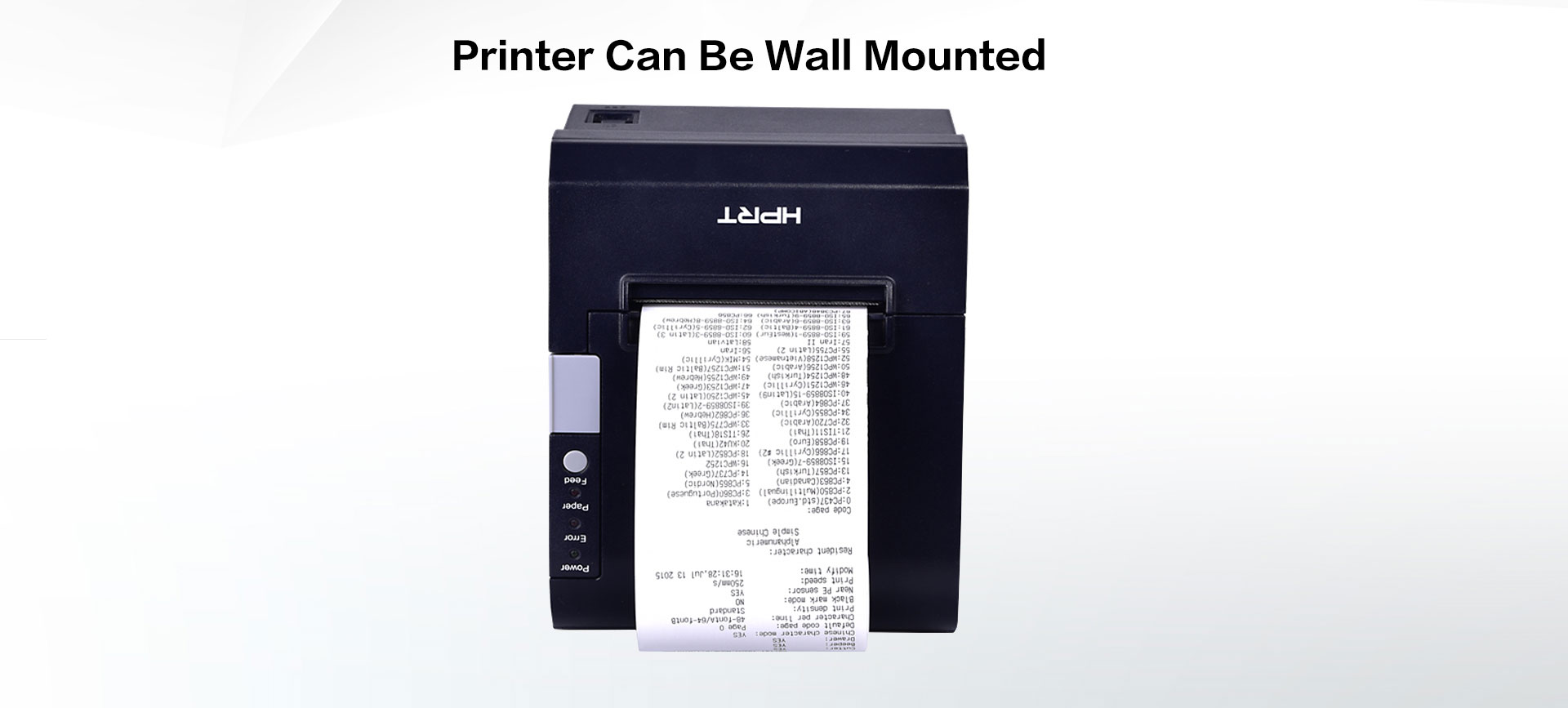

wall mounted POS printer

POS printer TP805 paper

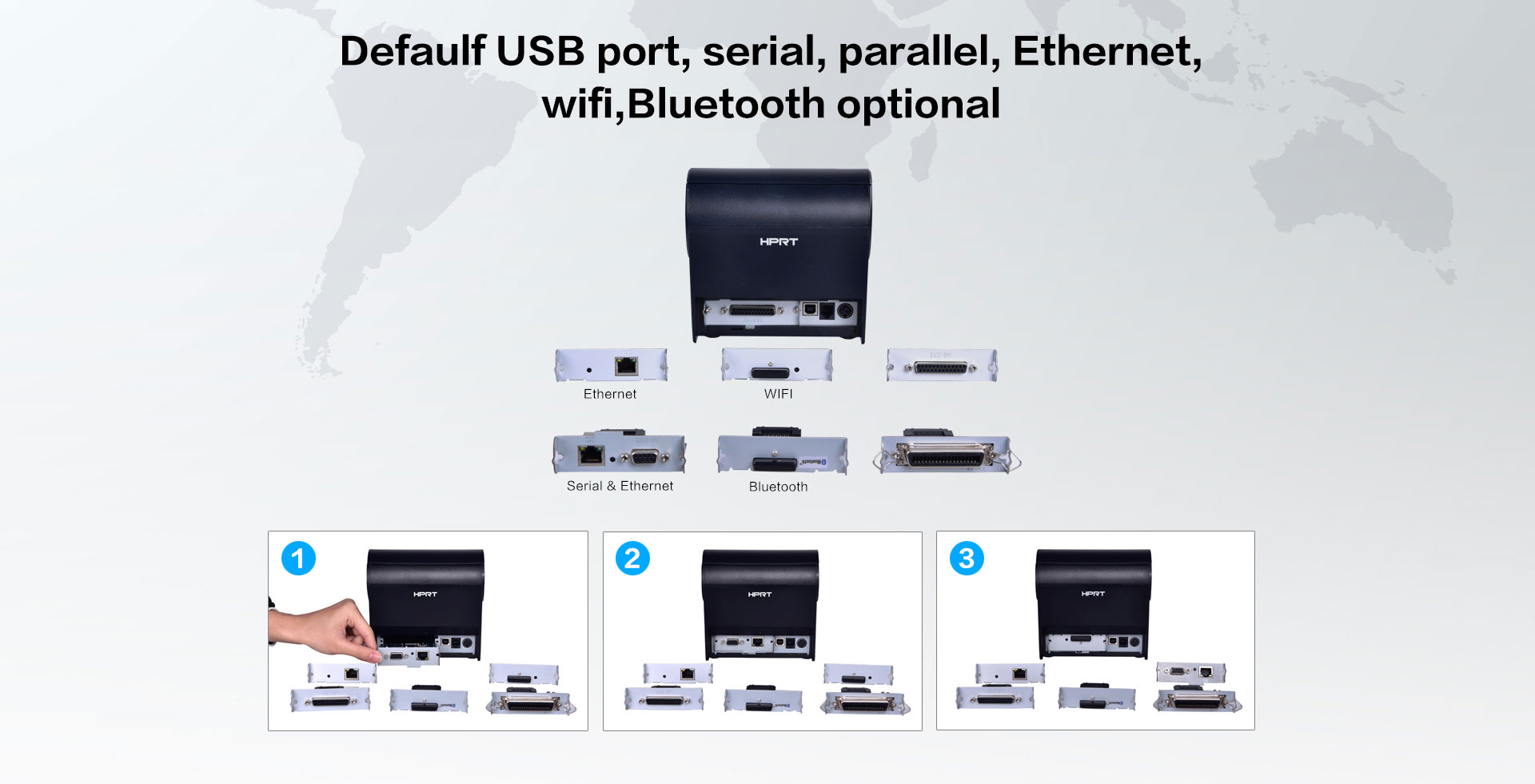

USB WIFI Bluetooth Parallel Ethernet Serial POS printer

POS printer TP805 design

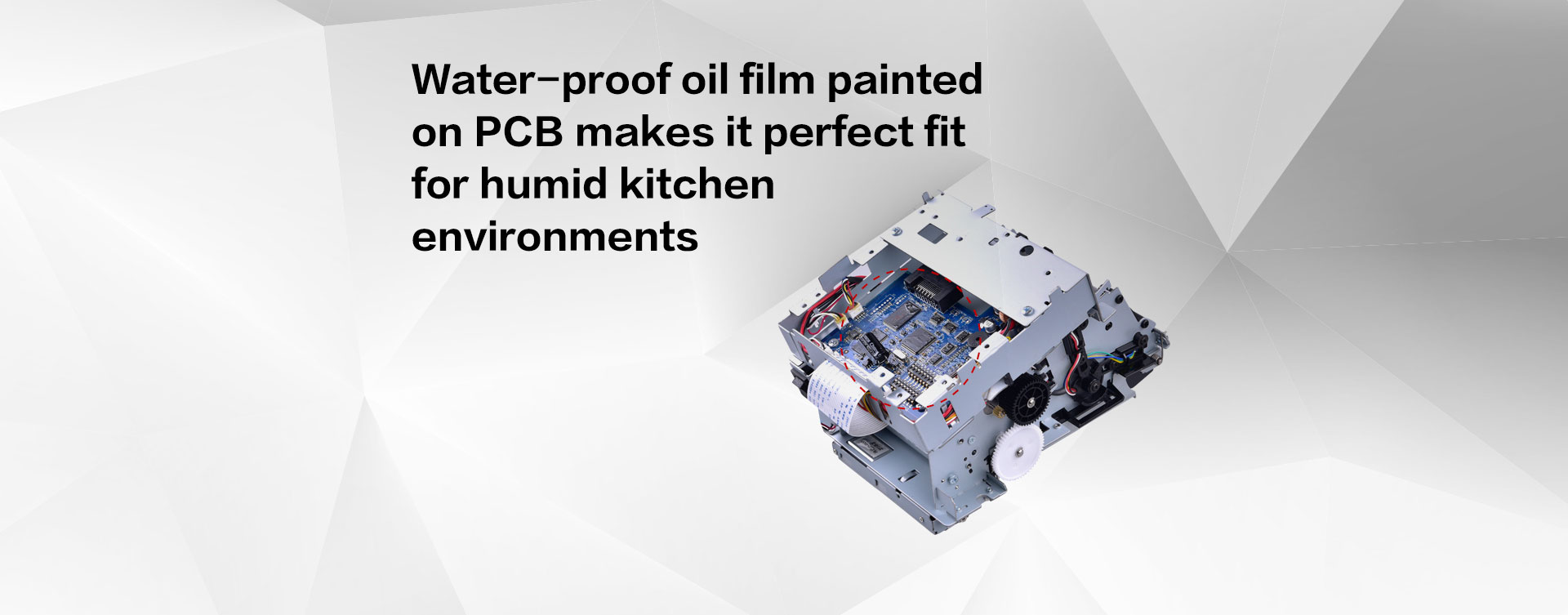

water-proof POS printer

stable POS printer

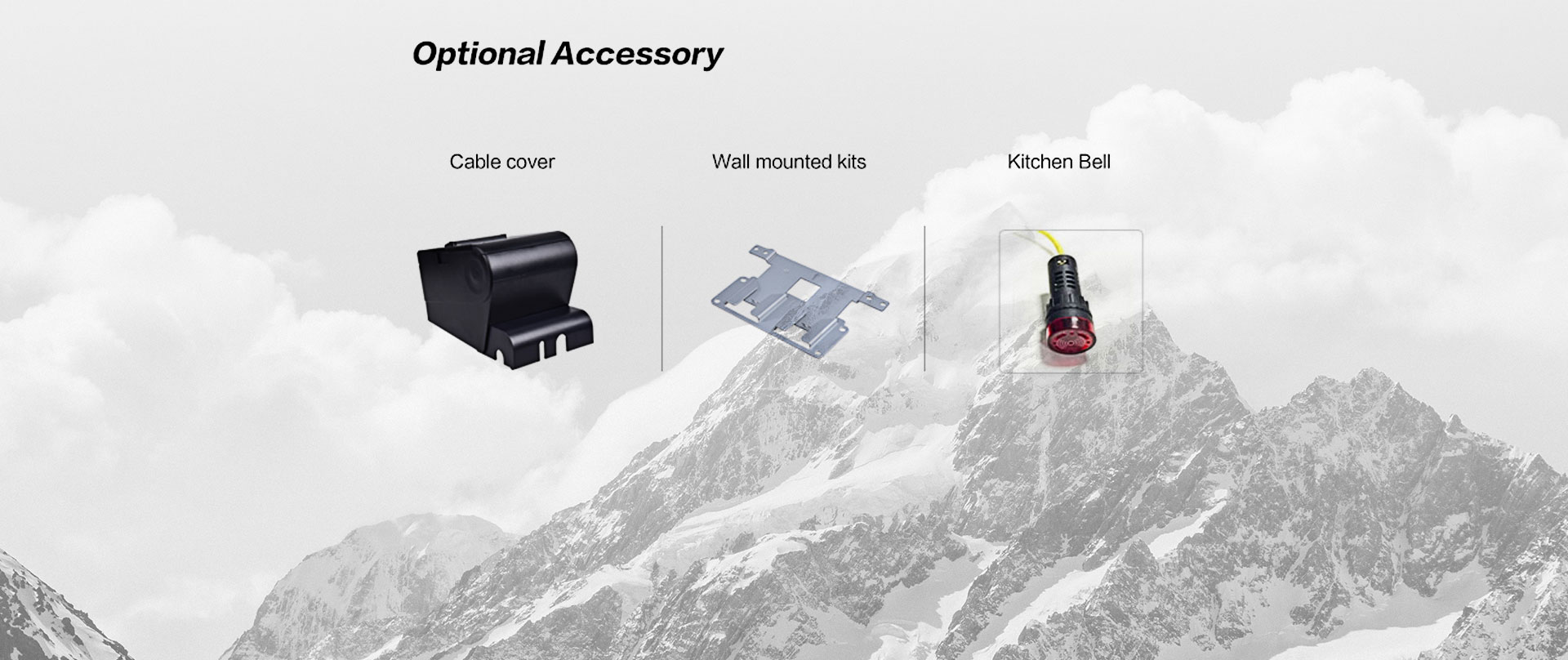

POS printer TP805 accessories

PrintingPrint MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Print SpeedMax. 250 mm/s
Printing WidthMax. 72 mm
InterfaceStandardUSB Type B, Cashbox
OptionEthernet, Parallel  Port, Serial Port, Bluetooth, Wi-Fi, Serial Port and Ethernet(2 in 1)
Page ModeSupport
Programming Language
ESC/POS
FontsAlphanumeric; Simplified Chinese, Traditional Chinese; 47 codepages
BarcodeLinear BarcodesUPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE128, CODE93
2D BarcodesPDF417, QR Code
GraphicsSupport bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 KB, the total size of bitmap is 256 KB)
SensorsStandardPaper out Detector, Head up Sensor, Paper near end Sensor
Memory
RAM
2 MB
Flash
4 MB
LED IndicatorPowerGreen
Paper outRed
ErrorRed
Power SupplyInputAC 100 V ~ 240 V, 50/60Hz
OutputDC 24 V, 2 A
PaperPaper TypeThermal Receipt Paper
Paper WidthMax. 80mm
Paper Thickness0.056 ~ 0.13 mm
Roll Paper DiameterMax. 83 mm (O.D.)
Paper LoadEasy paper loading
Paper cutPartial cut
Environment
Operating0 °C ~ 40 °C, 20% ~ 85% R.H
Storage-20 °C~70 °C, 5% ~ 95% R.H
Physical CharacteristicsDimensions195(L)×147(W)×147(H) mm
Weight1.8 kg
Options and AccessoriesUSB/Serial/Parallel Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide

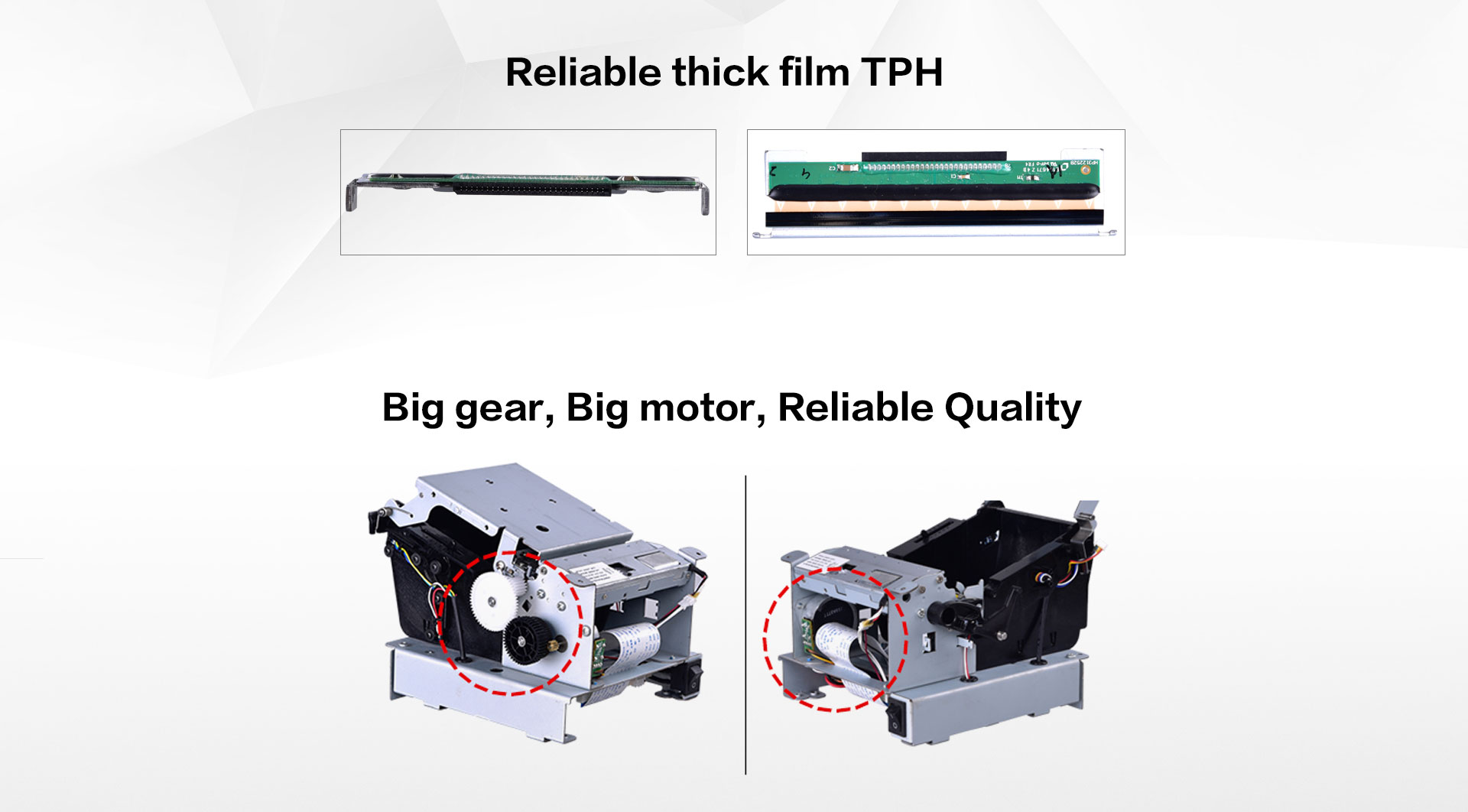

ReliabilityTPH life150 km
Cutter2 million cuts
SoftwareDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDKWinCE, WindowsMobile, Android, iOS
