HM-T3 PRO
OVERVIEW TECH SPECS DOWNLOADS

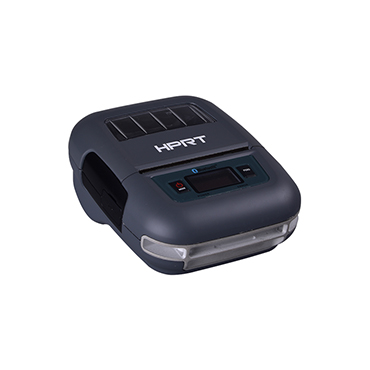

Mobile Thermal Printer

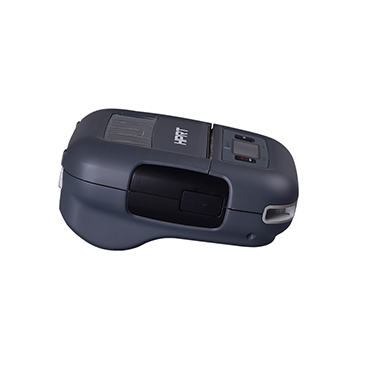

Thermal Label Printer

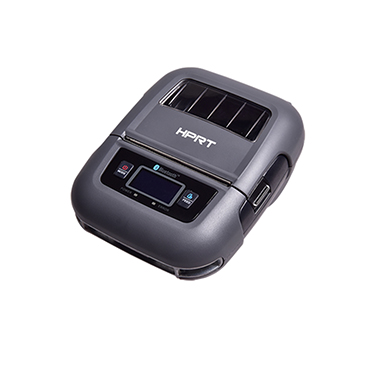

3-inch Mobile Thermal Label Printer

3-inch Mobile Thermal Label Printer

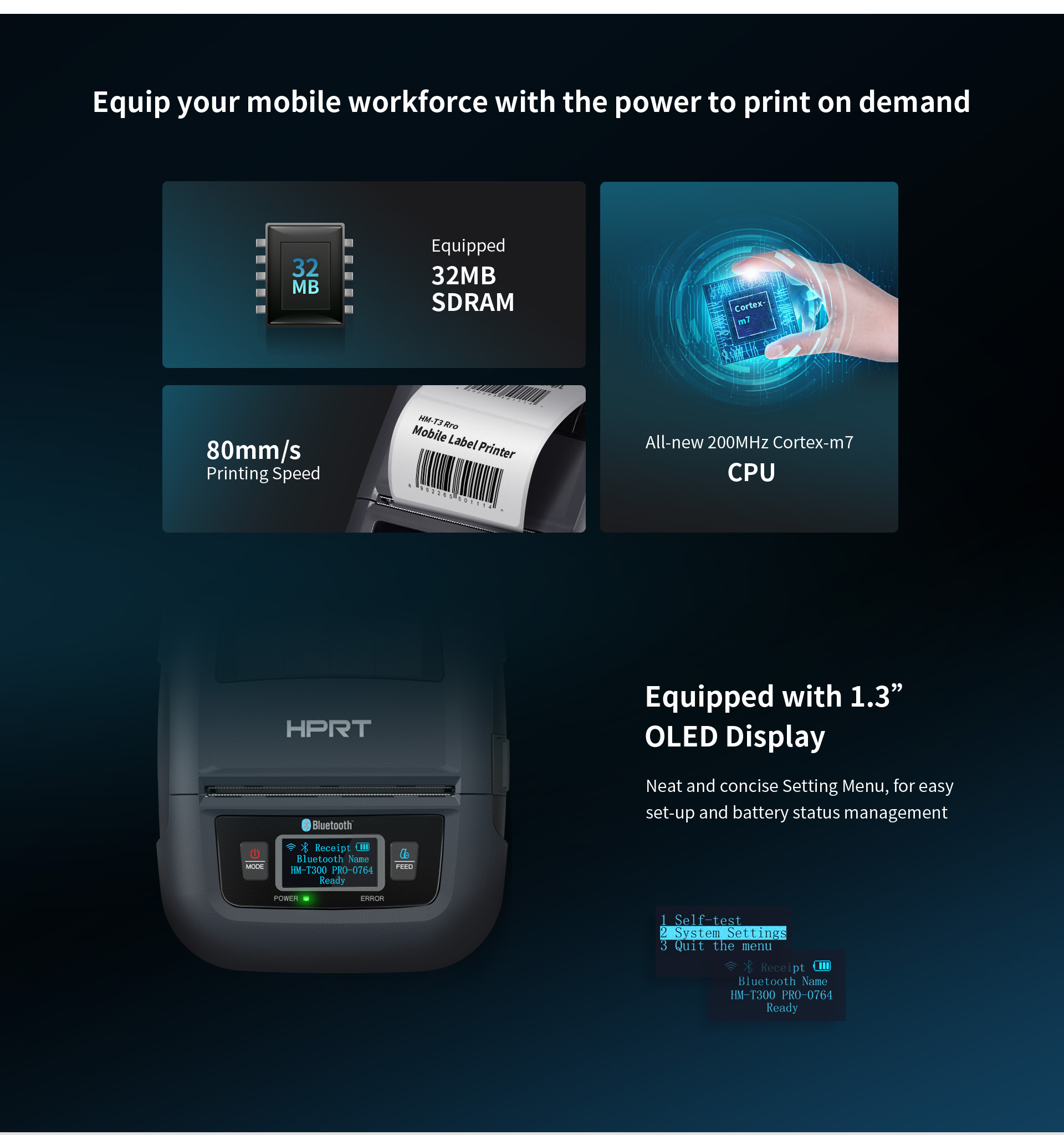

• Adopt high-performance ARM Cortex-M7

• 80mm/s print speed

• Support CPCL and ZPL print protocol

• Equipped with 256 MB NAND FLASH

• Support TTF vector font

• Equipped with 1.3-inch OLED display

• Support Bluetooth 4.0/LE

• Optional Wi-Fi (802.11 b/g/n)

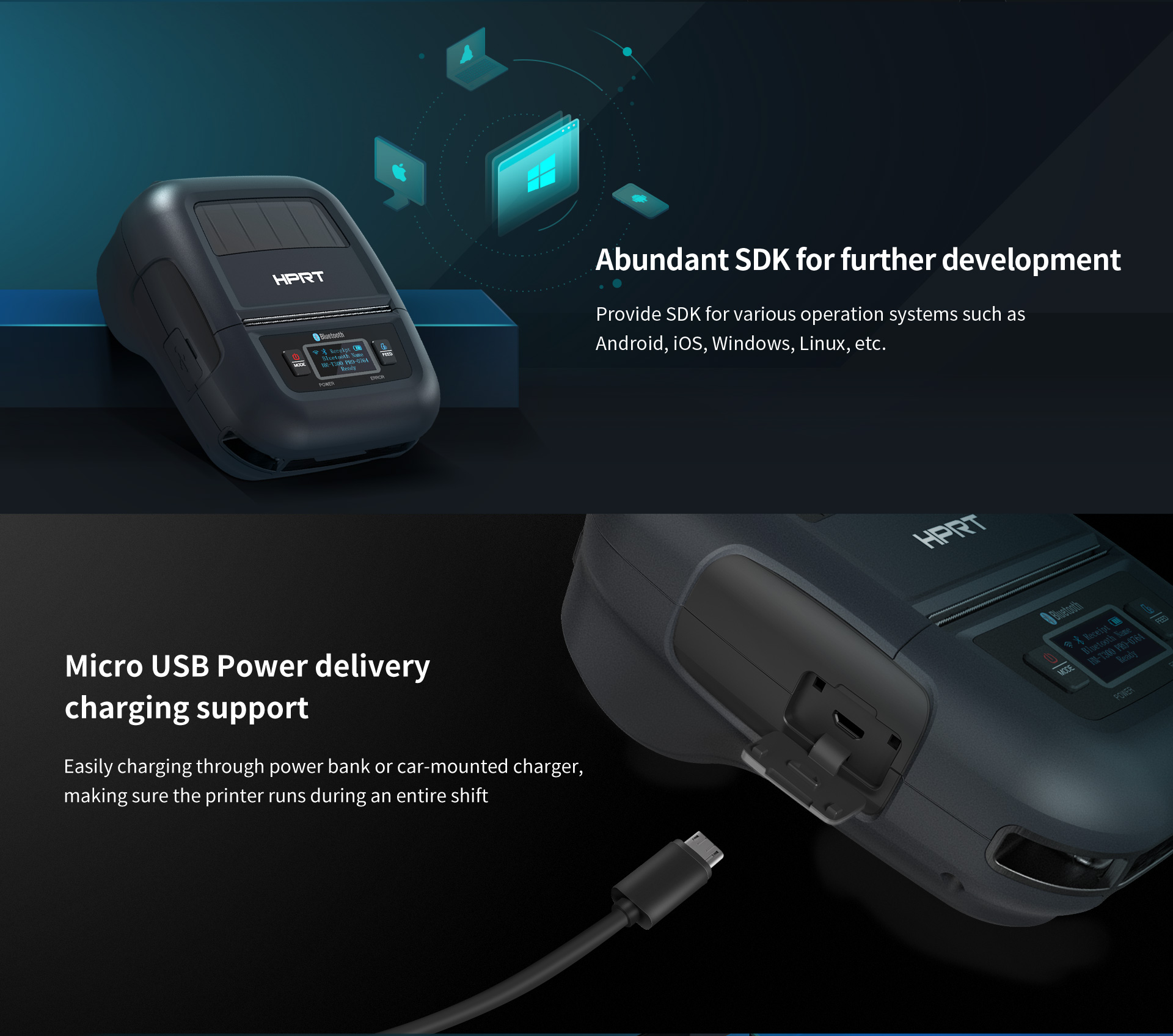

• Equipped with Micro-USB interface,support 5V/2A charge

Mobile Thermal Printer
Thermal Label Printer
3-inch Mobile Thermal Label Printer

label printer

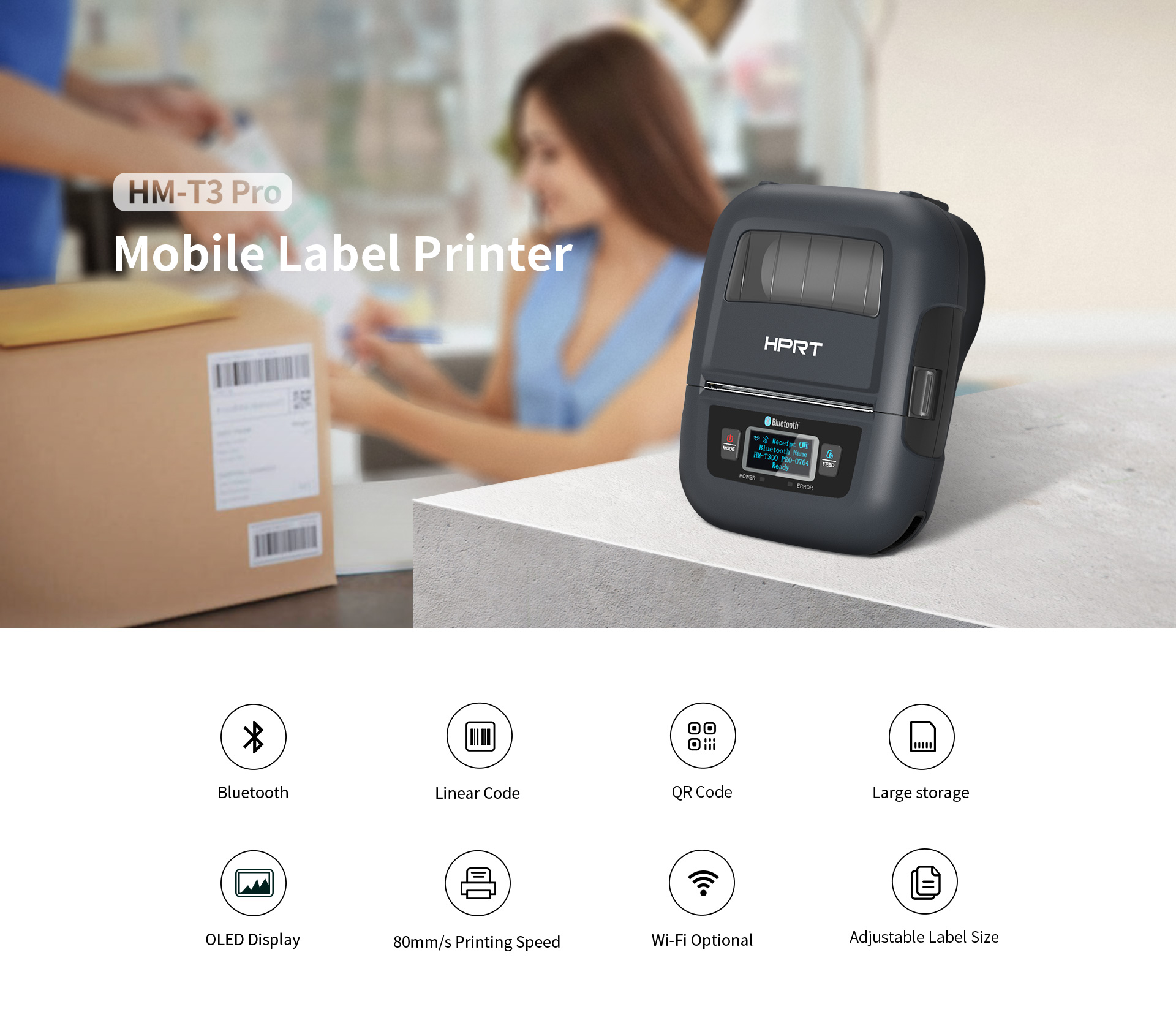

Mobile label printer

Functions of mobile label printer

Functions of mobile label printer

Mobile label printer CPU

Label Printer menu

Thermal label printer paper

Mobile Thermal Label Printer Storage

Bluetooth mobile label printer

Mobile Thermal Label Printer Battery

Application scenario of thermal label printing paper

PrintingPrint MethodDirect thermal printing
Resolution203dpi
Print  SpeedMax.80mm/s
Print WidthMax.72mm/576 dots
Communication InterfaceStandard micro-USB , Bluetooth 4.0 BLE/2.1+EDR (Dual Mode)  Optional Wi-Fi(802.11b/g/n)
Sensors

Printer cover open detection,Out-of-paper detection,Gap detection (transmission, fixed, middle) Black mark

detection (reflective, right side of print back) TPH Temperature detection

SoftwareHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
PaperPaper TypeThermal receipt paper

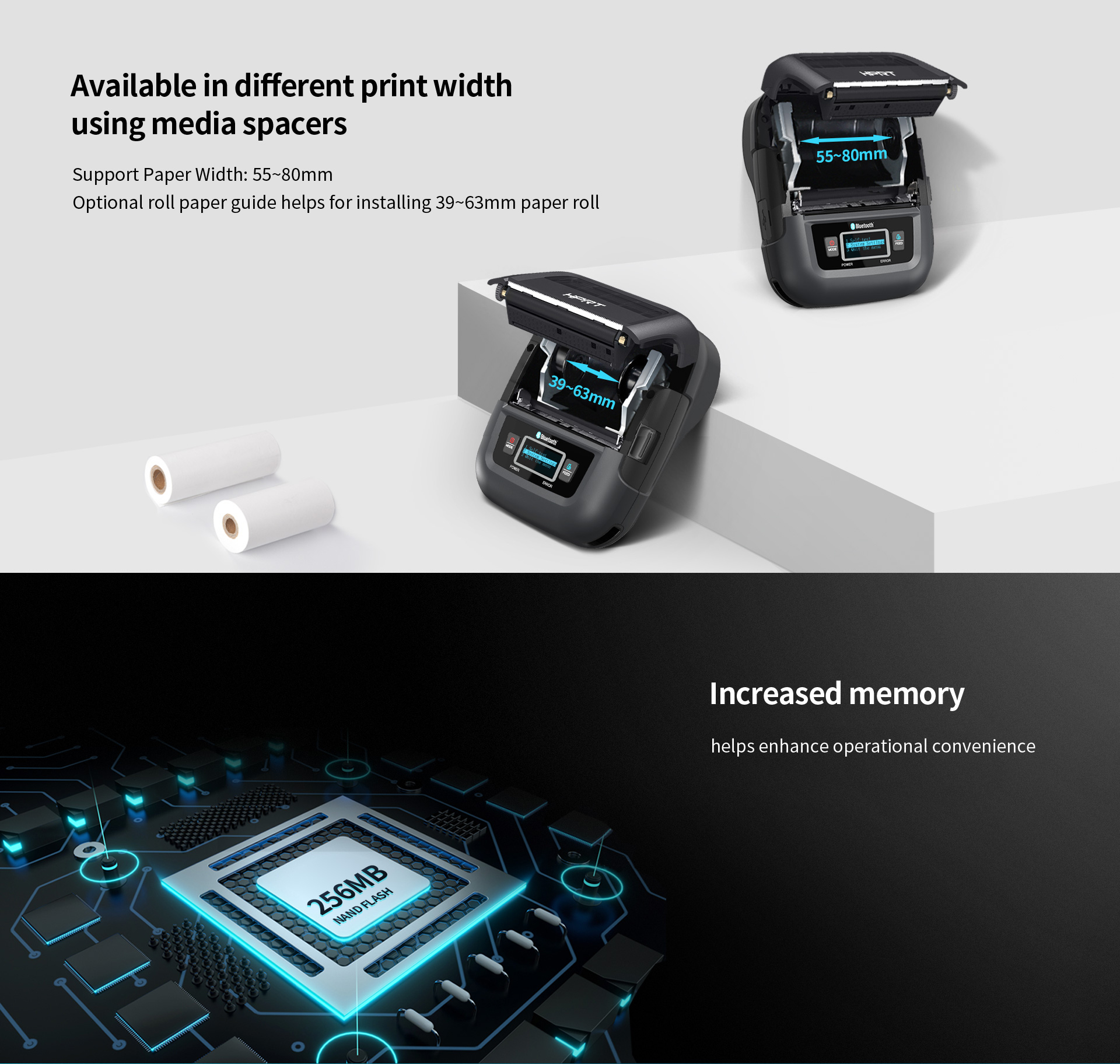

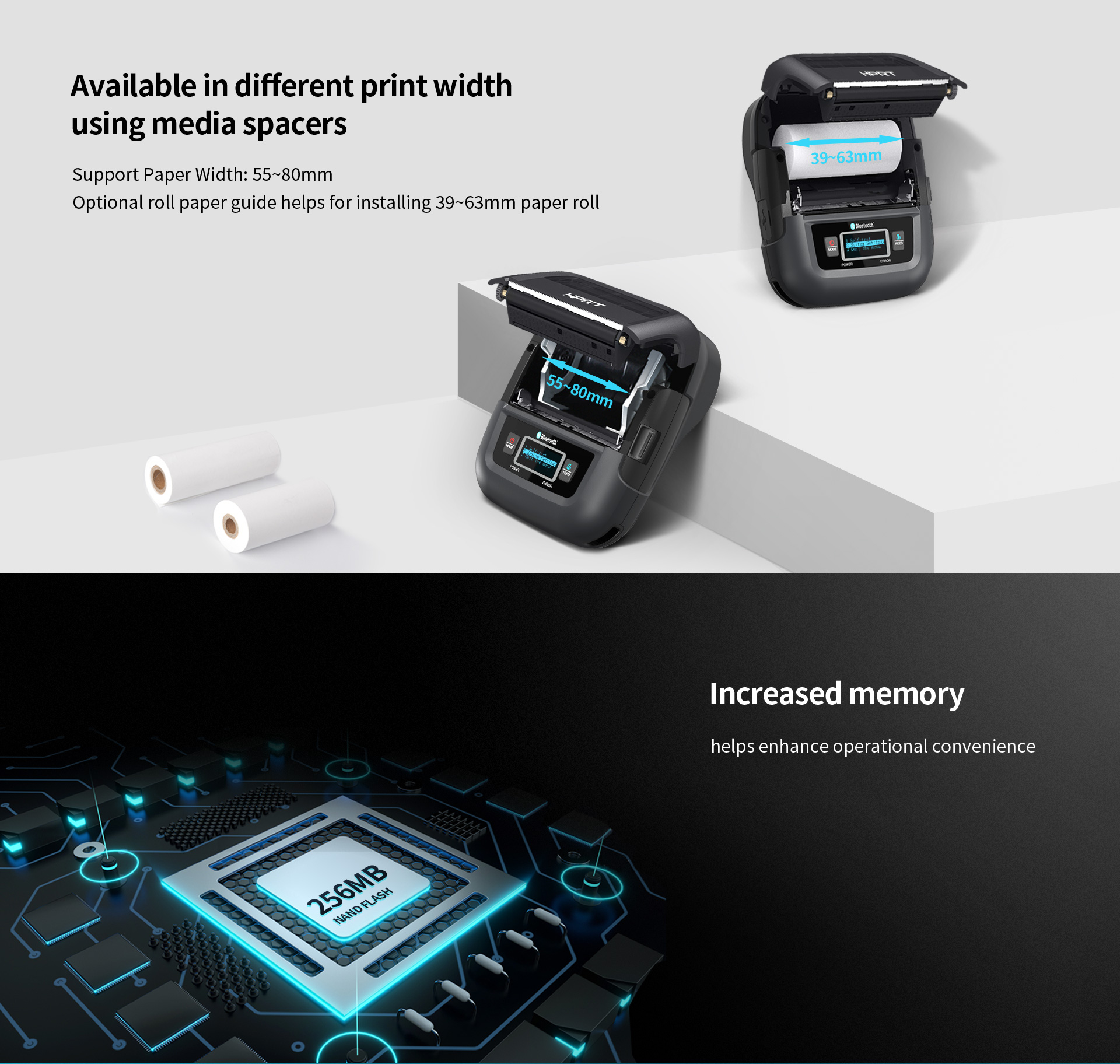

Paper Width55mm to 80mm(or 37mm to 63 mm)
Paper CapacityMax. Diameter 57mm
PowerInputAC 100~240V, 50/60Hz
OutputDC 5V, 1A
ReliabilityTPH Life50km
Levels of ProtectionIP42
Drop Test Standard1.5m
HardwareProcessorARMv7E-M Cortex-M7 32-bit RISC Processor
RAM32MB
Flash256MB
Physical CharacteristicsWorking Condition0°C ~ 55°C, 10% ~ 85% R.H, no-condensing
Storage Condition-10°C ~ 65°C, 5% ~ 90% R.H, no-condensing

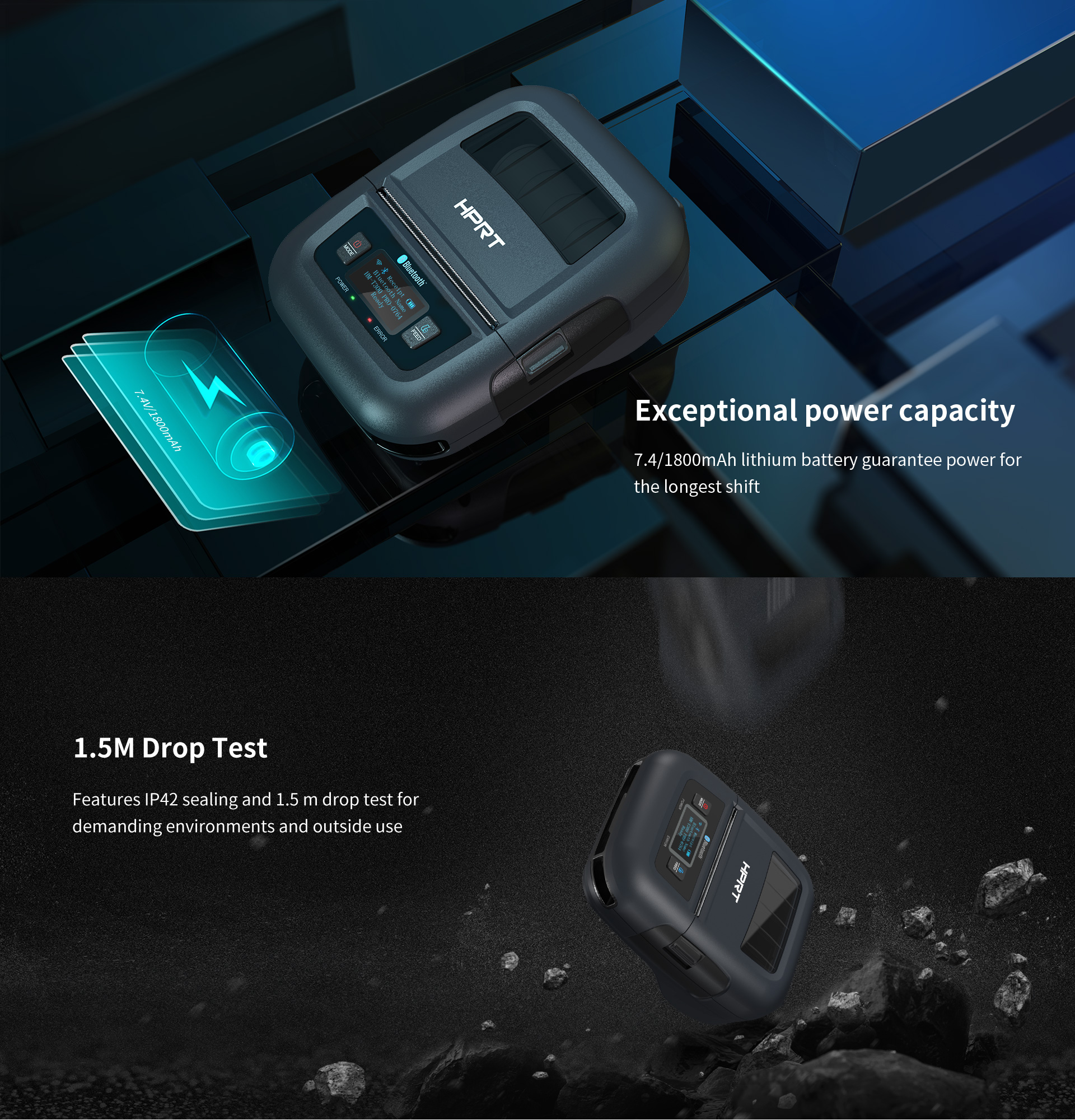

BatteryVoltage 7.4V
Capacity1800mAh

Drivers and Manuals

Stay up-to-date with the latest downloads for your HPRT Printer
