HM-Z3 is no longer available. Check out the replacing model HM-A300E.

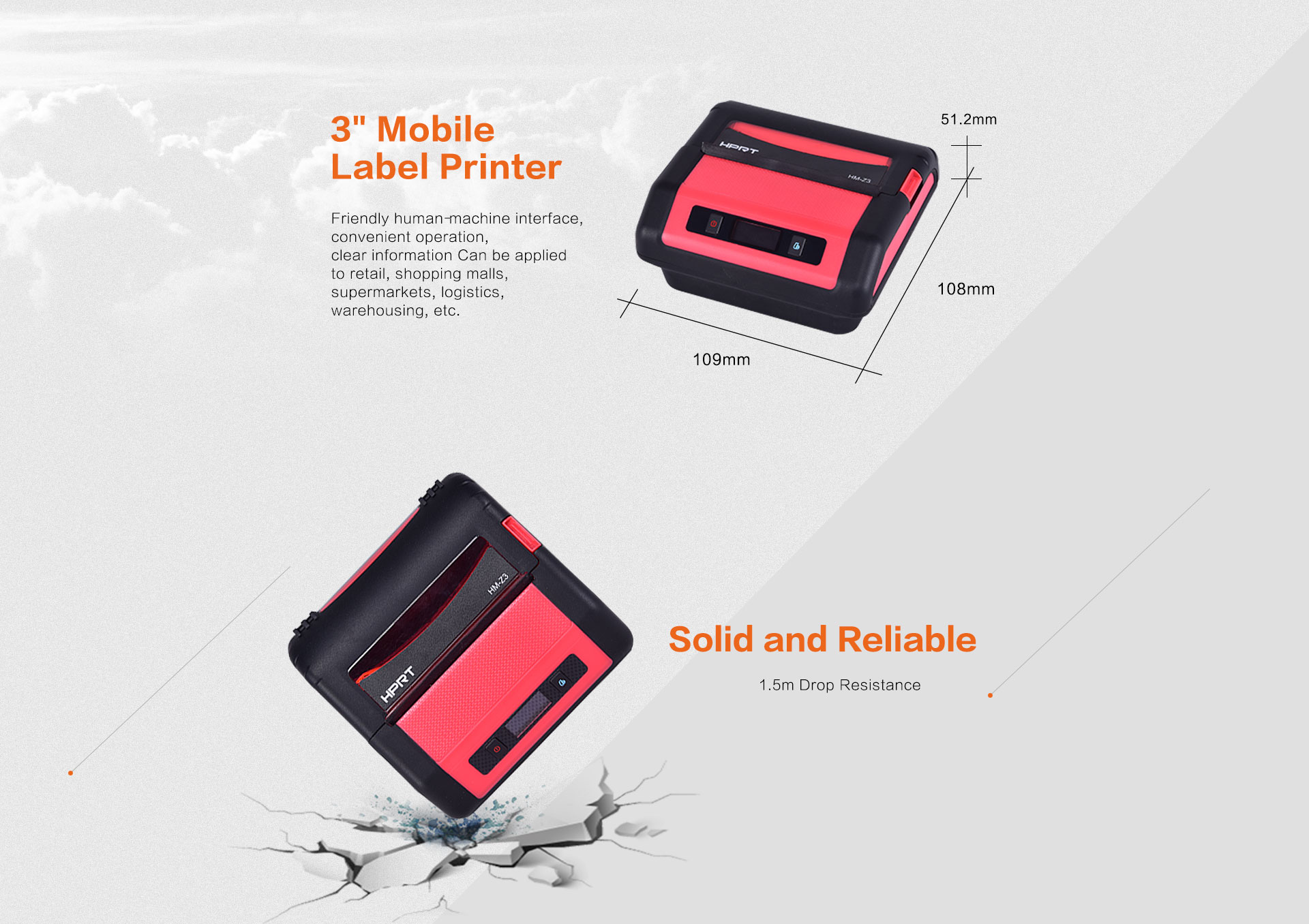

• Friendly human-machine interface. Convenient operation can be applied to retail, shopping mall, supermarkets, logistics, warehousing, etc.
• Solid and reliable for 1.5m Drop Resistance.
• Convenient charging. Support direct USB charging. Once fully charged, it can stand for 72 hours.
• Can work continuously for 2.5 hours. Using a variety of low-voltage charging mode. More lasting endurance.

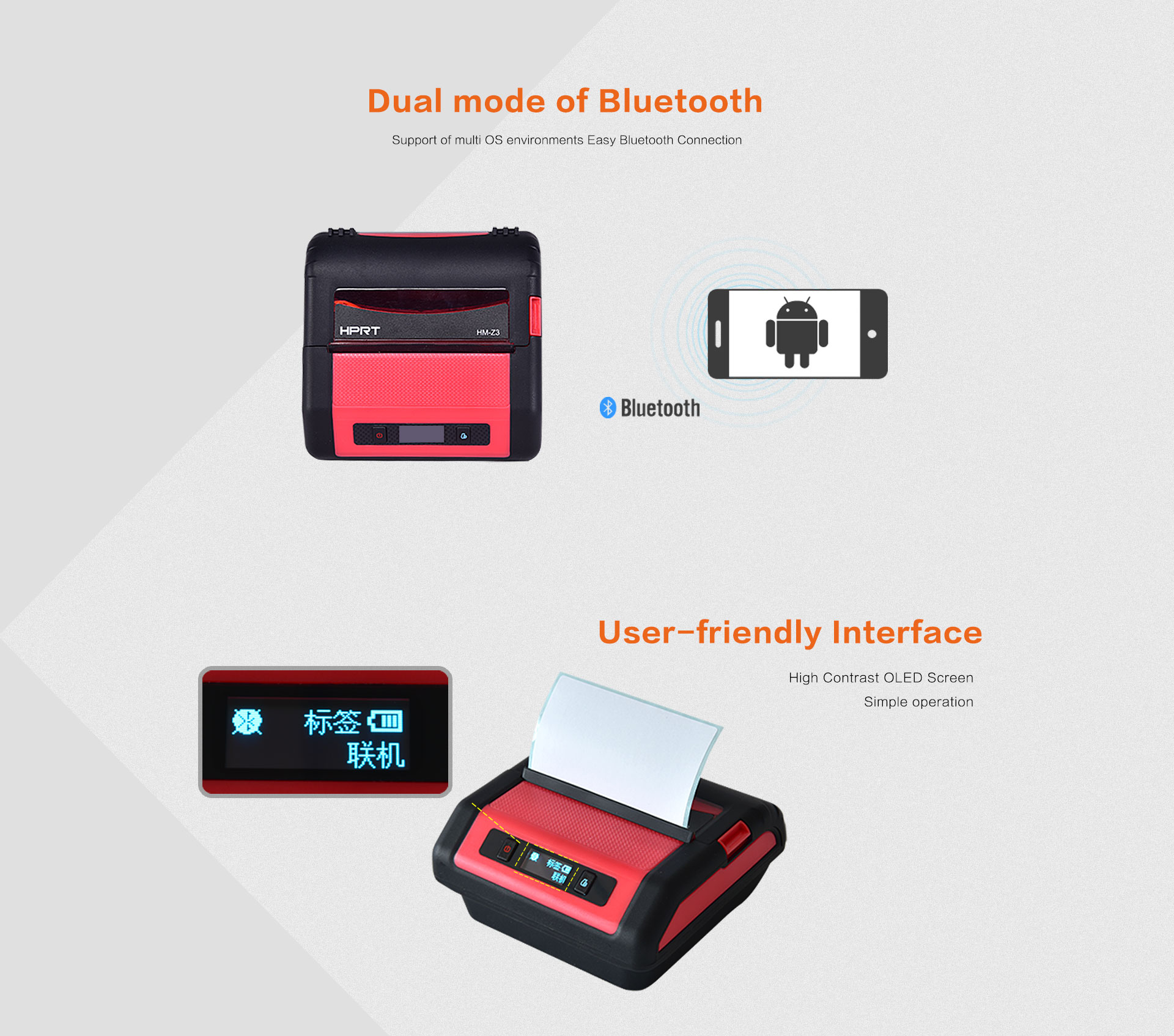

• Dual mode of bluetooth. Support multi OS environments. Easy bluetooth connection.
• User-friendly interface. High Contrast OLED Screen and simple operation.

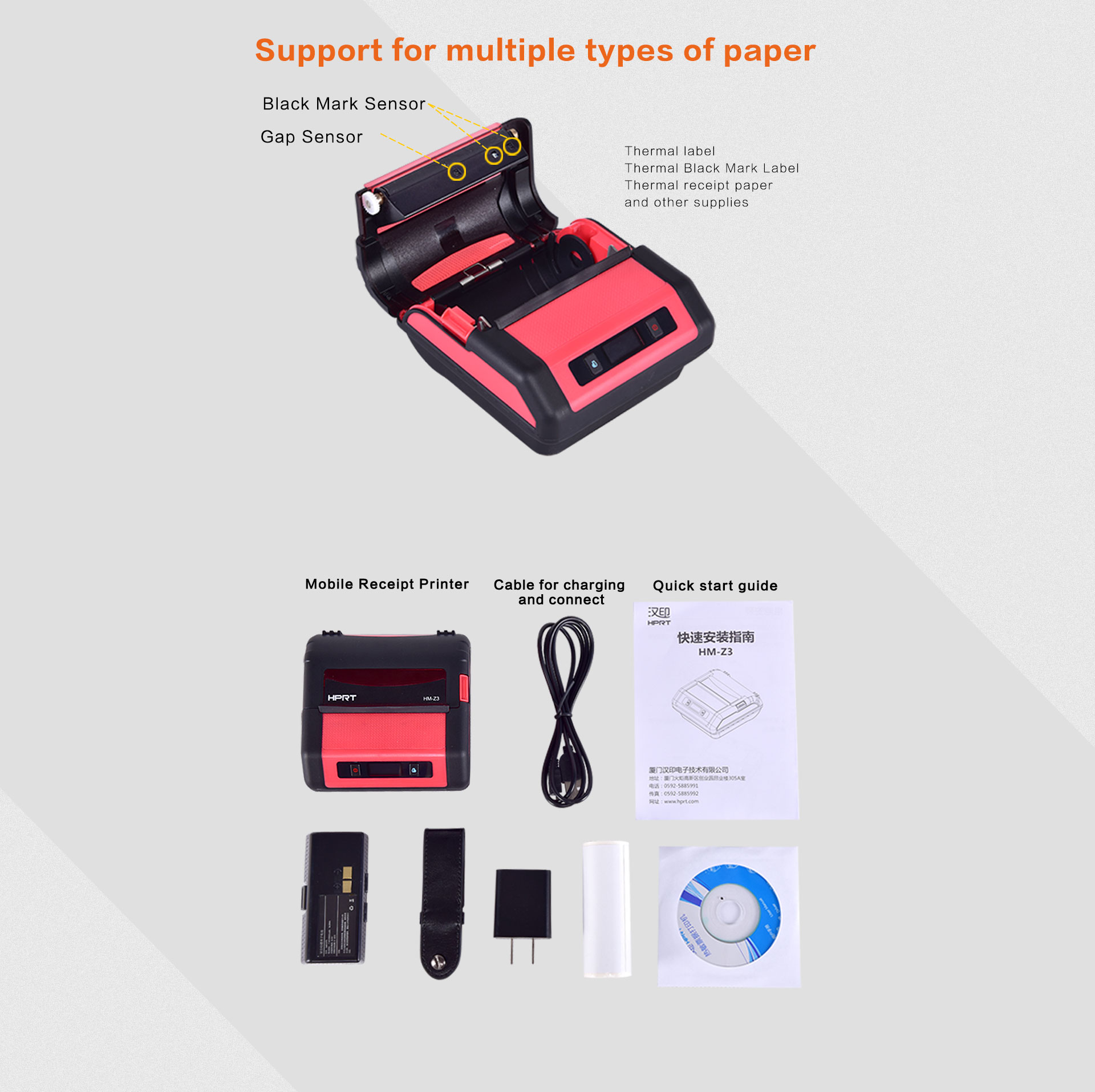

• Support for multiple types of paper, thermal label, thermal black mark label, thermal receipt paper and other supplies.
Printing | Printing method | Direct Thermal | |
Resolution | 203 dpi(8 dots/mm) | ||
Printing width | Max.72mm | ||
Printing speed | 60 mm/s | ||
Power saving | Sleep mode | YES | |
Memory | RAM | 2 MB | |
Flash | 4 MB | ||
Programming Language | CPCL | ||
Fonts | Alphanumeric; Simplified Chinese, Traditional Chinese; 35 International Character Sets | ||
Barcode | Linear Bacodes | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODE 128 , CODE 93 | |
2D Barcodes | QR Code, PDF417 | ||
Interface | Standard | MicroUSB, Bluetooth 3.0/4.0 | |
Option | N/A | ||
Sensors | Standard | Cover open Detector, Paper out Detector, Black mark sensor, Gap Detector | |
Option | N/A | ||
Power | Input | AC 100 ~ 240 V, 50/60Hz | |
Output | DC 5V, 1A | ||
Battery | 7.4V rechargeable Li-ion battery, 2000mAh | ||
Paper | Paper type | Thermal paper or Label paper | |
Paper width | 46mm/62mm/80mm | ||
Paper thickness | 0.053 ~ 0.15mm | ||
Roll paper diameter | Max. Φ40 mm (O.D) | ||
Environment | Operating | -2℃ ~ 52℃, 10% ~ 85% R.H, no-condensing | |
Storage | -20 ~ 60℃, 5 ~ 90% R.H, no-condensing | ||
Protection class | IP54 | ||
Physical Characteristics | Dimension | 109(L)×108(W)×51.2(H) mm | |
Weight | 0.372 kg | ||
Software | Driver | HPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac | |
SDK | WinCE,Windows Mobile, Android | ||
Reliability | TPH | 50 km | |
Protection class | IP54 | ||
Fall Down Testing | 1.5 m | ||
Agency Approvals | FCC,CE,CCC |
