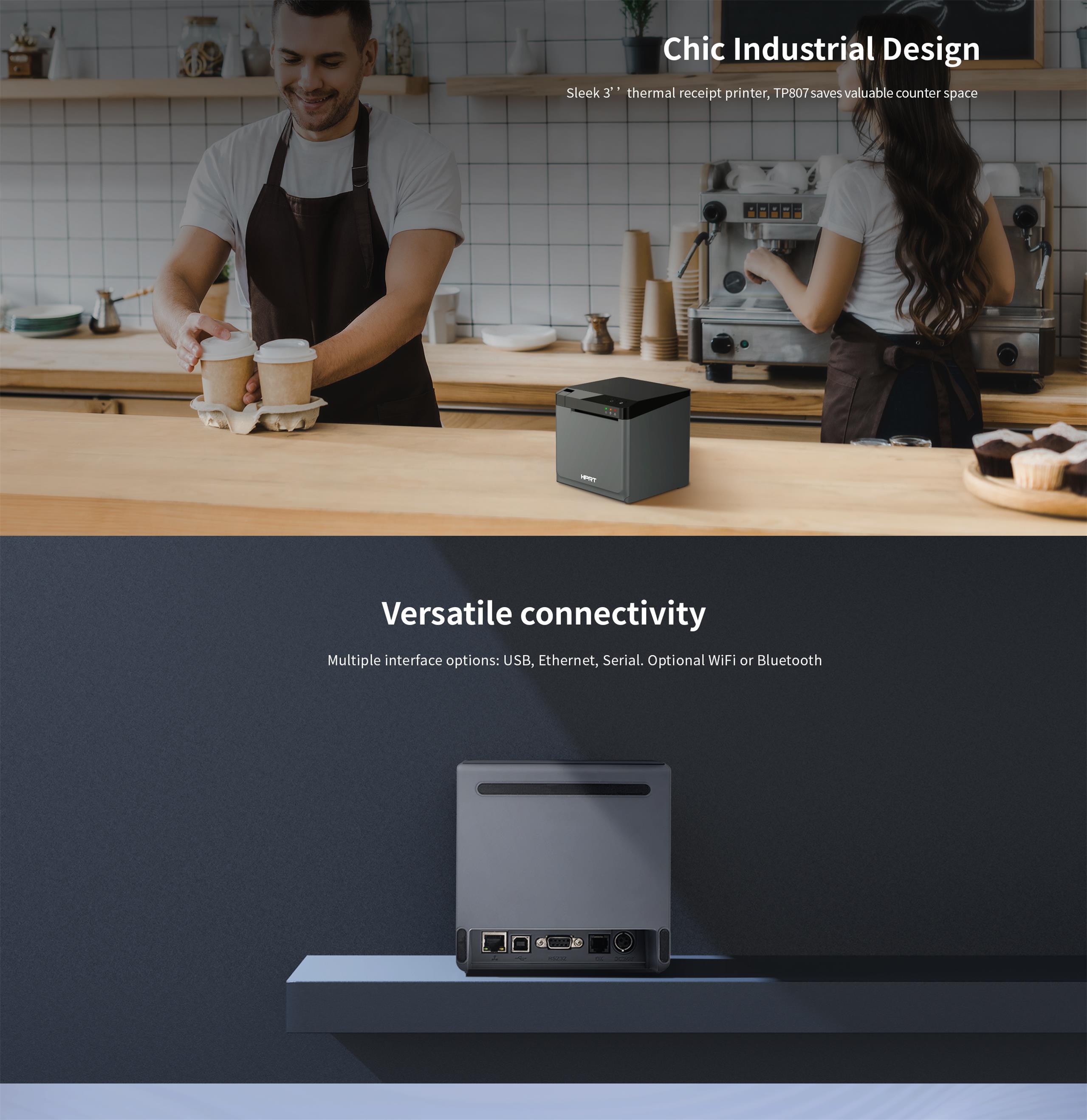

• Chic Industrial Design

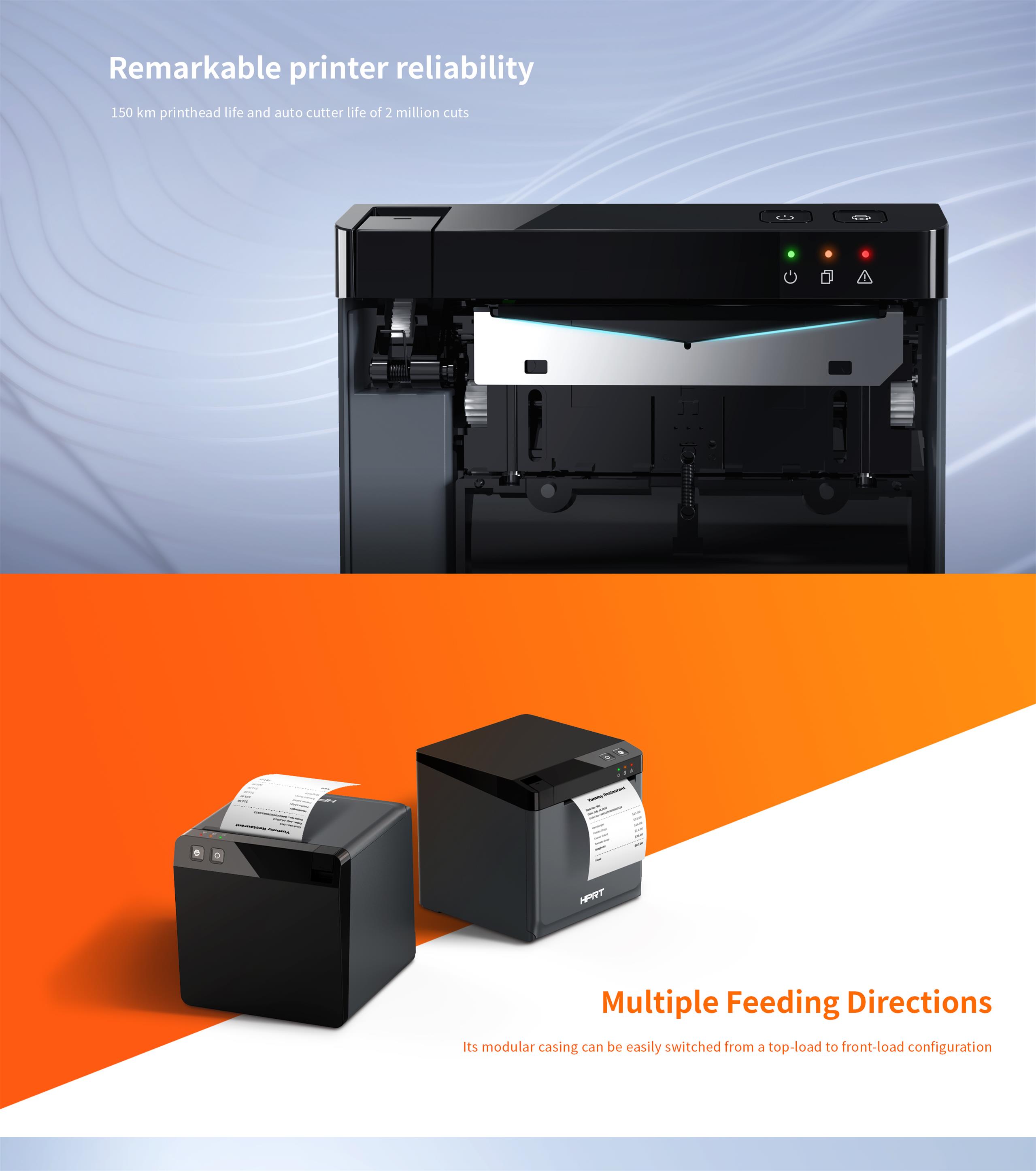

• Remarkable printer reliability

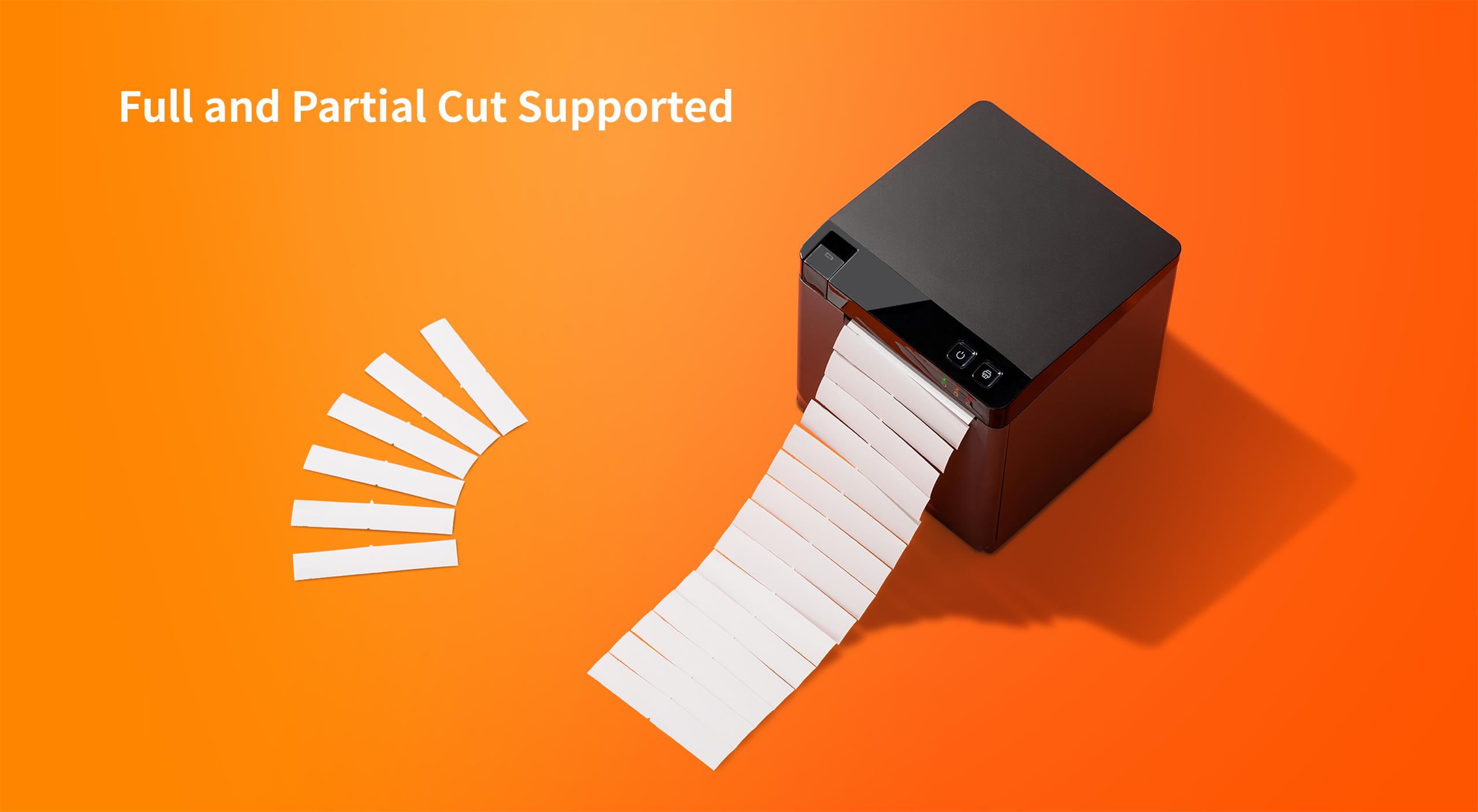

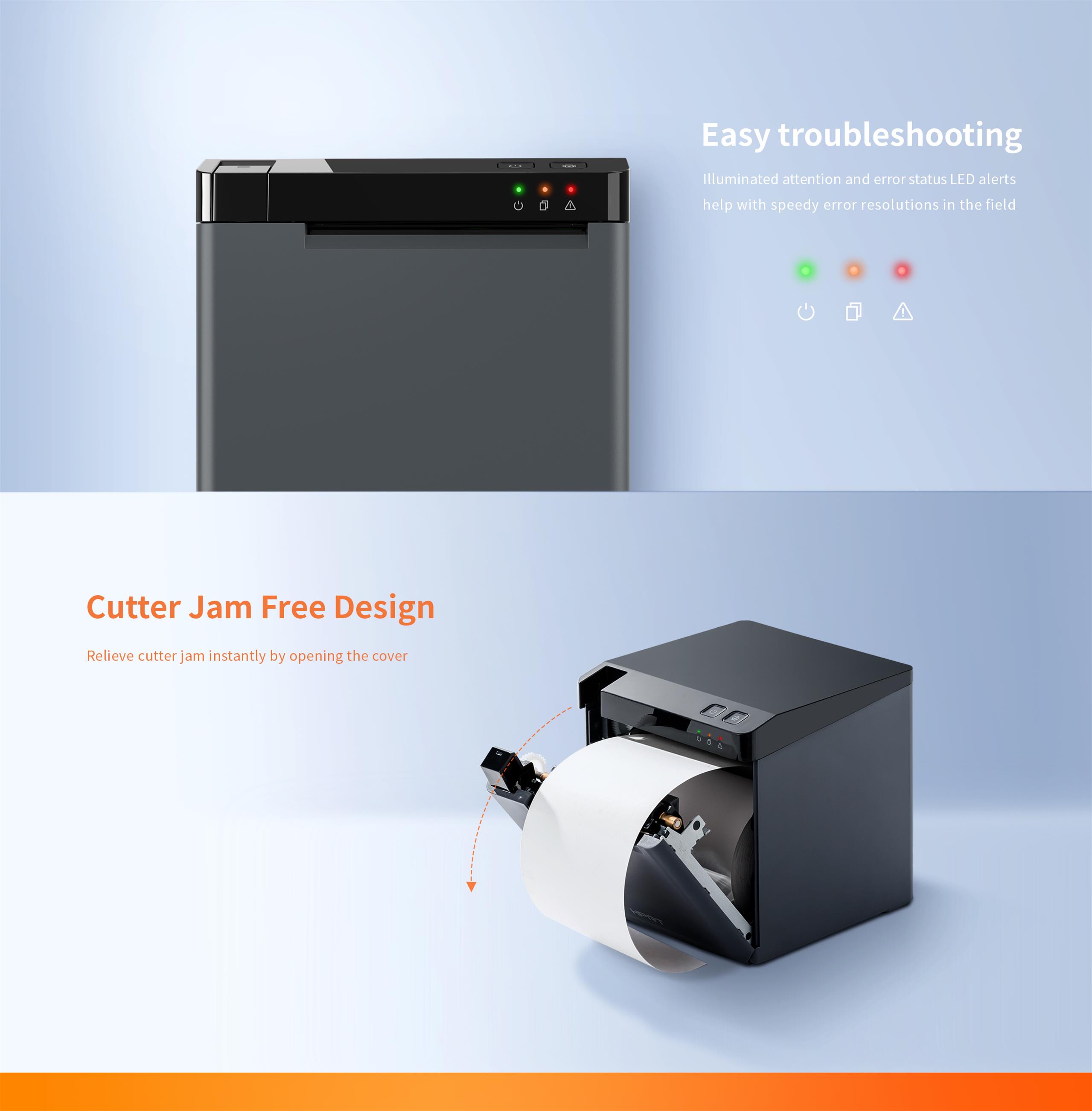

• Cutter jam auto-elimination

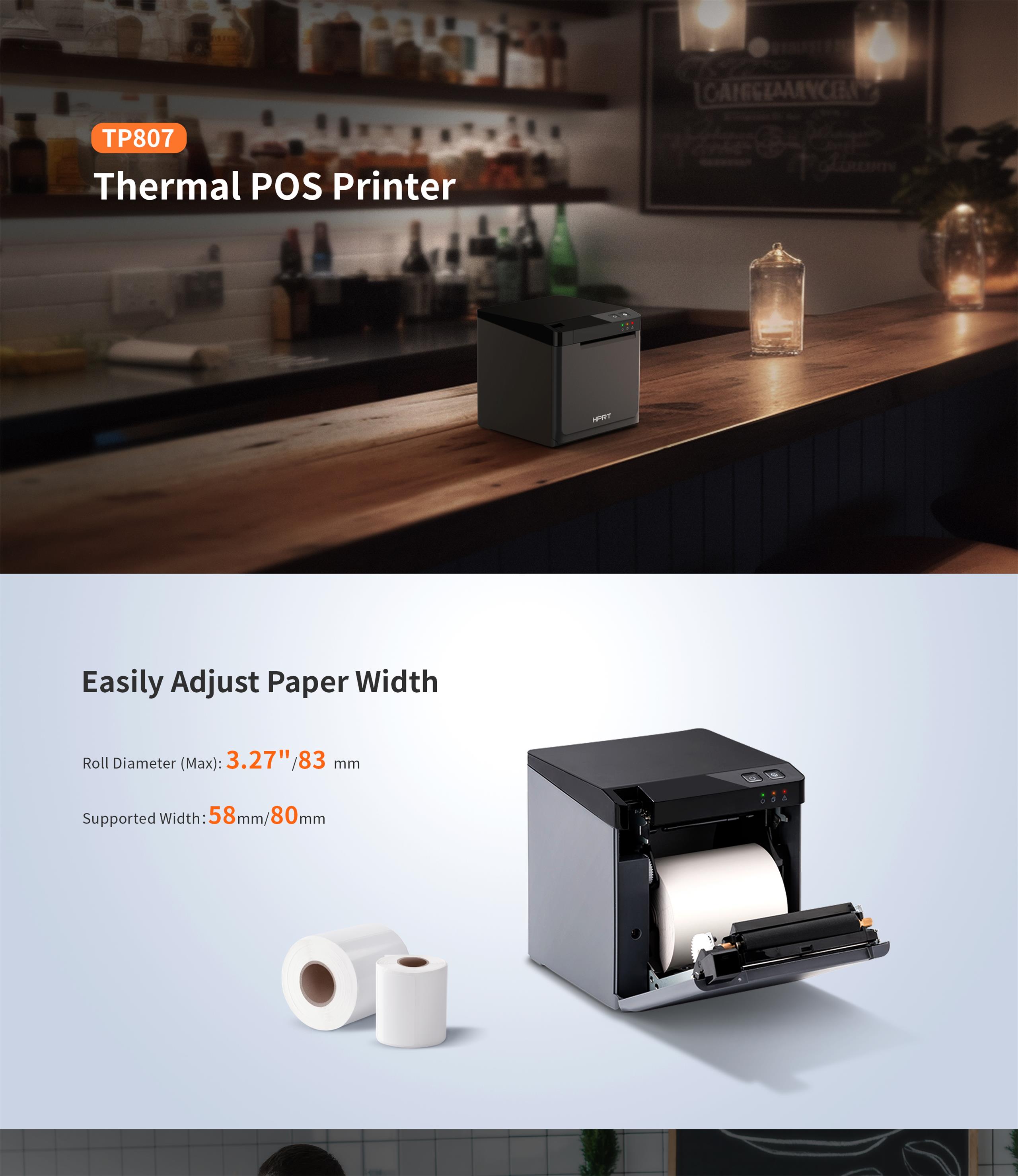

• 2" and 3" printing paper width available
• Top/Front paper loading/exit

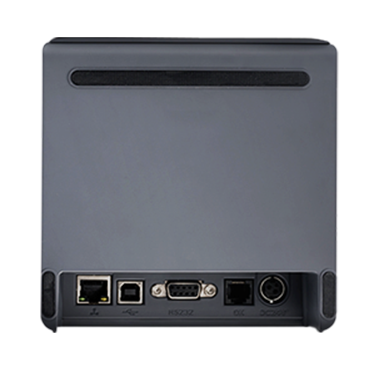

• Versatile connectivity
，
| Items | Parameter | |
| Printing | Printing Method | Direct Thermal |
| Resolution | 203 DPI | |
| Printing Width | 72mm/48mm | |
| Printing Speed | Max. 260mm/s | |
| Programming Language | ESC/POS | |
| Barcode | 1D | UPC-A,UPC-E,Code 39,Code 93,Code128, EAN8, EAN13, Interleaved 2 of 5,Codabar |
| 2D | QR Code, PDF417 | |
| Font | ASCII:Font A 12x24,Font B 9x17, 46 International Character Sets | |
| Graphics | Support bitmap printing with different density and user defined bitmap printing. | |
| (Max size of each bitmap is 64 KB, the total size of bitmap is 256 KB) | ||
| Paper | Paper Type | Thermal continuous receipt paper, thermal environmental receipt paper |
| Paper Width | 80mm | |
| Roll Paper Diameter | Max. Φ83 mm (O.D.) | |
| Paper Load | Front or Top paper loading | |
| Interface | Standard | USB+Serial+Ethernet |
| Optional | USB+Serial+Ethernet+Wi-Fi+Bluetooth | |
| Buzzer | Built-in buzzer, External acousto-optic alarm (optional) | |
| Sensor | Paper out detector, Head up detector, Cutter jam detector, overheat detector | |
| Memory | RAM | 4 MB |
| FLASH | 4 MB | |
| Power Supply | Input | AC 100V ~ 240V, 50/60Hz |
| Output | DC 24V, 2A | |
| Software | Driver | Windows 7/8/10, Windows Server 2008/2012/2016， Linux, Javapos, OPOS, MacOS |
| Utility | Windows 7/8/10,Windows Server 2008/2012/2016 | |
| Reliability | TPH | 150 km |
| Cutter | 1.5 million cuts | |
| Environment | Operating | 0°C ~ 45°C, 5% ~ 95% R.H, no-condensation |
| Storage | -20°C ~ 70°C, 15% ~ 95% R.H, no-condensation |
