Home  >  PRODUCT  >  SCANNERS  >  P100 2D Stationary Barcode Scanner
P100
OVERVIEW TECH SPECS DOWNLOADS
HPRT Product barcode scanner P100
Stationary Barcode Scanner

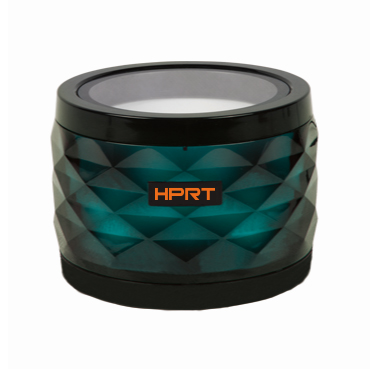

Commodity barcode scanner

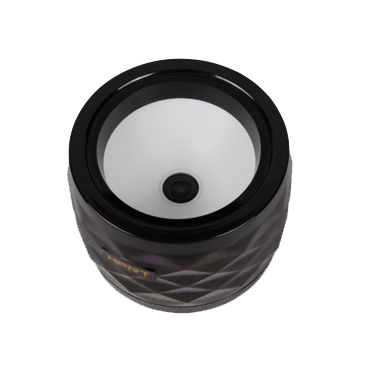

HPRT 2D Stationary Barcode Scanner P100
Fixed bar code scanner

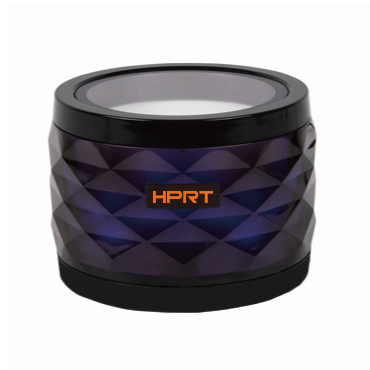

2D Stationary Barcode Scanner

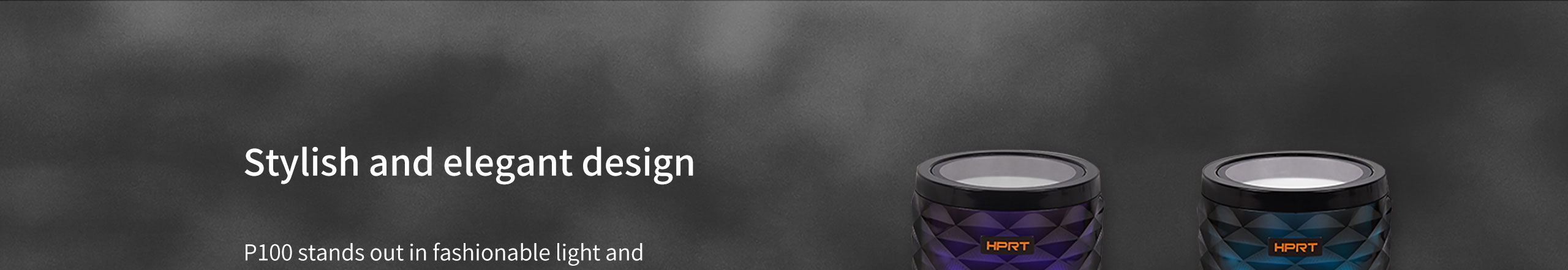

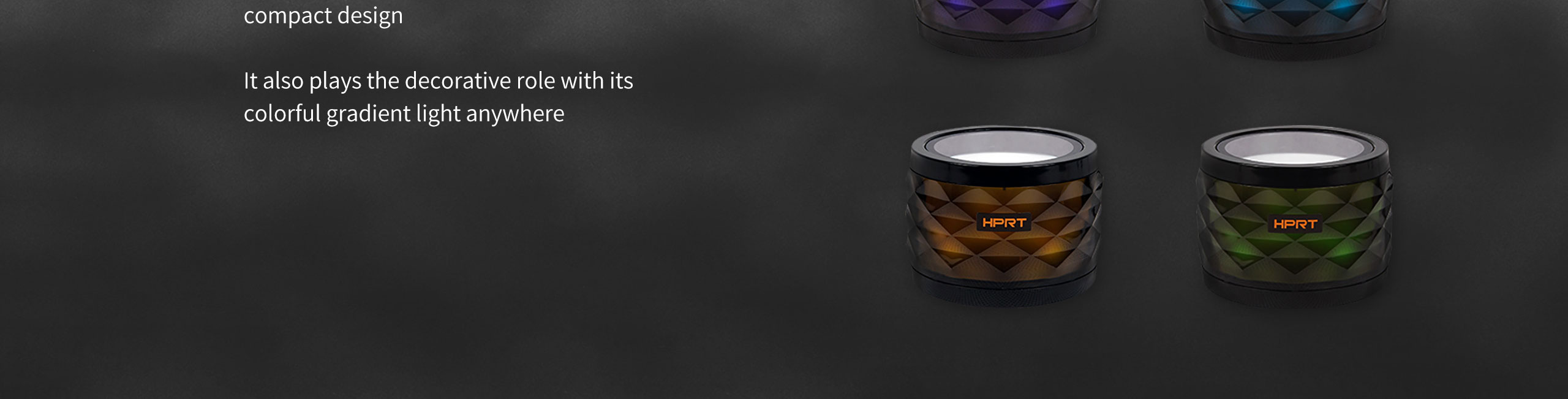

•  Fashionable design with colorful gradient light

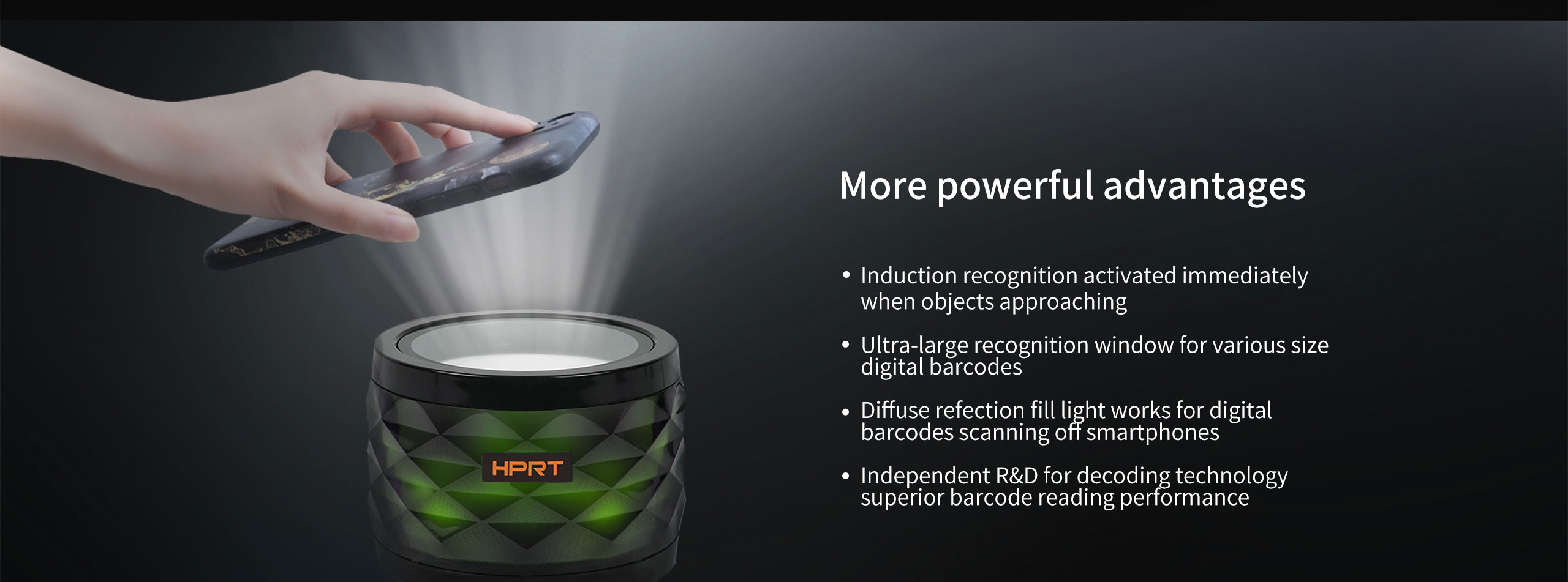

•  Induction recognition

•  Ultra-large recognition window
•  Diffuse reflection fill light
•  Independent R&D of core decoding technology

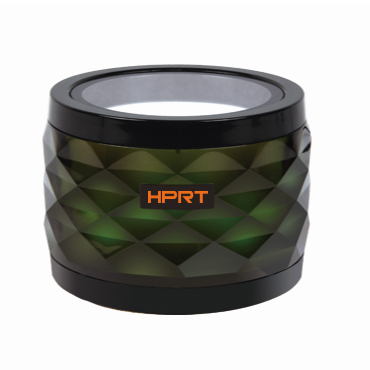

HPRT Product barcode scanner P100
Stationary Barcode Scanner
Commodity barcode scanner

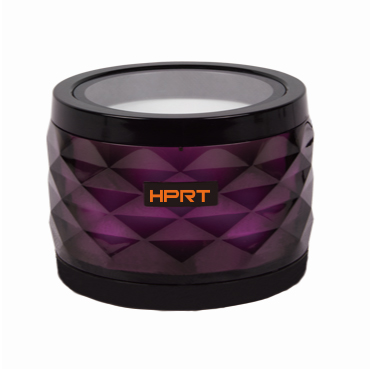

HPRT 2D Stationary Barcode Scanner P100
Fixed bar code scanner

2D Stationary Barcode Scanner

Fixed scanner

supermarket scanner

Circular QR code scanner

circular scanner

circular barcode scanner

Scanning ParameterImage SensorCMOS
Pixel640 X 480
IlluminationWhite LED
Symbologies2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc.
1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc.
Resolution≥5mil
Typical DOF

13mil EAN:0mm–55mm

20mil QR:0mm–50mm

Mobile payment code(5.5 inch screen):0mm–120mm

Recognition SensitivityPitch±60º, Tilt360º, Skew±60º
FOVHorizontal: 67 °, Vertical: 52 °
Symbol Contrast≥20%
Physical ParameterDimension(mm)64(H)* 85(Φ)
Weight188g
NotificationBuzzer, LED Indicator
InterfacesUSB, USB virtual serial port
Trigger Method

Induction recognition,

Continuous recognition

Electrical ParameterOperating Voltage5VDC±5%
Operating CurrentStandby: 240mA,
Working: 290mA
Environment ParameterOperating Temperature-20 ℃~+50℃
Storage Temperature-40℃~+70℃
Relative Humidity5%~95%(No Condensation)
ESD±8 kV(Air discharge )
±4 kV(Direct discharge)
Environment Luminosity0~100, 000LUX
CertificationCE FCC RoHS
Test ConditionEnvironment temperature: 23ºC
Environment illumination: 300LUX filament lamp
DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
