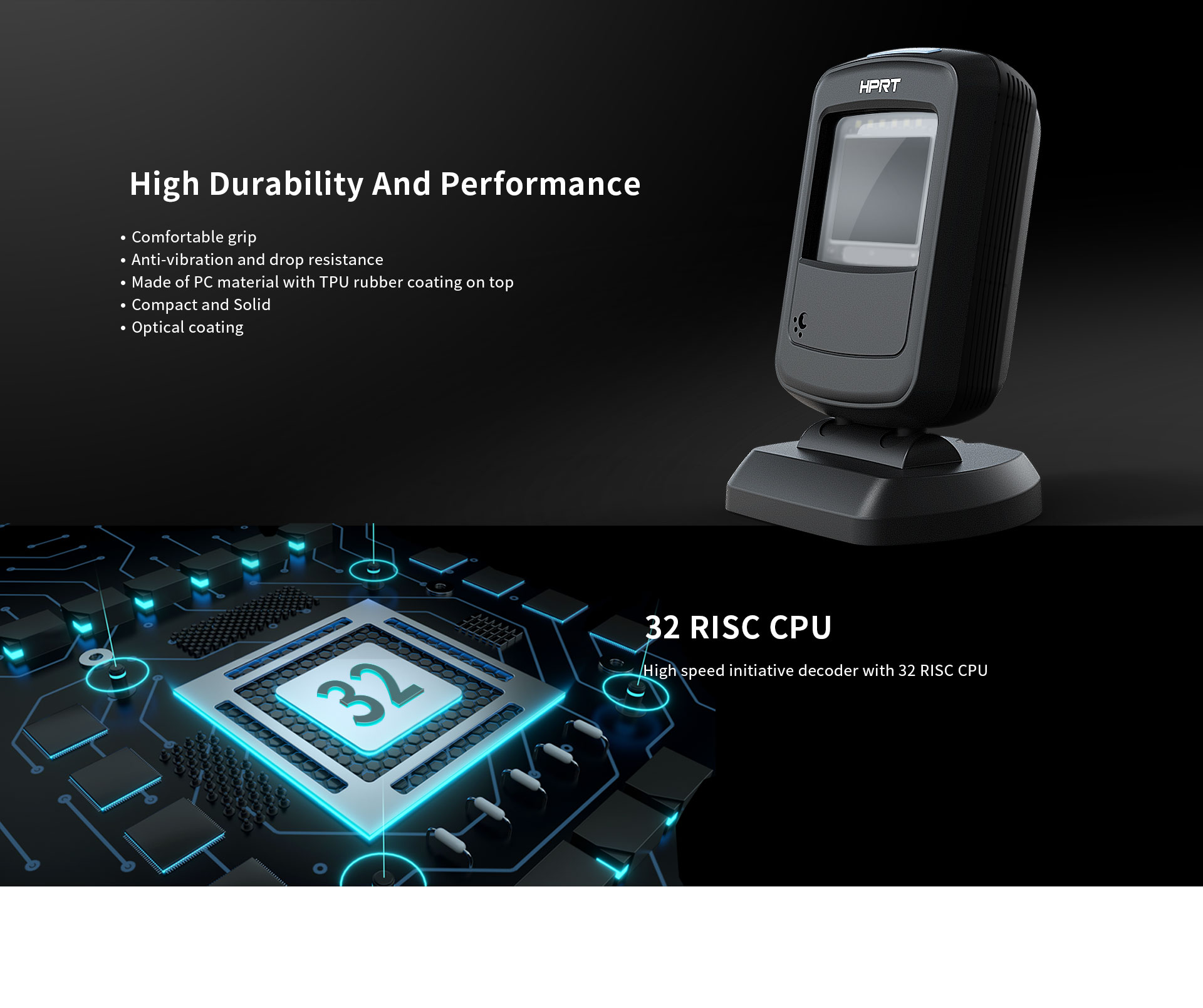

• Solid-state hardware, higher stability and reliability
• Multiple common interfaces, highly compatible
• Independent R&D of core decoding technology

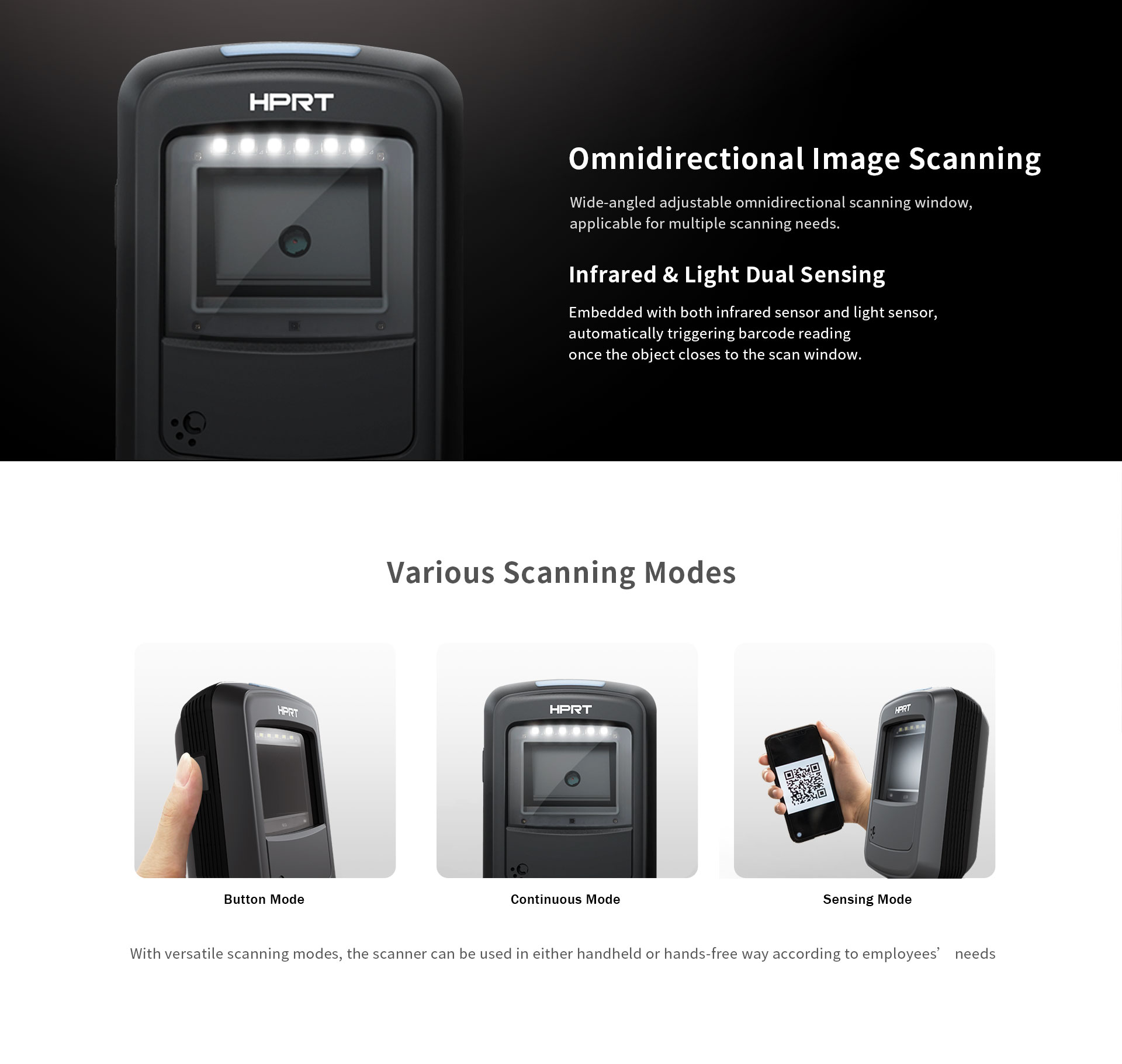

• Induction recognition
• Wide-angle adjustable scanning window
，

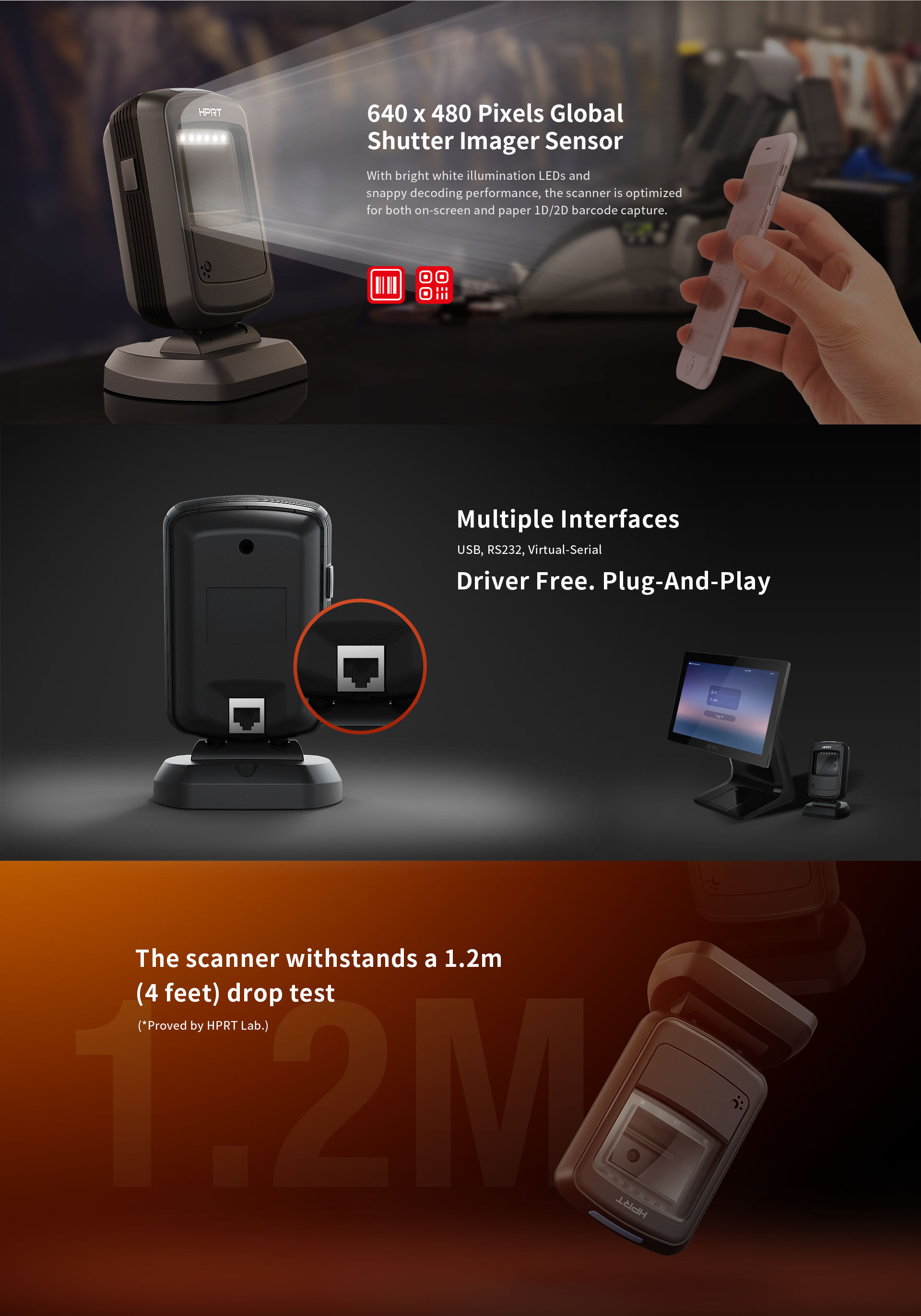

| Scanning Parameter | Image Sensor | CMOS |
| Pixel | 640x480 | |
| Illumination | White LED | |
| Symbologies | 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc. | |
| Resolution | ≥4mil | |
| Typical DOF | 13mil EAN: 0mm-130mm 5mil code 39: 0mm-60mm 20mil QR: 0mm-70mm Mobile payment code(5.5 inch screen): 0mm-200mm | |
| Recognition Sensitivity | Pitch±60º, Tilt360º, Skew±60º | |
| FOV | Horizontal: 51 °, Vertical: 40 ° | |
| Symbol Contrast | ≥20% | |
| Physical Parameter | Dimension(mm) | 90 (D) *79 (W) *142(H) |
| Weight | 285g | |
| Notification | Buzzer, LED Indicator | |

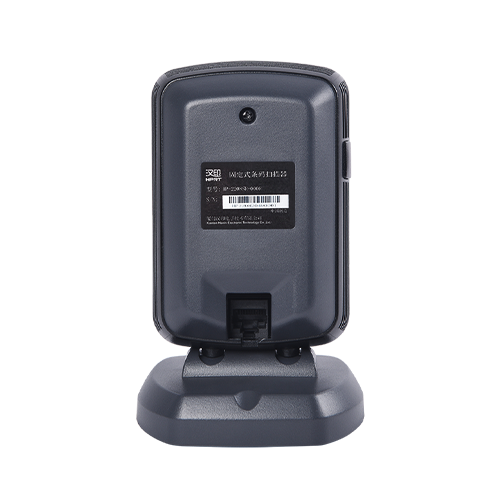

| Interfaces | RS-232 Serial Port, USB, USB Virtual Serial Port | |
| Trigger Method | Manual keystroke, induction recognition, continuous recognition | |
| Electrical Parameter | Operating Voltage | 5VDC±10% |
| Operating Current | Standby: 140mA, Working: 245mA | |
| Environment Parameter | Operating Temperature | -20 ℃~+50℃ |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 5%~95%（No Condensation） | |
| ESD | ±15 kV（Air discharge ） ±8 kV（Direct discharge） | |
| Environment Luminosity | 0~100, 000LUX | |
| Certification | CE FCC RoHS | |
| Test Condition | Environment temperature: 23ºC Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination |
