•Top notch decoding library
•New generation CMOS image sensor
•Intelligent auxiliary aiming & lighting system
•Declassify highly-distorted barcodes

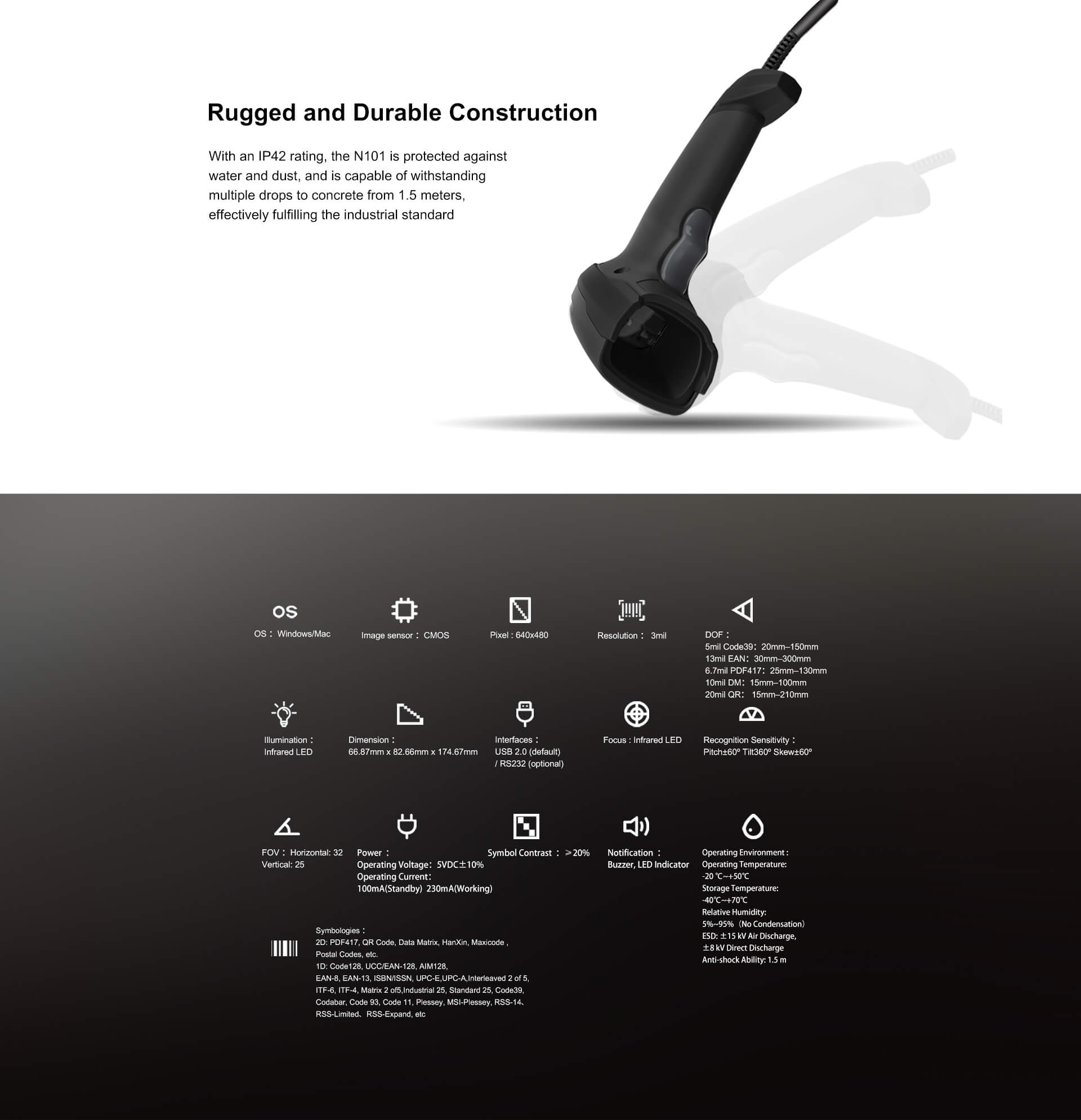

•1.5m drop resistance, IP42 protective level
•Comfortable, ergonomic design
N101-H：
•Plastic housing with Anti-microbial protection, specially designed for Healthcare industry.
，
| Scanning Parameter | Image Sensor | CMOS |
| Pixel | 640x480 | |
| Illumination | Infrared LED | |
| Focus | Infrared LED | |
| Symbologies | 2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc. 1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc. | |
| Resolution | ≥3mil | |
| Typical DOF | 5mil Code39： 20mm–150mm EAN： 30mm–300mm 6.7mil PDF417： 25mm–130mm 10mil DM： 15mm–100mm 20mil QR： 15mm–210mm | |
| Recognition Sensitivity | Pitch±60º, Tilt360º, Skew±60º | |
| FOV | Horizontal: 32 °, Vertical: 25 ° | |
| Symbol Contrast | ≥20% | |
| Physical Parameter | Dimension(mm) | 83（D）*67（W）*175（H） |
| Weight | 128g | |
| Scanner Interface | RJ-45 Crystal Head | |
| Housing Materials | PC+TPU | |
| Notification | Buzzer, LED Indicator | |
| Interfaces | RS-232 Serial Port, USB, USB Virtual Serial Port | |
| Trigger Method | Manual keystroke, induction recognition, continuous recognition | |
| Electrical Parameter | Operating Voltage | 5VDC±10% |
| Operating Current | Standby: 100mA, Working: 230mA | |
| Power | Standby: 0.5W,, Work: 1.15W | |
| Environment Parameter | Operating Temperature | -20 ℃~+50℃ |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 5%~95%（No Condensation） | |
| ESD | ±15 kV（Air discharge ） ±8 kV（Direct discharge） | |
| Environment Luminosity | 0~100, 000LUX | |
| Anti-shock Ability | 1.5 m | |
| Protection Grade | IP42 | |
| Certification | CE FCC RoHS | |
| Cable | USB: use to connect the scanner to the information receiving host RS-232: use to connect the scanner to the information receiving host | |
| AC Adapter | 5V, coordinate with RS-232 cable to powerthe scanner | |
| Test Condition | Environment temperature: 23ºC Environment illumination: 300LUX filament lamp DOF depends on the resolution, contrast of the printing codebar, and the environment illumination |
