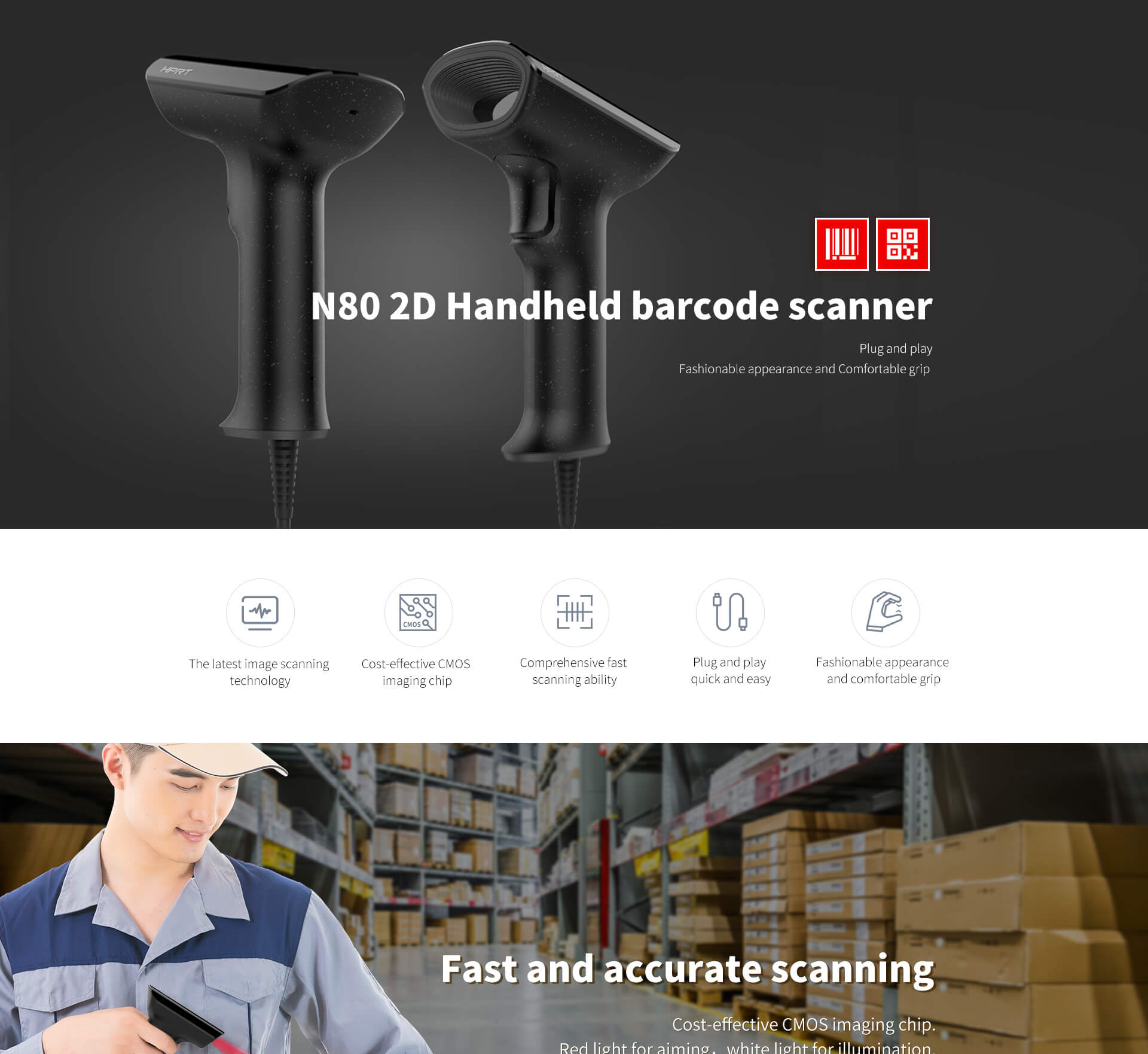

• With the latest mainboard and image scanning technology to greatly improve the decoding speed of barcode
• Cost-effective CMOS imaging chip.
• Comprehensive fast scanning ability.
• Plug and play, quick and easy.
• Fashionable appearance and comfortable grip.
• Support the recognizing of paper barcode and electronic screen barcode.
，

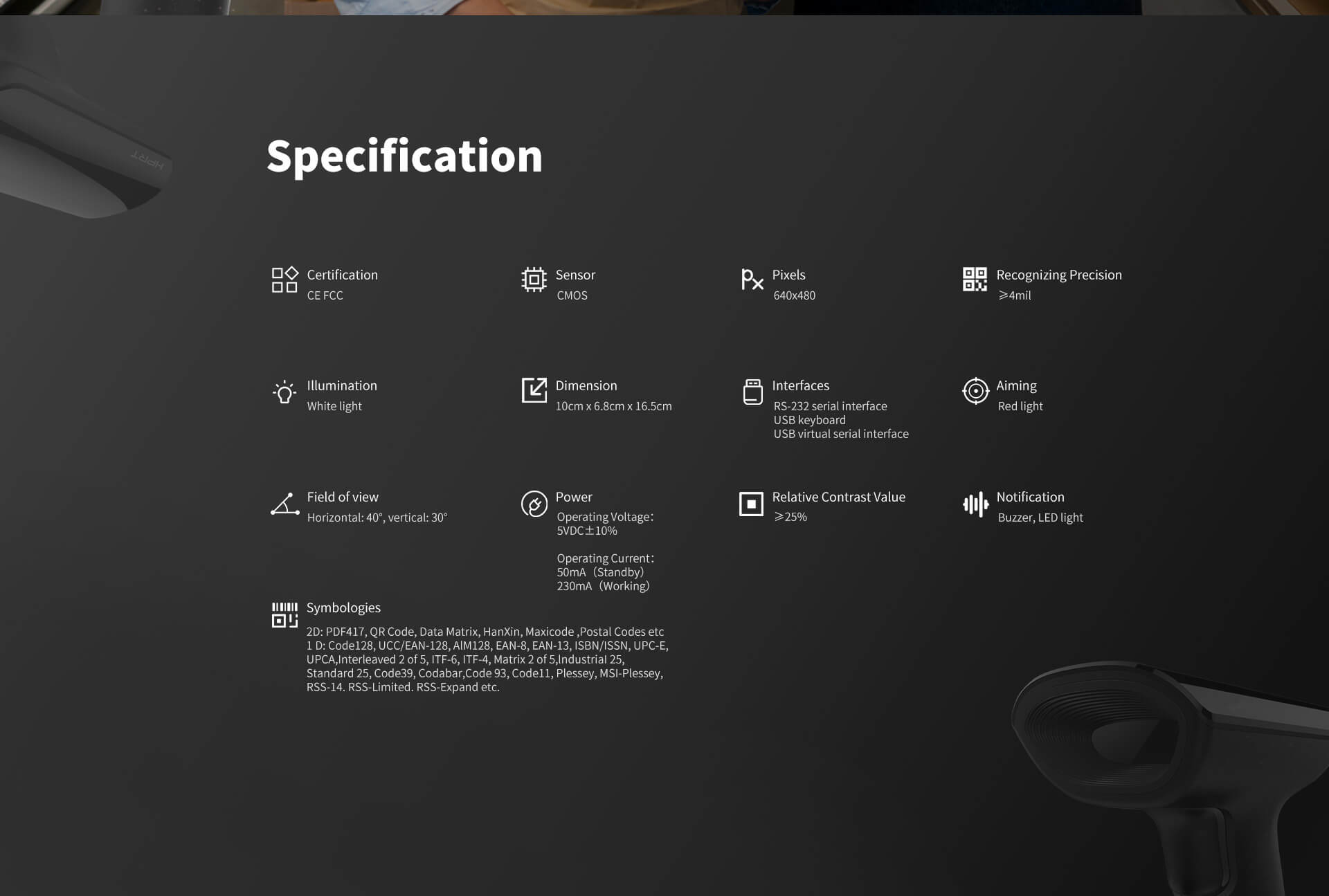

| Item | Parameter | ||
| Sensor | CMOS | ||
| Pixels | 640*480 | ||
| Illumination | White light | ||
| Aiming | Red light | ||
| Symbologies | 2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode , Postal Codes etc. 1 D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN,UPC-E,UPCA, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, lndustriaI 25, Standard 25, Code39, Codabar, Code 93, Code11, Plessey, MSI-Plessey, RSS-14. RSS-Limited. RSS-Expand etc. | ||
| Recognizing Precision | ≥4mil | ||
| Depth of Field | EAN-13：30-200mm QR(20mil): 20-150mm | ||
| Barcode Sensibility | Pitch±45º Tilt360º Skew±45º | ||
| Field of view | Horizontal: 40°, vertical: 30° | ||
| Relative Contrast Value | ≥25% | ||
| Dimension(mm) | 100*68*165 | ||
| Weight | 135g | ||
| Interface Type | RJ-45 crystal head | ||
| Housing Material | PC+ABS | ||
| Notification | Buzzer, LED light | ||
| Interfaces | RS-232 serial interface USB keyboard USB virtual serial interface | ||
| Trigger Method | Keyboard recognition Induction recognition Continuous recognition | ||
| Operating Voltage | 5VDC±10% | ||
| Operating Current | Standby: 50mA Working: 230mA | ||
| Working Temperature | -20--50°C | ||
| Storage Temperature | -40--70°C | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±4Kv Contact Discharge ±8Kv Air Discharge | ||

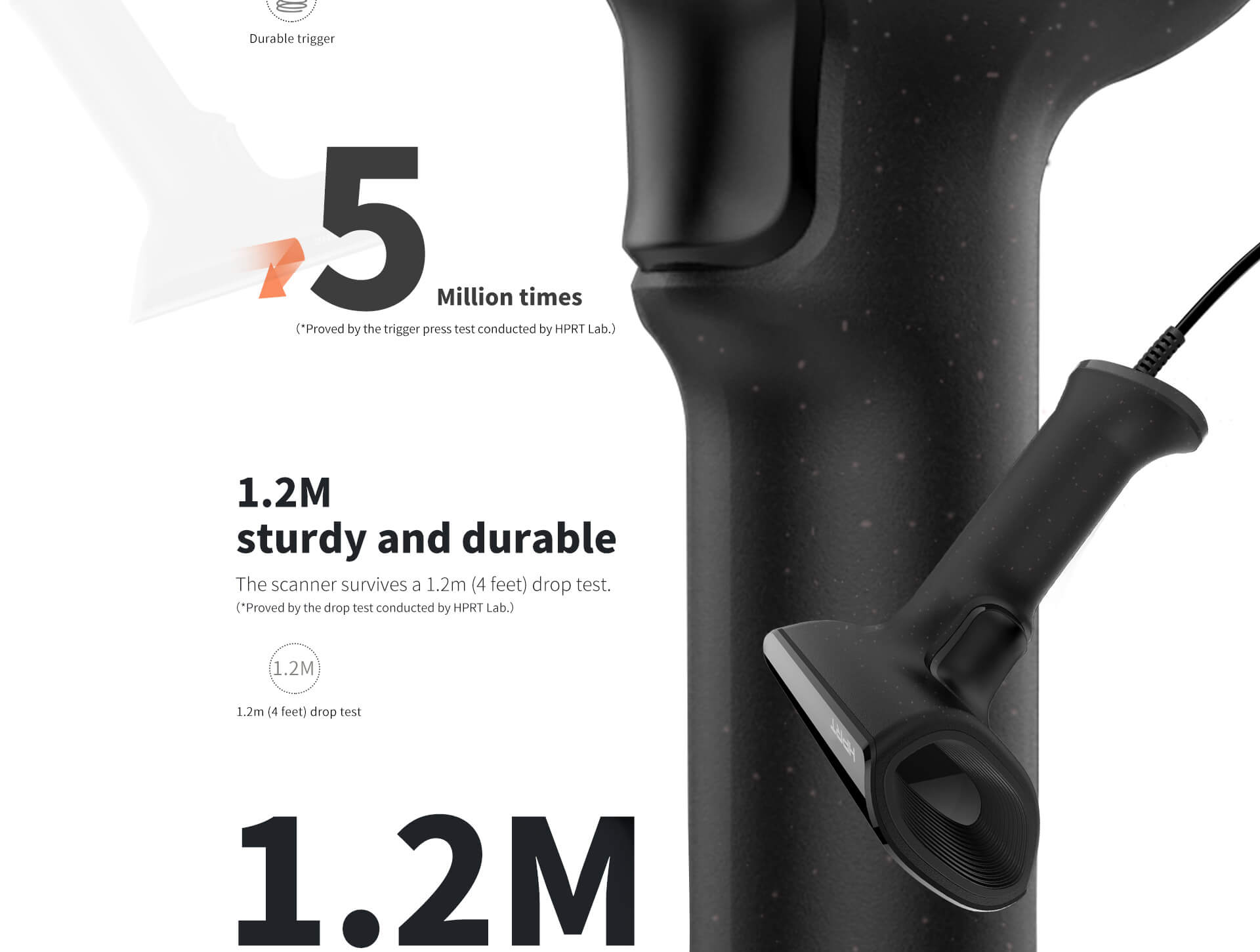

| Drop | 1.2m | ||
| Environmental Sealing | IP42 | ||
| Certifications | CE FCC | ||
