• High performance on decoding technology

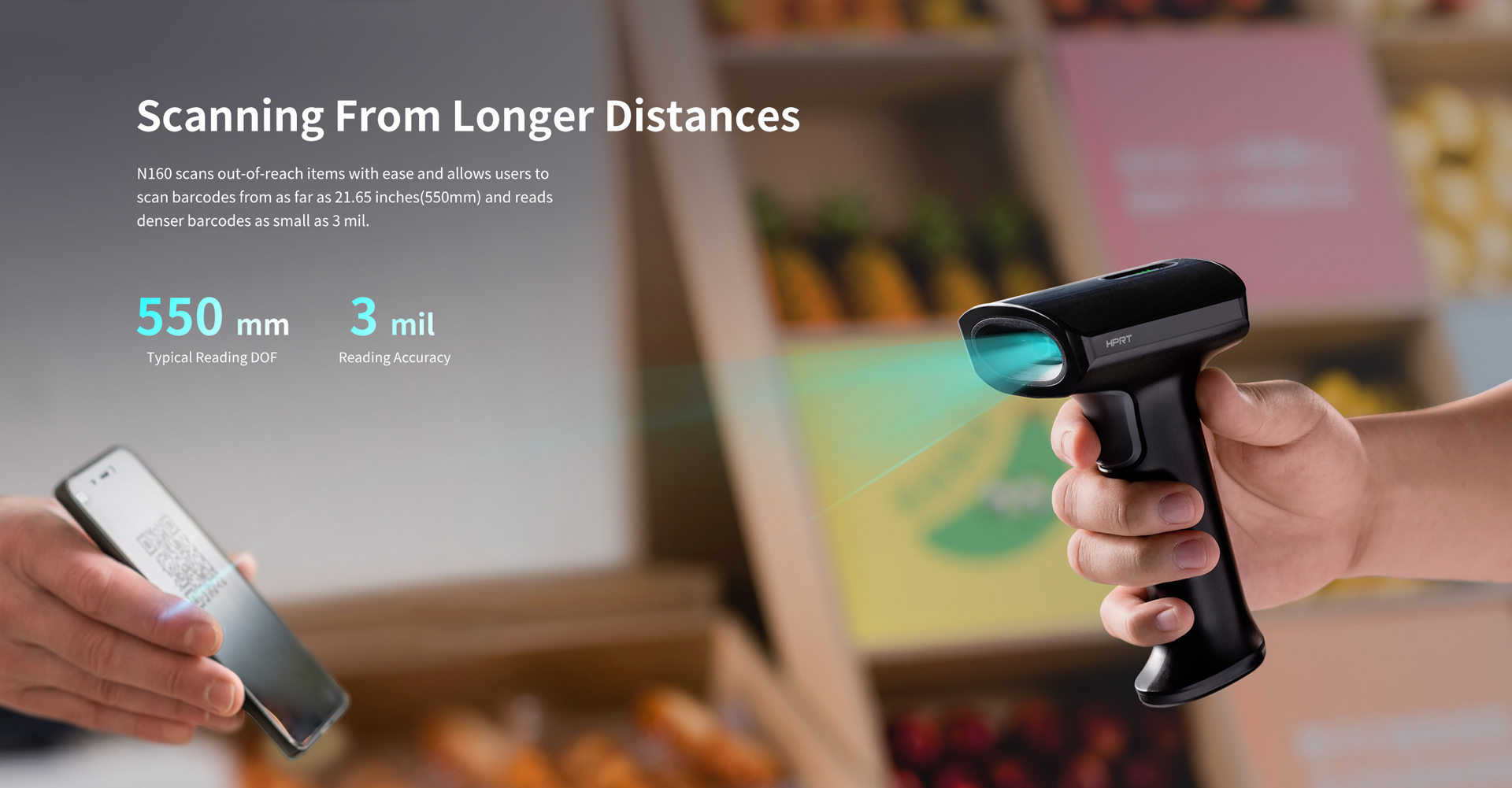

• Scanning from longer distance

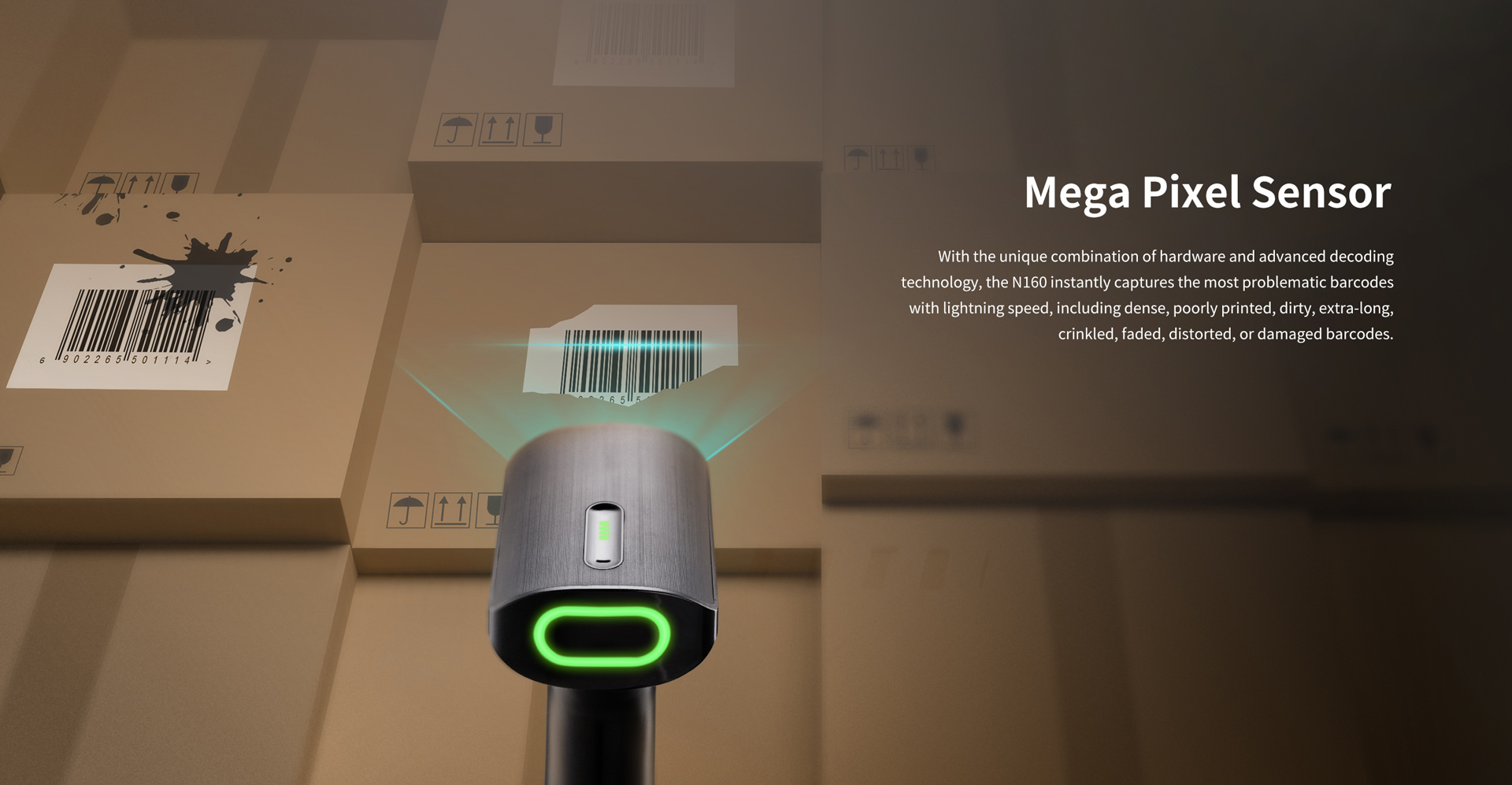

• Mega pixel sensor

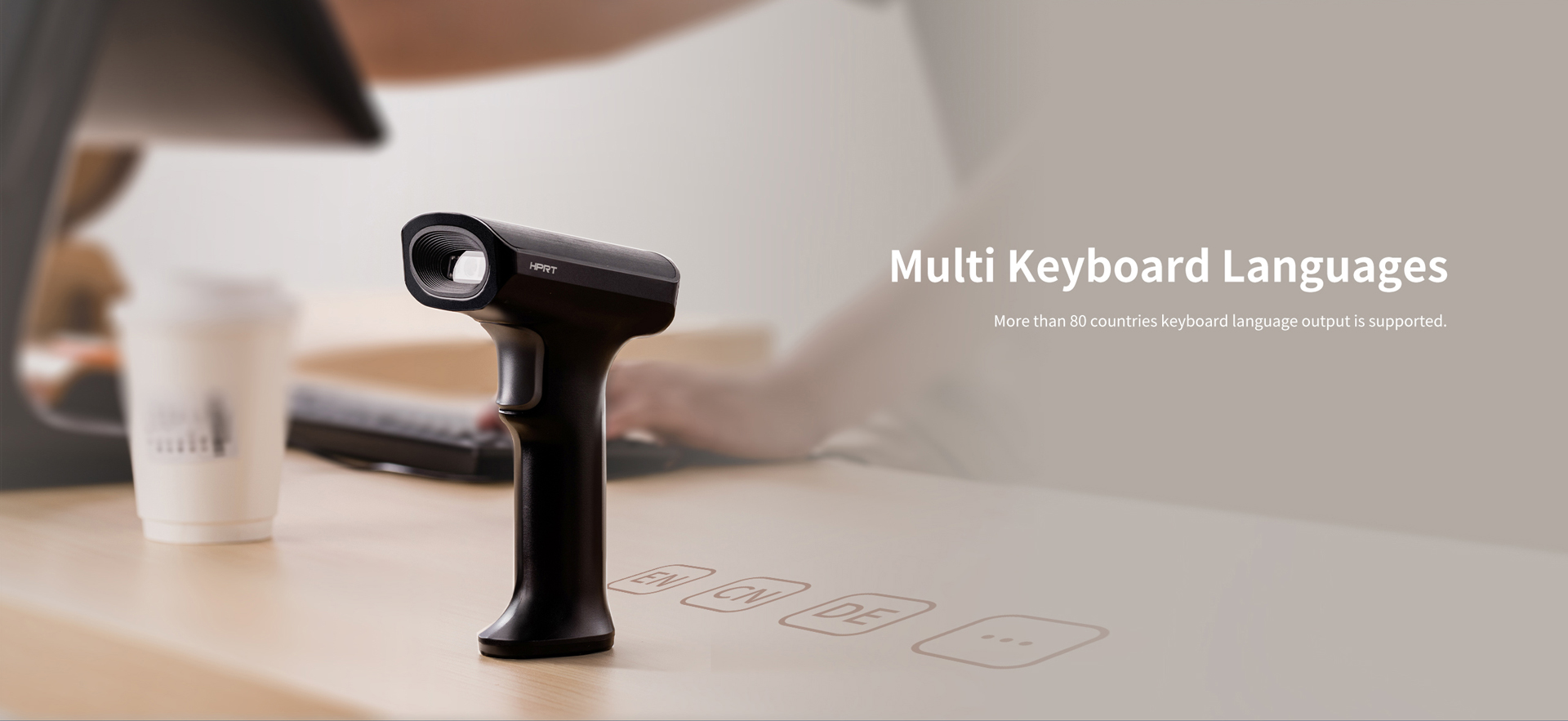

• Multi keyboard language

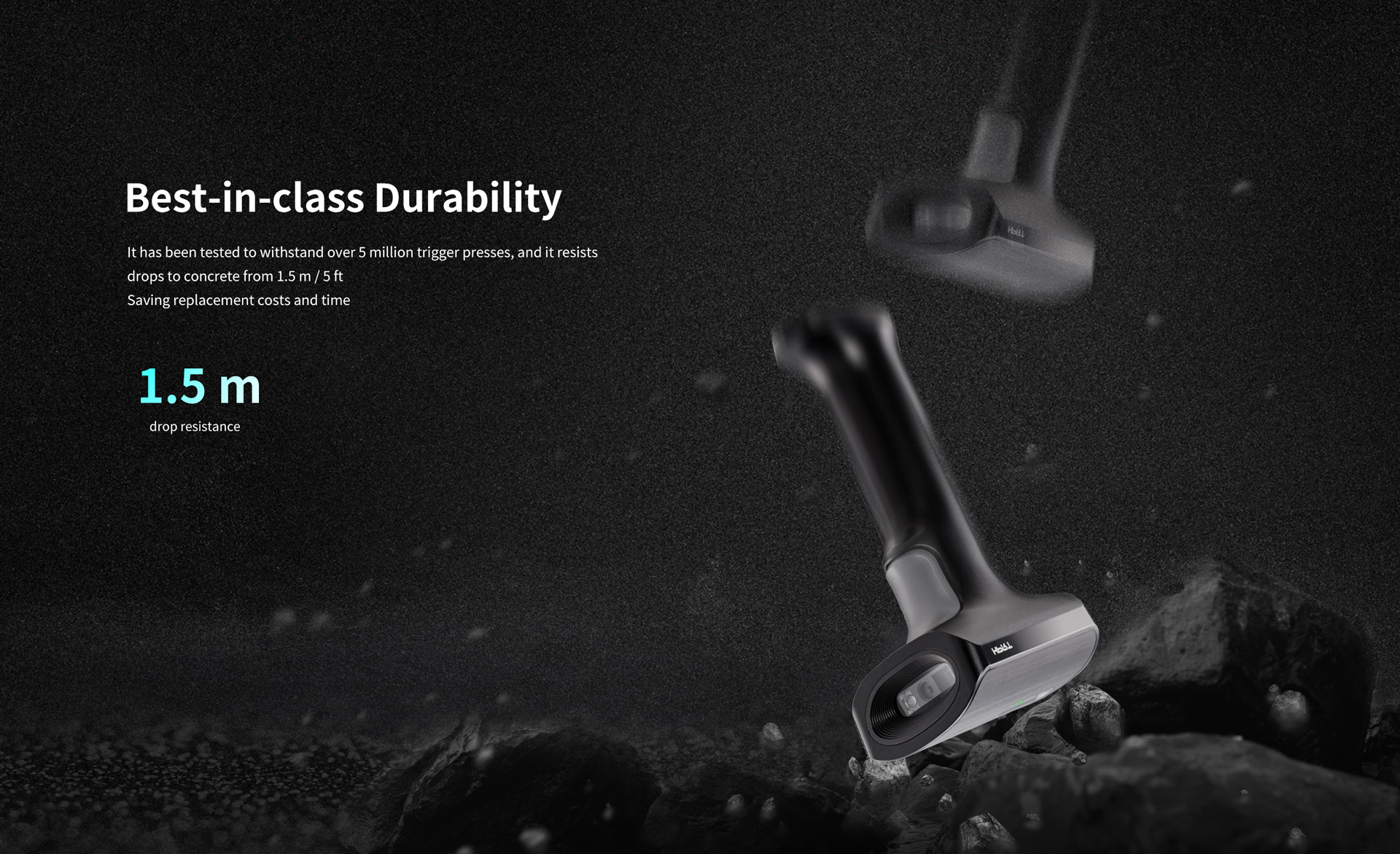

• Best-in-class durability

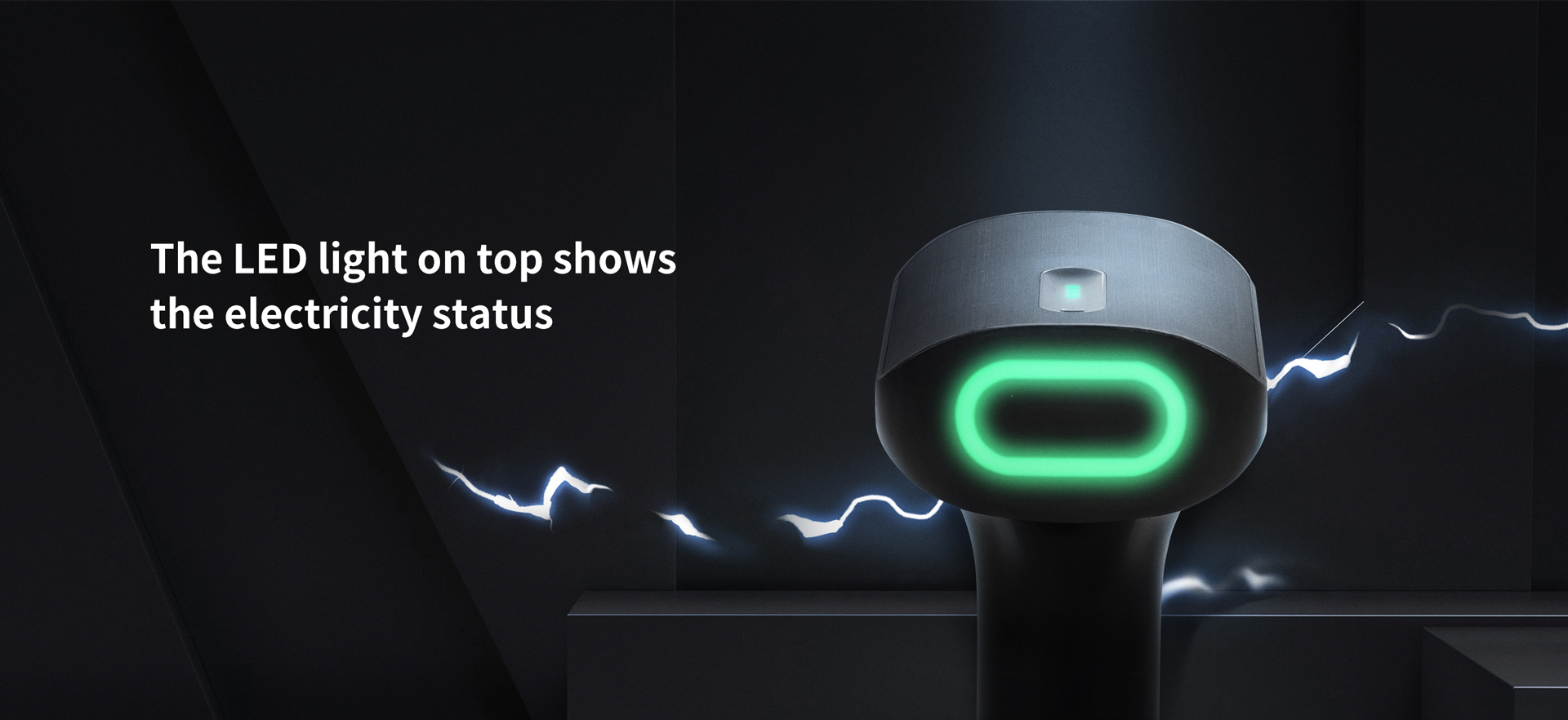

• Electricity status on top
，
| Scanning Parameter | ||
| Image Sensor | COMS | |
| Pixel | 1280*1080 | |
| Illumination | White LED | |
| Aiming | Red LED | |
| Symbologies | 2D: PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes etc 1D: Code128, UCC/EAN-128, AlM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPCA,Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of5,lndustriaI 25, Standard 25, Code39, Codabar, Code 93, Code11, Plessey, MSI-Plessey, RSS-14. RSS-Limited. RSS-Expand etc | |
| Resolution | ≥3mil | |
| Typical DOF | 13mil EAN：40-550mm；3mil Code39：50mm-220mm； | |
| Scan Angle | 20mil QR：40-350mm；15mil DM：40-300mm | |
| FOV | Pitch±60º Tilt360º Skew±60º | |
| Symbol Contrast | Horizontal: 40 °, Vertical: 30 ° | |
| Physical Parameter | ≥20% | |
| Dimension(mm) | 93（D） *63（W） *166（H） | |
| Weight | 138g | 172g |
| Interface | RJ-45 crystal head | Type-C interface |
| Housing Material | PC+ABS | |
| Notification | Buzzer, LED indicator | |
| System Interface | RS-232 serial interface, USB keyboard, USB virtual serial interface | USB keyboard, USB virtual serial port,Bluetooth interface |
| Trigger Method | Keyboard reading, Sensor reading, Continuous reading | |

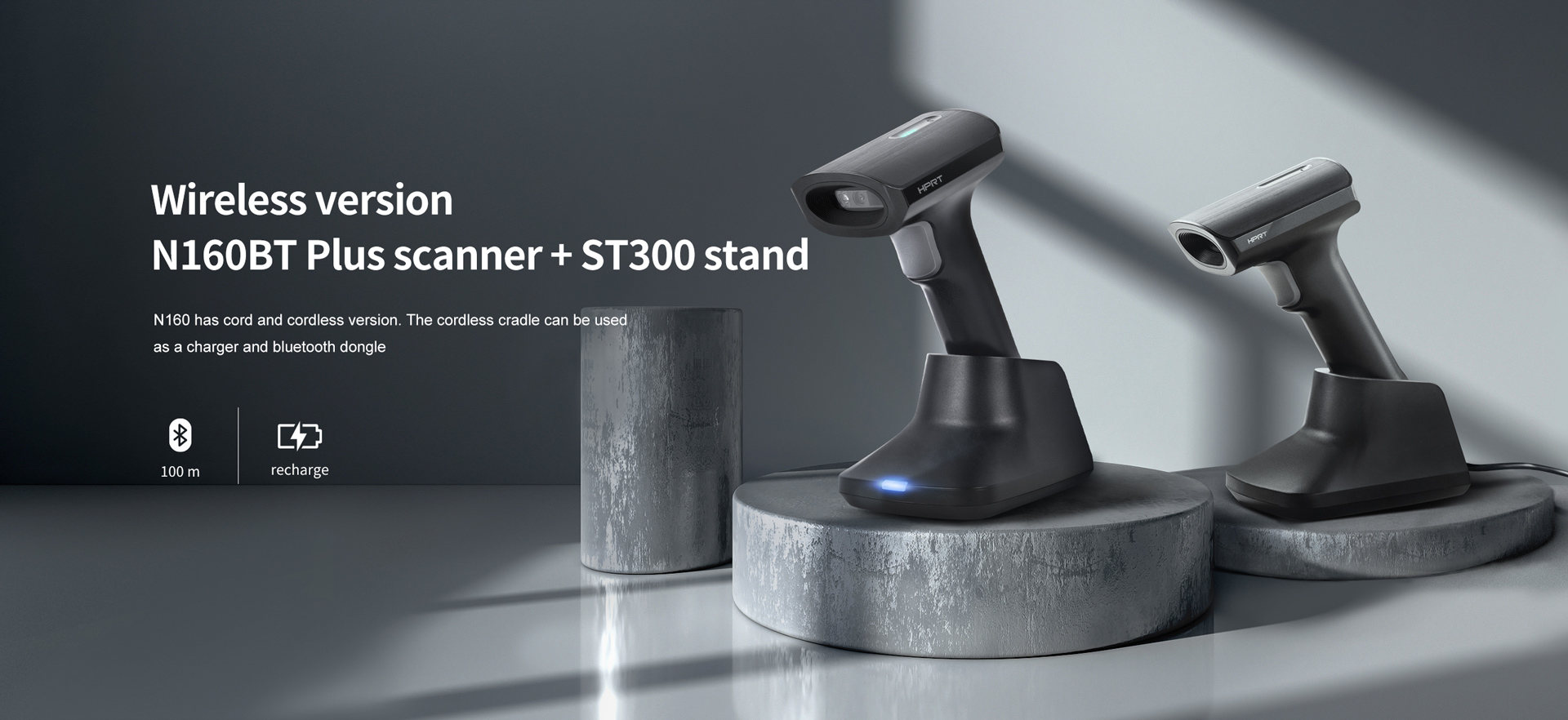

| Wireless Parameters | ||
| Communication Mode | / | Bluetooth 5.0 |
| Transmission Distance | / | 100m (Open area) |
| Battery Capacity | / | 2600mA lithium battery |
| Charging Time | / | 6 hours |
| Working Time | / | 12 hours (Press the button to scan 1 time/s) |
| RAM | / | 8MB(It can store about 100000 standard EAN-13 barcodes) |
| Electrical Parameter | ||
| Operating Voltage | 5VDC±10% | 3.7VDC±10% |
| Operating Current | Standby Current: 80mA; Operating Current: 350mA | Standby current :40mA；working current:350mA |
| Environment Parameter | ||
| Working Temperature | -20~50°C | |
| Storage Temperature | -40~70°C | |
| Humidity | 5% to 95% (non-condensing) | |
| Drop Specification | 1.5m | |
| IP rating | IP42 | |
| Certificates | CE FCC RoHS | |
