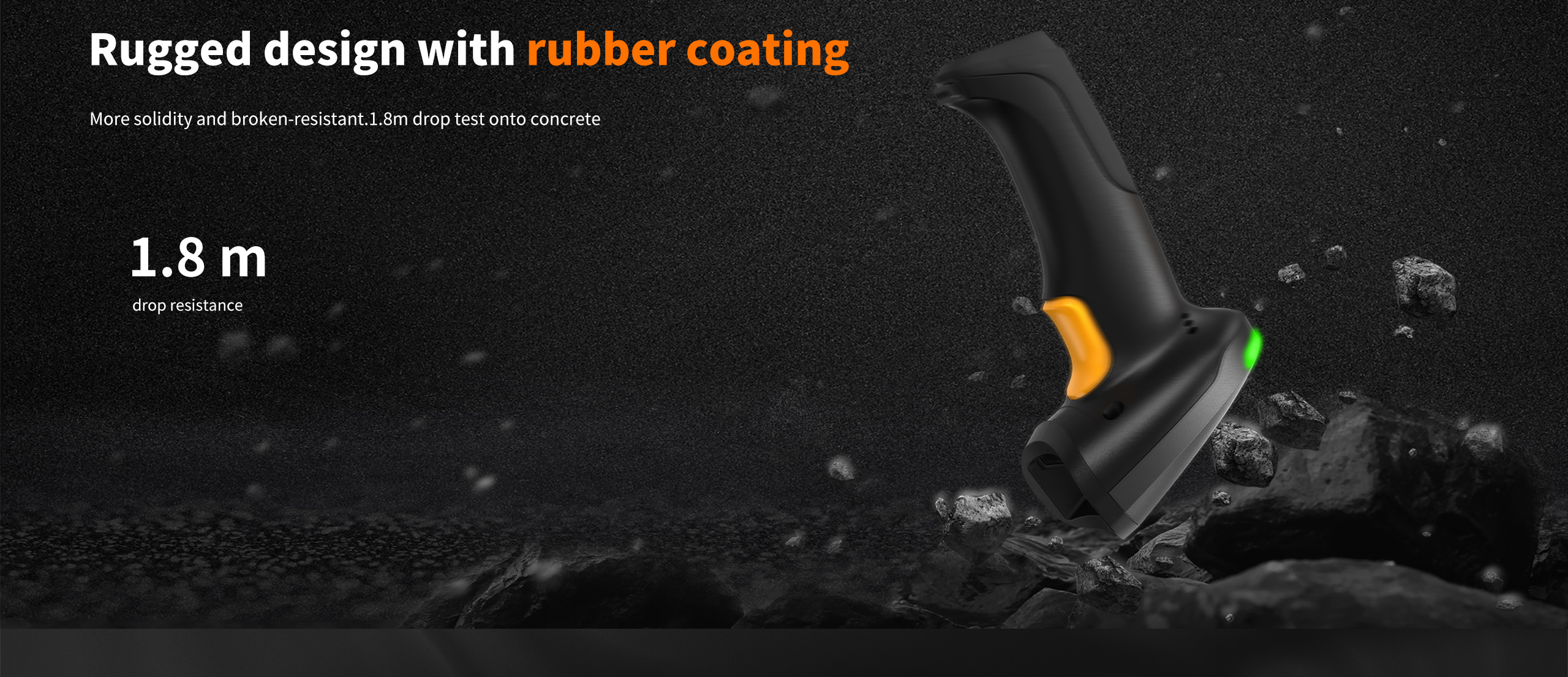

• Rugged design with rubber coating. 1.8m drop test onto concrete

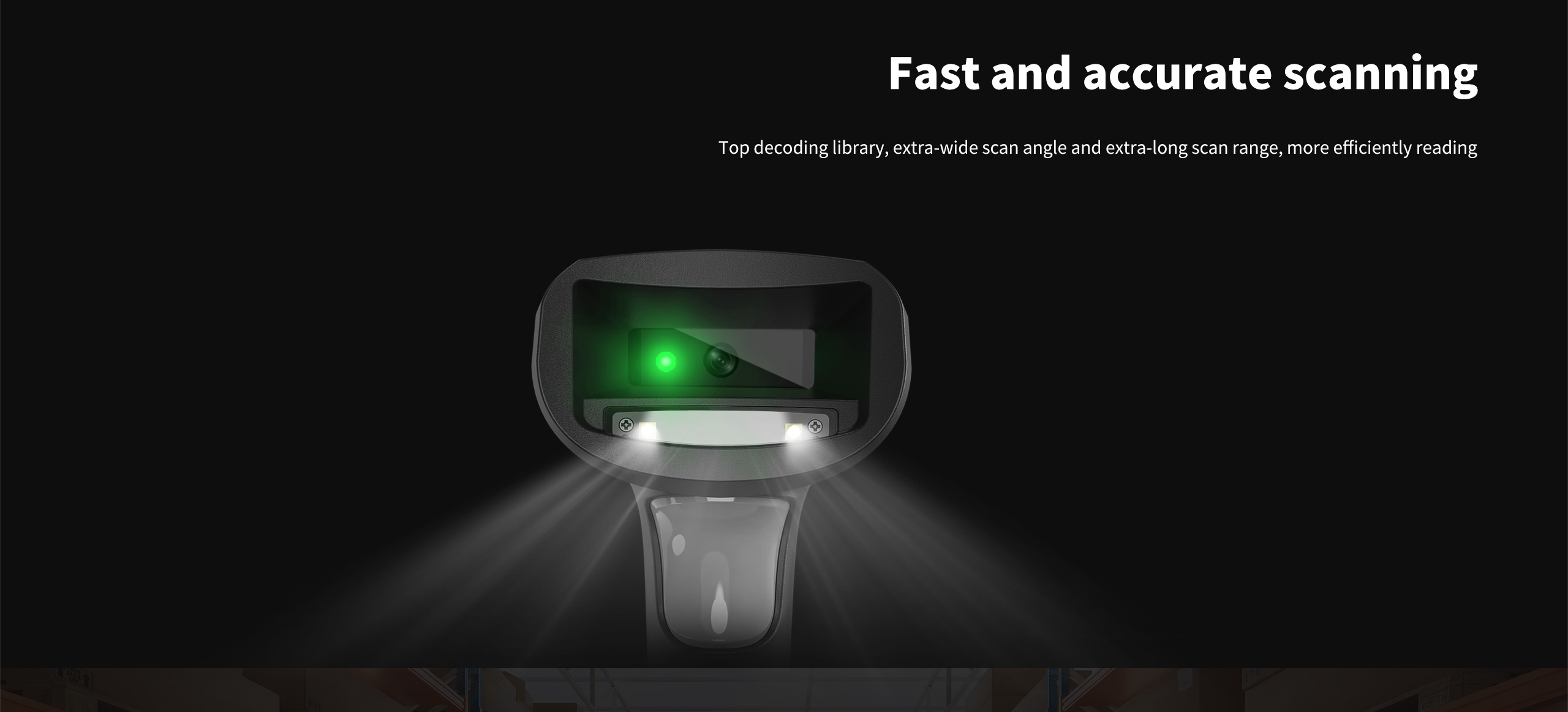

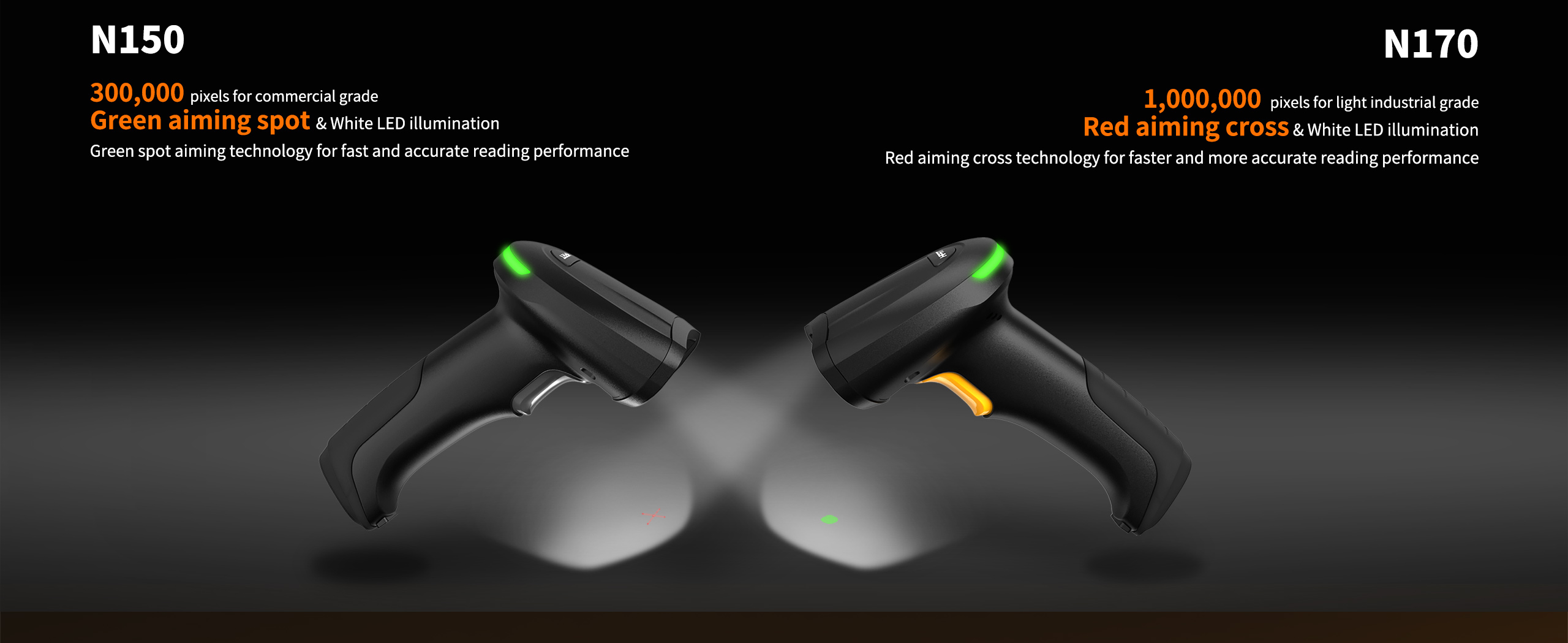

• More accurate aim technology. Green spot aiming for N150BT, Red aiming cross for N170BT

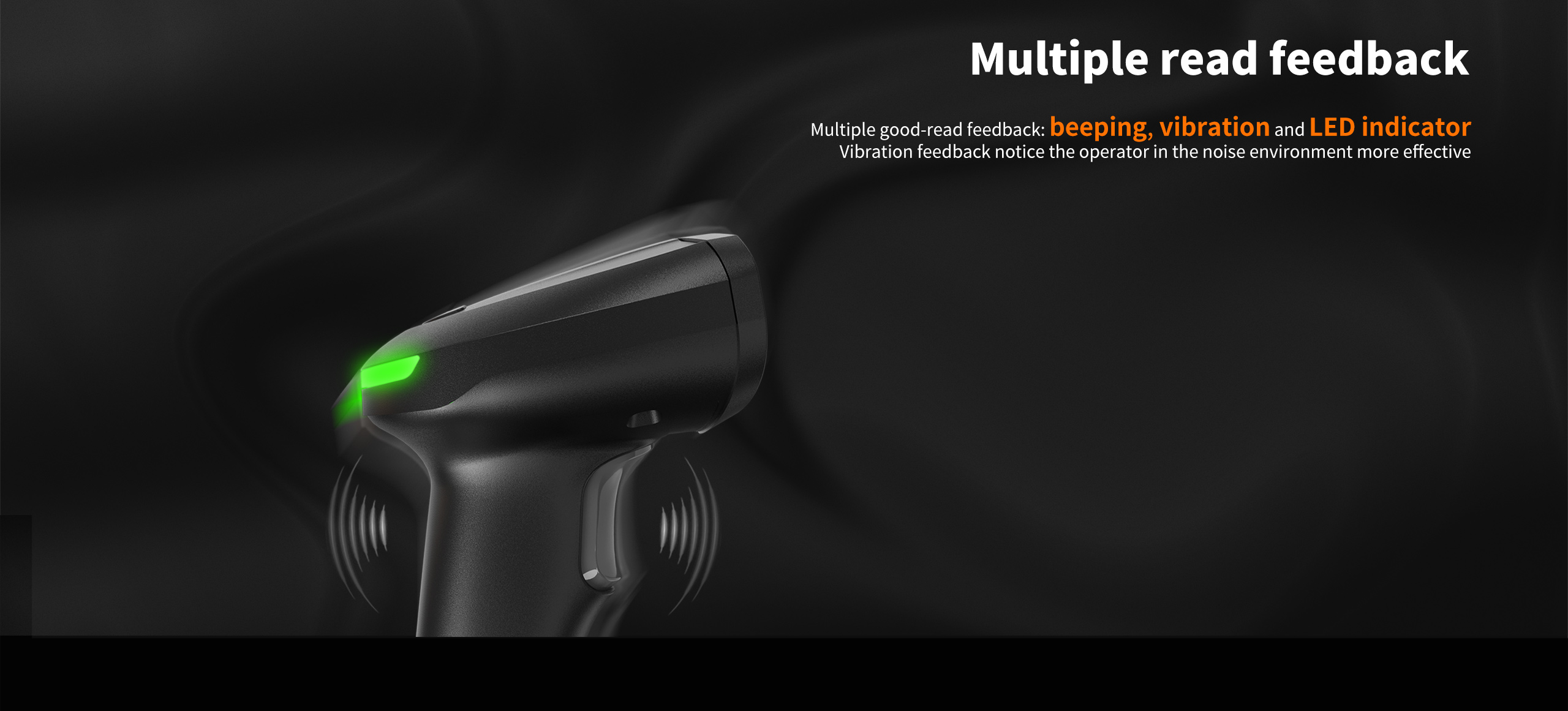

• Multiple good-read feedback: beeping, LED indicator, and extra vibration
• With megapixel, easy-to-read blur, stain, and high-density low-contrast barcode

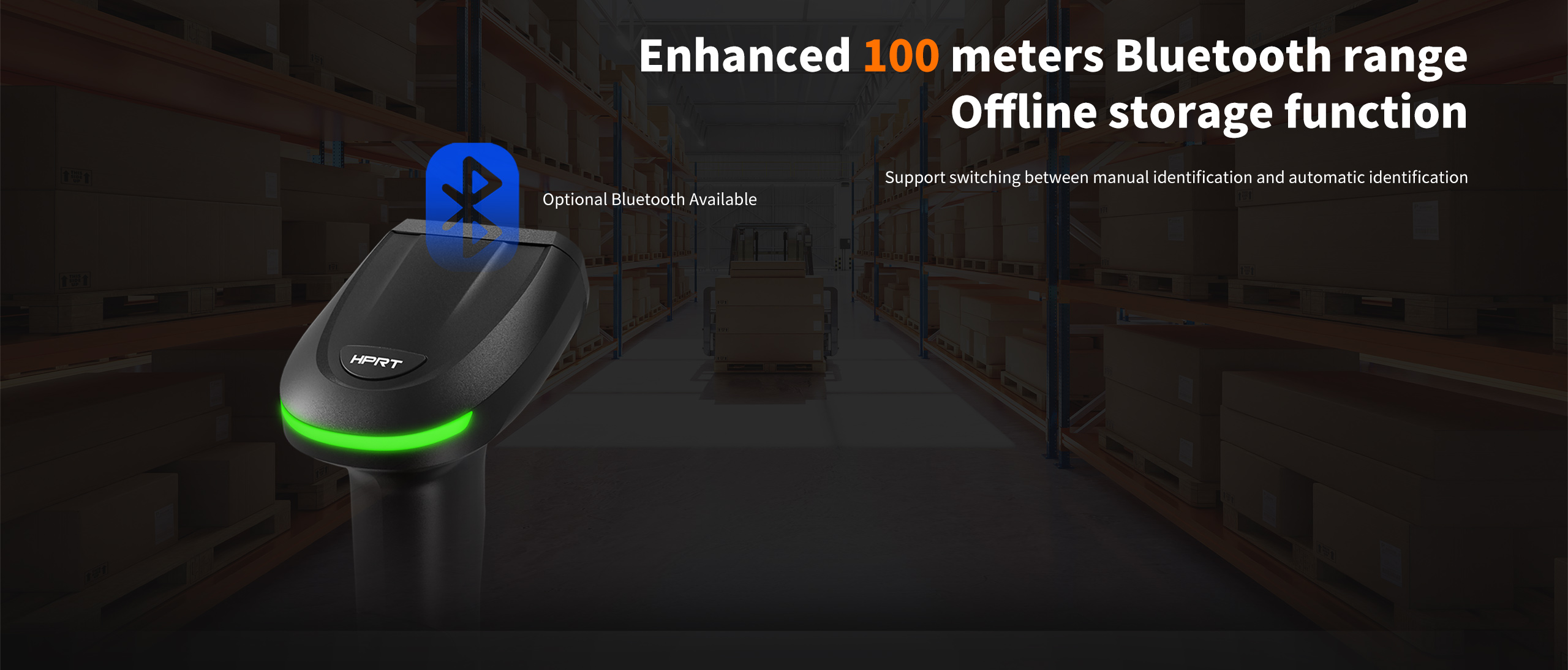

• Large capacity battery, support cradle PIN charging for Bluetooth Option
，
| N150/N150BT | N170/N170BT | |
| Scanning Parameter | ||
| Image Sensor | CMOS | CMOS |
| Pixel | 640*480 | 1080*1024 |
| Illumination | White LED | White LED |
| Focus | Green spot aiming | Laser red reticle (crosshair) aiming |
| Symbologies | 2D: PDF417, QR Code, Data Matrix, , Maxicode etc. | 2D: PDF417, QR Code, Data Matrix, , Maxicode etc. |
| 1D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN, UPC-E, UPCA, Interleaved 2 of 5, ITF-6, | 1D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN, UPC-E,UPCA,Interleaved 2 of 5, ITF-6, | |
| ITF-4, Matrix 2 of5, lndustriaI 25, Standard 25, Code39, Codabar, Code 93, Code11, Plessey, MSI-Plessey, | ITF-4, Matrix 2 of5,lndustriaI 25, Standard 25, Code39, Codabar,Code 93, Code11, Plessey, MSI-Plessey, | |
| RSS-14. RSS-Limited. RSS-Expand etc. | RSS-14. RSS-Limited. RSS-Expand etc. | |
| Resolution | ≥3mil | ≥3mil |
| Typical DOF | 13mil EAN：30mm-300mm 5mil Code39：20mm-170mm 20mil QR：20mm-200mm | 3mil Code 39：25mm-120mm；13mil EAN-13：20mm-220mm；5mil PDF417： 20mm-120mm |
| 15mil DM：15mm-120mm 6.7mil PDF417：25mm-150mm | 10mil DM：20mm-180mm；20mil QR：10mm-300mm | |
| Scan Angle | pitch ±60°；tilt 360°；skew ±60° | pitch ±60°；tilt 360°；skew ±60° |
| FOV | horizontal 40°；vertical 30° | horizontal 40°；vertical 30° |
| Symbol Contrast | ≥20% | ≥20% |
| Dimension(mm) | 91.5（D）*70.3（W）*162.5（H） | 91.5（D）*70.3（W）*162.5（H） |
| Weight | 155g | 155g |
| Interface | USB for N150，Bluetooth for N150BT | USB for N170，Bluetooth for N170BT |
| Housing Material | PC+ABS | PC+ABS |
| Notifification | Buzzer, LED,Vibration | Buzzer, LED,Vibration |
| System Interface | RS-232 serial port, USB keyboard, USB virtual serial port | RS-232 serial port, USB keyboard, USB virtual serial port |
| Trigger Method | key reading, inductive reading and continuous reading | key reading, inductive reading and continuous reading |
| Working Voltage | 5VDC±10% | 5VDC±10% |
| Working Current | Standby current :40mA；working current:255mA | Standby current :40mA；working current:255mA |
| Environment Parameter | ||
| Working Temperature | -20~50°C | -20~50°C |
| Storage Temperature | -40~70°C | -40~70°C |
| Humidity | 5%~95% (non-condensing ) | 5%~95% (non-condensing ) |
| Drop Specifification | 1.8m | 1.8m |
| IP rating | IP42 | IP42 |
| Certifificates | CE FCC RoHS | CE FCC RoHS |
