Home  >  PRODUCT  >  SCANNERS  >  E100 2D Embedded Barcode Scanner

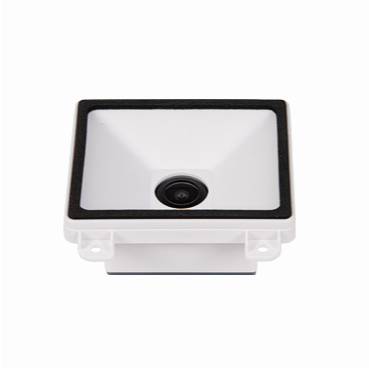

HPRT 2D Embedded Barcode Scanner

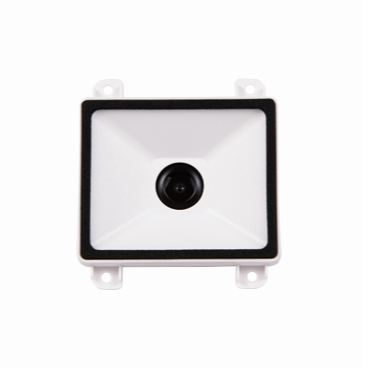

HPRT QR code Scanner For Subway E100

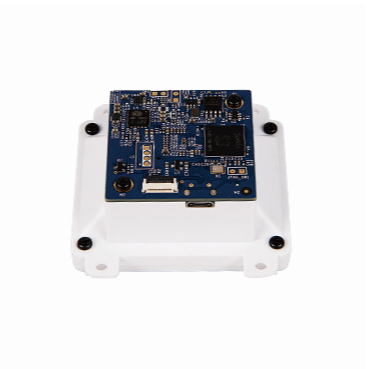

Express bar code scanner

2D Embedded Barcode Scanner

•  Multiple interface choices

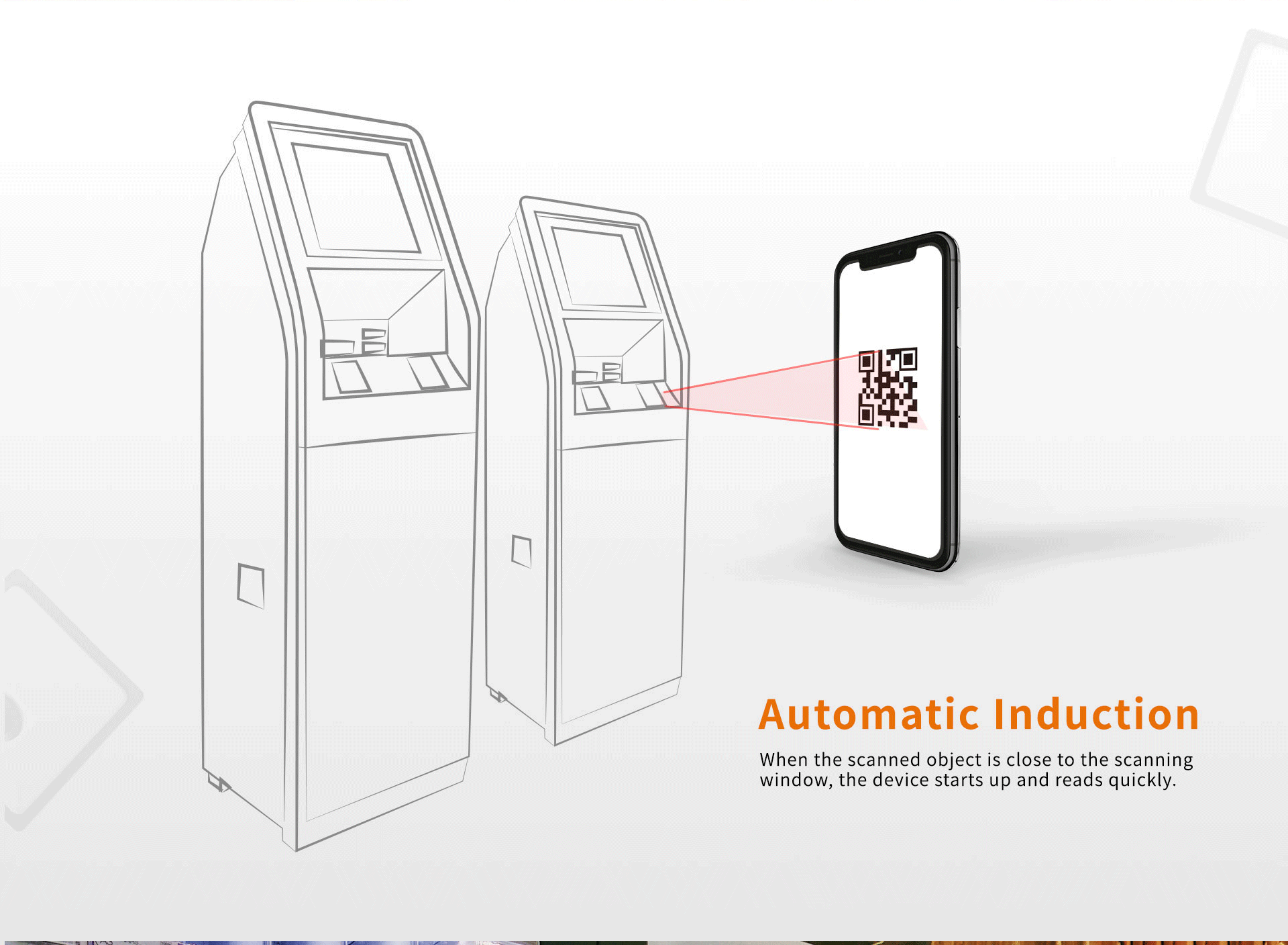

•  Induction recognition

•  Compact design saves installation space
•  Ultra-large recognition window
•  Subtle, modest illumination
•  Independent R&D of core decoding technology

HPRT 2D Embedded Barcode Scanner
HPRT QR code Scanner For Subway E100
Express bar code scanner

Embedded Barcode Scanner

QR code scanner

Embedded Scanner

Decoding Barcode

Screen Recognition

Industrial Embedded Printer

Embedded printer

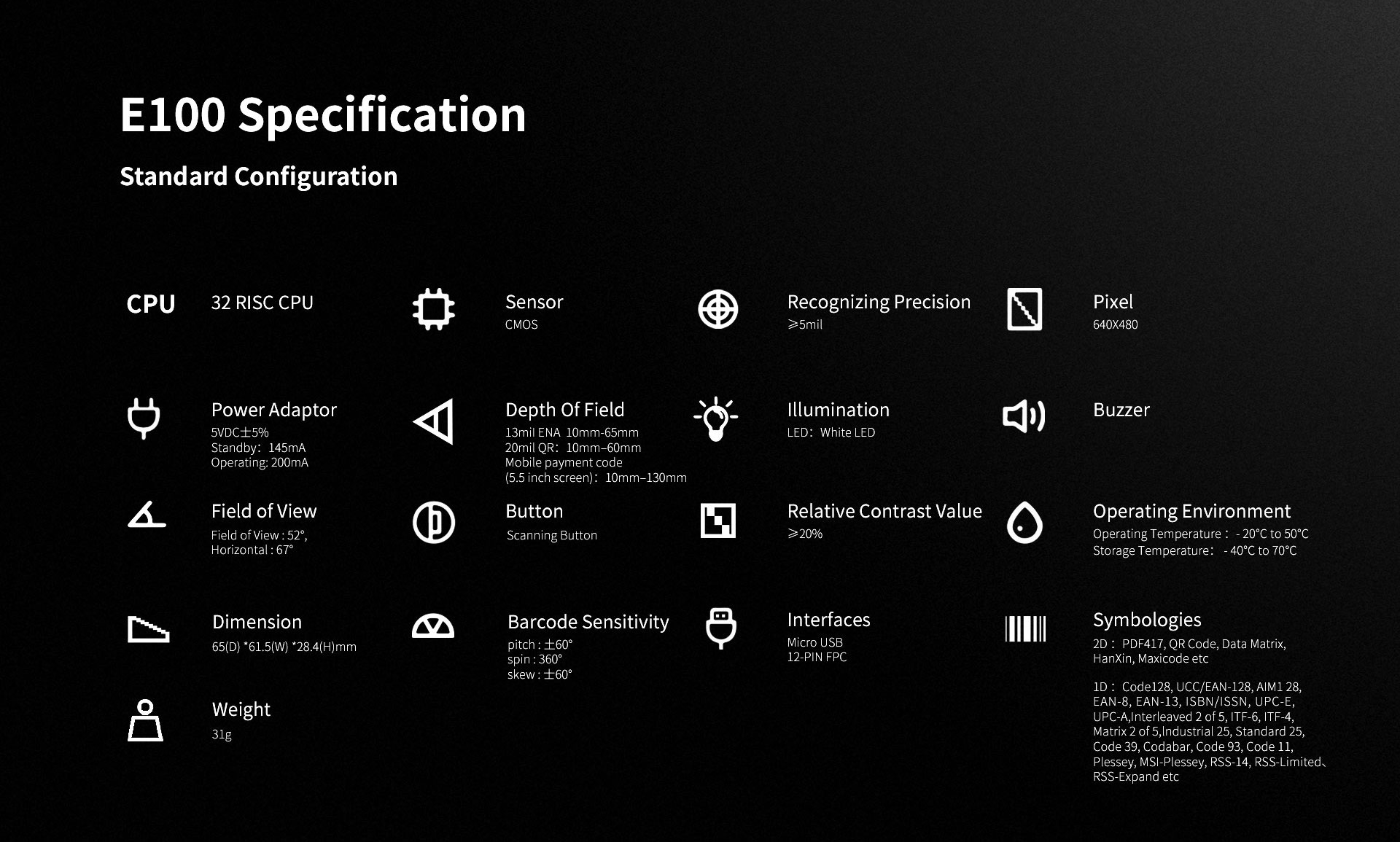

Scanning ParameterImage SensorCMOS
Pixel640 X 480
IlluminationWhite LED
Symbologies2D:PDF417, QR Code, Data Matrix, HanXin, Maxicode ,Postal Codes, etc.
1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A,Interleaved 2 of 5,ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14、RSS-Limited、RSS-Expand, etc.
Typical DOF

13mil EAN:10mm–65mm

20mil QR:10mm–60mm

Mobile payment code(5.5 inch screen):10mm–130mm

Recognition SensitivityPitch±60º, Tilt360º, Skew±60º
FOVHorizontal: 67 °, Vertical: 52 °
Symbol Contrast≥20%
Physical ParameterDimension(mm)65(D)* 61.5(W)* 28.4(H)
Scanner InterfaceMicro USB, 12-PIN FPC
Housing MaterialsABS
NotificationExternal buzzer, LED light
InterfacesUSB, USB virtual serial port,TTL serial port
Trigger Method

Induction recognition,

Continuous recognition,

Host mode

Electrical ParameterOperating Voltage5VDC±5%
Operating Current

Standby: 145mA,

Working: 200mA

Environment ParameterOperating Temperature-20 ℃~+50℃
Storage Temperature-40℃~+70℃
Relative Humidity5%~95%(No Condensation)
ESD±8 kV(Air discharge )
±4 kV(Direct discharge)
Environment Luminosity0~100, 000LUX
CertificationCE FCC RoHS
Test ConditionEnvironment temperature: 23ºC
Environment illumination: 300LUX filament lamp
DOF depends on the resolution, contrast of the printing codebar, and the environment illumination
