• 4" print width, 8 ips max print speed

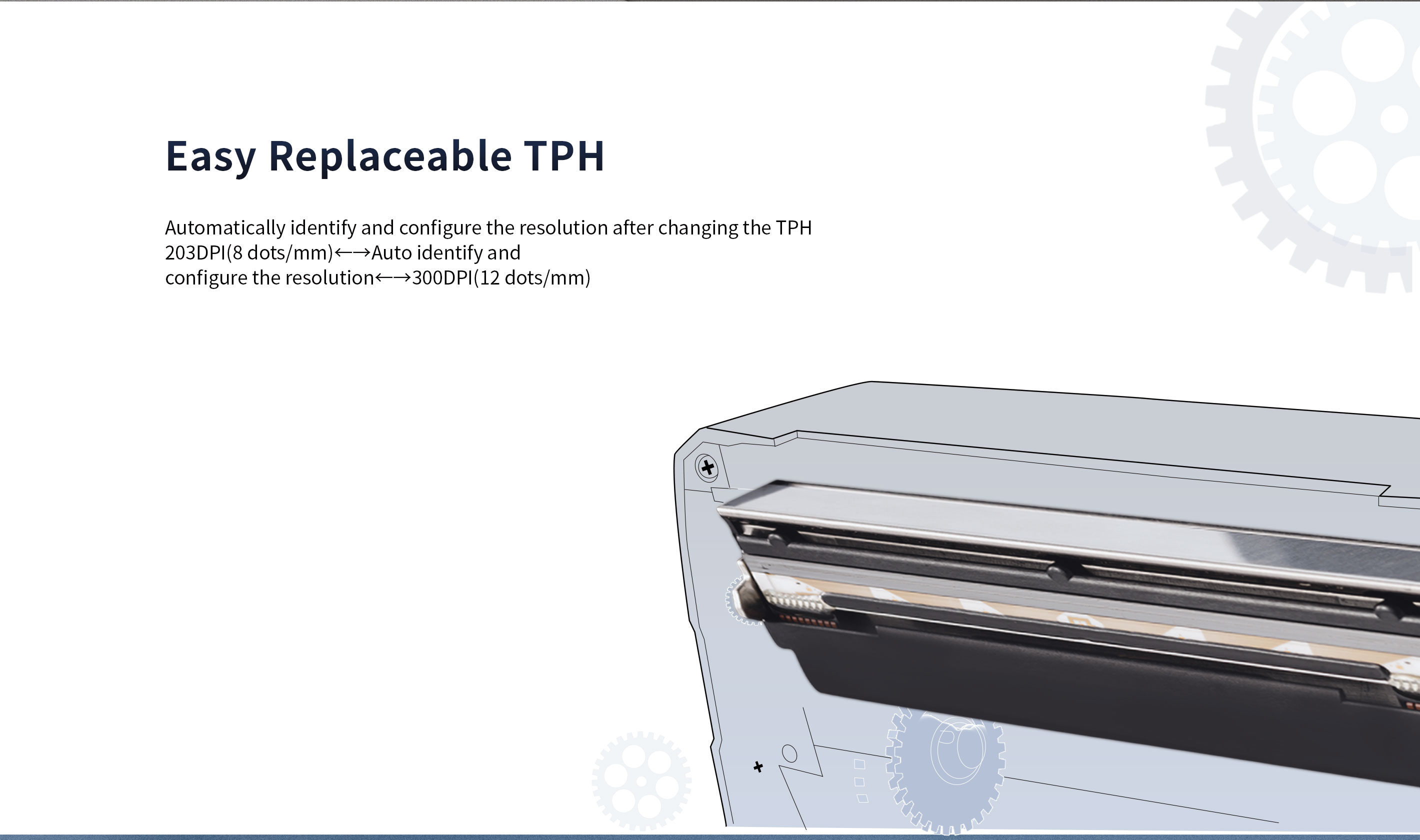

• 203 and 300 dpi available
• Multiple connectivity options
• Full-width, moveable and multi-position media sensors
• Field-upgradeable media handling and plug and play Wi-Fi, Bluetooth
，
| Item | Ares | Ares Pro | |
| Printing | Printing Method | DT/TT | |
| Resolution | 203dpi | 300dpi | |
| Max. Printing Speed | 8 IPS | 6 IPS | |
| Max. Printing Width | 108mm | 106mm | |
| Max. Printing Length | 2,286 mm | 1,524 mm | |
| CPU | 32-bit RISC CPU | ||
| Memory | RAM | 128 MB | |
| Flash | 256 MB | ||
| Detection | Sensor | Out-of-paper detection, gap detection, ribbon detection, black mark detection, cover-opening detection | |
| Media | Type | Black mark label or punched hole label or folding or rolling die cutting label | |
| Width | 1'' (25.4mm) ‒ 4.33'' (110mm) | ||
| Height | 0.31'' (8mm)‒ 9.84'' (250mm) | ||
| Thickness | 0.002''(60um)-0.08''(200um) | ||
| Label Roll Diameter | 5''(127 mm) Max | ||
| Core Diameter | 0.5''(12.7 mm), 1''(25.4 mm). 1.5''(38 mm) | ||
| Ribbon | Type | Wax, Wax/Resin, Resin | |
| Width | 2'' (50mm) ‒ 4.38'' (118mm) | ||
| Length | 328'(100 m) | ||
| Core Diameter | 0.5''(12.7 mm) | ||
| Programming Language | ZPL, TSPL, EPL, DPL | ||
| Software | Label Design Software | HPRT BarTender Ultralite (professional and higher versions are available for trial) | |
| Driver | Seagull Windows Vista7,8,10, Vista, 7, 8, 11 | ||
| Resident Fonts | Bitmap fonts | 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 magnification. | |
| TTF fonts | CG Triumvirate™times expandable in horizontal and vertical directions, simplified Chinese. | ||
| Code Pages | DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866, Windows 1250,1251,1252,1253,1254,1255,1256,1257,1258, ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15 | ||
| Barcode | 1D | Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 | |
| 2D | PDF417, Maxicode, DataMatrix, QR Code, Aztec, CODE49, CODABLOCK,PDF417, Maxicode, DataMatrix, QR Code, Aztec | ||

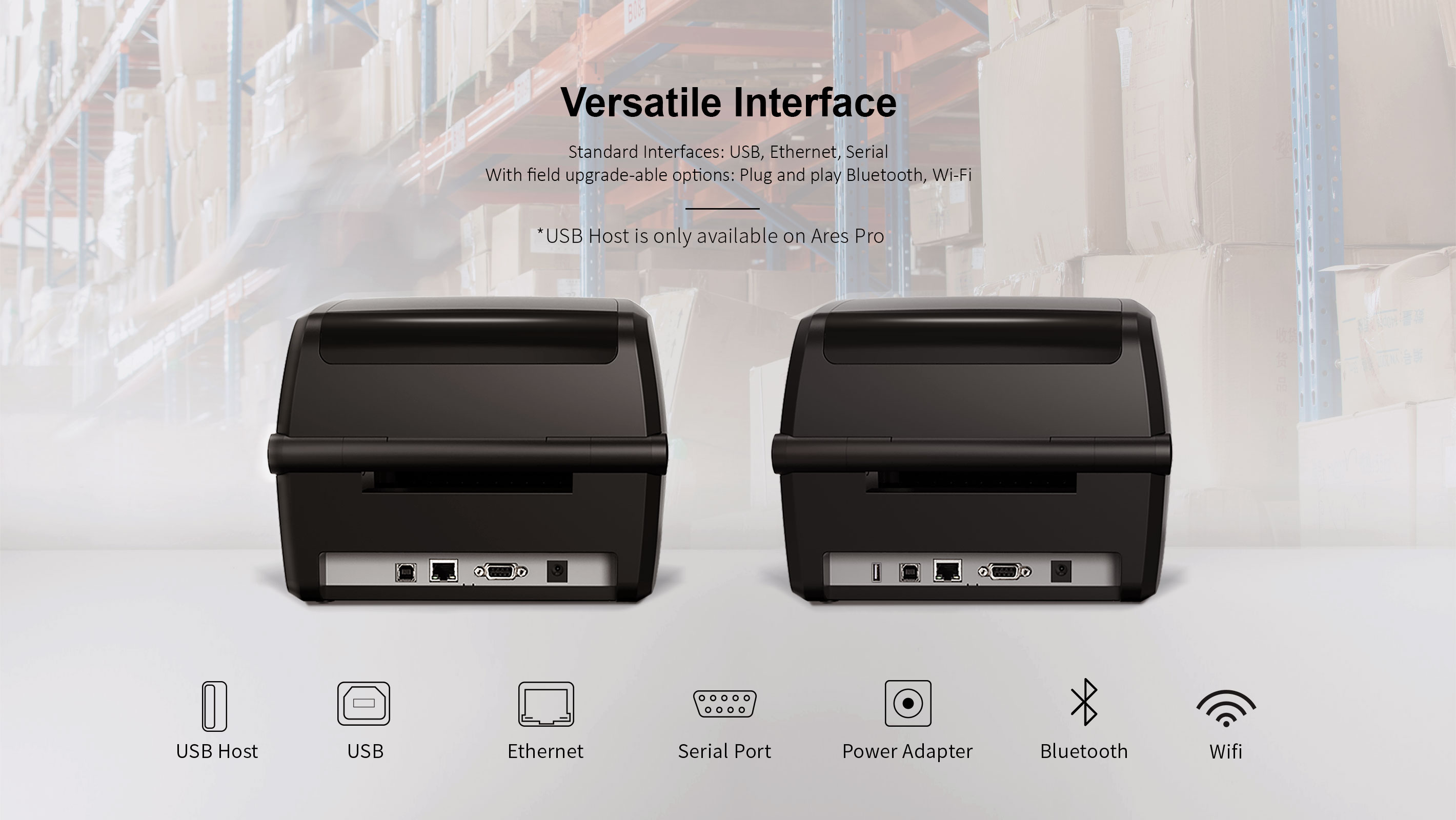

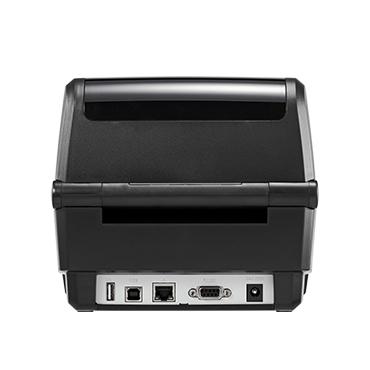

| Interface | Standard | USB, Serial, Ethernet | USB, Serial, Ethernet, USB HOST |
| Optional | Wi-Fi or Bluetooth | Wi-Fi or Bluetooth | |
| Power Supply | Power Switch Input: AC 100-240 V, 50/60 Hz Output: DC 24 V / 2.5 A | ||
| Environment | Operation | 41℉(5℃) to 104℉(40℃) , humidity 30% to 85% ,non-condensing | |
| Storage | -4℉(-20℃) to 122℉(50℃), humidity 10% to 90% ,non-condensing | ||
| Physical Characteristic | Dimension(L*H*W) | 251.78 × 201.1 × 174.48 mm | |
| Weight | 2 KG | ||

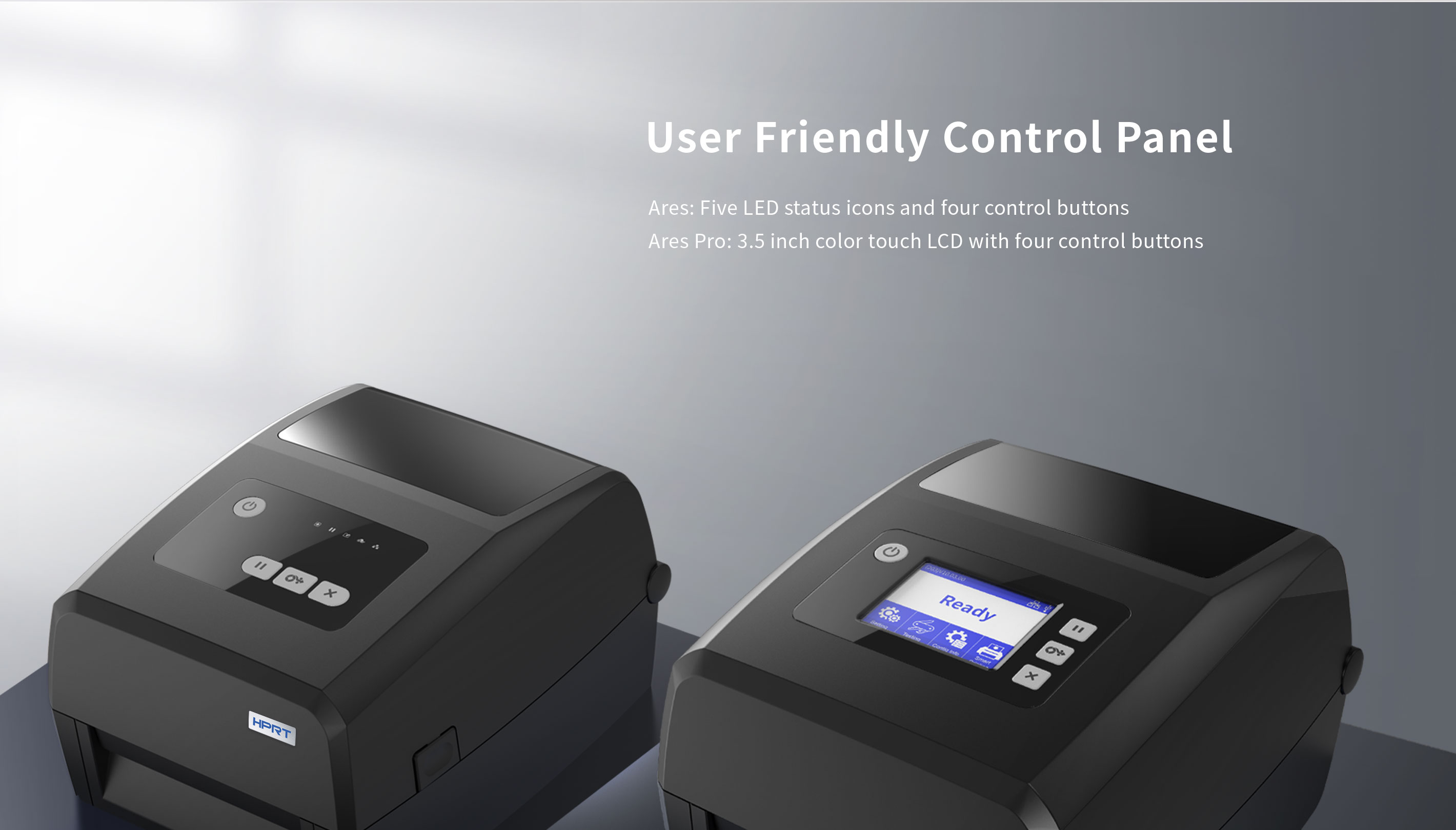

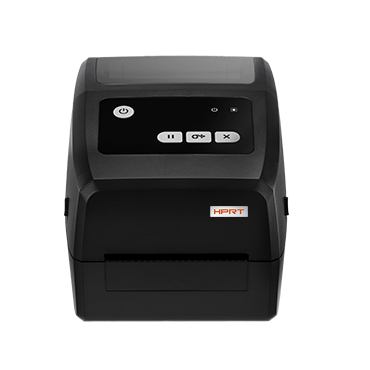

| User Interface | Five LED lights, four buttons | 3.5'' Touch Screen, four buttons | |

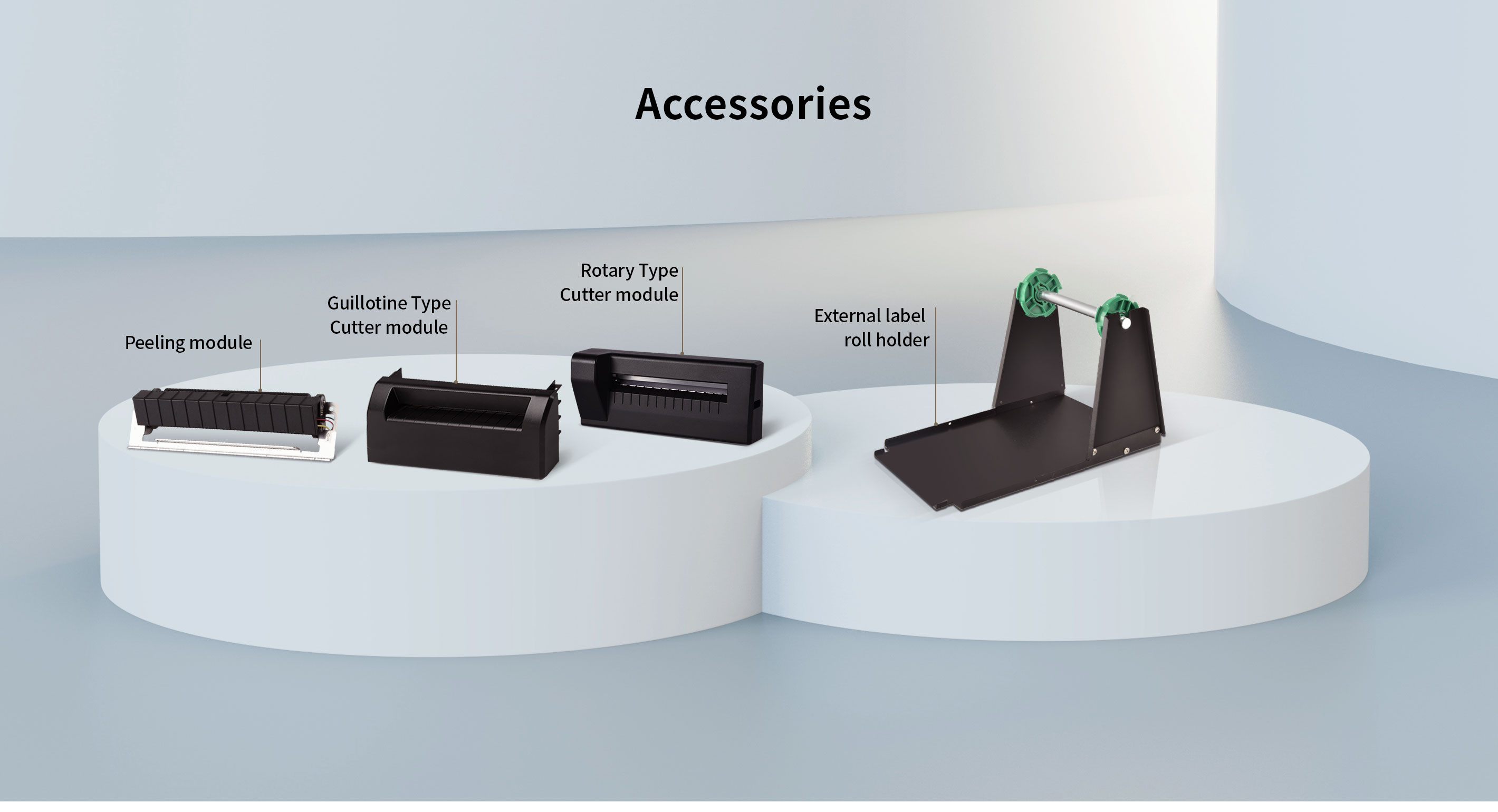

| Options & Accessory | Peeler module, cutter module, external label roll holder | ||
| Agency Approval | CCC,CE,FCC,RoHS | ||
