Gamma/Galaxy
OVERVIEW TECH SPECS DOWNLOADS

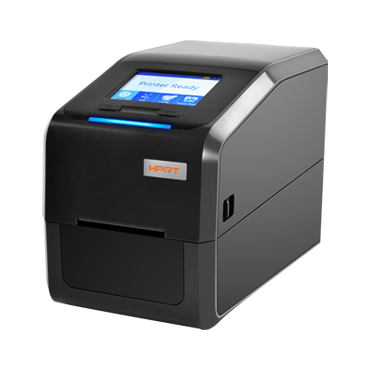

Thermal Barcode Printer

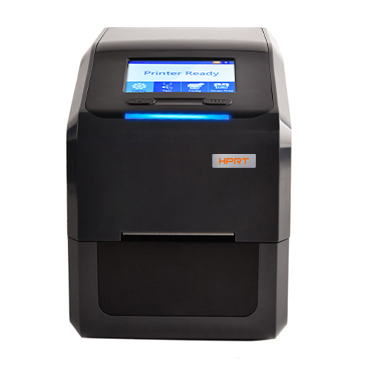

HPRT barcode label printer thermal Gamma

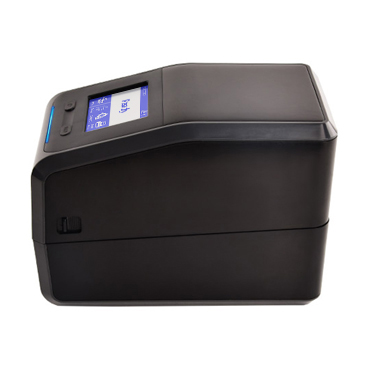

thermal transfer barcode printer

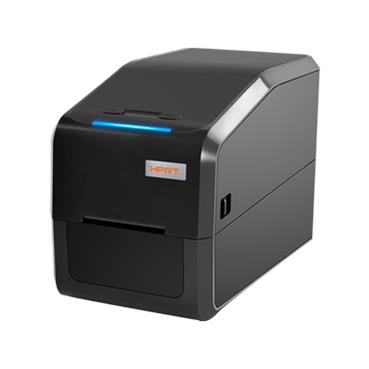

mini thermal barcode printer

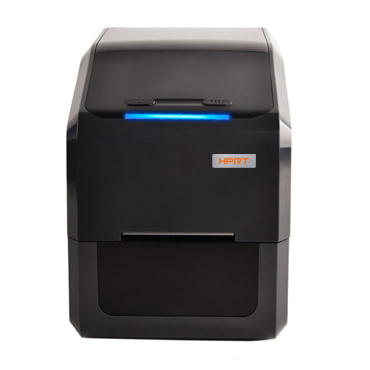

direct thermal barcode printer
best thermal barcode printer

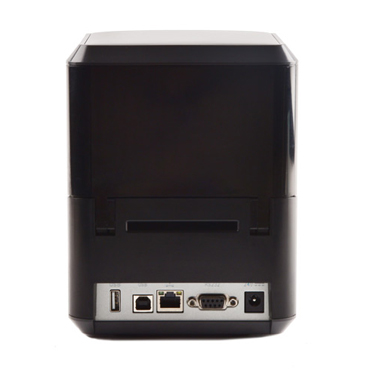

barcode label thermal printer

2" Thermal Barcode Printer

•  Printing speeds up to 8ips

•  Free Bartender software

•  Equipped with 3.5 inches color LCD display

•  Easy offline operation with USB HOST

•  Widely applicable consumables to support ultra-wide field

   Requirements

•  Cool black housing, can be connected to the external paper roll

   Bracket

•  Auto identify the resolution of 203dpi and 300dpi without relying

   On PC-side settings

Thermal Barcode Printer
HPRT barcode label printer thermal Gamma
thermal transfer barcode printer
mini thermal barcode printer
direct thermal barcode printer
best thermal barcode printer
barcode label thermal printer

HPRT Professional thermal transfer barcode printer Gamma, Galaxy

8 ips fast printing barcode label printer

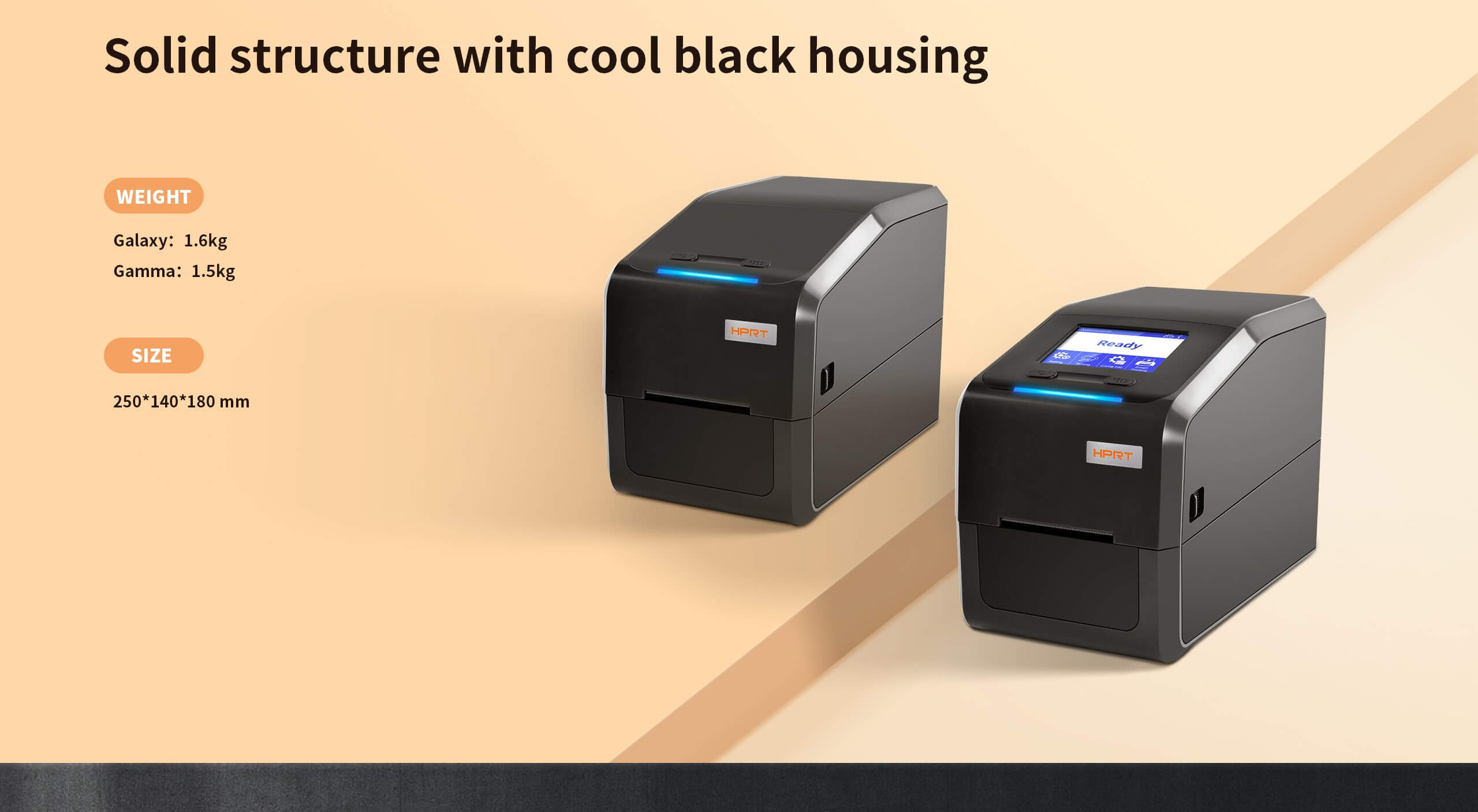

Solid structure rugged barcode printer

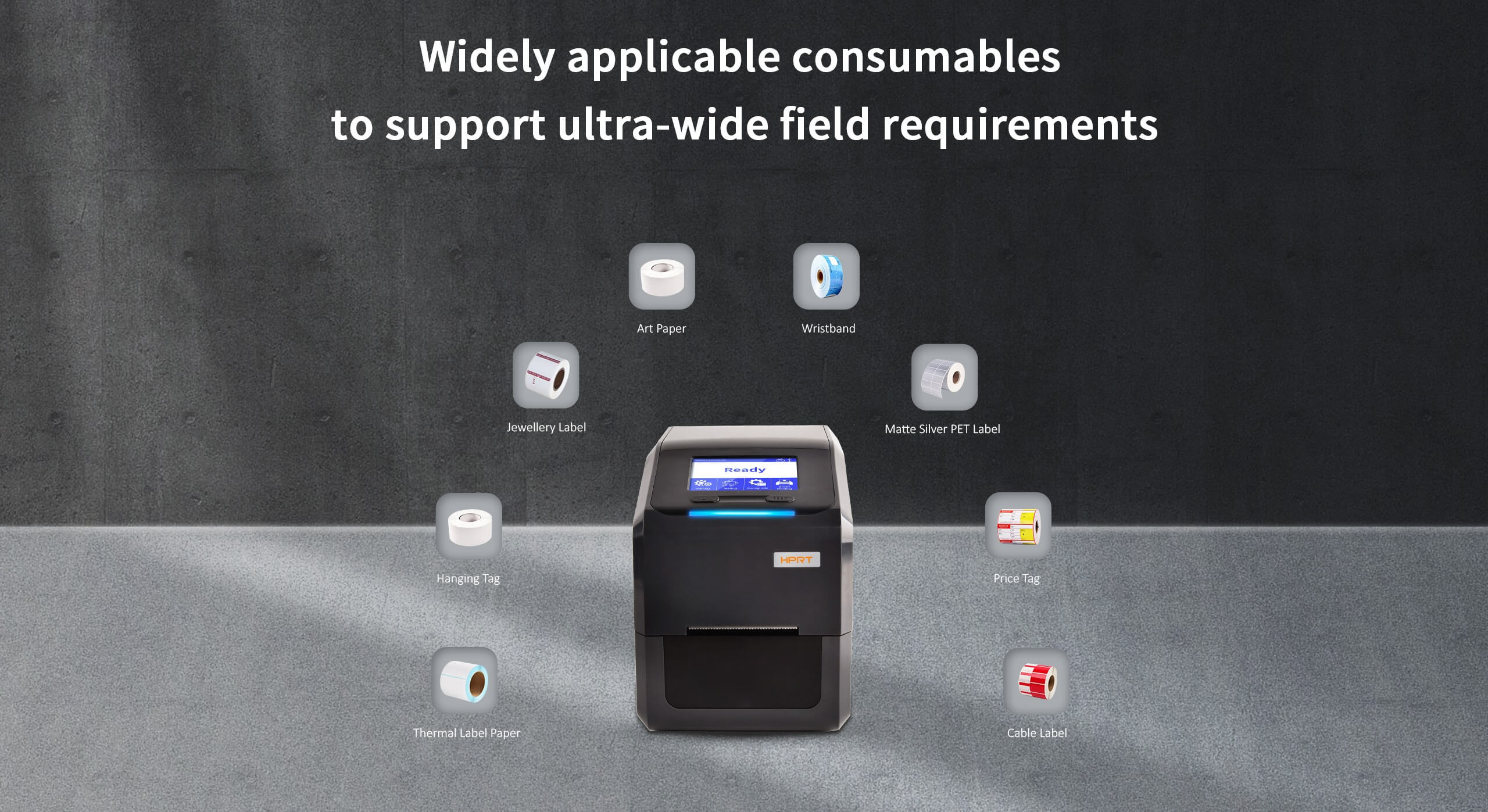

thermal transfer label printer support various consumables

barcode printer supports USB, serial, ethernet, Bluetooth, WIFI

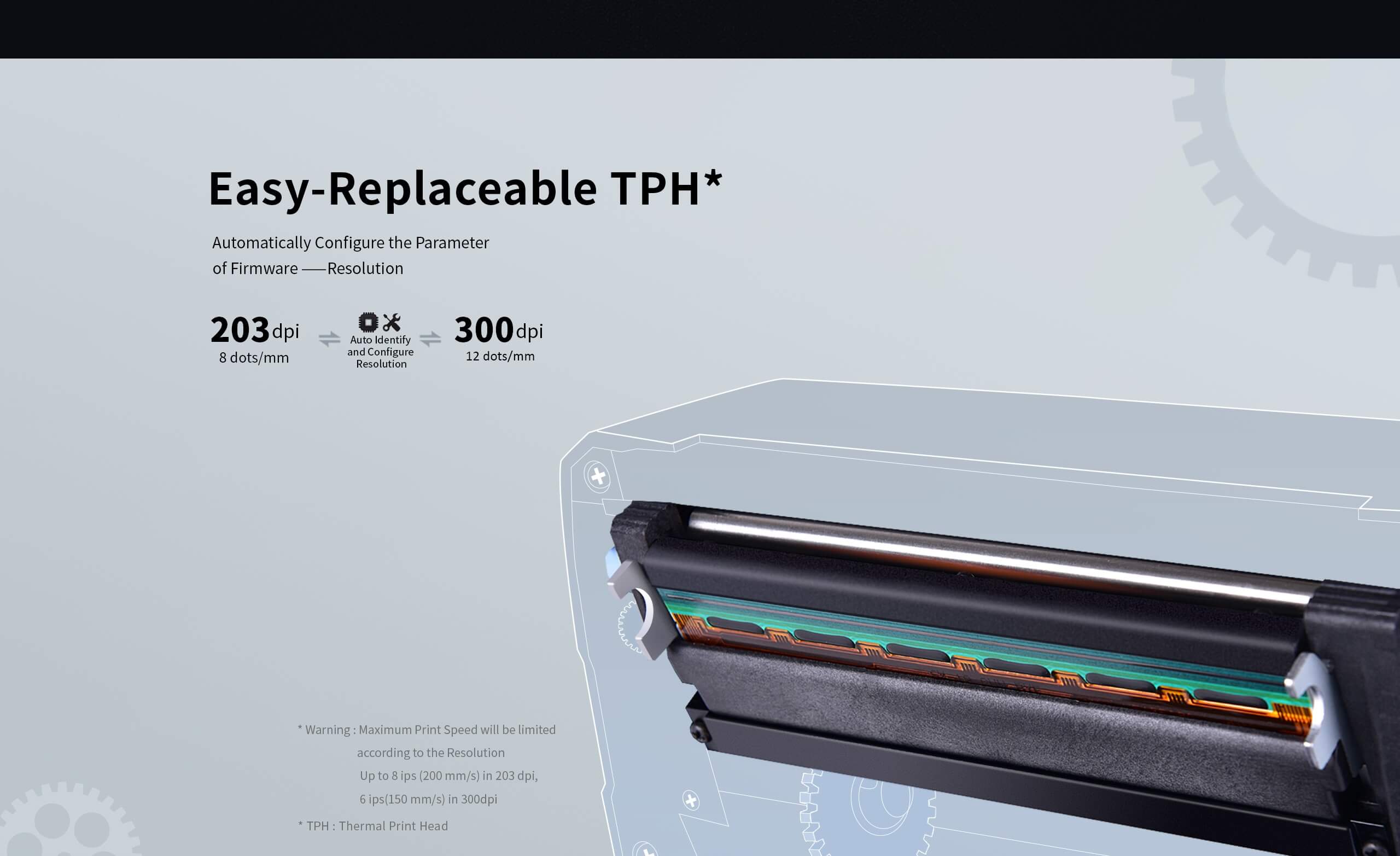

easy replaceable TPH thermal transfer label printer

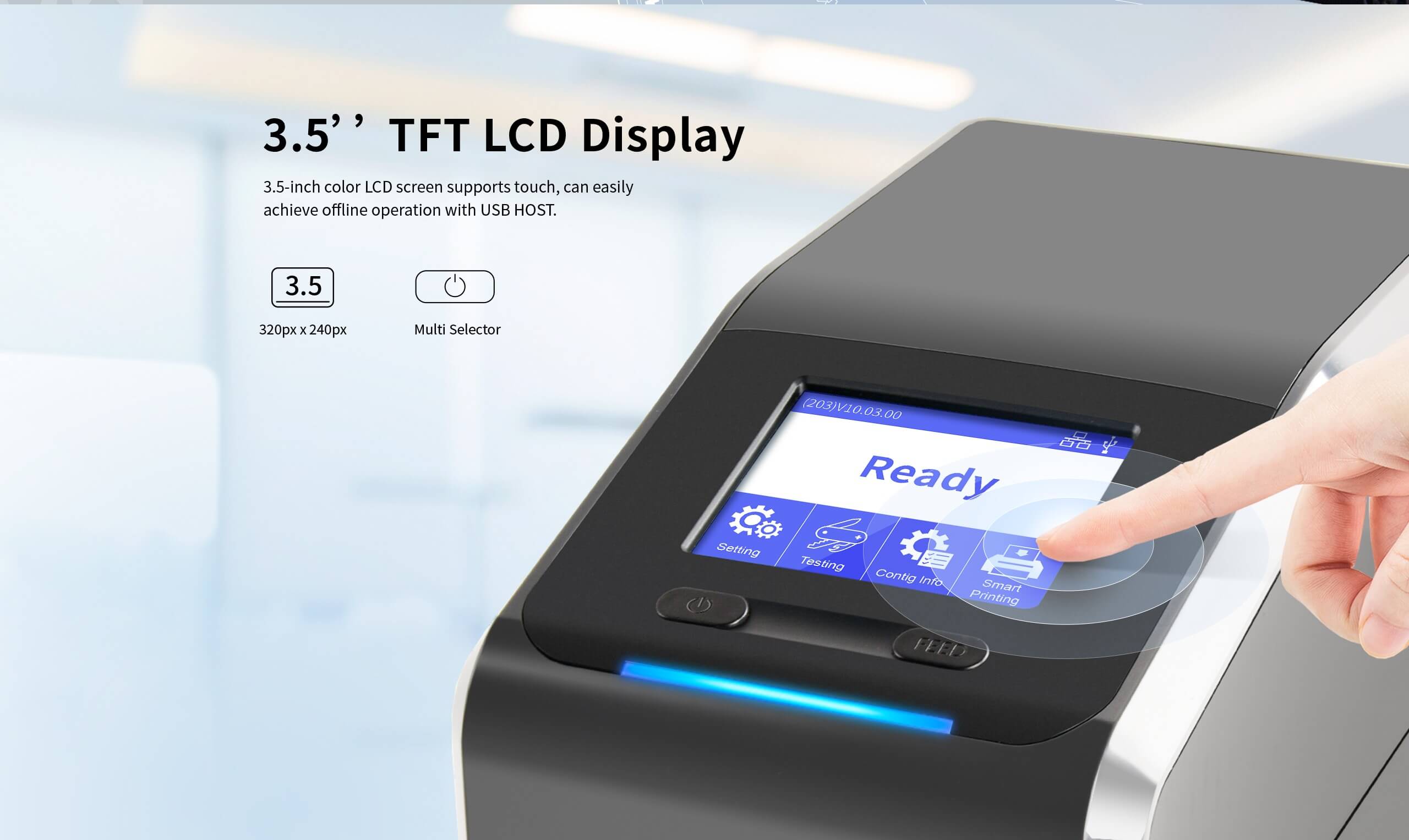

Barcode printer with 3.5-inch color LCD screen

ZPL-II, TSPL, EPL2 emulation barcode printer  medical wristband, electrical label printer

ModelGammaGalaxy
PrintingPrinting MethodThermal/Thermal transfer
Resolution203 dpi/300 dpi

Max.Printing

Speed

8 ips(203 dpi) / 6 ips(300 dpi)

Printing

Width

54 mm(203dpi)/ 56.9 mm(300dpi)

Max.Pringting

Length

2286 mm(203dpi)/ 1524 mm(300dpi)
ProtocolsZPL-II,  TSPL ,EPL2
InterfaceStandardUSB Type B,EthernetUSB Type B, RS232, Ethernet, USB HOST
OptionalBluetooth, Wi-Fi
MemoryRAM32 MB
Flash16 MB
DetectionGap label sensorTransmittance, Medium, 2 pcs
Black mark sensorReflective, removable whole range
OtherPaper out detection, open cover detection, TPH head overheating detection
MediaTypesContinuous paper, label, black mark paper, punched Label (fold or roll paper)
Width20 mm ~ 60 mm
Thickness60 um  ~ 250 um

Label Roll

Diameter

127 mm
Ribbon
TypesWax, Wax/Resin, Resin
Width58 mm
Internal diameter12.7 mm
Max.Length100 m
Software

BarTender

BarTender 2016 UltraLite HPRT Spec
DriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
FontsResident fontsAlphanumeric, Simplified Chinese, Traditional Chinese, 29 US-International.
User fontsSupport
Barcodes1DUPC-A, UPC-E, EAN128, Codabar, CODE128, CODE39, CODE93, EAN-8, EAN-13, UCC/EAN128, POSTNET, ITF14, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13, Japanese Postnet, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, Logmars, CODE11
2DCODE49, CODABLOCK, PDF417, Data Matrix, Maxicode, QR Code, MicroPDF471, Aztec
DisplayNA3.5" colorful TFT touch screen
RTC NAEquipped
Power SupplyInputAC 100~240V, 50/60Hz
OutputDC 24V, 2.5A
Environment Operation5 to 50℃@ humidity 25% to 85% non-condensing
Storage-40 to 60℃@ humidity 10% to 90% non-condensing
Physical Characteristic

Dimension

(L×H×W)

250×140×180 mm
Weight1.5 kg1.6 kg
Options & AccessoryExternal Label Roll Holder, Auto Cutter Module
Agency ApprovalCE EMC(EN 55022 Class B), FCC EMC(Class A), CCC, RoHS
