HM-E200
OVERVIEW TECH SPECS DOWNLOADS
2 Inch Mobile Receipt Printer
Mobile Receipt Printer
receipt printing
pos receipt printer

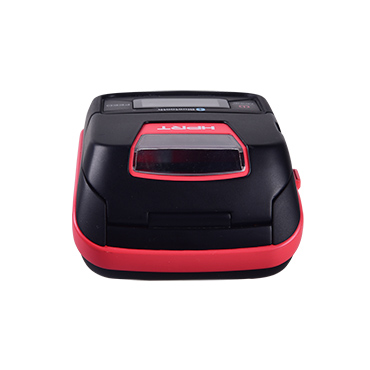

2" Mobile Receipt Printer

• Pocket size, Extremely light and mobile

• Support Bluetooth Ver3.0/4.0[BLE] Dual Mode

• Support text and graphic printing

• Support Graphic LCD(128X64 dots) with Blue Backlight

• Very silent printing thru direct thermal printing method

• Support Secure Magnetic Stripe Reader <Model with Card Reader>

   *AES or 3DES encryption

   *DUKPT Key Management

• Printer cover open sensor, Paper-out sensor, Black mark sensor, Label gap detection

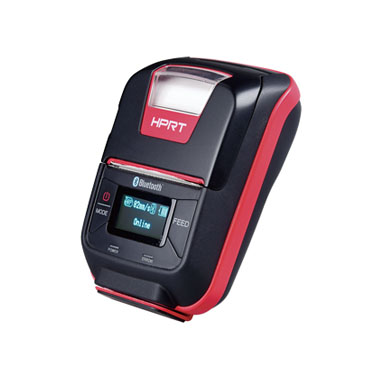

2 Inch Mobile Receipt Printer
Mobile Receipt Printer

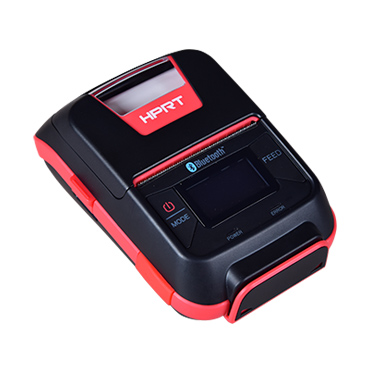

receipt printing
pos receipt printer

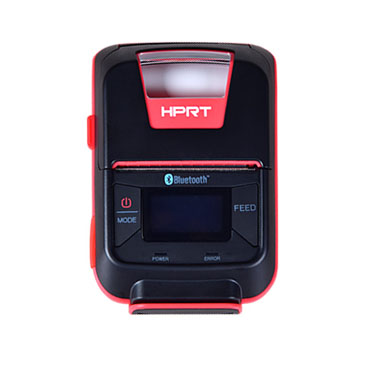

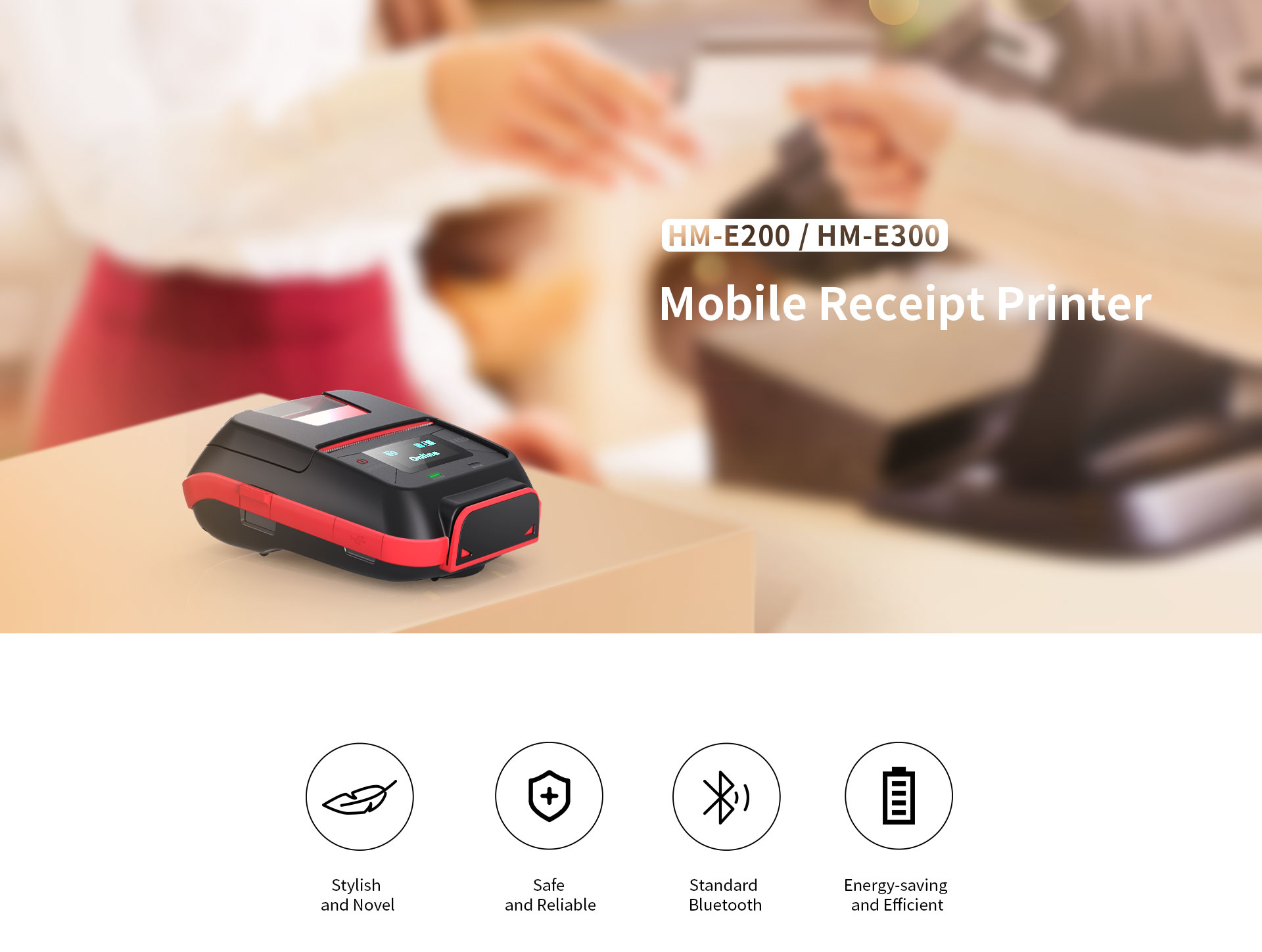

Mobile Receipt Printer

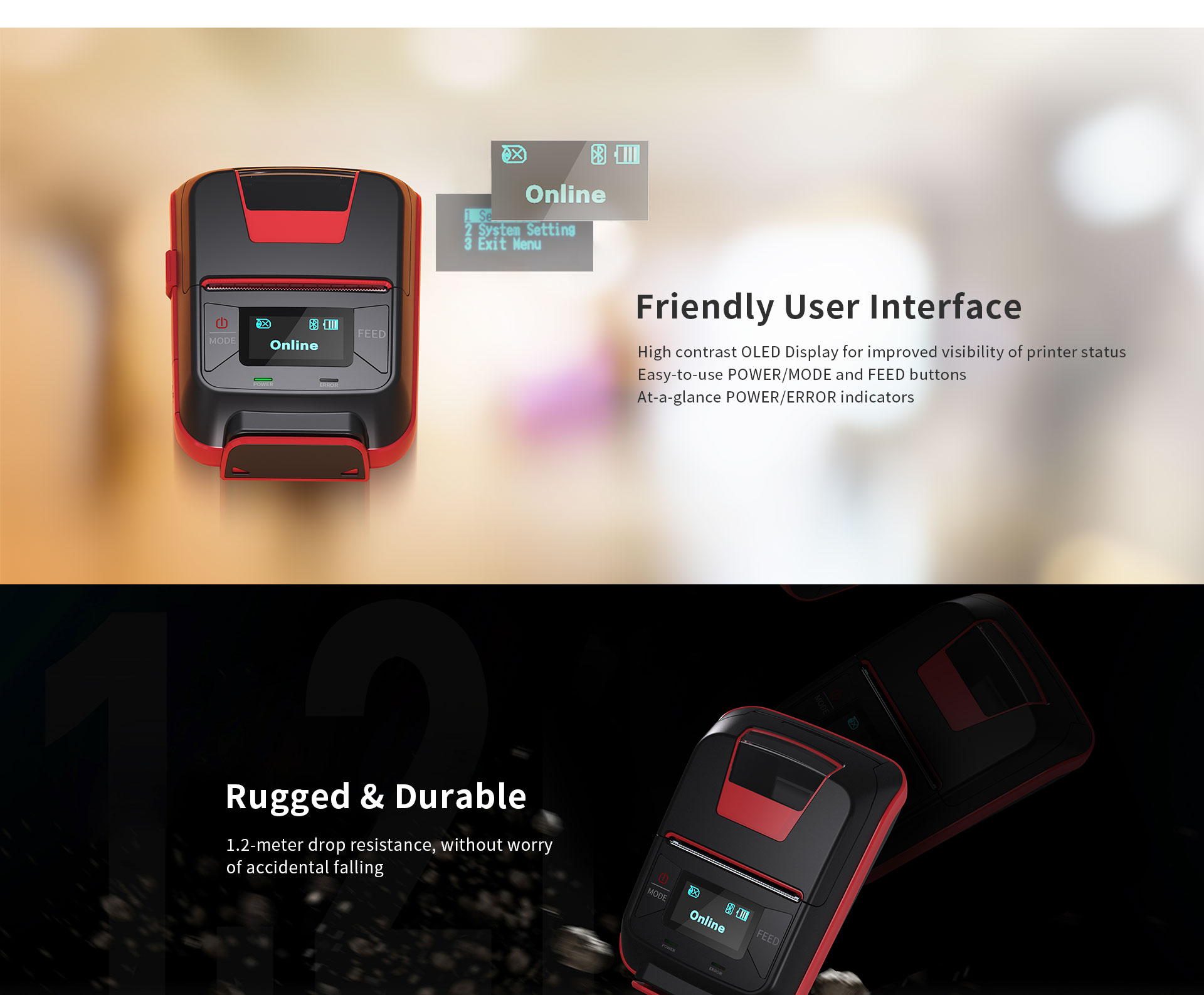

Receipt Printer User Interface

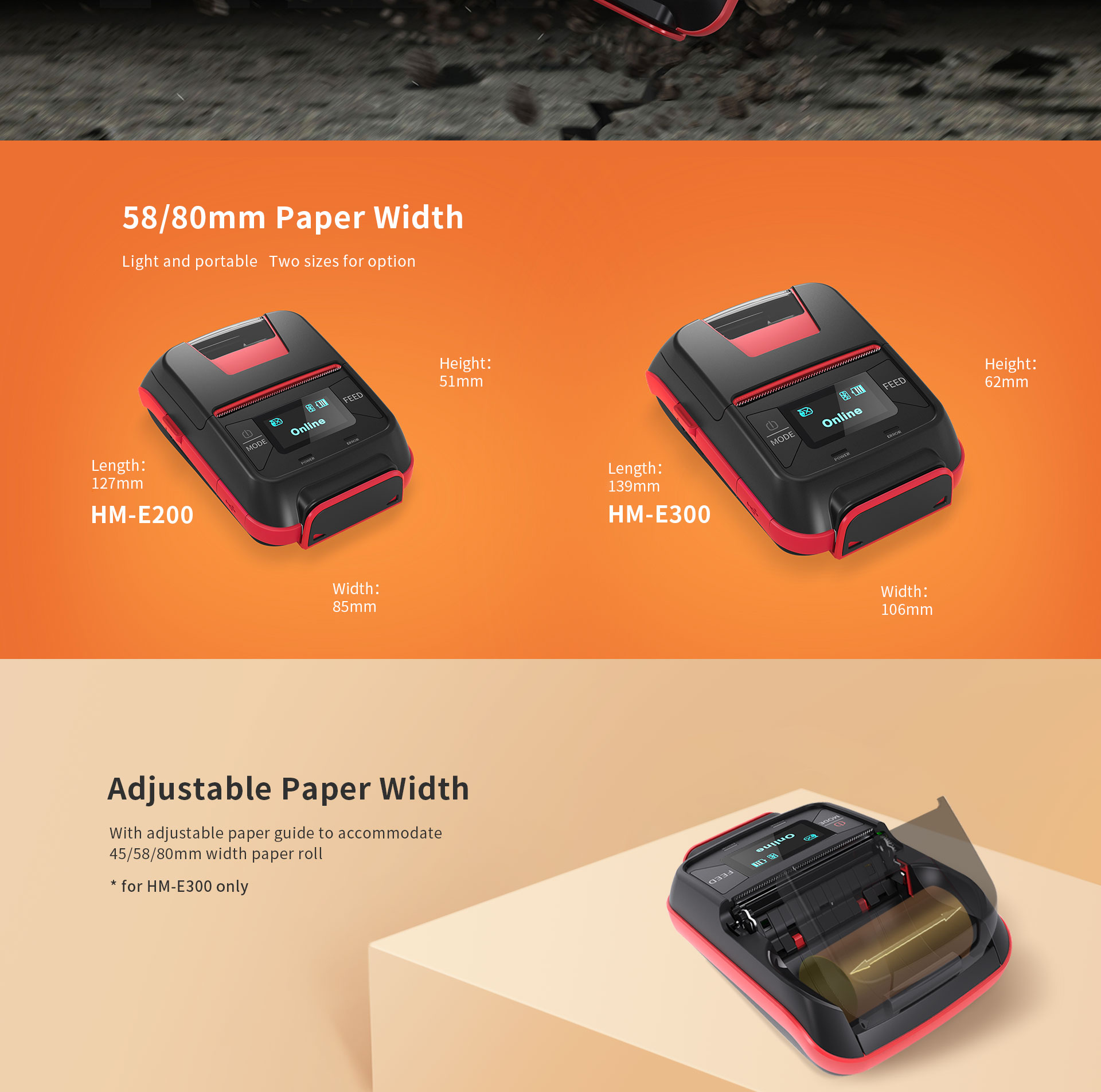

58/80mm Receipt Printer

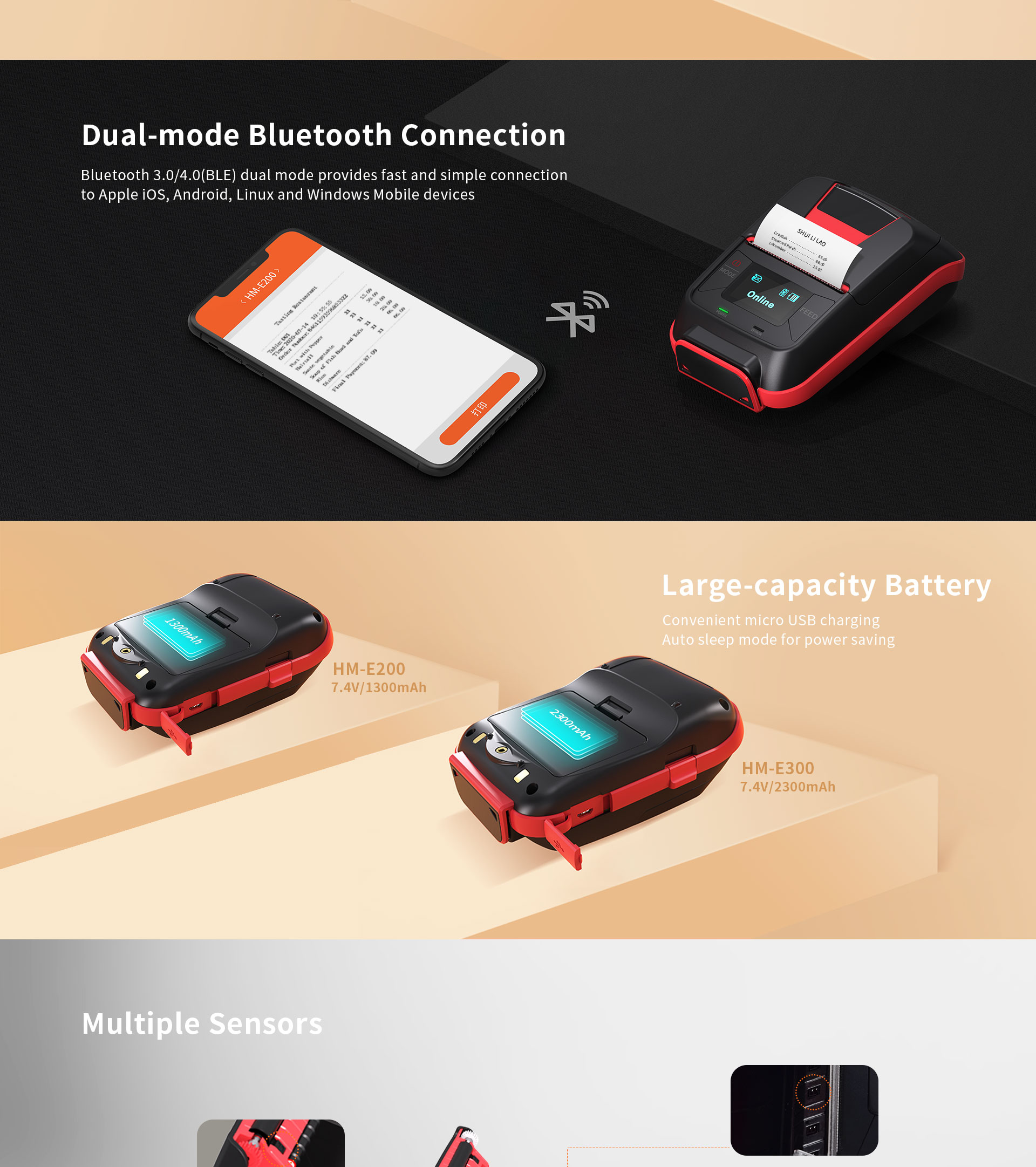

Bluetooth Receipt Printer

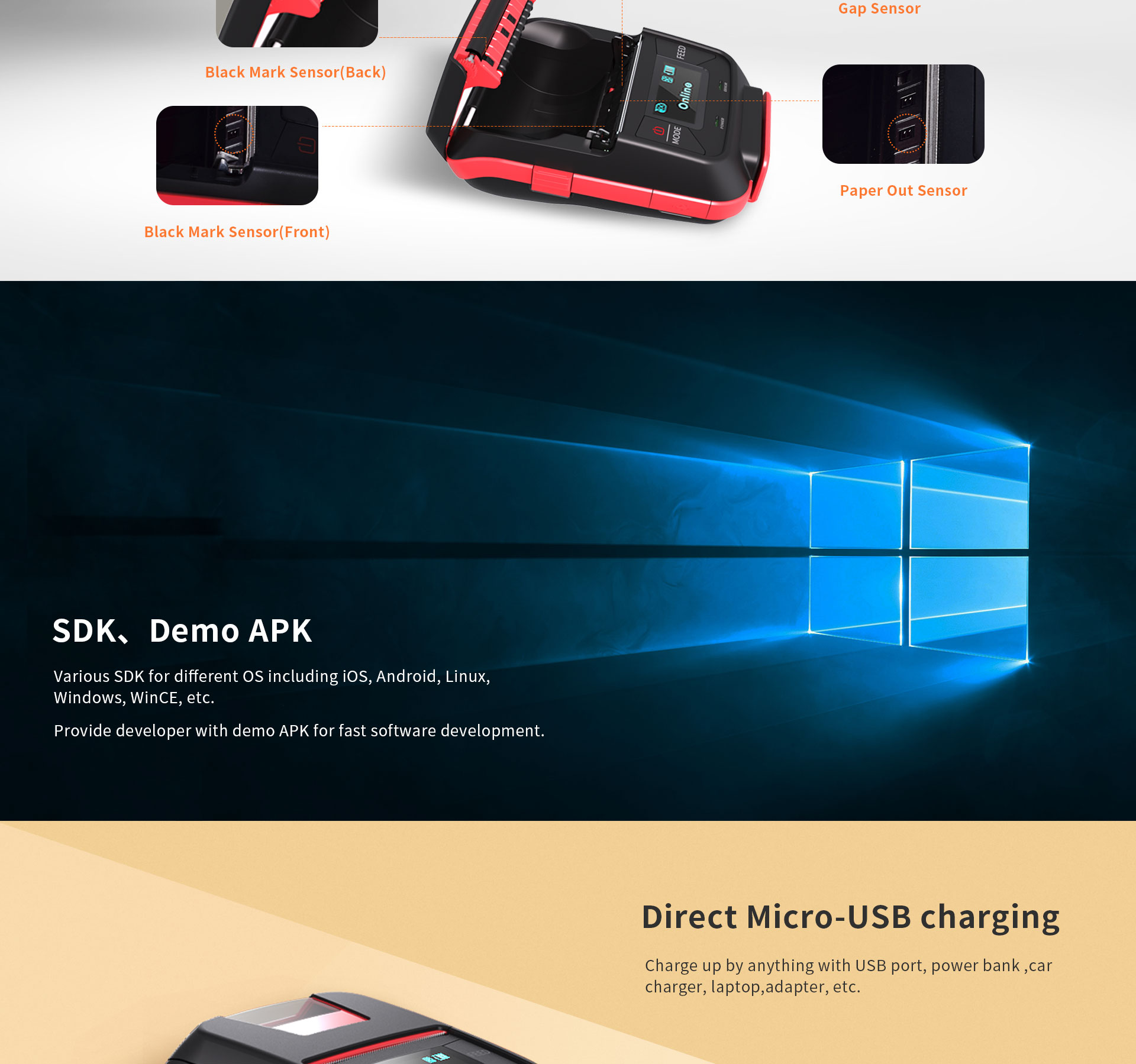

Mobile Receipt Printer Sensors

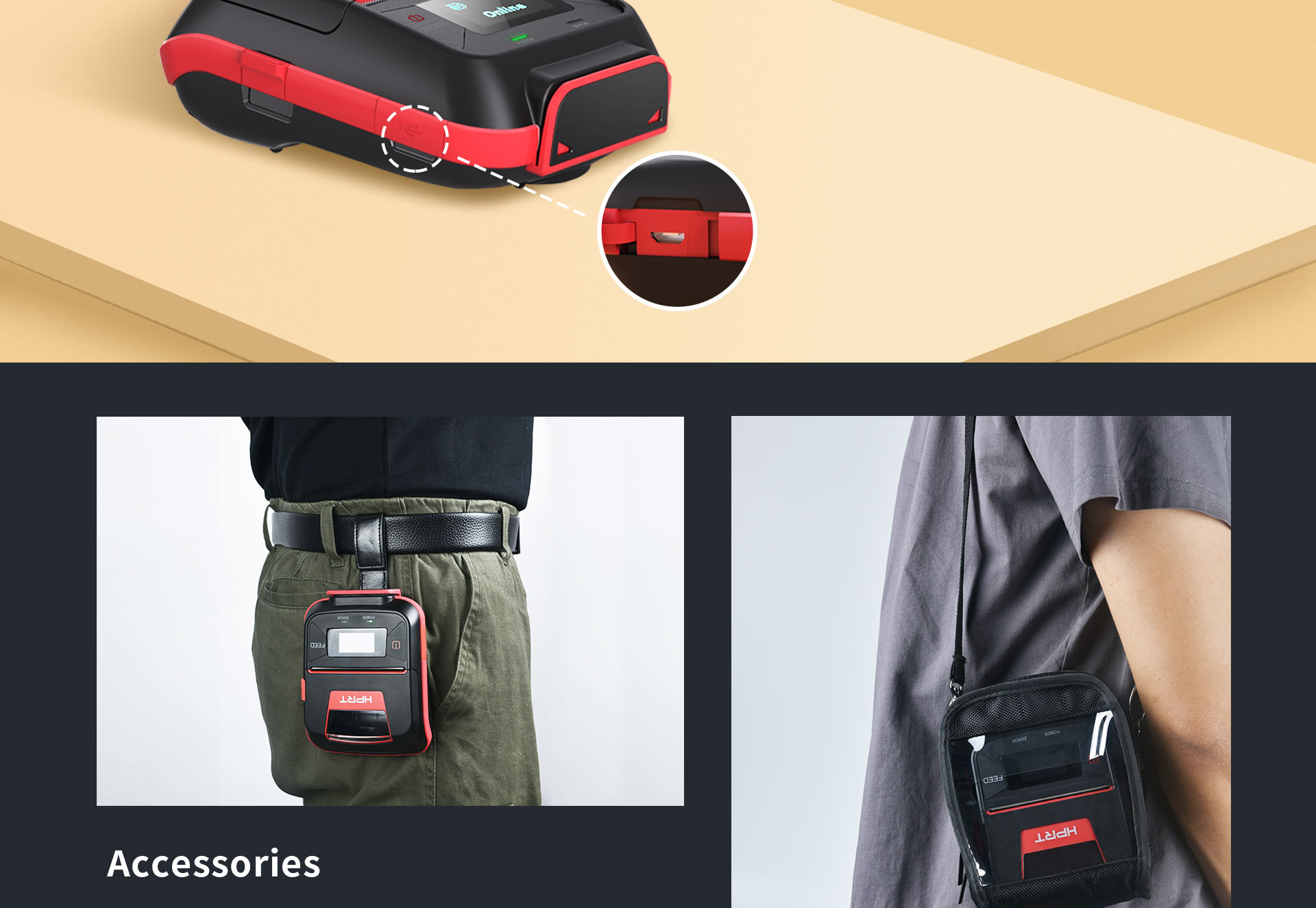

Portable receipt printer

Application scenario of receipt printer


PrintingPrinting MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Printing SpeedMax.100mm/s
Printing Width48 mm
InterfaceUSB, Bluetooth 3.0/4.0
Power SavingSleep ModeYES
MemoryRAM64 KB
Flash4 MB
Programming Language
ESC/POS
Fonts
Alphanumeric; Simplified Chinese, Traditional Chinese; 42 International Character Sets
Barcode1DUPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
2DQR Code, PDF417
GraphicsSupport bitmap printing with different density and user defined bitmap printing
Interface
Standard
MicroUSB, Bluetooth 3.0/4.0
Option
N/A
SensorsStandardPaper out Detector, Cover open Detector, Black mark Detector, Gap Detector
Option
N/A
LED indicatorPowerGreen
ErrorRed
PowerInputAC 100 ~ 240V, 50/60Hz
OutputDC 5V, 1A
Battery7.4V rechargeable Li-polymer battery, 1300mAh
PaperTypeContinuous paper with or with black mark, Linerless label, Roll-fed Label
Width58 mm
Thickness0.053 ~ 0.13 mm

Diameter of Paper Roll

Max. Ф40 mm (O.D)
Paper LoadingEasy loading mechanism
EnvironmentOperating-5°C ~ 50°C, 25% ~ 85% R.H, no-condensing
Storage-30°C ~ 60°C, 5%~95% R.H, no-condensing
Physical CharacteristicsDimension126.9(L)×84.4(W)×50.6(H) mm
Weight0.234 kg
Options and AccessoriesUSB Cable, Belt Clip, Docking Cradle, Paper Roll, Quick Start Guide, CD
SoftwareDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDKWinCE, Win Mobile, Android, iOS

Drivers

Stay up-to-date with the latest downloads for your HPRT Printer
