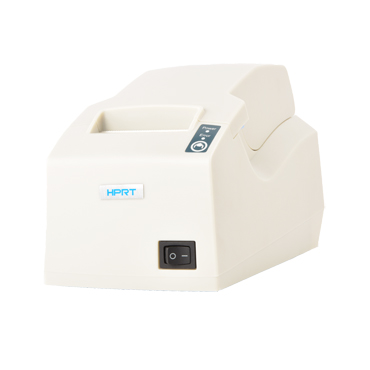

2" Thermal POS Printer

•  Compact and elegant design

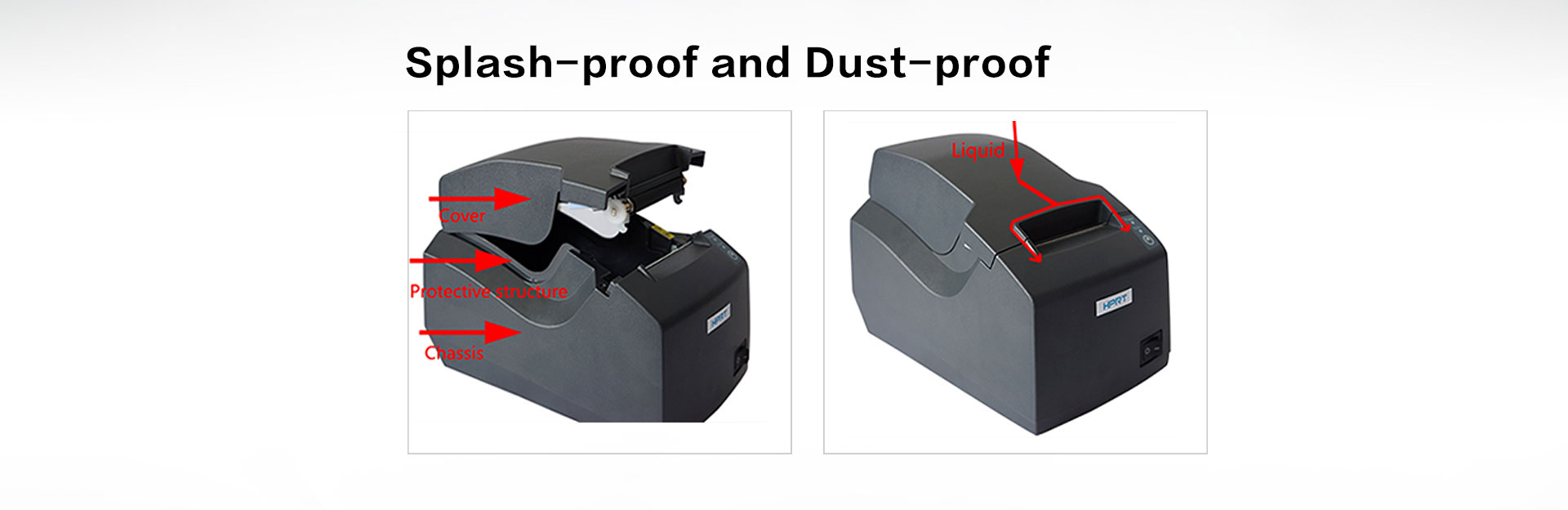

•  Anti-water splash, anti-dust design

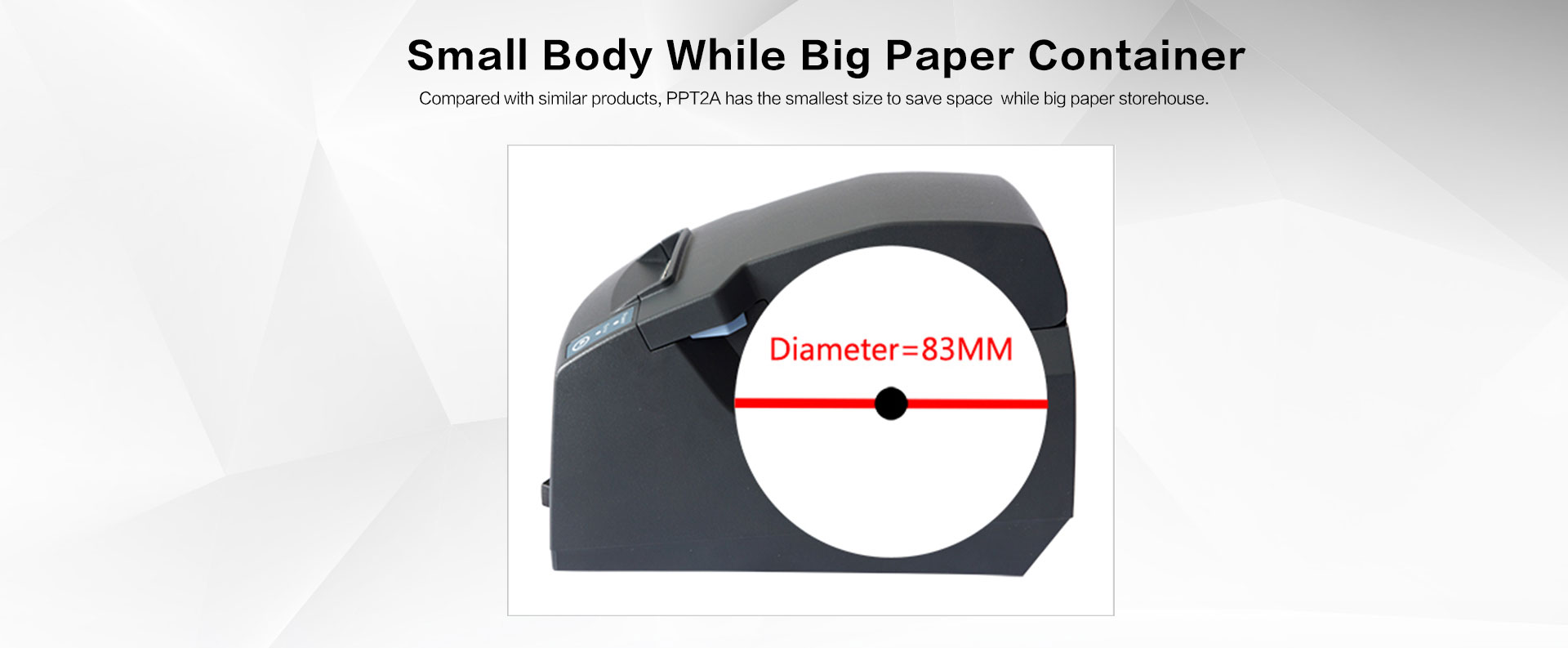

•  Fit big paper roll
•  Low power consumption

30202b407e2724b8cf279ad14535a76d
94939757c48b0cb022a9eeb5c6b4ab33
06ecba2c33fc2ba7c15d16d387eb9d6e
e956785a2414dbc36061400b0870588d
b0807f18de3f206e3b4c22a242370880
53eaf61de73ad3229eed647200582b8d

PrintingPrint MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Print SpeedMax. 100 mm/s
Print WidthMax. 48mm
MemoryRAM20 KB
Flash2 MB
Programming Language
ESC/POS
FontsAlphanumeric; Simplified Chinese; 45 codepages
BarcodeLinear BarcodesUPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
GraphicsSupport bitmap printing with different density and user defined bitmap printing (Max. 40 KB for per bitmap, and Max.64K for total)

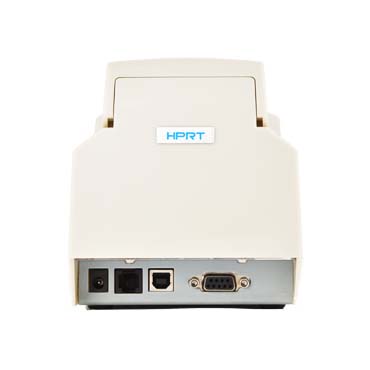

Interface
Standard
Cashbox
Option
Parallel port; USB Type B and Serial Port (2 in 1); USB Type B and Ethernet (2 in 1); USB Type B
SensorsStandardPaper out Detector
Option
N/A
LED indicatorPower Green
Error Red
Power SupplyInputAC 100V ~ 240V, 50/60Hz
OutputDC 12V, 2A
PaperPaper TypeThermal Receipt Paper
Paper Width58 mm
Paper Thickness0.056 ~ 0.13 mm

Paper Roller Diameter

Max. 83mm (O.D.)

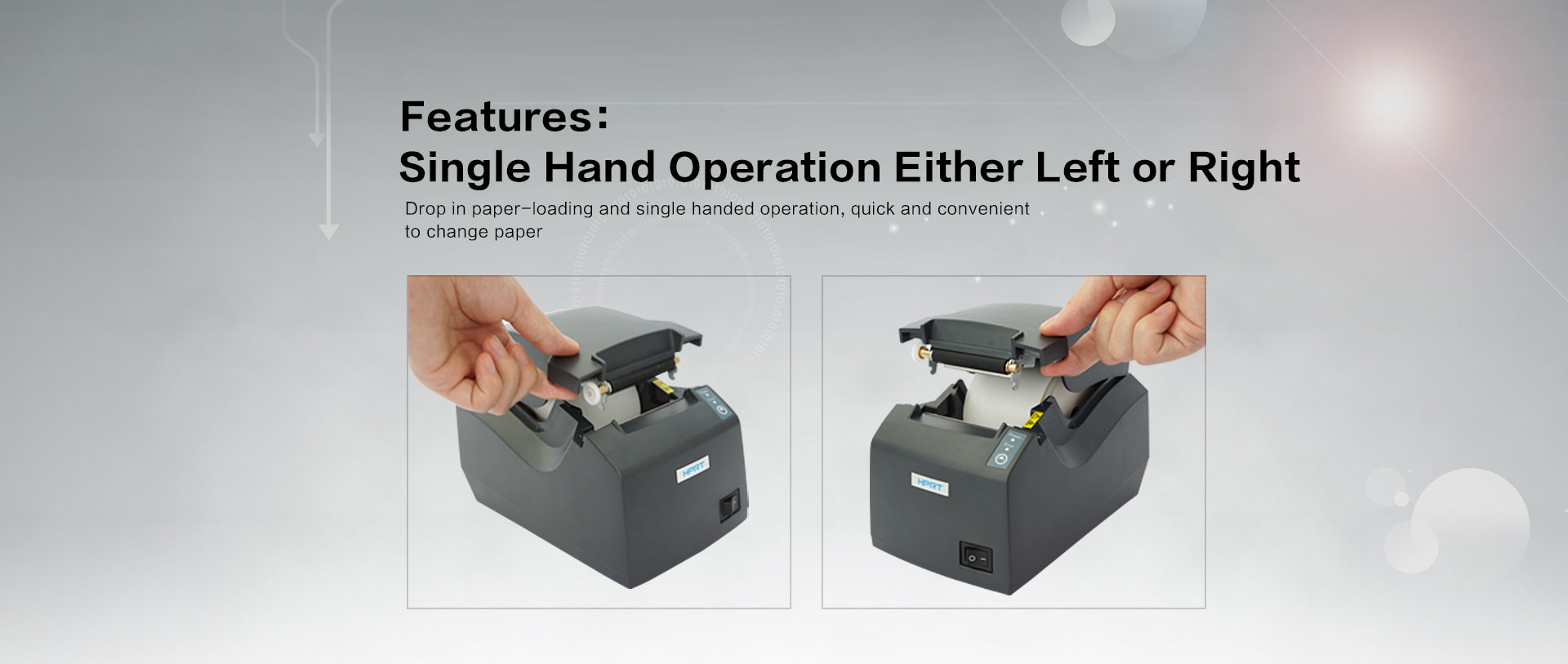

Paper LoadingTop Easy Paper Loading
EnvironmentOperating0°C ~ 40°C, 25% ~ 80% R.H, no-condensation
Storage-20°C ~ 70°C, 5% ~ 95% R.H, no-condensation
Physical CharacteristicsDimension196(L)×124(W)×128(H) mm
Weight0.93 kg
Options and AccessoriesUSB Cable, Serial Cable, Parallel Cable
SoftwareDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDKWinCE, Windows Mobile, Android, iOS

Drivers and Manuals

Stay up-to-date with the latest downloads for your HPRT Printer
