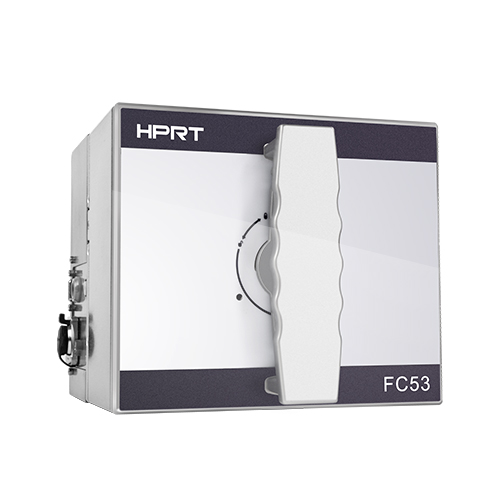

FC53
OVERVIEW TECH SPECS DOWNLOADS
Thermal Transfer Overprinting
Automatic Ribbon Coding Machine
Industrial Laser Marking Machine
Ink Roller Coding Machine

Thermal Transfer Overprinting

•  Cost saving
•  Optimized operation
•  Highly reliable

•  Environment friendly
•  Effective printing
•  Optimized ribbon usage

Thermal Transfer Overprinting
Automatic Ribbon Coding Machine
Industrial Laser Marking Machine
Ink Roller Coding Machine

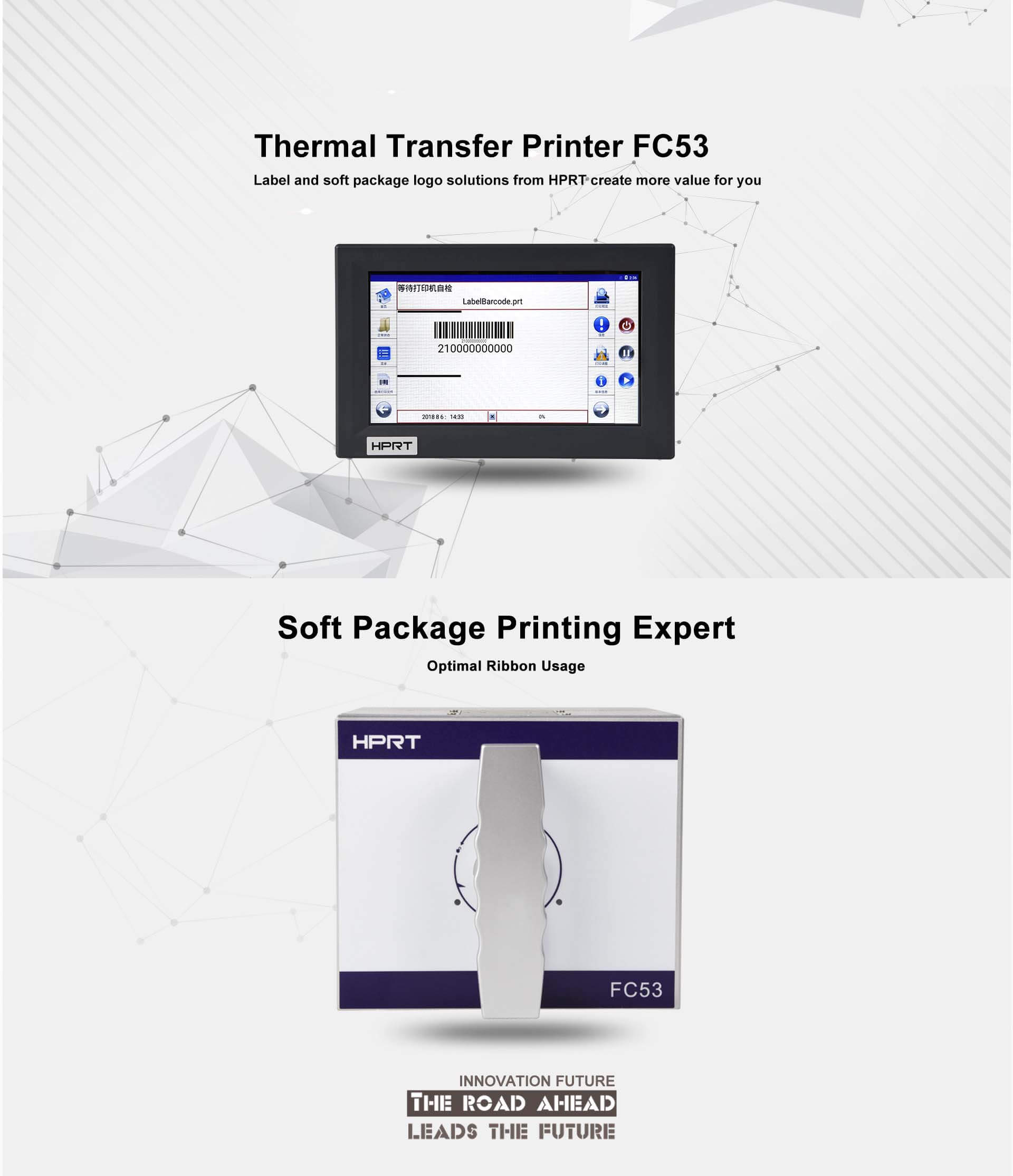

Flexible packaging printingThermal Transfer Overprinting solution

TTO

TTO thermal transfer overprinter applications

Thermal Transfer Overprinting specification


ItemsSpecifications
StructureAll-metal structure
Printing MethodThermal transfer printing
Resolution300 dpi (12 dots/mm)
Printing Speed40-600mm/s
Printing Width53 mm (300dpi)
Print Area53mm*75mm (Intermittent), 53mm*100mm (Continuous)
Processor32-bit RSIC processor
Flash Memory8MB (minimum)
Dynamic Memory16MB (minimum)
Real-time Clock Function STD, battery discharge life is at least 3 years
Sensor

Ribbon tension detection; thermal head position detection; cover open detection;

TPH over temperature detection; ribbon break detection

Flexible Packaging InspectionElectromagnetic induction or synchronizer
Flexible Packaging Materials

PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, CPP, PE,

VMPET, VMCPP and other films and composite films

Ribbon Capacity1 ”mandrel with a maximum length of 1100 meters
Ribbon TypeType: Wax / Resin;Resin width: 20 mm (0.79 ") to 55 mm (2.17")
Ribbon Saving

Support interlaced, radial, multiple print signals, digital ribbon saving printing,

ribbon back and other ribbon saving modes;The minimum ribbon interval

between two lines of printing is not more than 0.5m

Air SupplyMax. 6 bar/90 psi
Air ConsumptionAs low as 4 ml / print at 2.5 bar
Print Density LevelLevel 31
USB InterfaceSTD, 1 port, type B connector, USB device 2.0
USB Main InterfaceSTD, 1USB disk connection port ; USB Host 2.0, automatic detection and setting of connections
Serial PortSTD 1 port, female D-SUB 9-pin connectorDefault 9600, 8/N/1, variable baud rate and format
Ethernet InterfaceSTD 1 port, RJ-45 connector, IEEE802.3 10/100BASE-T
Hardware Interface PortInput: "Print Start" and a configurable input ; Outputs: fault, warning and 2 configurable outputs
Power SupplyInternal switching power supply module, I / P: AC90V-264V, 47/63 Hz; 150 VA
SoftwareHPRT Format Designer
Environmental Conditions

Operation: 0 to 40 ° C @ humidity 10% to 90% non-condensing

Storage: -40 to 60 ° C @ humidity 10% to 90% non-condensing

Machine Dimension

Printer: height less than 190 mm, width less than 220 mm, depth less than 236 mm

Controller: height less than 170 mm, width less than 263 mm, depth less than 190 mm

Machine WeightPrinter: less than 8 kg ;Controller: less than 5 kg
WarrantyPrinter: 3 years ; Controller: 3 years ;

Thermal head: 6 months or 50 KM;Platen: 5 years
