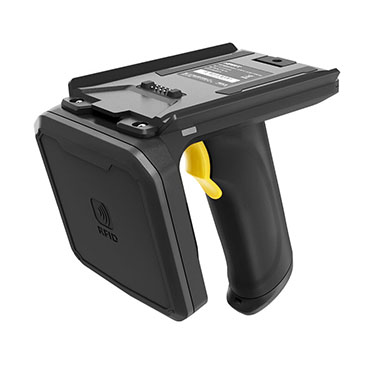

HPRT ultra-high frequency RFID reader-writer

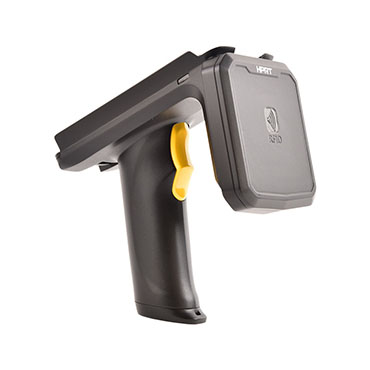

Handheld Ultra-High Frequency RFID Sled

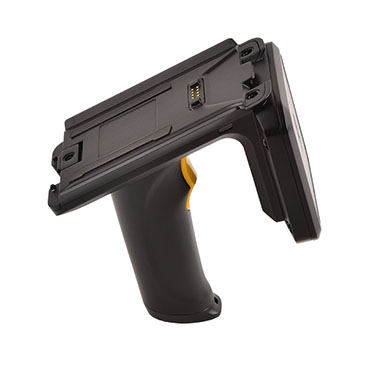

HPRT RFID reader-writer

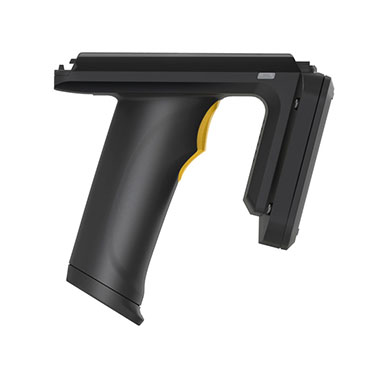

PDA with RFID reader-writer

Handheld Ultra-High Frequency RFID Sled

•  Excellent ultra-high frequency RFID reader-writer performance

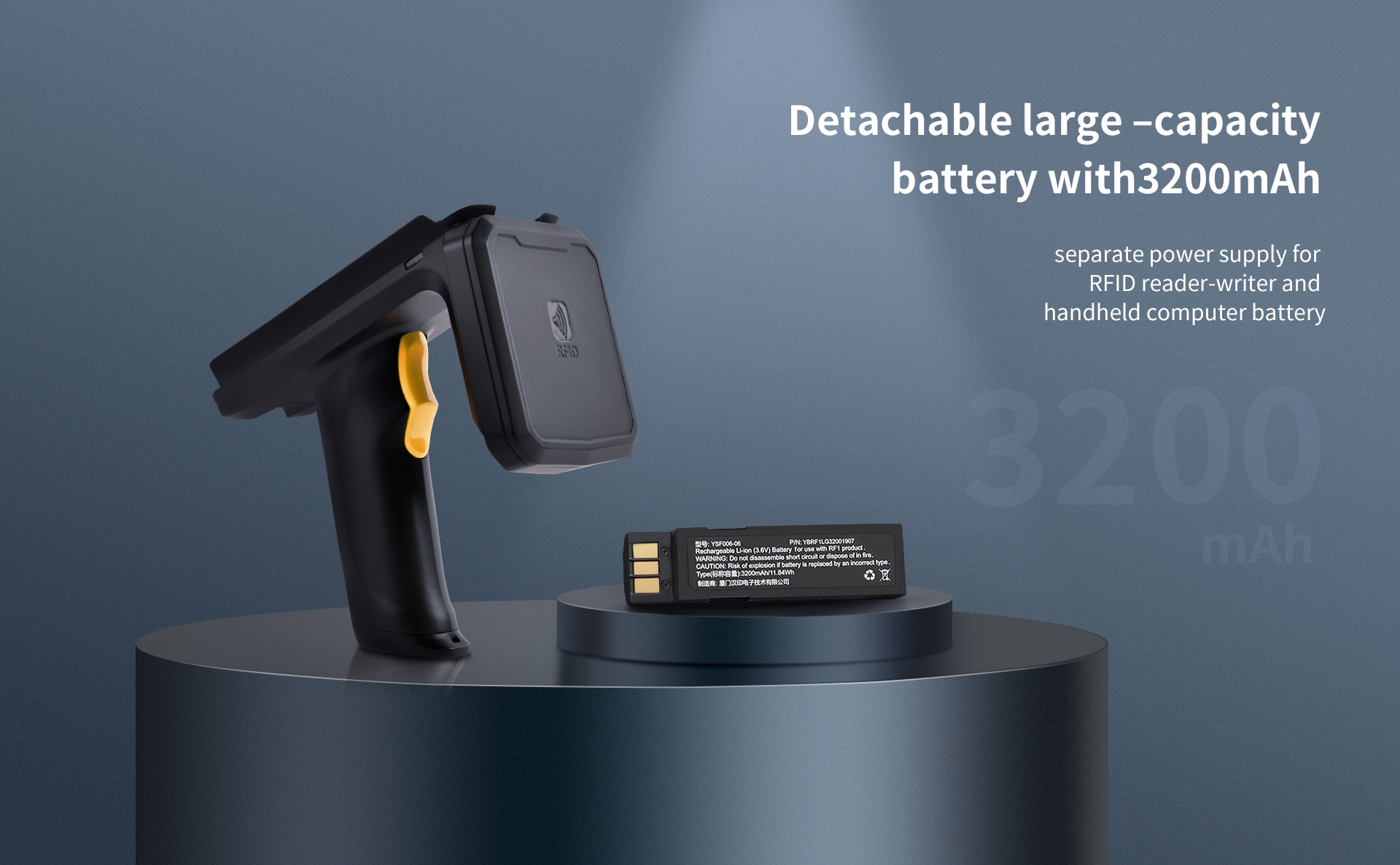

•  Large-capacity battery with 3200mAh

•  Separate power supply for RFID reader-writer and handheld device battery

•  Ergonomic design brings comfortable grip feeling

•  Tailored mounting kit to connect PDA with RFID reader-writer

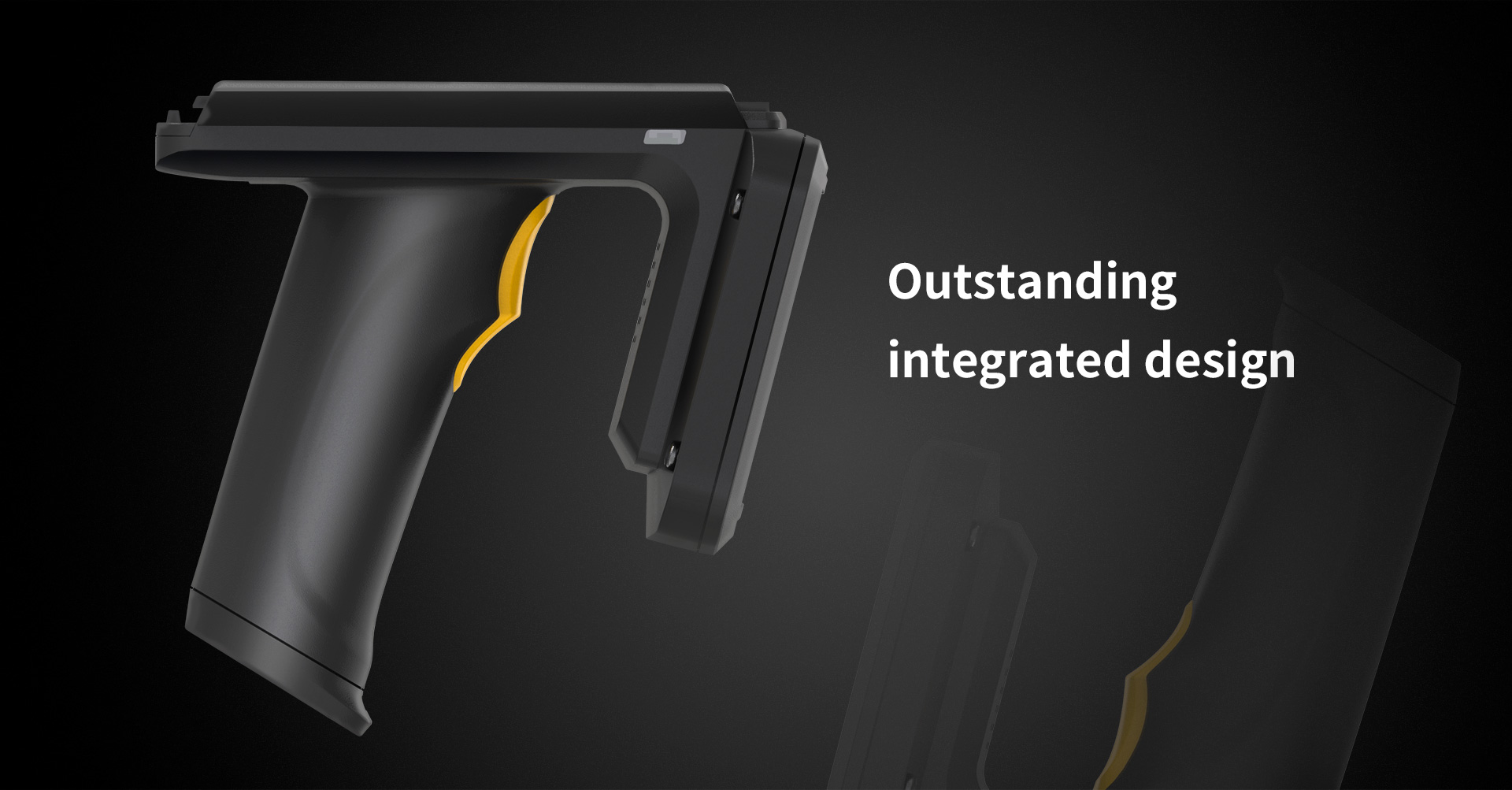

•  Novel appearance with all-in-one industrial design

•  Adopt double-colored injection molding for the housing

HPRT ultra-high frequency RFID reader-writer
Handheld Ultra-High Frequency RFID Sled
HPRT RFID reader-writer
PDA with RFID reader-writer

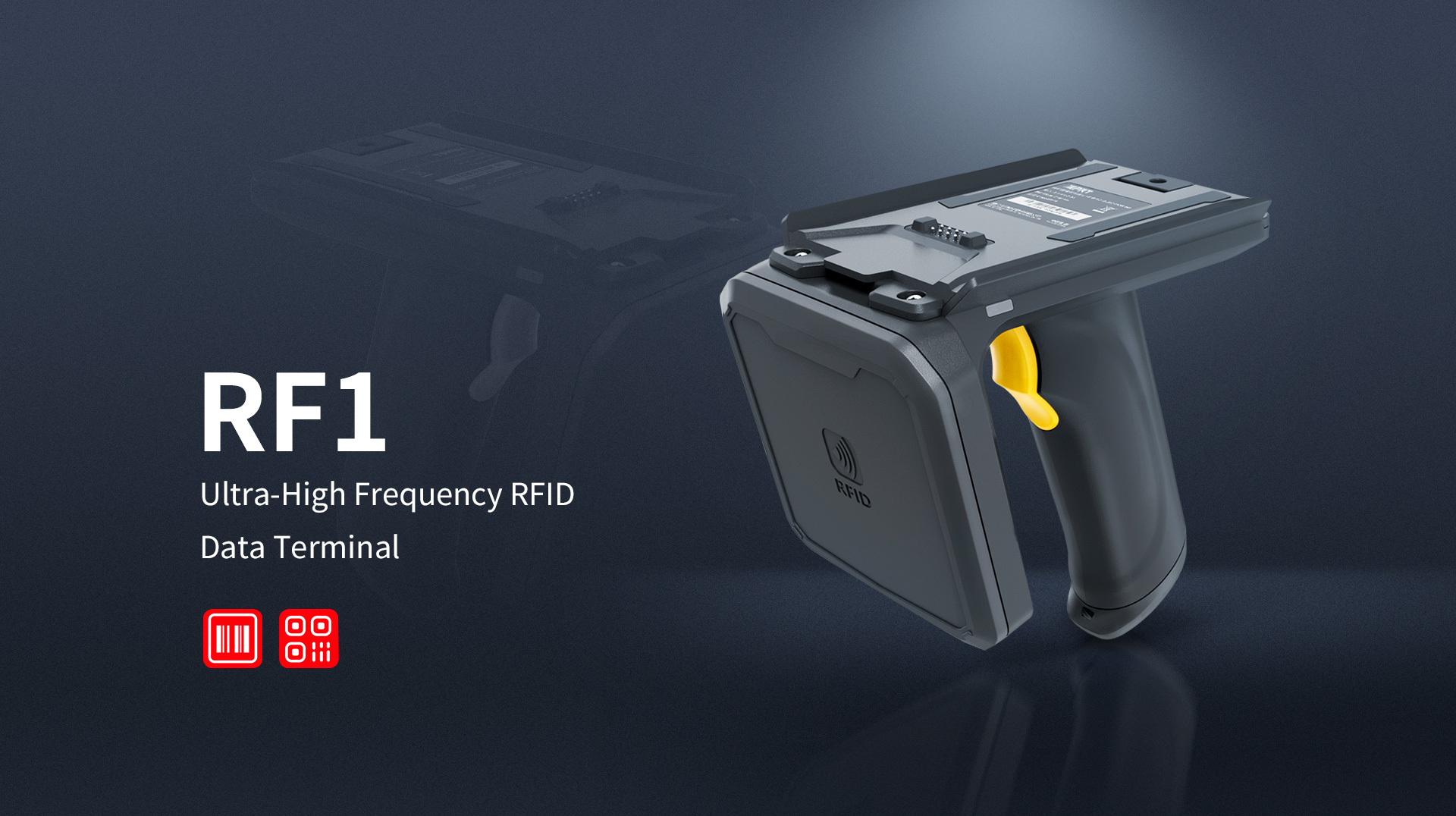

RFID Data Terminal

Handheld Ultra-High Frequency RFID Sled RF1

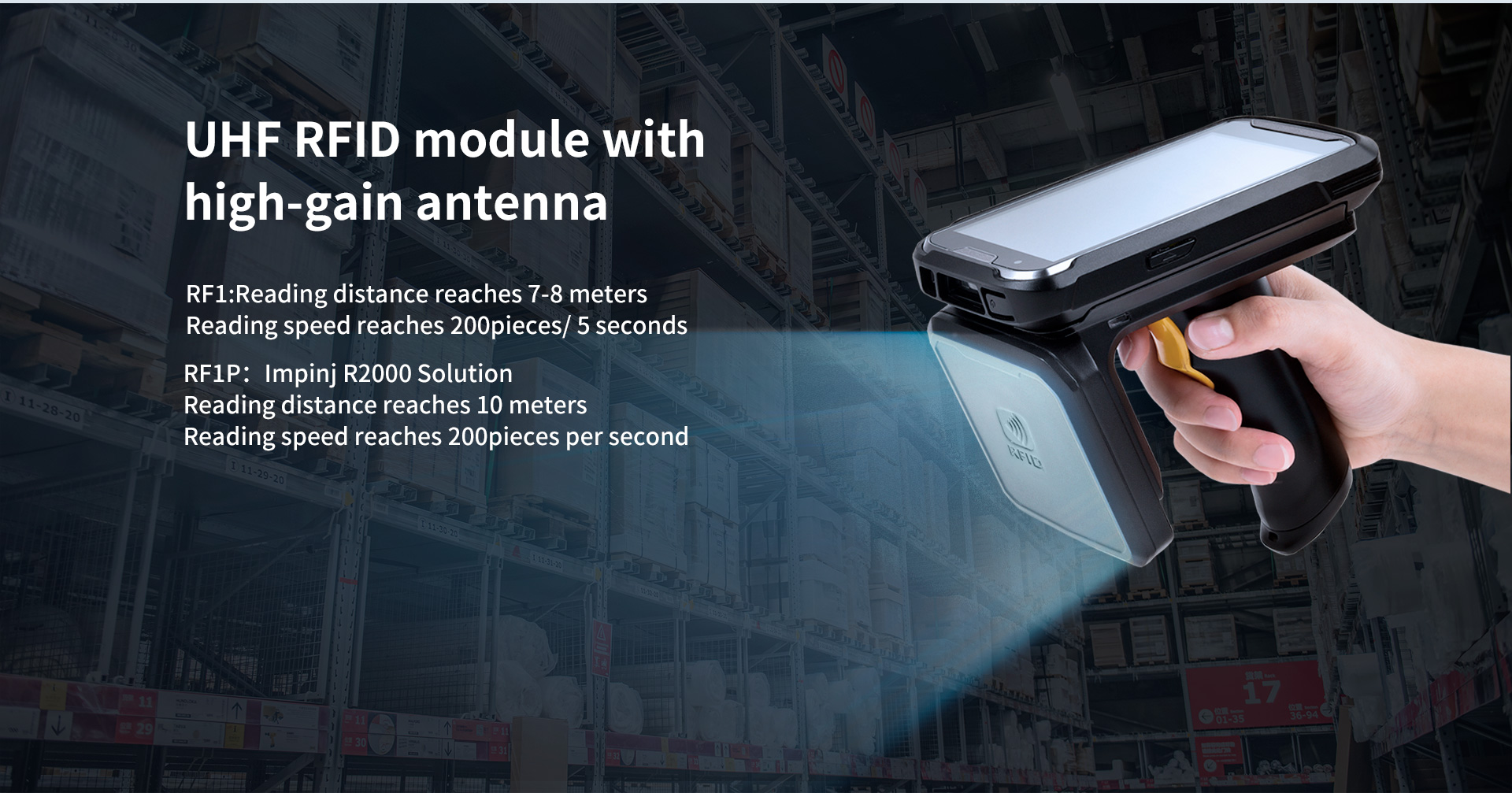

UHF RFID module with high-gain antenna

RFID reader-writer

Logistics Barcode Scanner

warehousing management

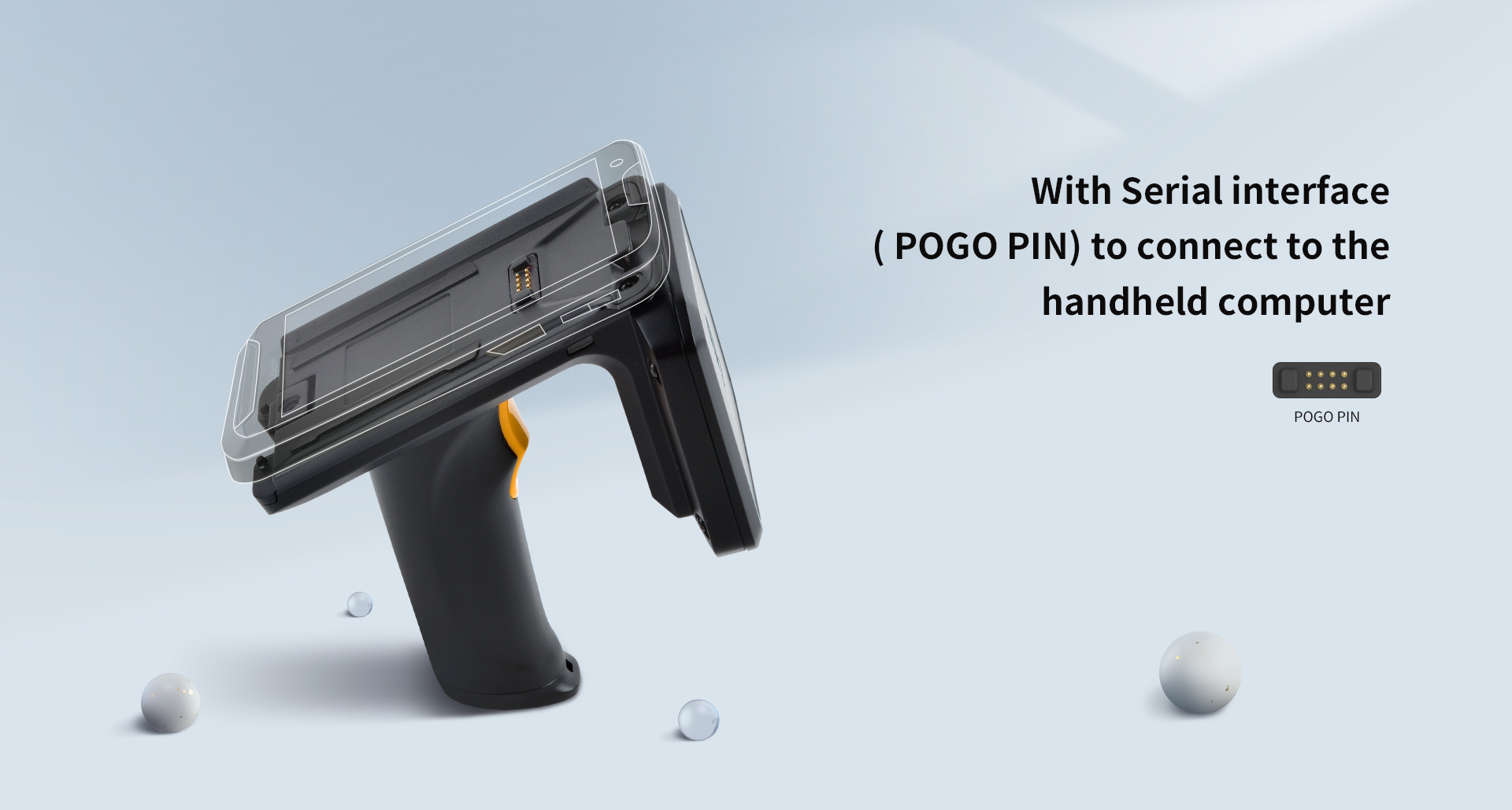

Communication InterfaceSerial interface (POGO PIN)
Connection MethodThrough connecting the handheld device sleeve accessories with handheld device
RFID ModuleSupport EPC Class 1 Gen 2(ISO 18000-6C) protocol
Working frequency 840~960MHz

1W(30dBm, Supporting +5~+30dBm adjustable)

Circularly polarized antenna (3.5dBi)

Typical reading distance can reach 5 meters (reading distance is relevant to the label and environment)

LED Indicator2 simultaneous LED indicators, showing red, green, yellow and blue
Battery3200mAh detachable Lion battery, with charging time of 3 hours
Protection LevelIP54
Charging Power Supply5V/2A charge by desktop charging cradle
Working Environment
Working temperature: -20℃ to 50℃;storage temperature: -40℃ to 60℃
