CP-D80
OVERVIEW TECH SPECS DOWNLOADS
14adedbf7d840973a5777d9719693a37
cbf9fc5dad62fae1bfe247a6950d0d10
f879a9a90e3cd5ccb648fbbcfa386e11
70490df64d65141922e89e21f90542ca

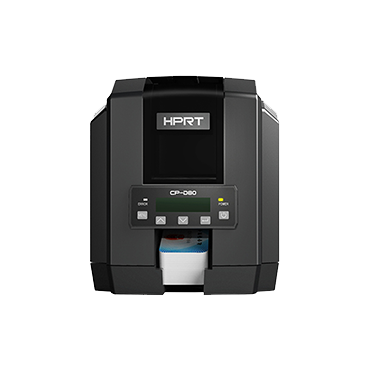

Card Printer

•  Low-cost printing
•  Full-color printing in 24 seconds
•  Secure and anti-counterfeiting printing
•  Large capacity card hopper
•  Support rewrite card
•  Dual-sided printing for increased flexibility
•  Tailored card designer software

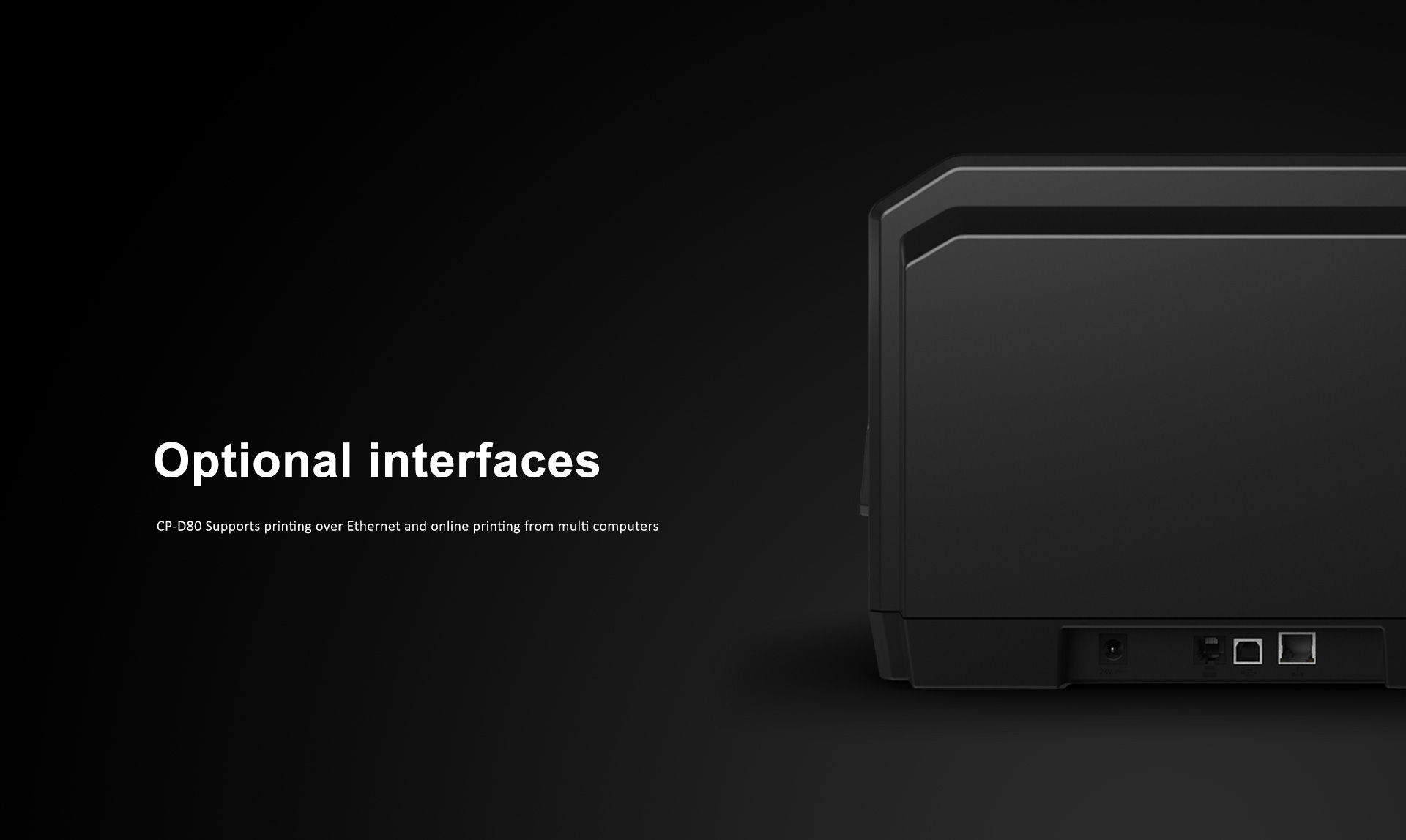

•  Support printing over Ethernet
•  Support multiple OS
•  Abundant card design templates

14adedbf7d840973a5777d9719693a37
cbf9fc5dad62fae1bfe247a6950d0d10
f879a9a90e3cd5ccb648fbbcfa386e11
70490df64d65141922e89e21f90542ca

ModelCP-D80
Print TechnologyDirect to card
Print resolution300dpi (optional 600dpi)
ColorsUp to 16 million/ 256 shades per pixel

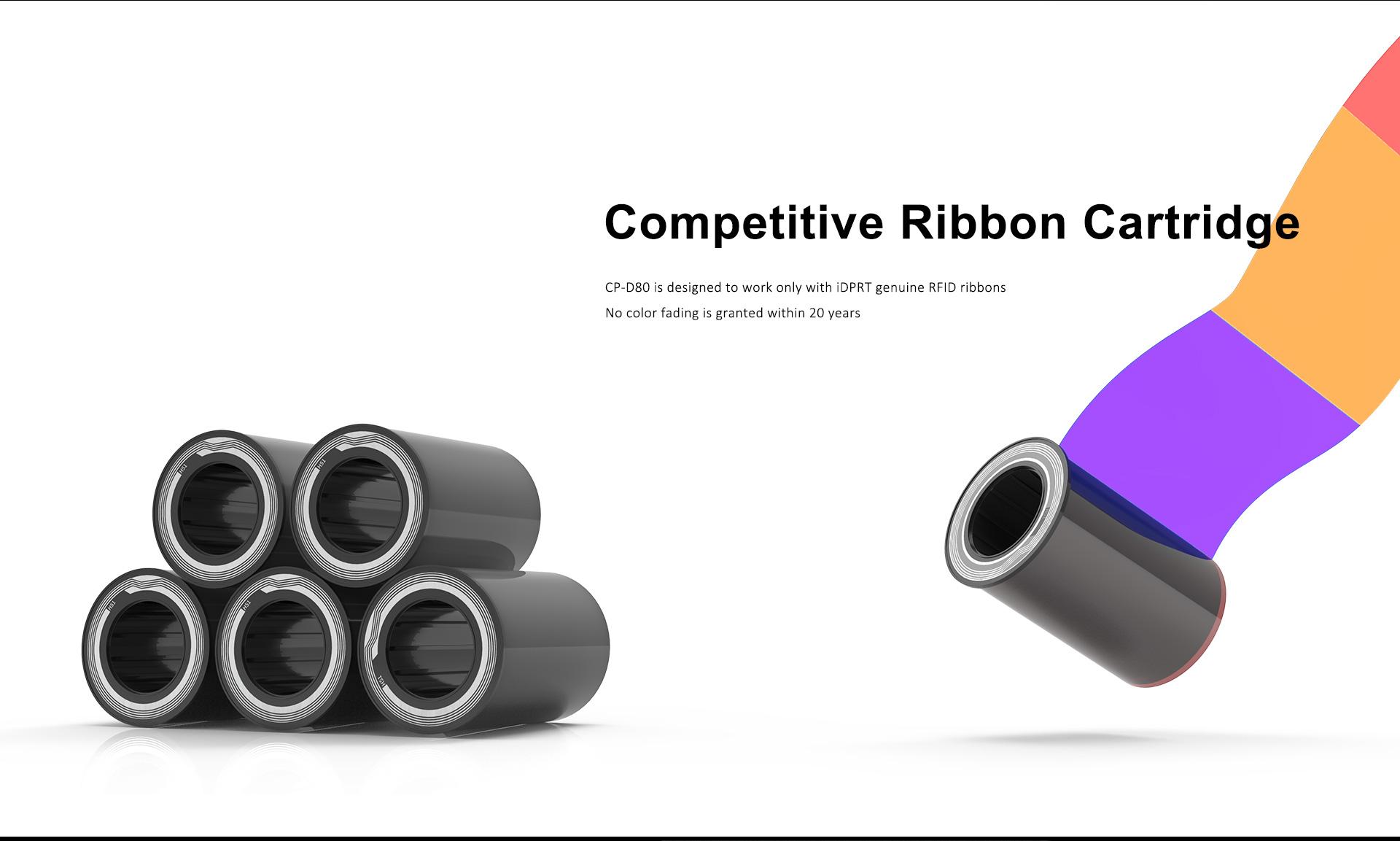

Print RibbonFull-color: YMCKO; resin black and overlay: KO
Print Speed

Full-color printing: Up to 150 cards per hour printing cards on one side (YMCKO);

Up to 100 cards per hour printing cards on two sides(YMCKO-K)

Accepted Standard Card SizesCR-80: 85.6x53.98mm
Accepted Card Thickness0.76-1.02mm
Accepted Card Types

PVC or polyester cards with polished PVC finish; monochrome resin required

for 100% polyester cards; optical memory cards with PVC finish; rewrit

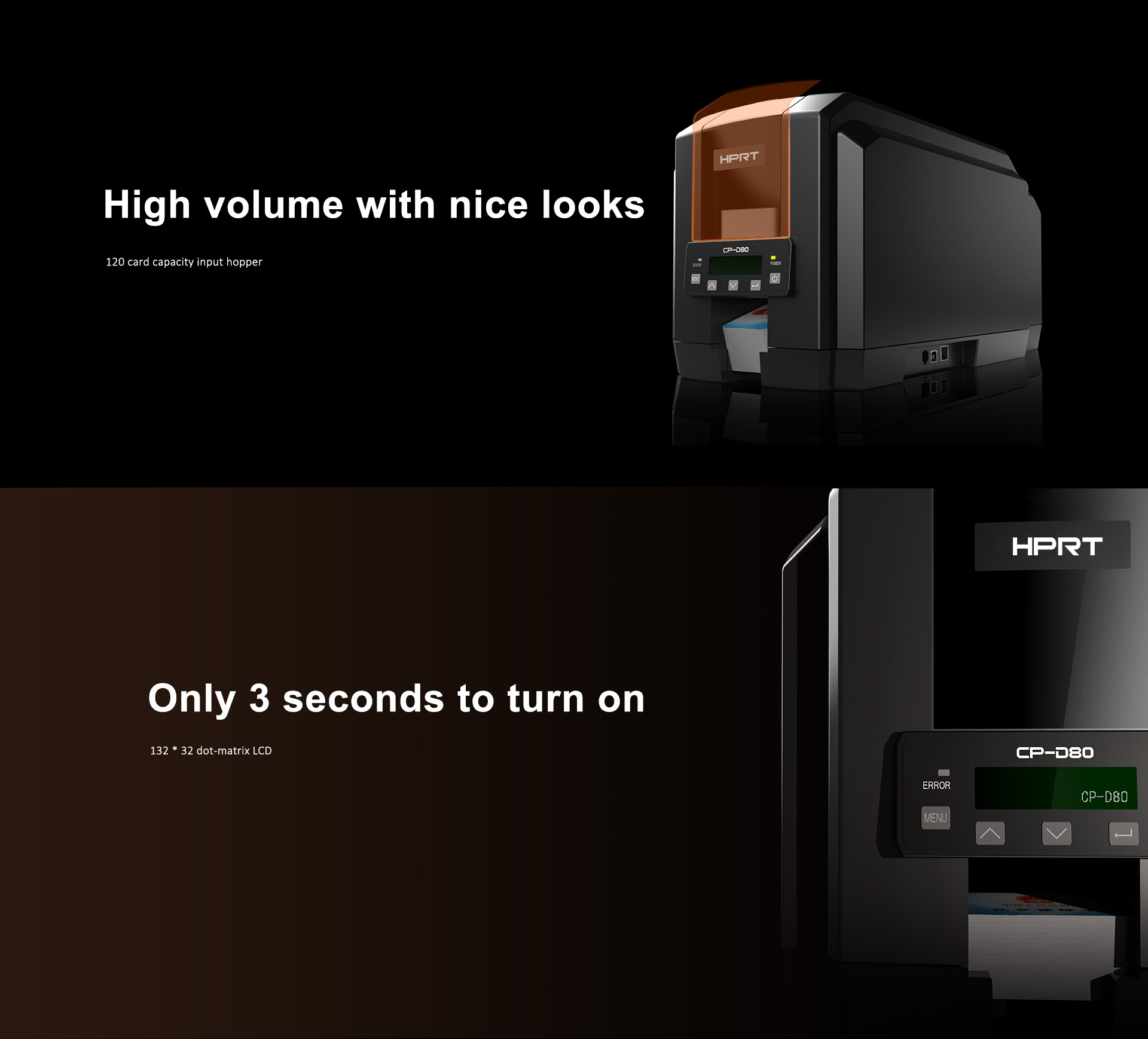

Input Hopper Card Capacityup to 120 cards(0.762mm)
Output Hopper Card Capacity

up to 30 cards(0.762mm)

CPU

ARM Cortex-M4 32bit MCU

Memory8MB RAM
Support OS

Windows® 7(32bit and 64bit), Windows® 8.1(32bit and 64bit),

Windows 10(32bit and 64bit)

Interface

USB2.0 and Ethernet

Display and Keyboard132x32 dot-matrix LCD

LED display: Red(Warning)、 Green(Power)

5 buttons with Power、 Up and down keys、 Enter、 User

Options

Two-sided printing module

Support smart card: 13.56 MHz(iMIFARE、 ISO 14443 A/B、 ISO 15693)

Support contact smart card encoder reads from and writes to all ISO7816 1/2/3/4

memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards

Support magnetic stripe card: ISO magnetic stripe encoding, dual high- and

low-coercivity, tracks 1, 2 and 3

Power Supply24V, 4A
CertificationCCC、 CE、 FCC Class A、 UL
