HT300/HT330
OVERVIEW TECH SPECS DOWNLOADS

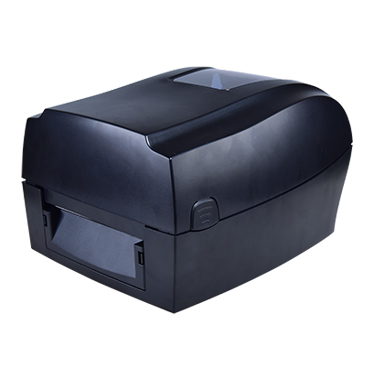

thermal transfer pcb printer

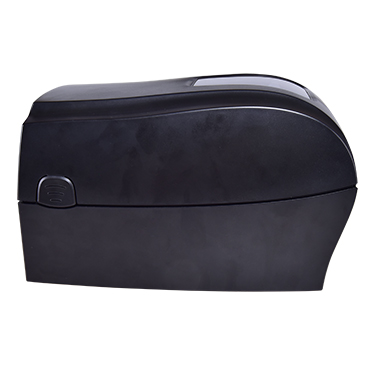

Thermal transfer paper printer

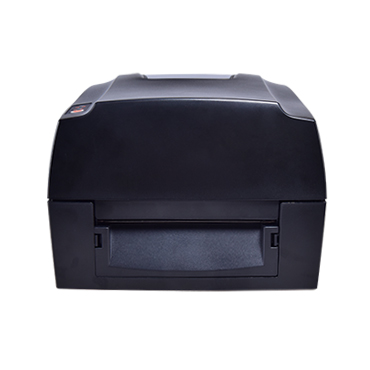

Color Thermal Transfer Printer

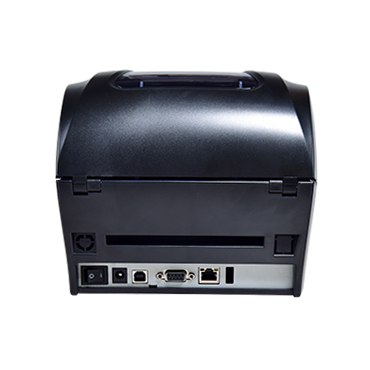

HD Thermal Transfer Printer

4" Thermal Transfer Label Printer

•  Thermal transfer printing with 300m ribbon
•  Large window vision supported
•  Various type of media sensor enabled
•  Fast printing speed,more stability and durability

thermal transfer pcb printer
Thermal transfer paper printer
Color Thermal Transfer Printer
HD Thermal Transfer Printer

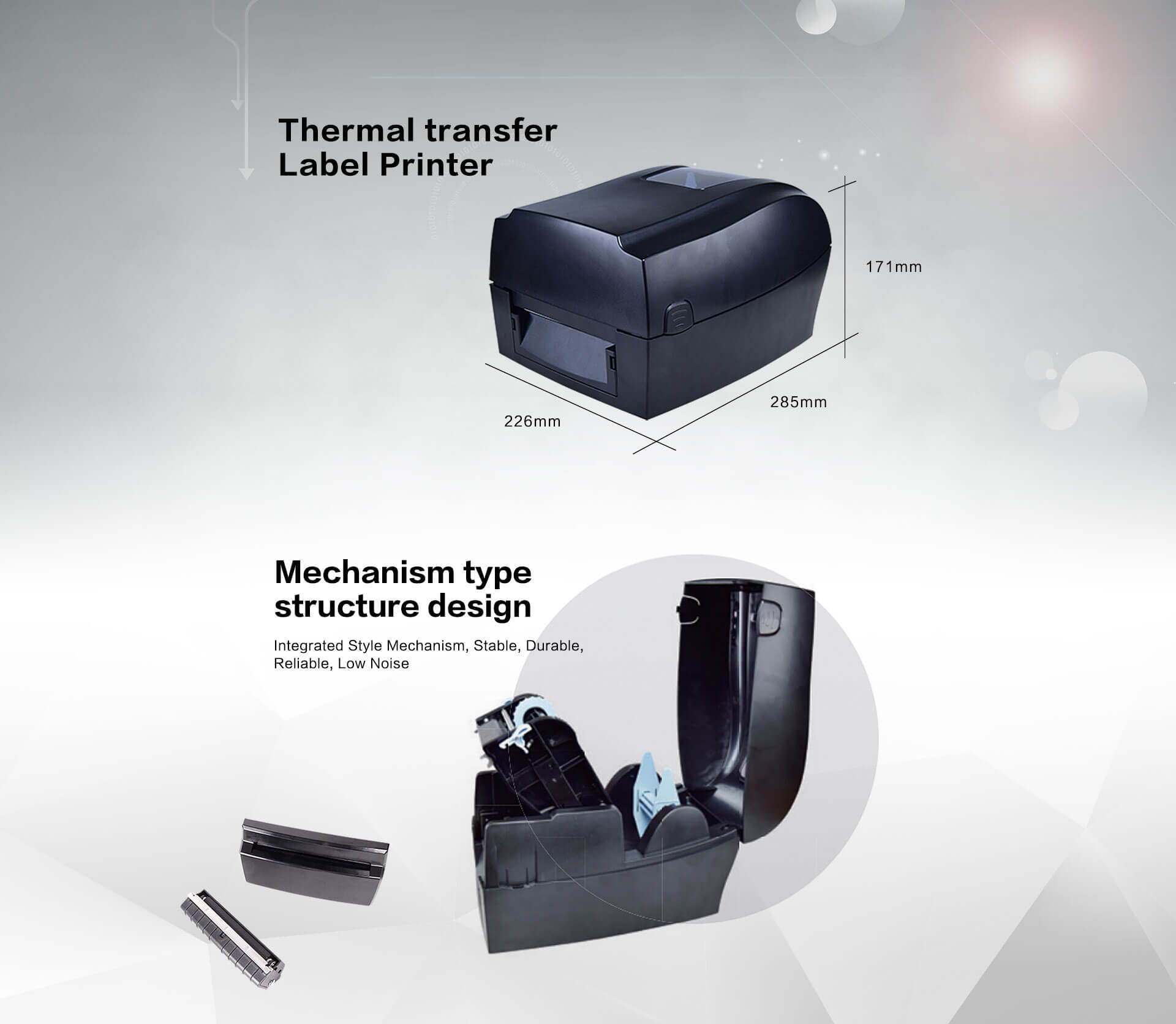

durable label printer

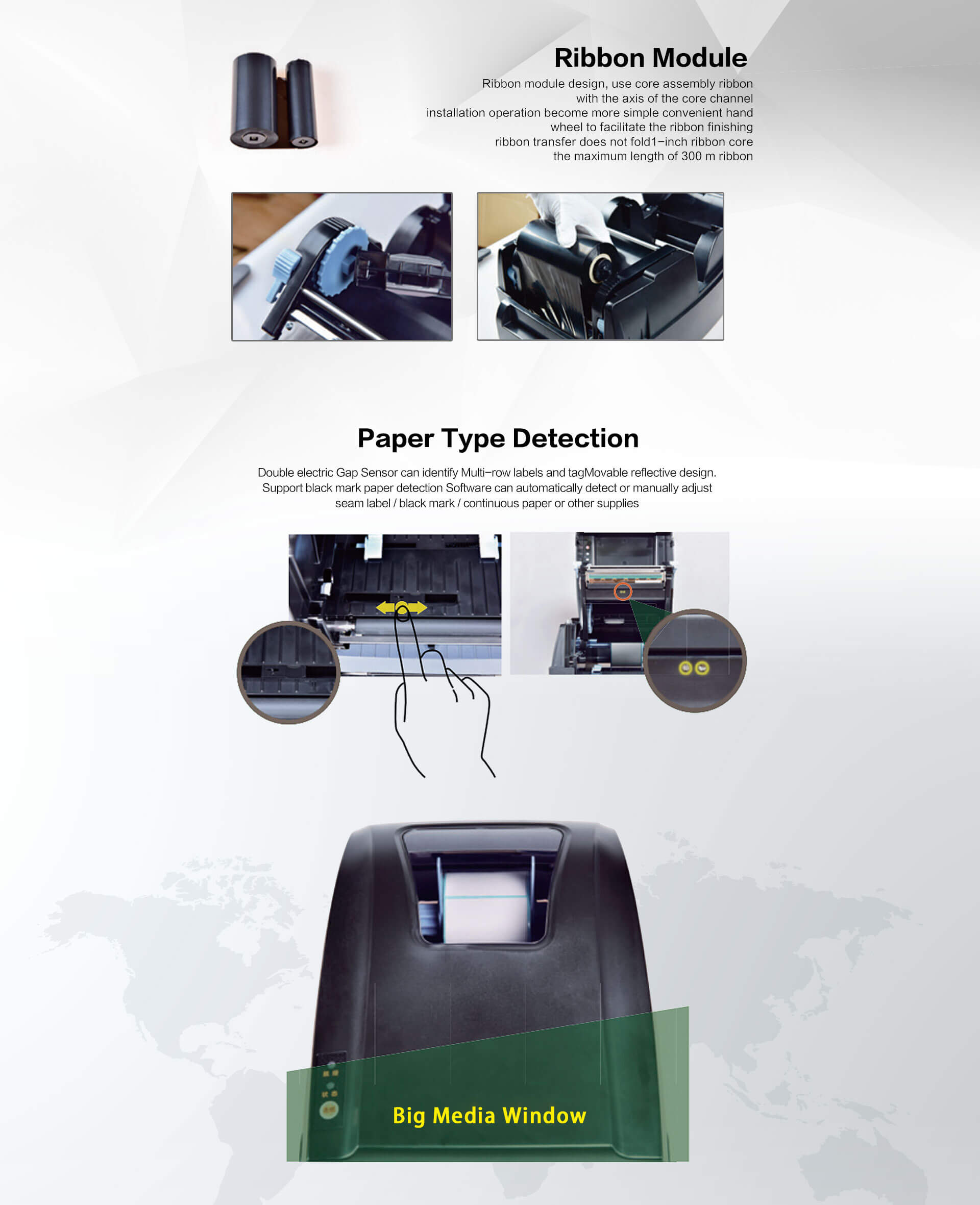

label printer roll module design

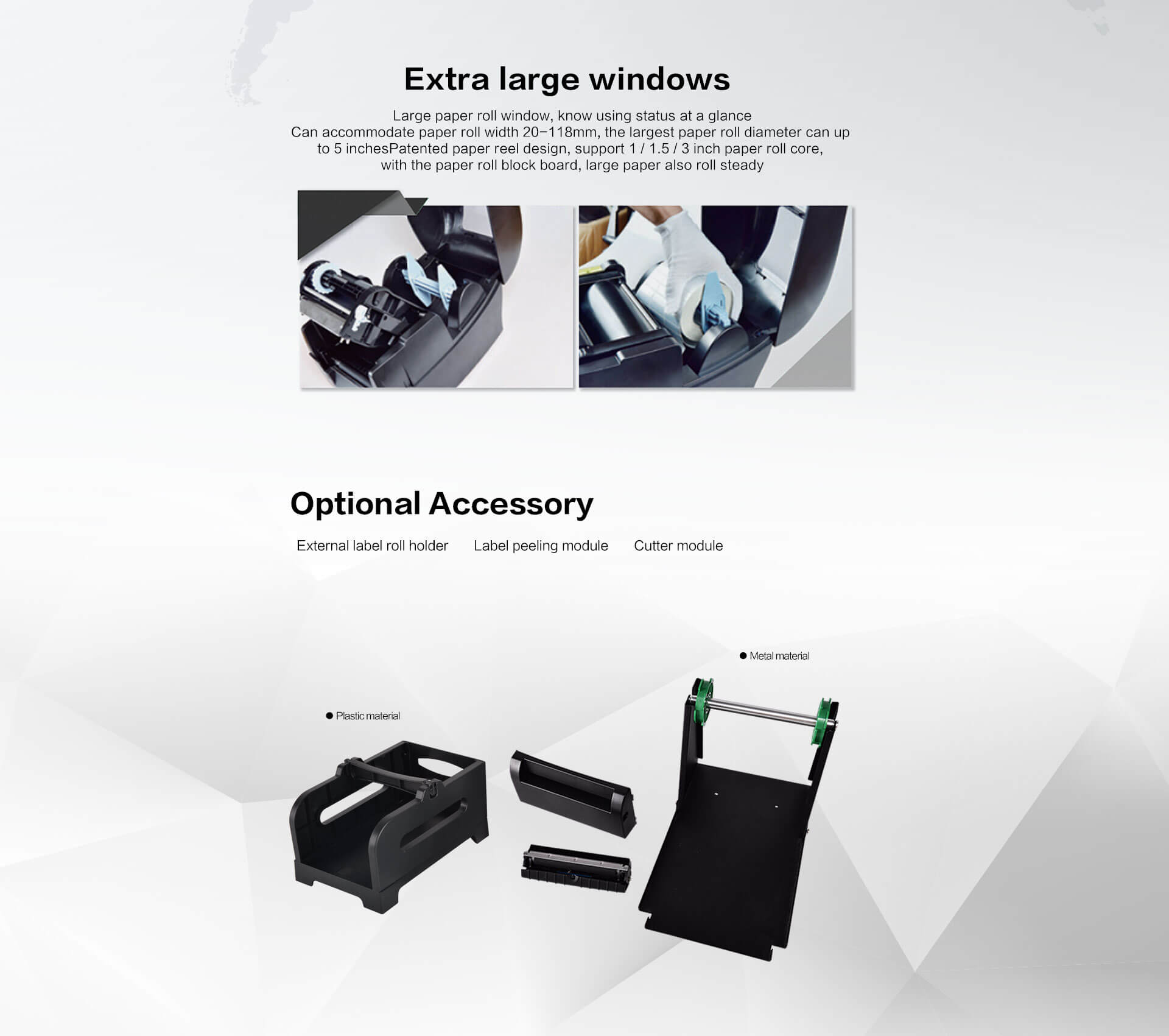

HPRT label printer HT300 with large paper roll

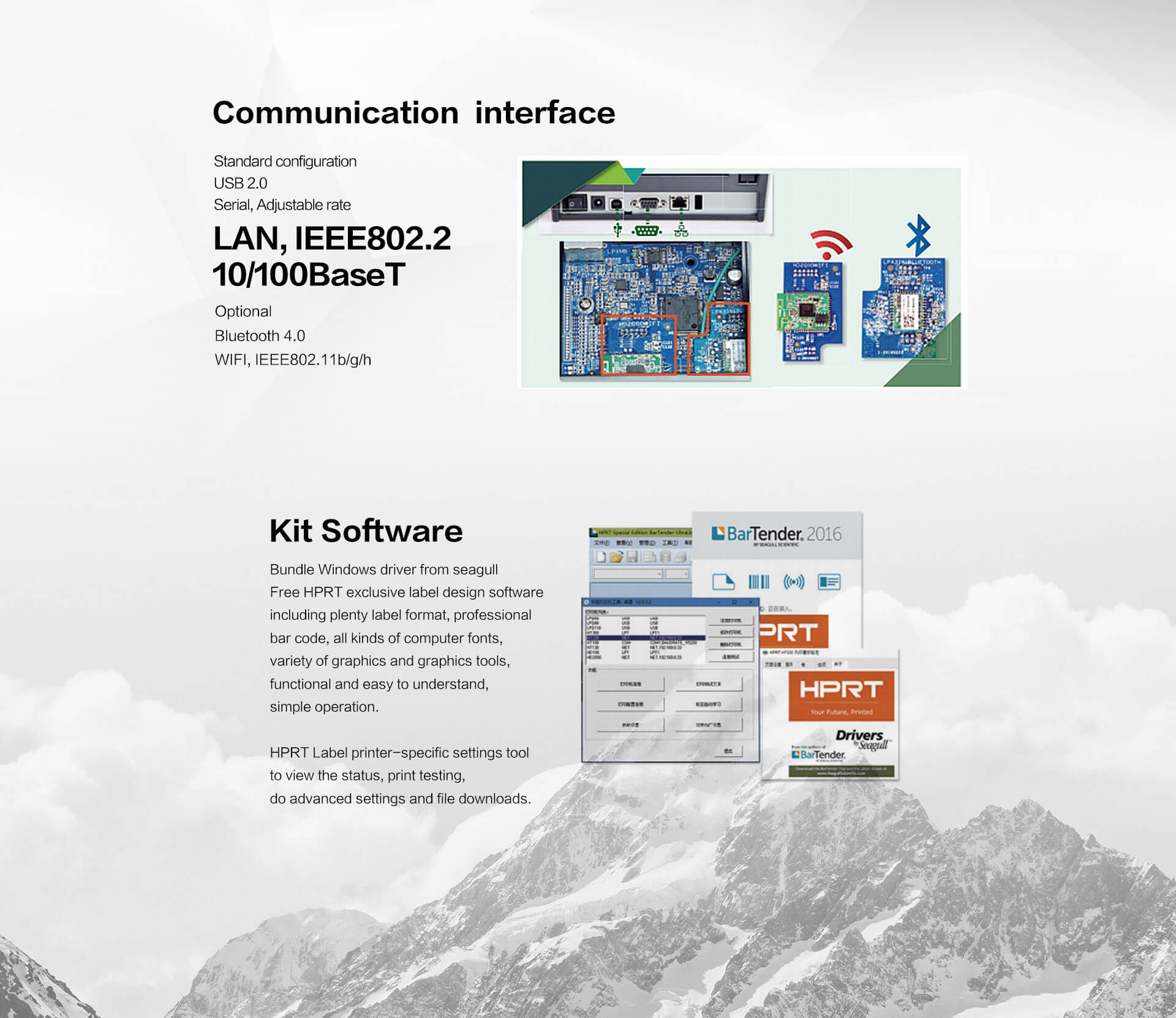

multiple interfaces label printer

ModelHT300HT330
Printing MethodDirect Thermal / Thermal Transfer
Resolution203 dpi(8 dots/mm)300 dpi(12 dots/mm)
Printing Speed2 ips ~ 5 ips2 ips ~ 4 ips
Printing Width25.4 mm ~ 108 mm25.4mm ~ 106mm
Programming LanguageTSPL, ZPL, EPL
BarcodeBarcodeCode 39, Code 93, Code 128UCC, Code 128, Codabar, Interleave 2 of 5, EAN8, EAN13, UCC/EAN128, UPC-A, UPC-E, MSI, PLESSEY, POSTNET,RSS-Stacked, GS1 DataBar, Code 11
2D Code
QR Code, PDF417, DataMatrix, Aztec
Printing Length15 mm ~ 1200 mm
MediaTypeRoll-fed, Fan-fed, Die-cut, Continuous Label, Tag stock
Diameter(Media Roll)127 mm
Thickness80 μm ~ 180 μm
Diameter(Core)0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
Ribbon
Type
Wax, Resin/Wax, Resin
Length
300 m
SensorsGap SensorTransmissive (Fixed)
Black Mark Sensor
Reflective (Adjustable, Half-Range)
OtherHead-Up Sensor, Ribbon End Sensor, Paper Out Sensor
InterfaceStandardUSB Type-B, Serial Port, Ethernet
OptionalBluetooth
HICButtonFeed
Indicator LightReady Sig.(Green), Status Sig.(Red)
Power AdapterInputAC 100 ~ 240V, 50/60 Hz
OutputDC 24V, 2.5A
Input VoltageAC 100V ~ 240V, 50/60Hz
ReliabilityTPH50 km
MemoryRAM32 MB
ROM16 MB
SoftwaresDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDKWindows, MacOS, Android, iOS
Options and AccessoriesExternal 8-inch Label Roll Holder
Cutter Module (H4GC, Black)
Peeler Module (H4P, Black)
Physical Characteristics285(L)×226(W)×171(H) mm
Empty Weight2.26 kg
Agency ApprovalsCCC, FCC, CE

Drivers and Manuals

Stay up-to-date with the latest downloads for your HPRT Printer
