HD2000
OVERVIEW TECH SPECS DOWNLOADS
Thermal Labeling Machine
Embedded Thermal Label Printer
Portable Thermal Label Printer
Thermal Barcode Label Printer

4" Thermal Label Printer

•  Most solid and durable outline
•  Use-friendly control panel and detailed LCD screen
•  High printing speed up to 180mm/s
•  Metallic outside cover and mechanism enclosure

•  Auto label detection

Thermal Labeling Machine
Embedded Thermal Label Printer
Portable Thermal Label Printer
Thermal Barcode Label Printer

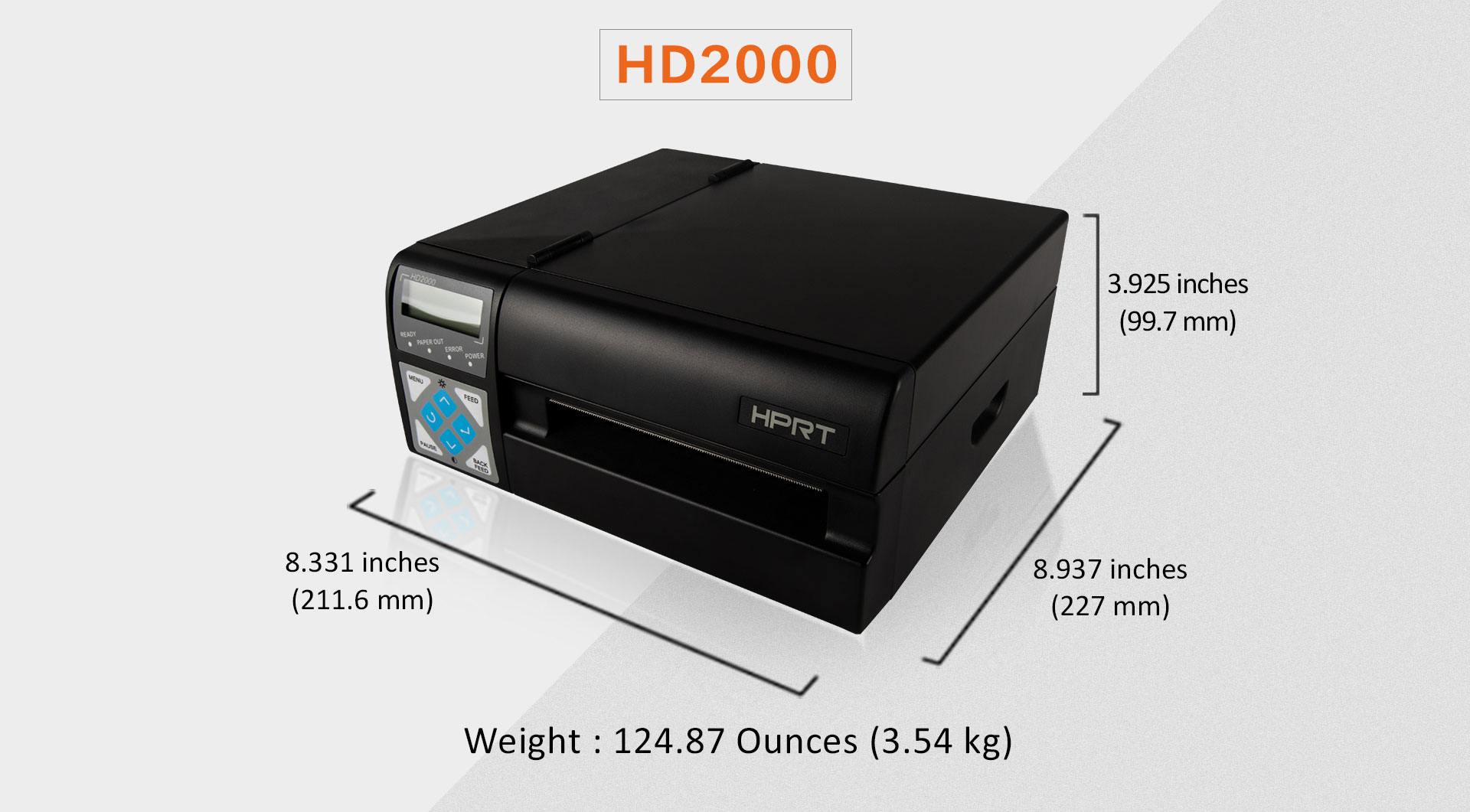

HPRT HD2000 sizes and weight

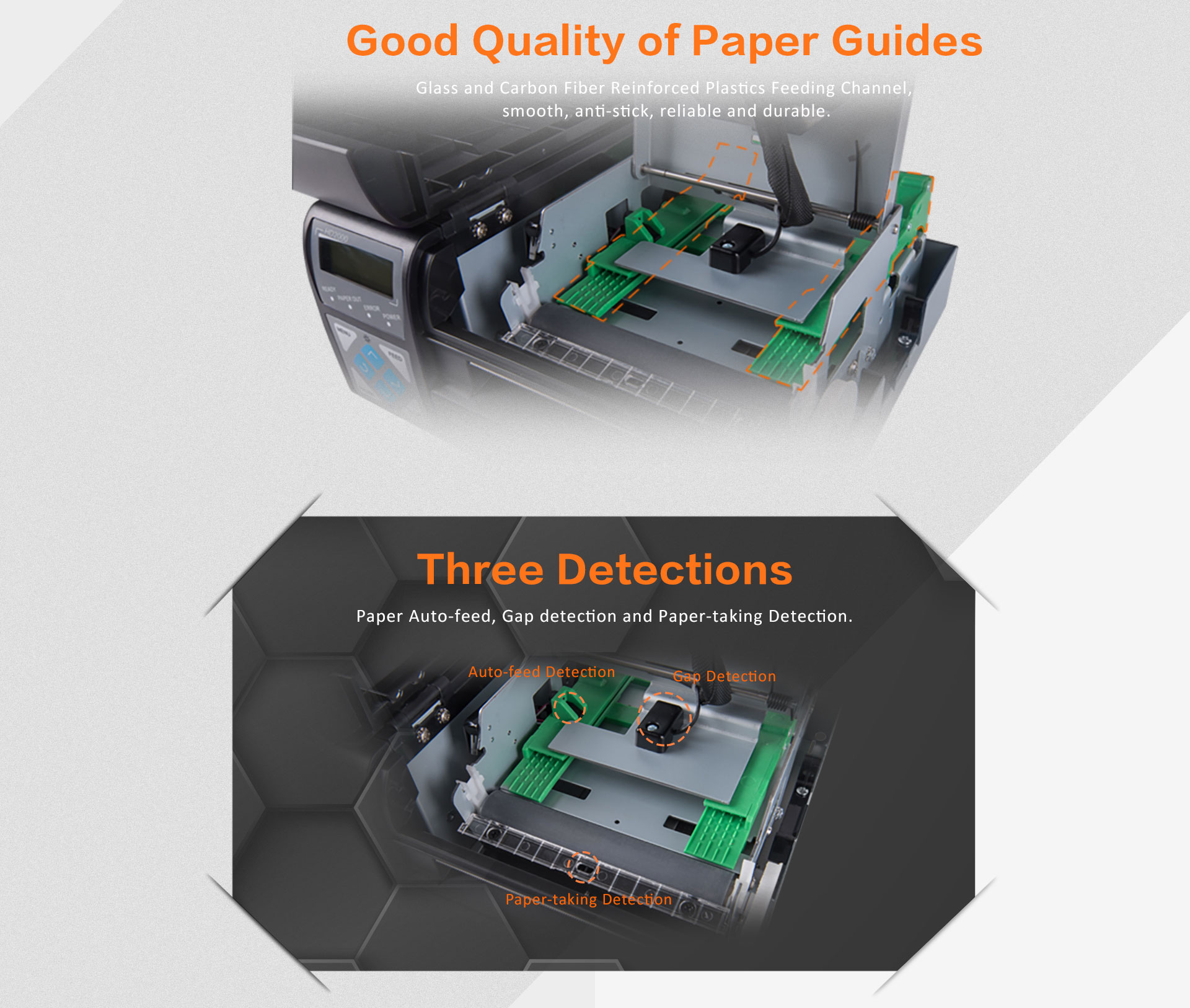

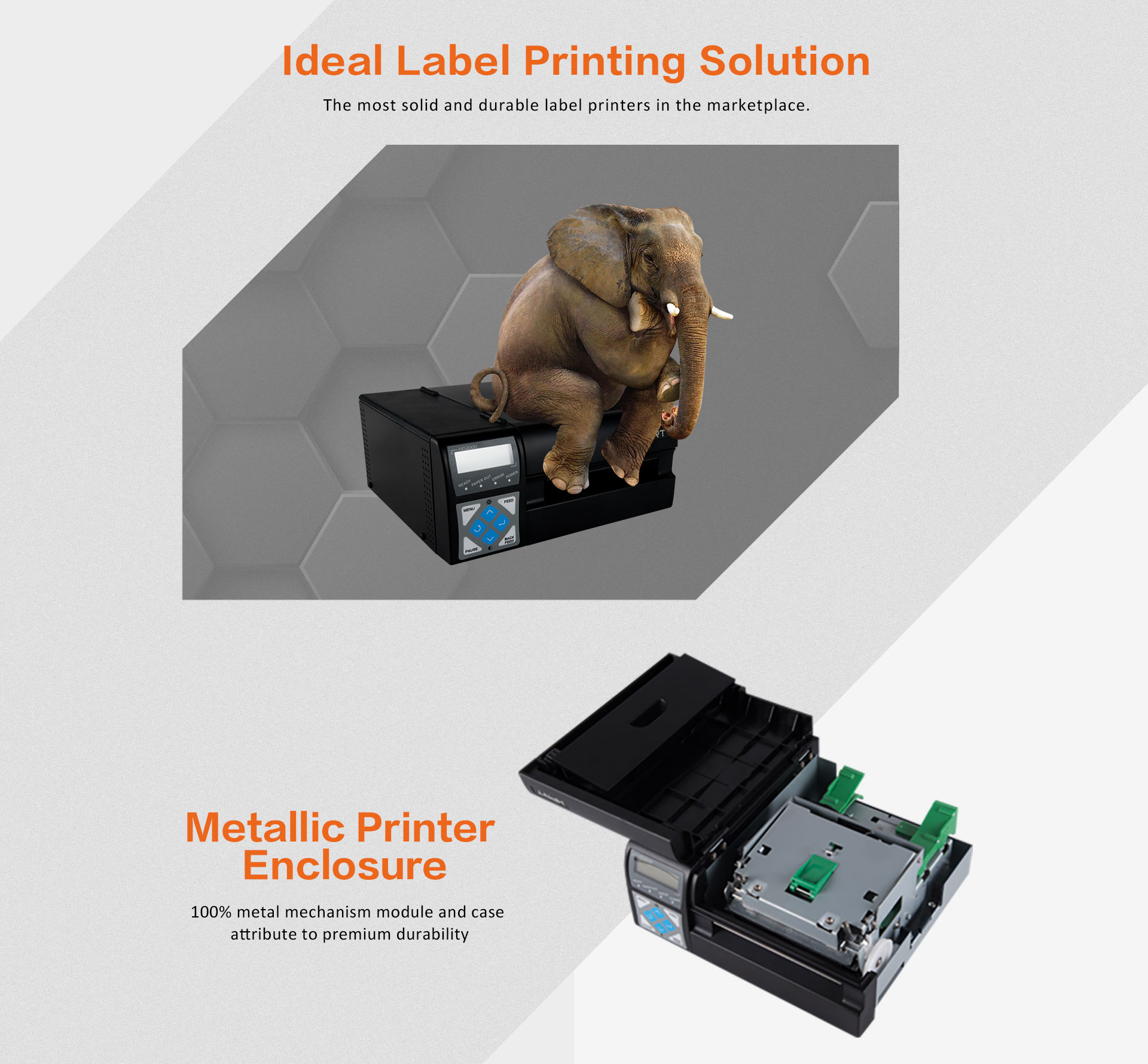

Highly Durable Thermal Label Printers

fast printing thermal label printers

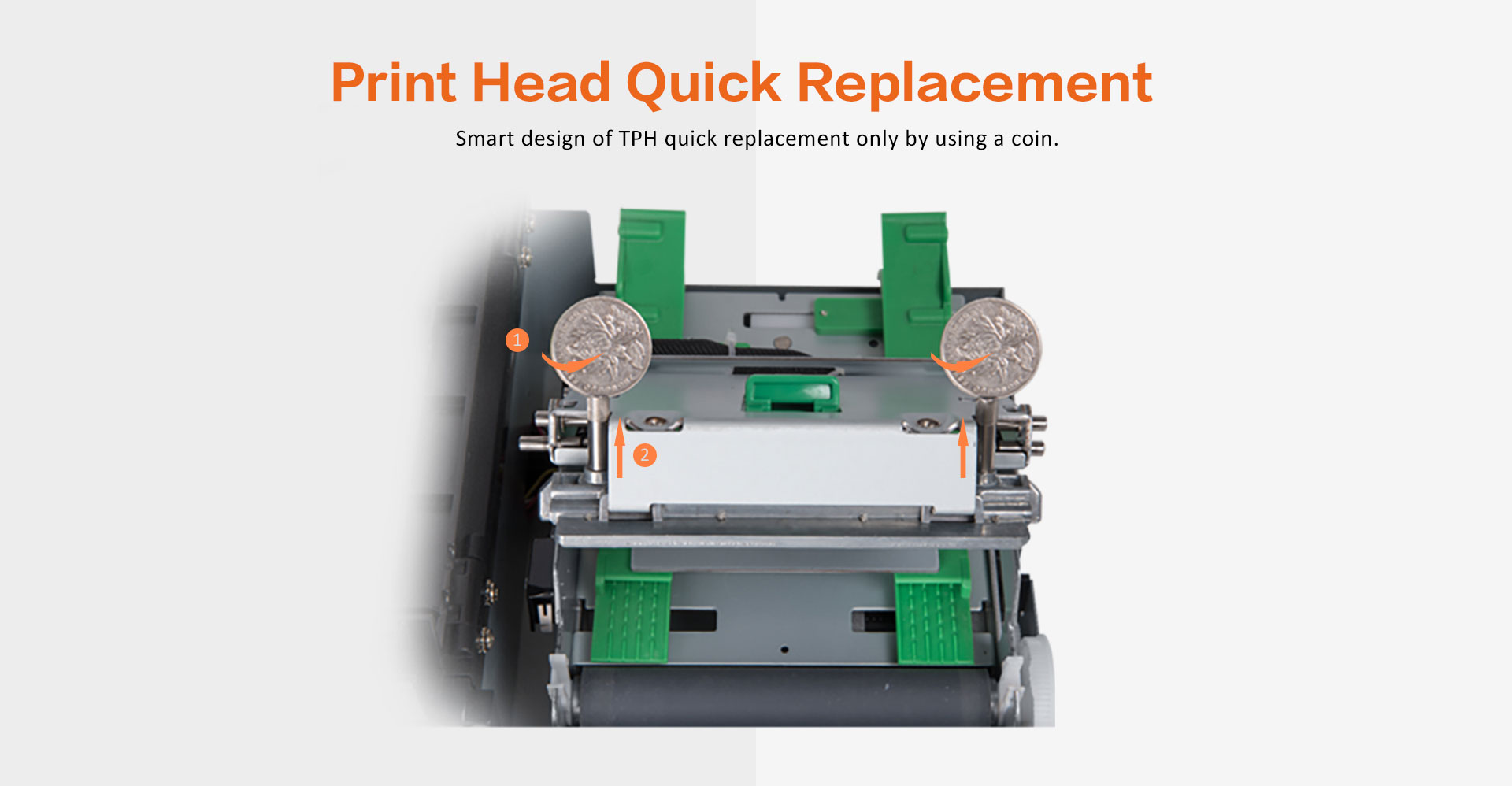

quick TPH replacement label printer

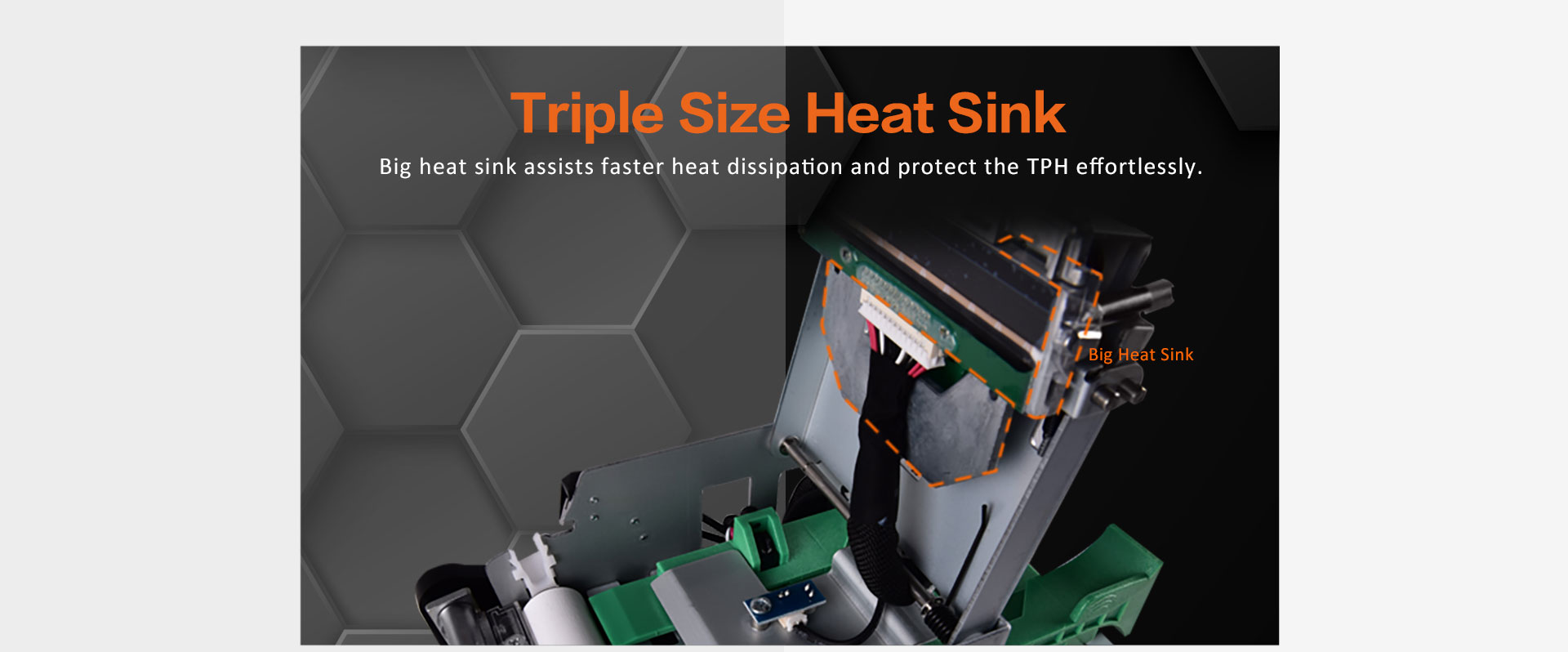

TPH heat dissipation design

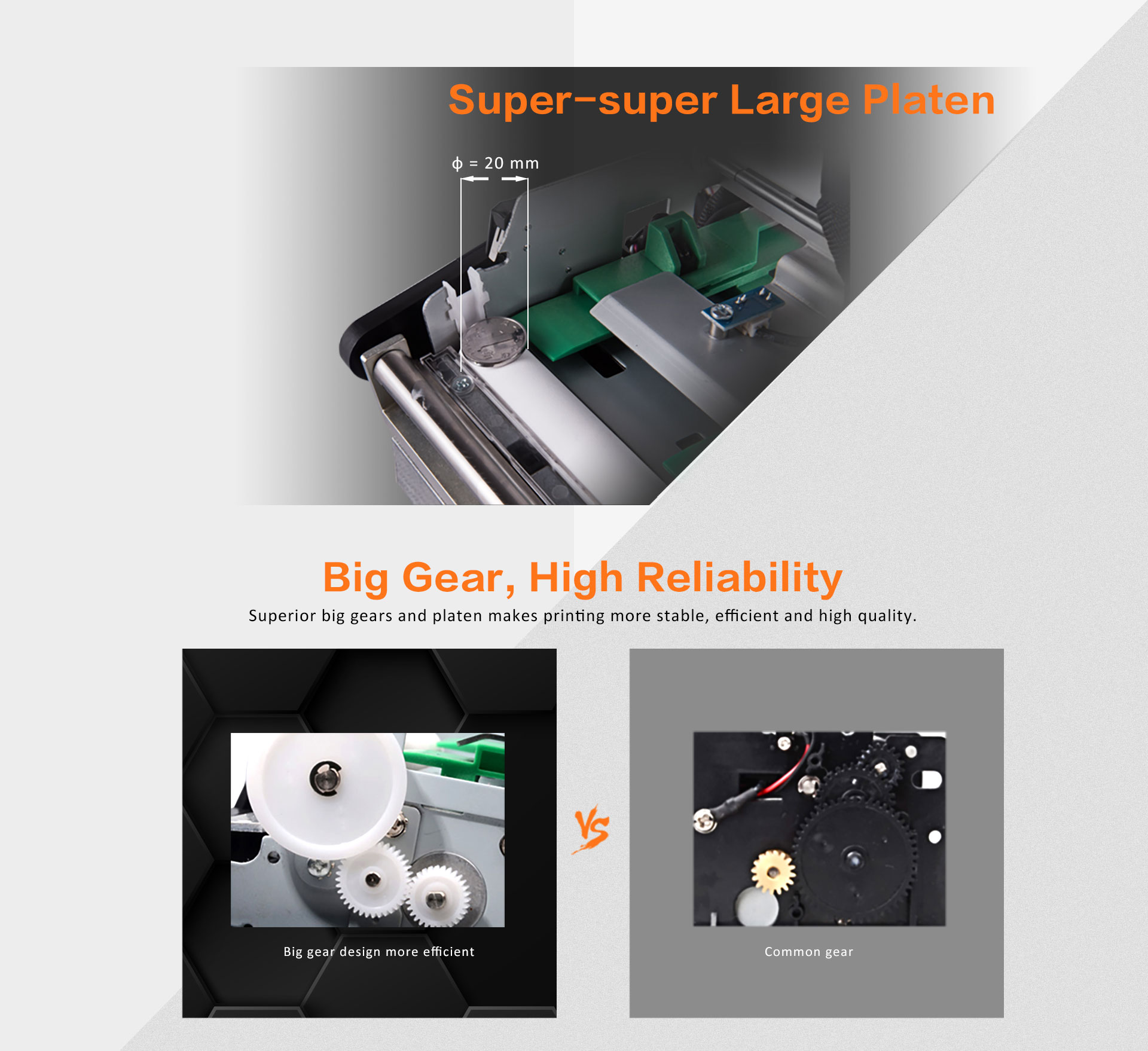

Big gear and platen thermal label printer

label printer design

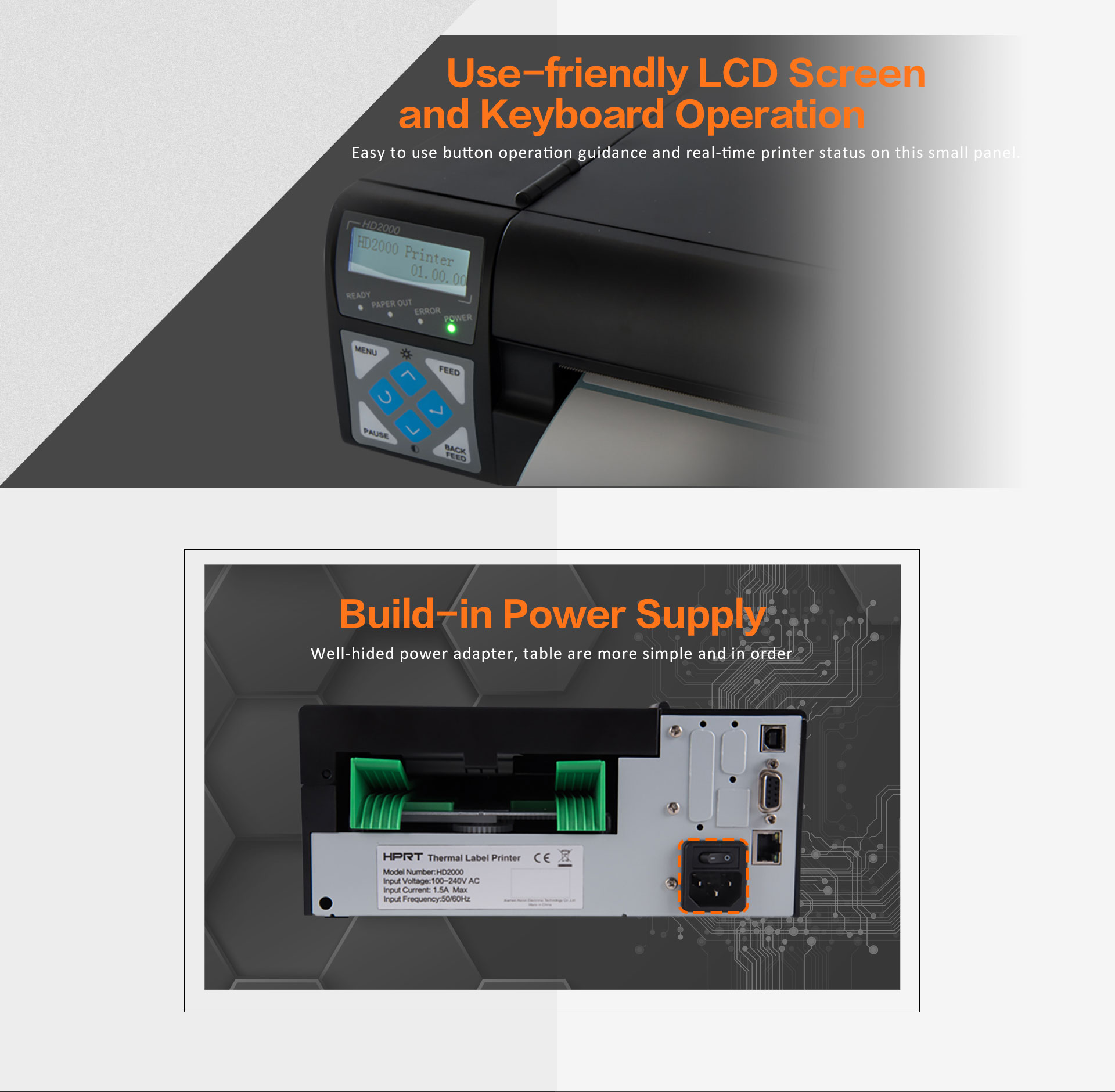

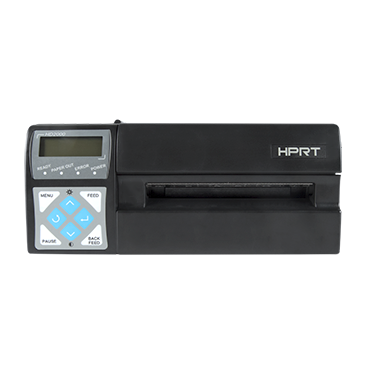

thermal label printer with detailed LCD screen

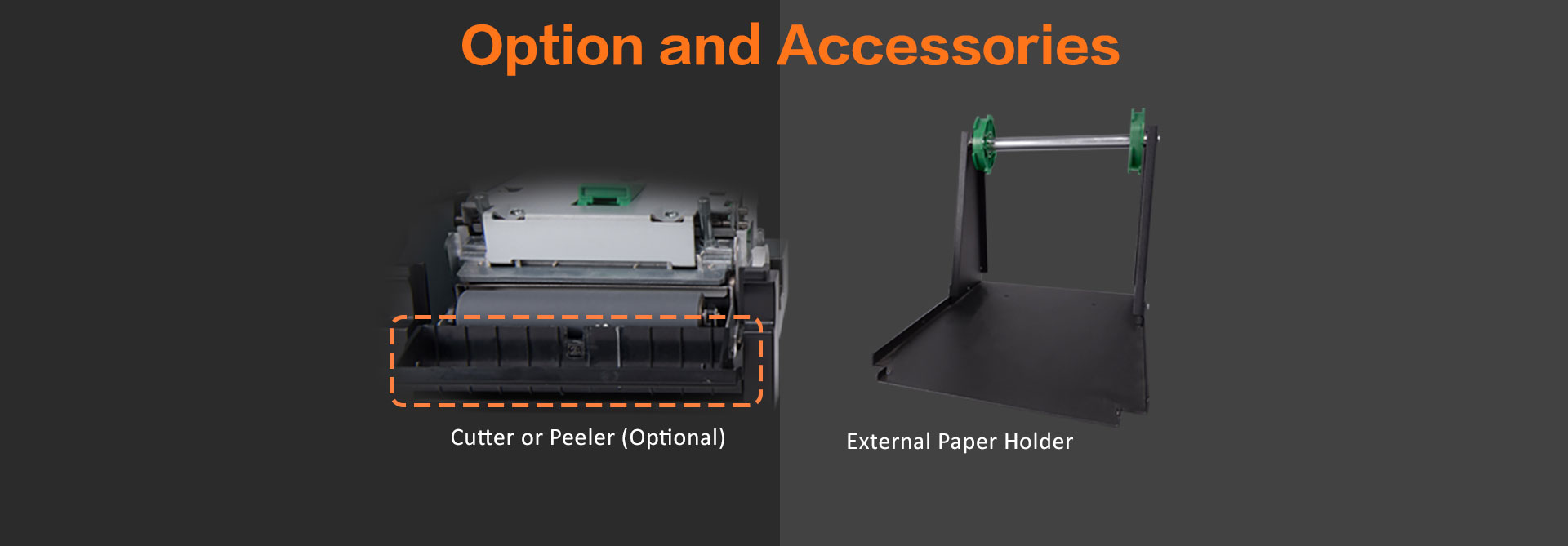

HPRT HD2000 accessories

PrintingPrinting MethodDirect Thermal
Resolution203dpi (8 dots/mm)
Printing Speed2 ips ~ 7 ips
Printing WidthMax. 104mm
Printing Length30 mm ~ 1200 mm
MemoryRAM32 MB
Flash16 MB
SensorsGap SensorTransmissive (Fixed, Left)
Black mark Sensor
Reflective (Fixed, Left)
Other
Out of paper detection, Notch detection, Auto-Feed detection
MediaTypesFan-fed or Roll-fed, Die-cut or Continuous label
Width1.5" (38 mm) ~ 4.64" (118 mm)
Thickness0.003" (60 μm) ~ 0.01" (250 μm)
External Label Roll DiameterMax. 8" (200mm)
Core DiameterN/A
Programming LanguageTSPL, ZPL
SoftwareLabel DesignerBartender Ultralite for HPRT Spec. by Seagull
DriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
Resident FontsBitmap Fonts6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
BarcodeBarcodeCode 39, Code 93, Code 128UCC, Code 128, Codabar, Interleave 2 of 5, EAN8, EAN13, UCC/EAN128, UPC-A, UPC-E, MSI, PLESSEY, POSTNET,RSS-Stacked, GS1 DataBar, Code 11
2D CodePDF417, DataMatrix, QR Code, Aztec
Code PagesPC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, -2, -3, -4, -5, -6, -8, -9 , -15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)

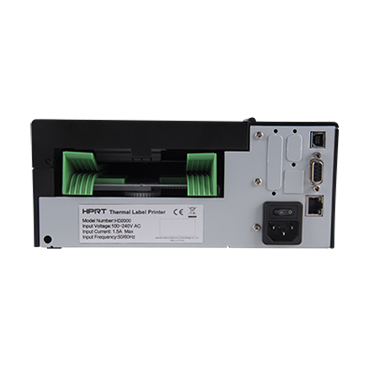

InterfacesStandard
USB Type B, Serial Port, Ethernet
Option
RFID Module
Control PanelDisplayOLED
Status LEDStandby, Paper-out, Error, Power
ButtonUp, Down, Return, Enter, Menu, Pause, Feed and Backfeed
PowerPower InputAC 100-240V 75W, 50/60Hz
EnvironmentOperation41 ℉ ~ 104 ℉( 5 °C ~ 40 °C), 30% - 85%, no-condensing
Storage-4 ℉ ~ 122 ℉( -20 °C ~ 50 °C), 10% - 90%, no-condensing
Physical CharacteristicsDimension227(L)mm*211.6(W)mm*99.7(H) mm
Weight3.54 kg
Options and AccessoriesExternal label roll holder for 8" OD label rolls, Paper Roll, Power Adapter, Quick Start Guide, CD, Cutter module, Peeler module, RFID tag encoder module
Agency ApprovalsCCC, FCC, CE
