• Compact and cost-effective

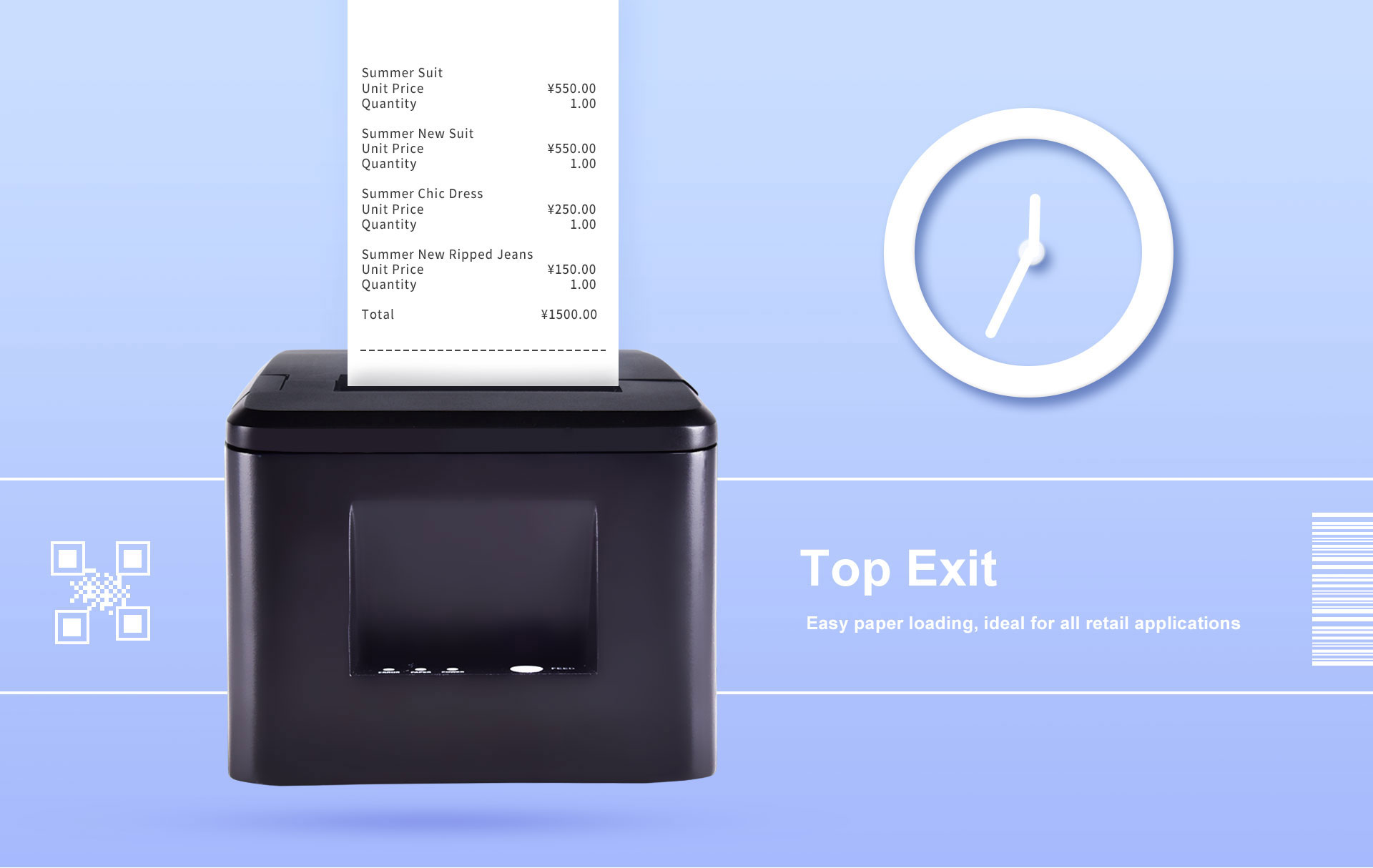

• Top easy paper loading
• Auto-cutter (partial)

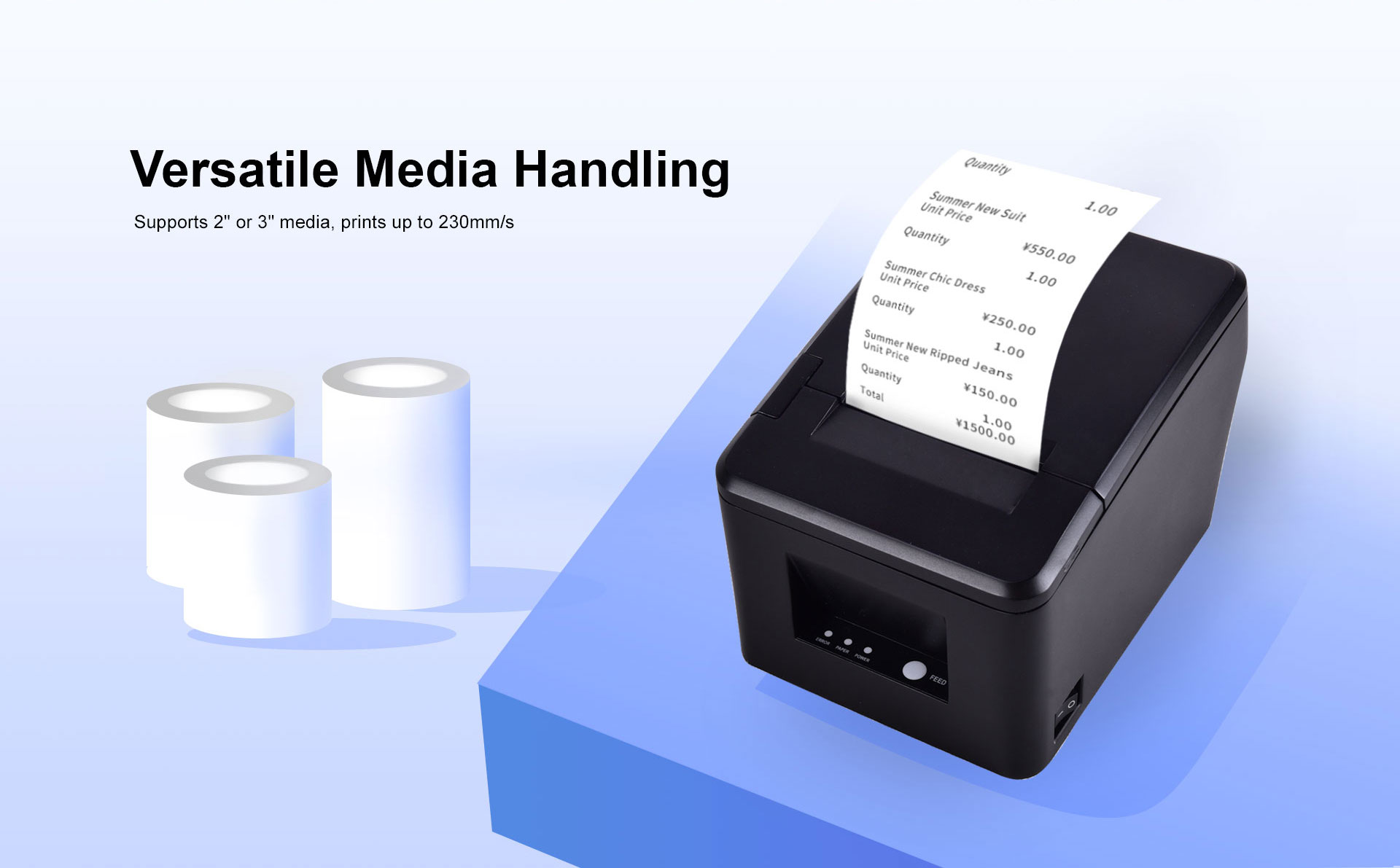

• 2" and 3" paper width available
• Default USB+Serial+Ethernet interfaces
• Easy maintenance
，
| Printing | Print Method | Direct Thermal | |

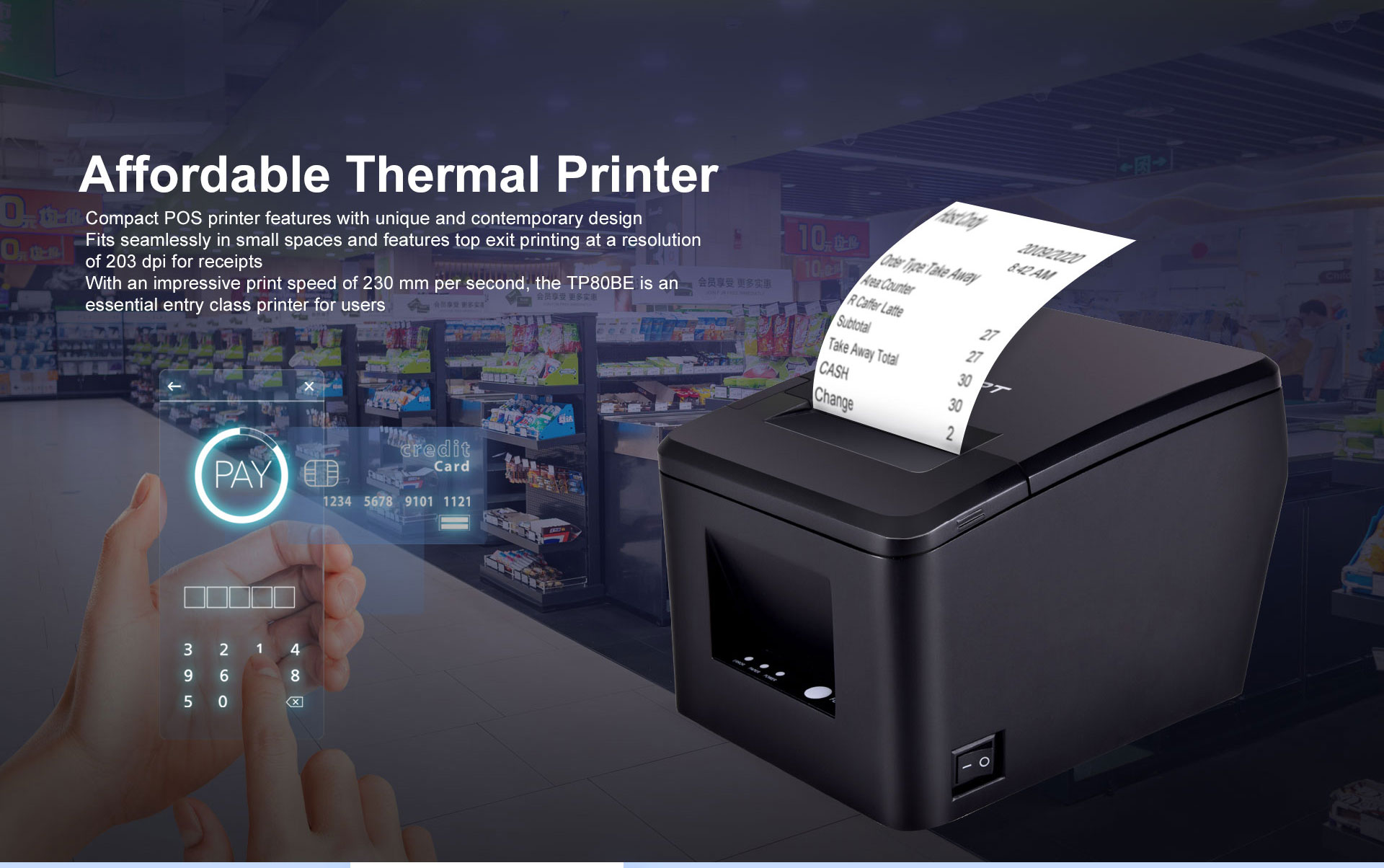

| Resolution | 203 dpi (8 dots/mm) | ||
| Print Speed | Max. 230 mm/s | ||
| Print Width | Max. 72 mm | ||
| Interface | Standard | Built-in USB, Seiral, Ethernet | |
| Page Mode | YES | ||
| Memory | RAM | 16 MB | |
| Flash | 4 MB | ||
| Programming Language | ESC/POS | ||
| Fonts | Alphanumeric; Simplified Chinese; 47 codepages | ||
| Barcode | UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93, QR, PDF417 | ||
| Graphics | Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 KB, the total size of bitmap is 64 KB) | ||
| Indicators | Power | Green | |
| Error | Red | ||
| Paper Out | Red | ||
| Sensors | Standard | Paper out, cover open, cutter jam | |
| Option | N/A | ||
| Power Supply | Input | AC 100V ~ 240V, 50/60Hz | |
| Output | DC 24V, 2A | ||
| Paper | Paper Type | Thermal Receipt Paper | |
| Paper Width | 58 mm/80 mm | ||
| Paper Thickness | 0.056 mm ~ 0.13 mm | ||
Roll Paper Diameter | Max. Φ83 mm (O.D.) | ||
| Paper Load | Front paper loading | ||
| Paper Cut | Partial cut | ||
| Environment | Operating | 0°C ~ 45°C, 10% ~ 85% R.H, no-condensation | |
| Storage | -20°C ~ 60°C, 10% ~ 90% R.H, no-condensation | ||
| Physical Characteristics | Dimensions | 140(L)×191(W)×127(H) mm | |
| Weight | 1.64 kg | ||
| Options and Accessories | USB/Serial Cable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide | ||
| Reliability | TPH | 150 km | |

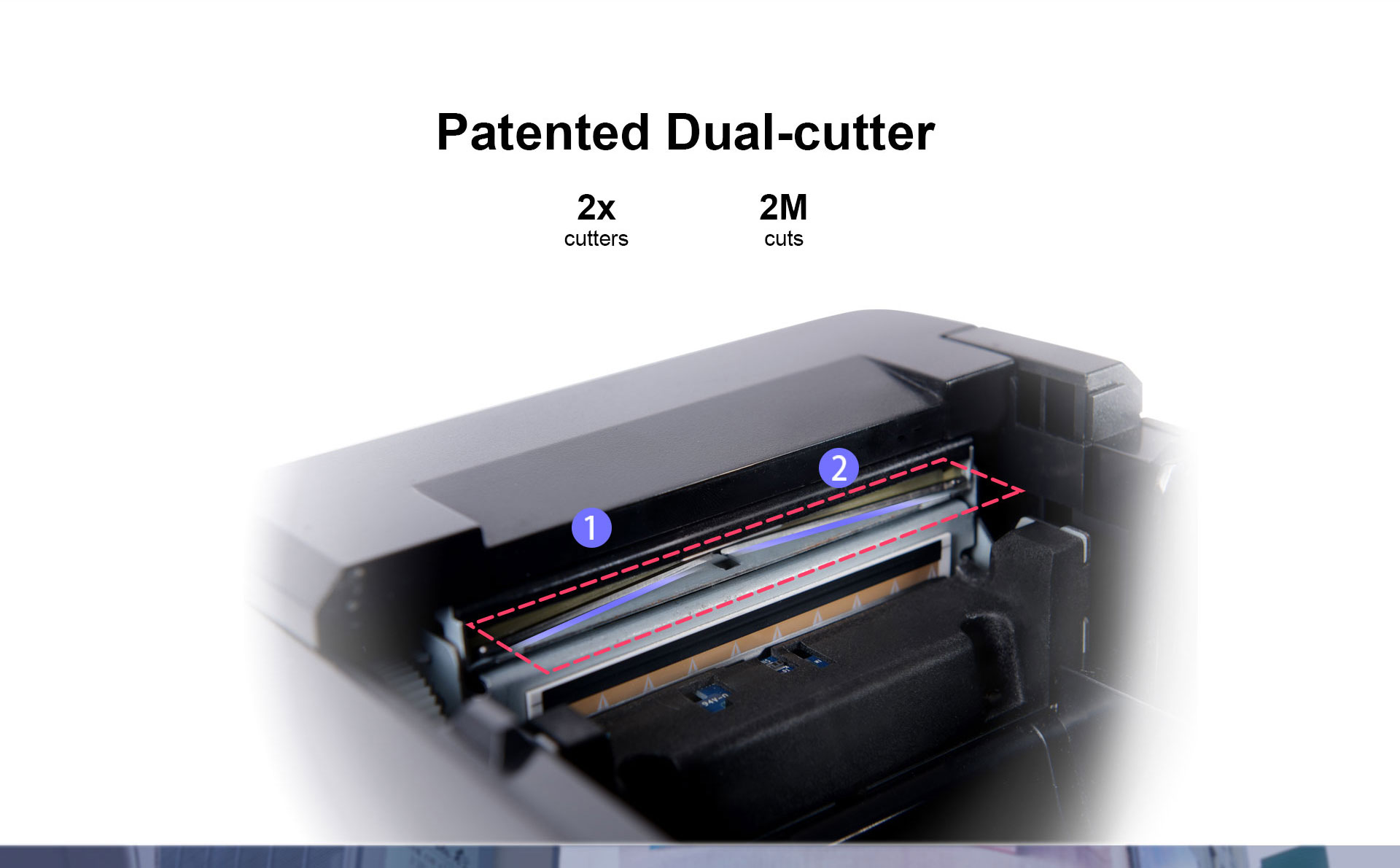

| Cutter | 1.5 million cuts | ||

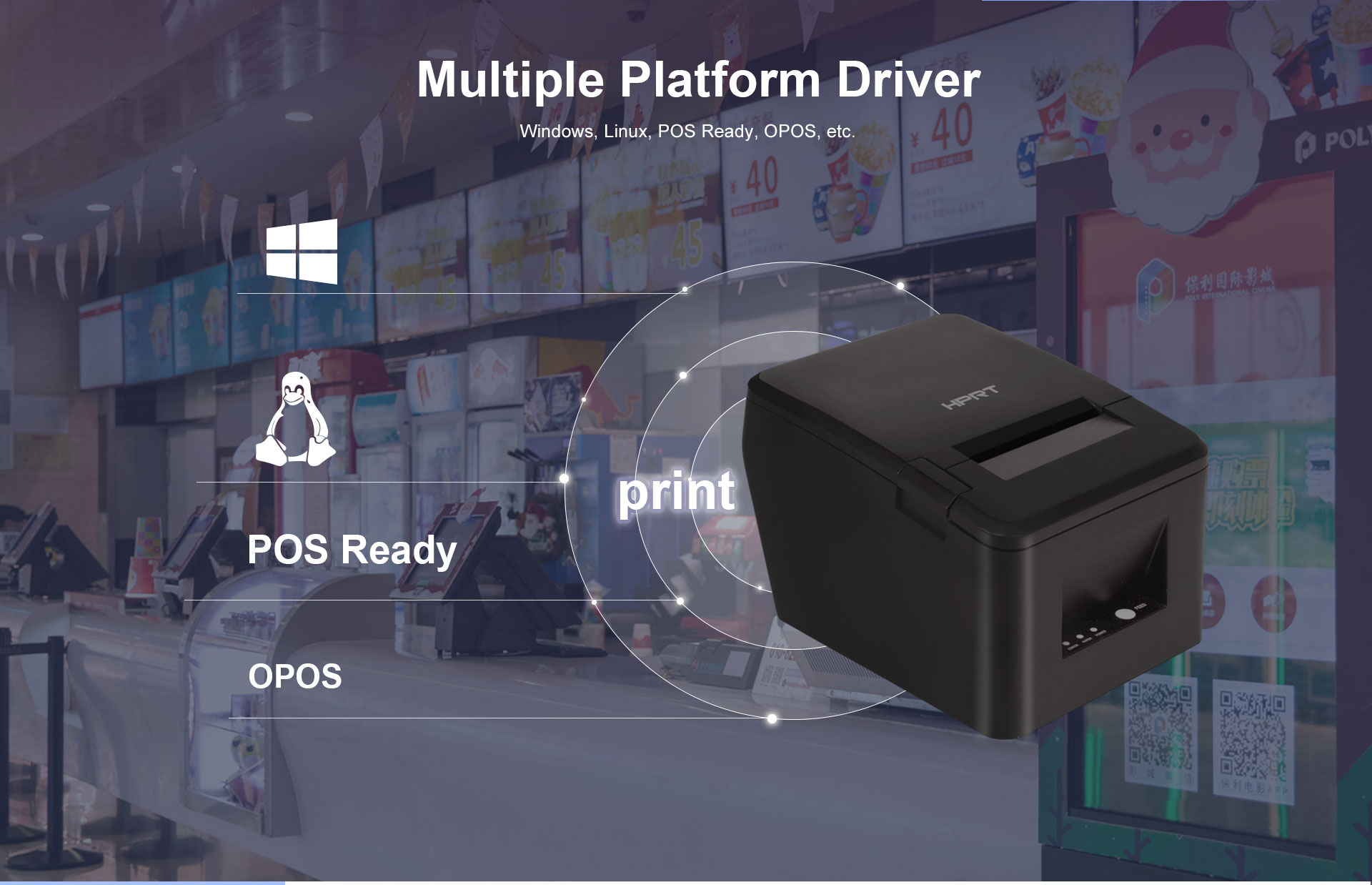

| Software | Driver | HPRT Driver：Windows XP，Vista,7，8，10.Linux,Mac | |
| SDK | WinCE, Win Mobile, Android, iOS | ||
