LPQ80
OVERVIEW TECH SPECS DOWNLOADS
Thermal self-adhesive label printer
Home Label Printer
Thermal Label Printer
Mini Label Printer
Label dedicated printer
Desktop Label Printer
Android Label Printer

3" Thermal Label Printer

•  Fashionable design
•  Easy loading
•  Printer head quick replacement
•  Adjustable label width

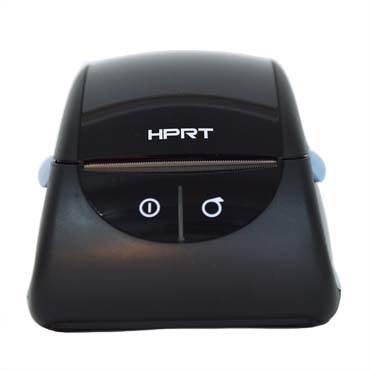

Thermal self-adhesive label printer
Home Label Printer

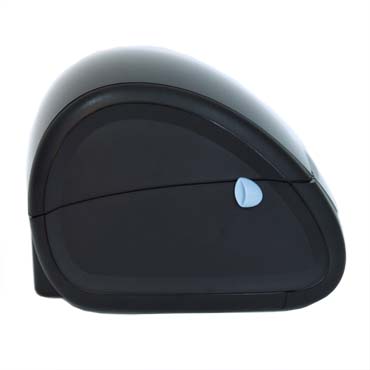

Thermal Label Printer

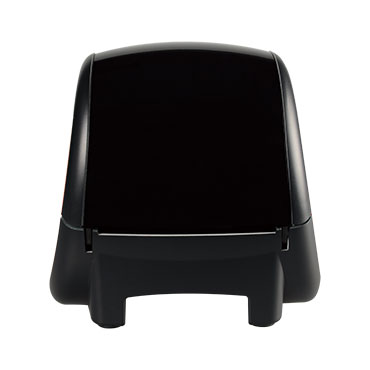

Mini Label Printer

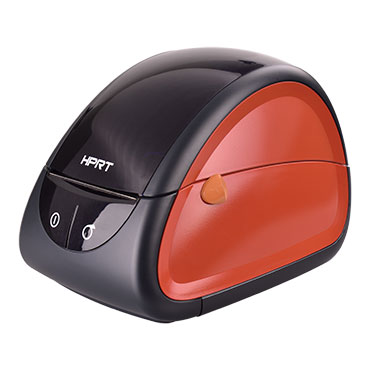

Label dedicated printer

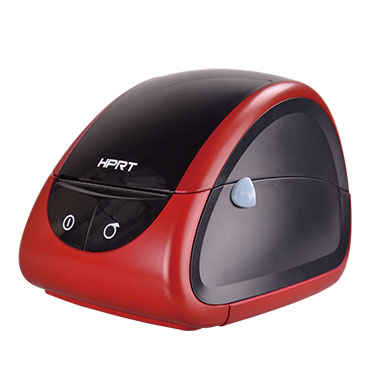

Desktop Label Printer

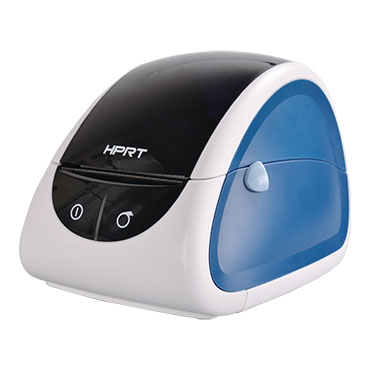

Android Label Printer

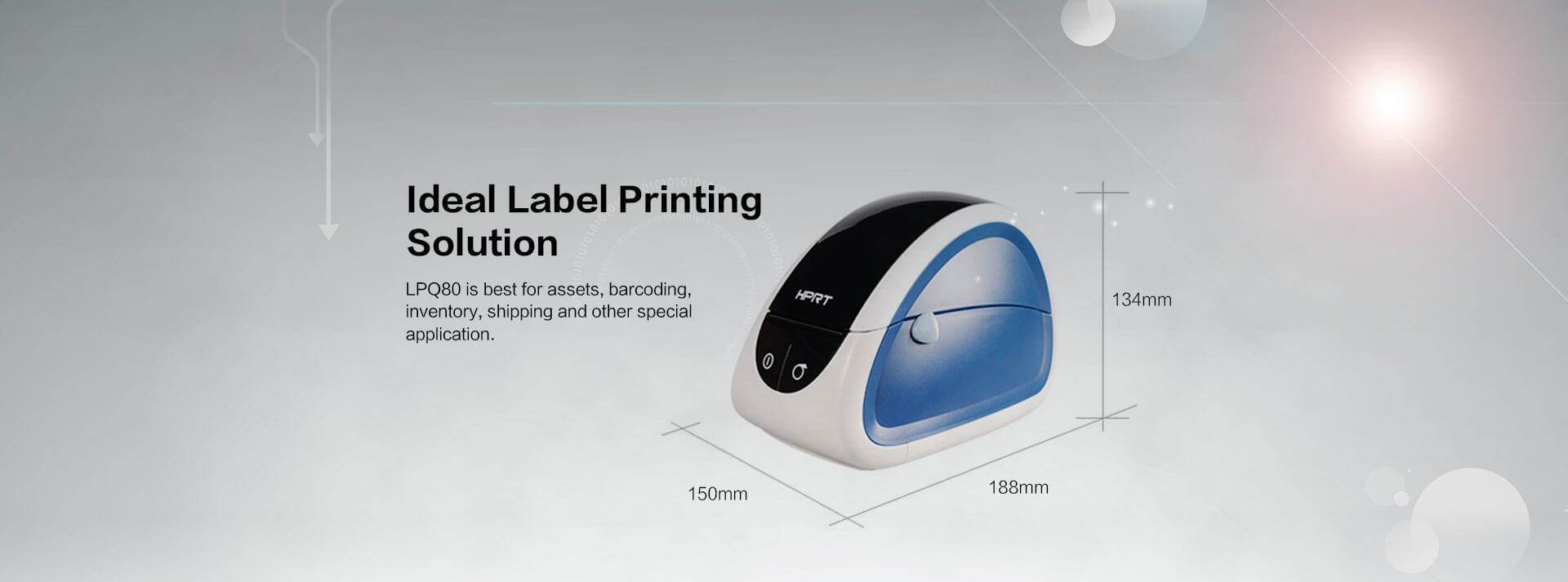

label printer for barcoding, inventory

HPRT LPQ80 Fashionable design label printer

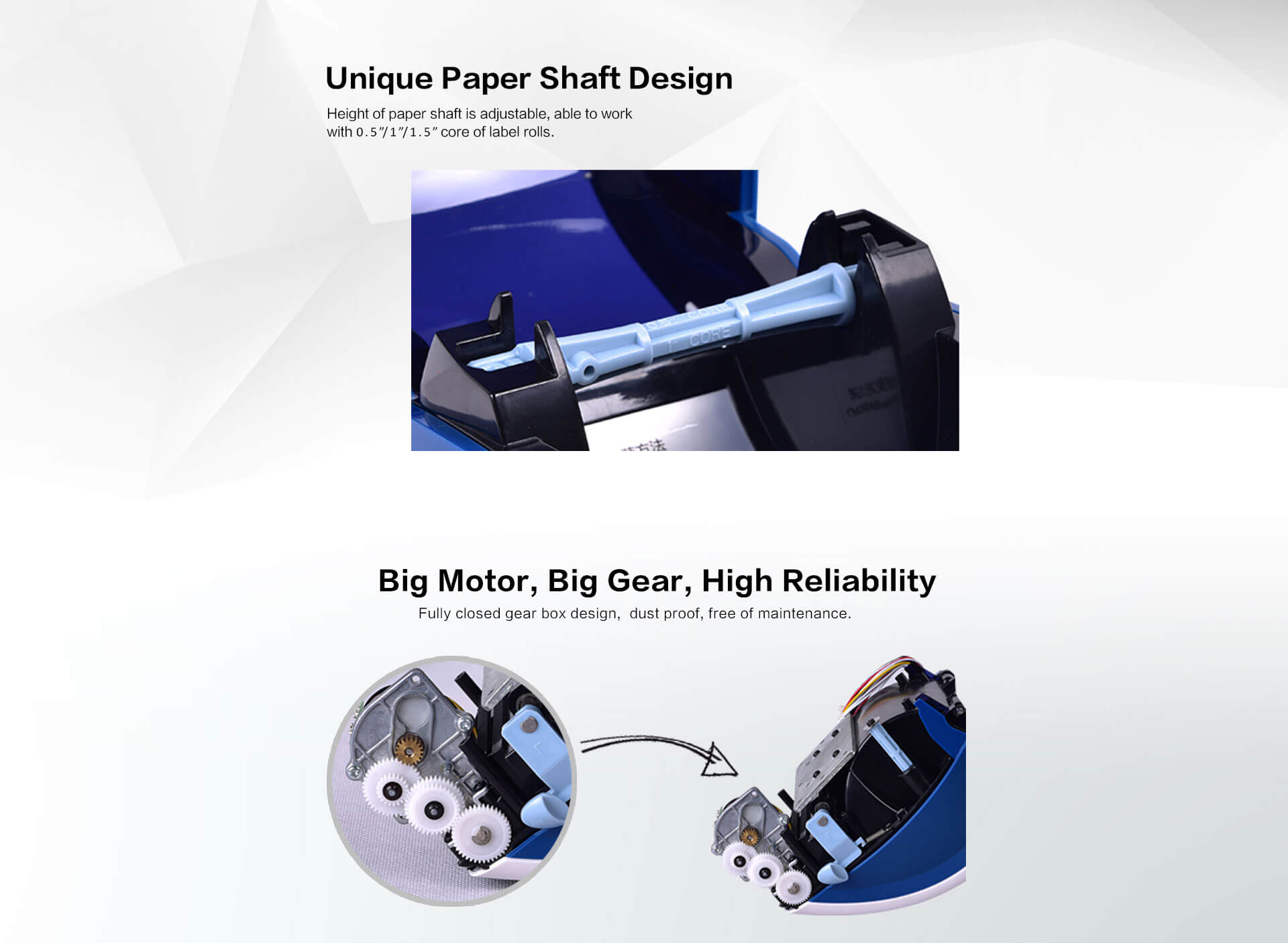

label printer paper shaft

bartender label printer

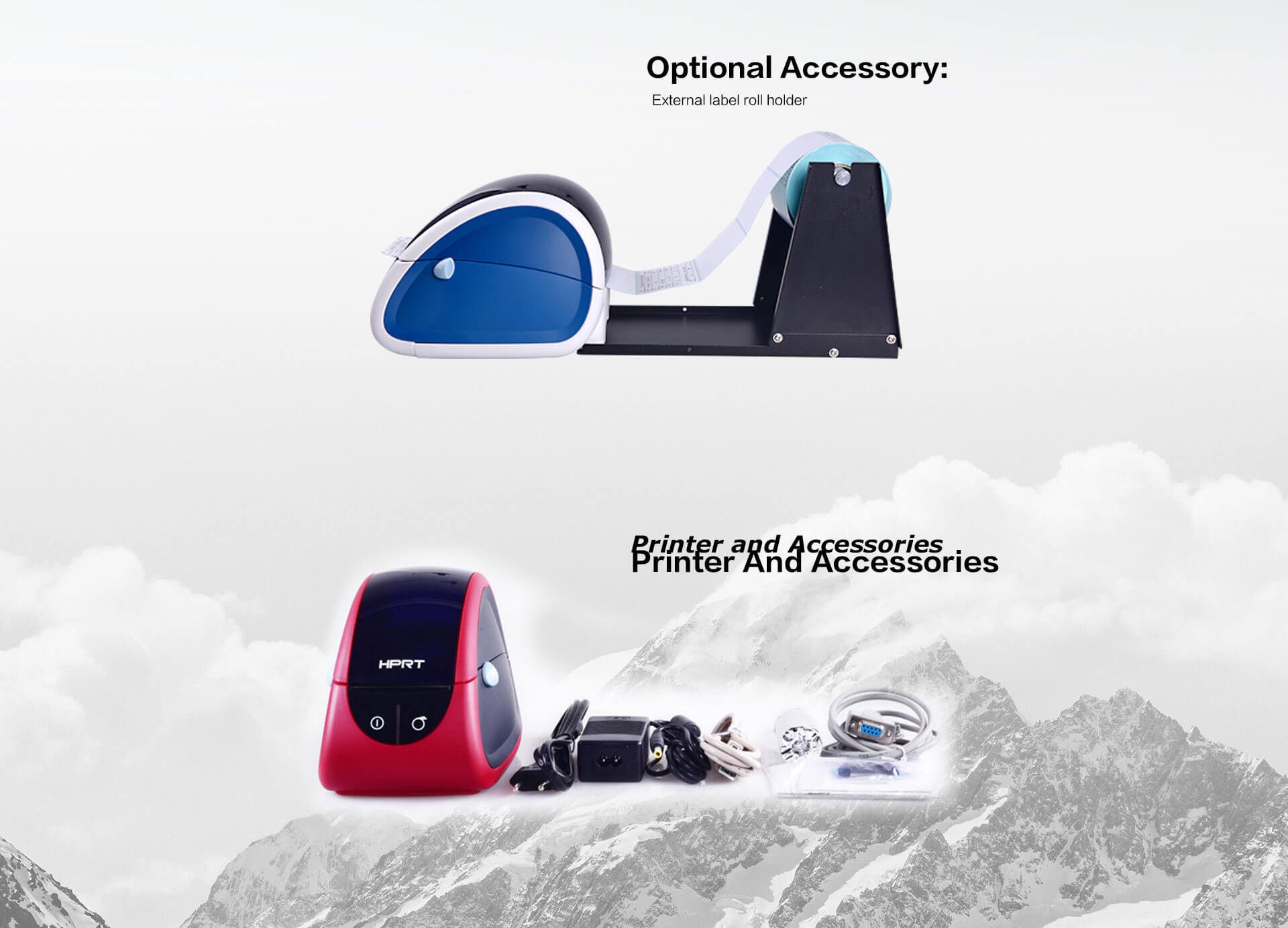

label holder and accessories for label printer

PrintingPrinting MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Printing Speed2 ips ~ 4 ips
Printing WidthMax. 80 mm
Printing Length15 mm ~ 300mm
MemoryRAM2 MB
Flash2 MB
SensorsGap SensorTransmissive (Fixed, Center)
Black Mark Sensor
Reflective (Adjustable, Full-Range)
OtherOut of paper detection, Notch detection, TPH temperature detection
MediaTypesFan-fed or Roll-fed, Die-cut or Continuous Label, Receipt
Width1"(25.4 mm) ~ 3.15"(80 mm)
Thickness0.003"(60 μm) ~ 0.007"(180 μm)
Label Roll Diameter90 mm
Core Diameter0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
Programming LanguageTSPL, ESC/POS
SoftwareLabel DesignerBartender Ultralite by Seagull
DriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
FontsBitmap Fonts6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
Code PagesPC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)
BarcodeBarcodeCODE39, CODE93, EAN-8, EAN-13 (with EAN-2 or EAN-5 add-on), UPC-A, UPC-E
2D CodeQR Code
InterfacesStandard
USB, Serial Port, Cashbox
Option
N/A
Control PanelPower button, Feed button
Power AdapterPower InputAC 100 ~ 240V, 50/60Hz, 1.5A
Power OutputDC 12V, 2A
EnvironmentOperation41 ℉ ~ 104 ℉ (5 ℃ ~ 40 ℃), 30% ~ 85%, no-condensing
Storage-4 ℉ ~ 122 ℉ (-20 ℃ ~ 50 ℃), 10% ~ 50%, no-condensing
Physical CharacteristicsDimension188(L)×134(H)×150(W) mm
Weight0.88 kg
Options and AccessoriesExternal label roll holder
Agency ApprovalsCCC, FCC, CE
