HM-T3
OVERVIEW TECH SPECS DOWNLOADS

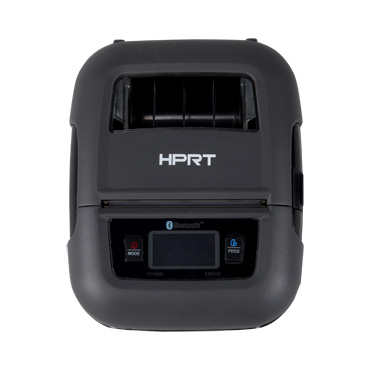

receipt Label Printer

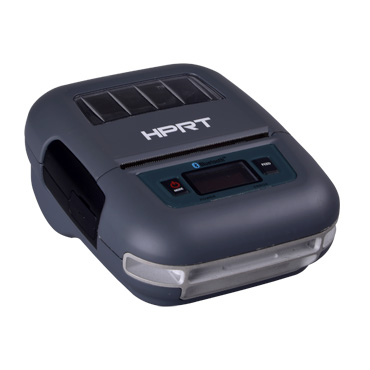

Mobile Label Printer

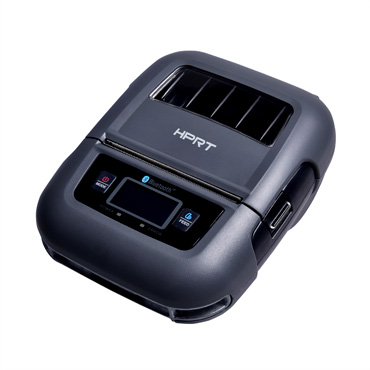

Small Mobile Printer

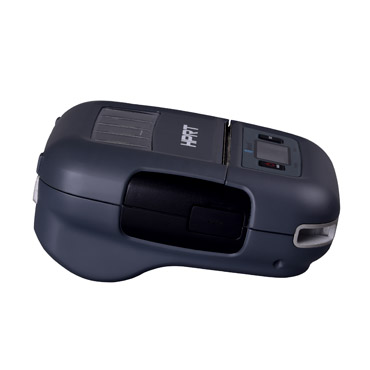

3 Inch Mobile Label Printer

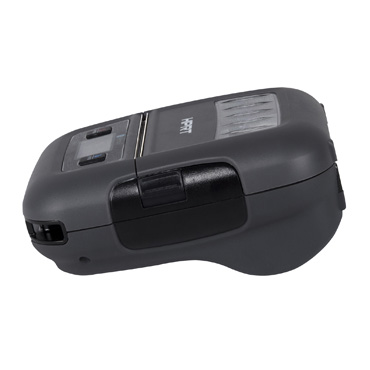

2D barcode printer

3" Mobile Label Printer

•  Support label printing and receipt printing
•  Adjustable paper loading, support label with different width
•  USB charging at your convenience
•  Support various 1D&2D barcode printing
•  Multiple wireless interfaces, support iOS,  Android,  WinCE
•  OLED display
•  Long-lasting battery life (5 days stand-by)

receipt Label Printer
Mobile Label Printer
Small Mobile Printer
3 Inch Mobile Label Printer
2D barcode printer

1

PrintingPrint MethodDirect Thermal Line Printing
Resolution203 dpi (8 dots/mm)
Print SpeedMax. 60 mm/s
Print Width72 mm
InterfaceUSB, Bluetooth
power SavingSleep ModeYES
MemoryRAM4 MB
Flash8 MB
Resident FontsFont
FONT A 12*24; FONT B 8*16;
CHN 24*24; 16*16
Alphanumeric95
Codepage35
BarcodeLinear BarcodesUPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
2D BarcodesPDF417, QR Code
GraphicsSupport bitmap printing with different density and user defined bitmap printing
DetectionSensorsPaper out/Black mark/Gap detection, cover open switch
LED Indicator

Power Indicator

Green
Error IndicatorRed
Power InputAC 100V ~ 240V
OutputDC 5V/1A
Battery2000mAh/7.4V rechargeable Li-ion battery
PaperPaper TypeContinuous paper, black mark paper, die-cut or continuous label
Paper Width55 ~ 80 mm
Paper Thickness0.053 ~ 0.15 mm

Paper Roller

Diameter

Max. 55 mm
Paper Loading Easy paper loading
Physical CharacteristicsWorking Condition-2°C ~ 52°C, 30% ~ 85% RH
Storage Conditioin-20°C ~ 70°C, 5% ~ 90% RH
Dimensions150(L)×120(W)×70(H) mm
Weight630g (including battery)
Options & AccessoriesMini USB2.0 Cable, Charger, Paper Roll, Quick Start Guide, CD, Belt Clip
ReliabilityTPH life50 km
SoftwareEmulationCPCL
DriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDKWinCE, Win Mobile, Android, iOS


Drivers and Manuals

Stay up-to-date with the latest downloads for your HPRT Printer
