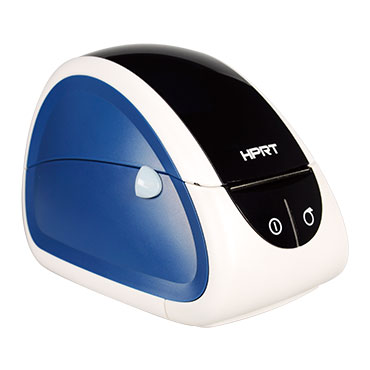

automatic label printer
desktop label printer
Portable Label Printer
QR code label printer

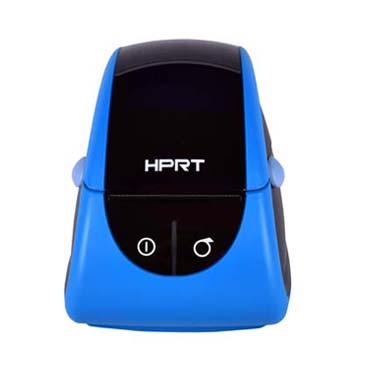

bluetooth label printer

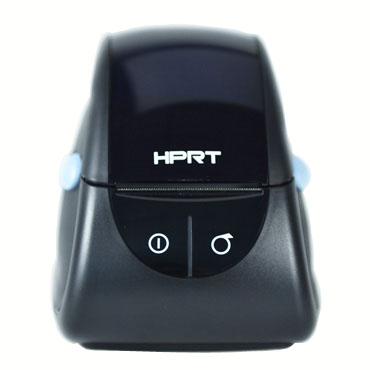

Thermal Label Printer

2" Thermal Label Printer

• Fashionable design
• Easy loading
• Printer head quick replacement
• Adjustable label width

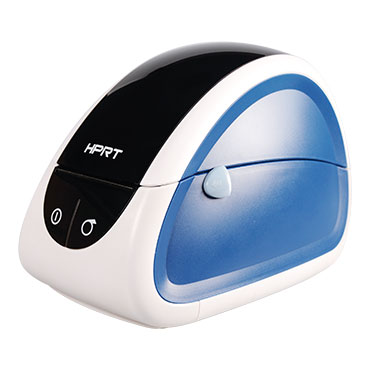

mobile label printer

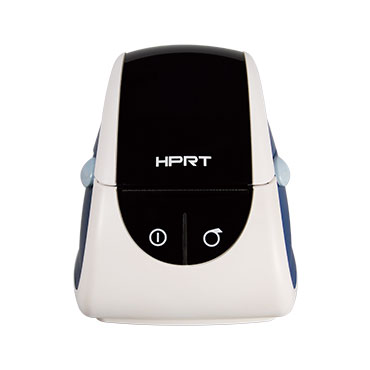

Color Barcode Label Printer
automatic label printer

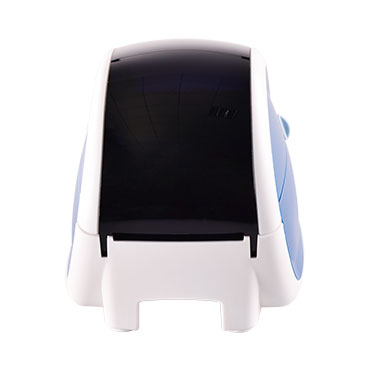

desktop label printer

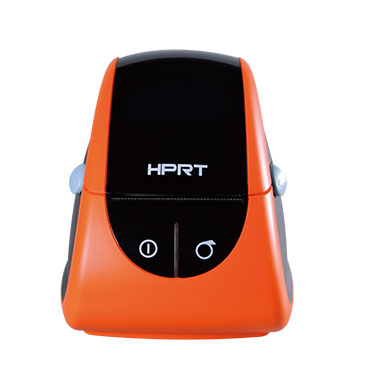

Portable Label Printer

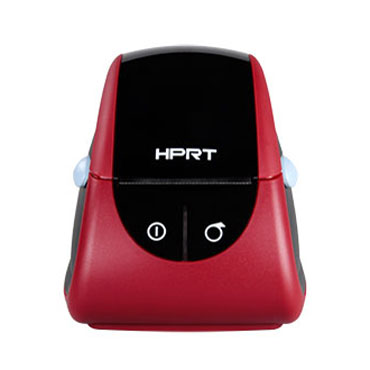

QR code label printer
bluetooth label printer
Thermal Label Printer

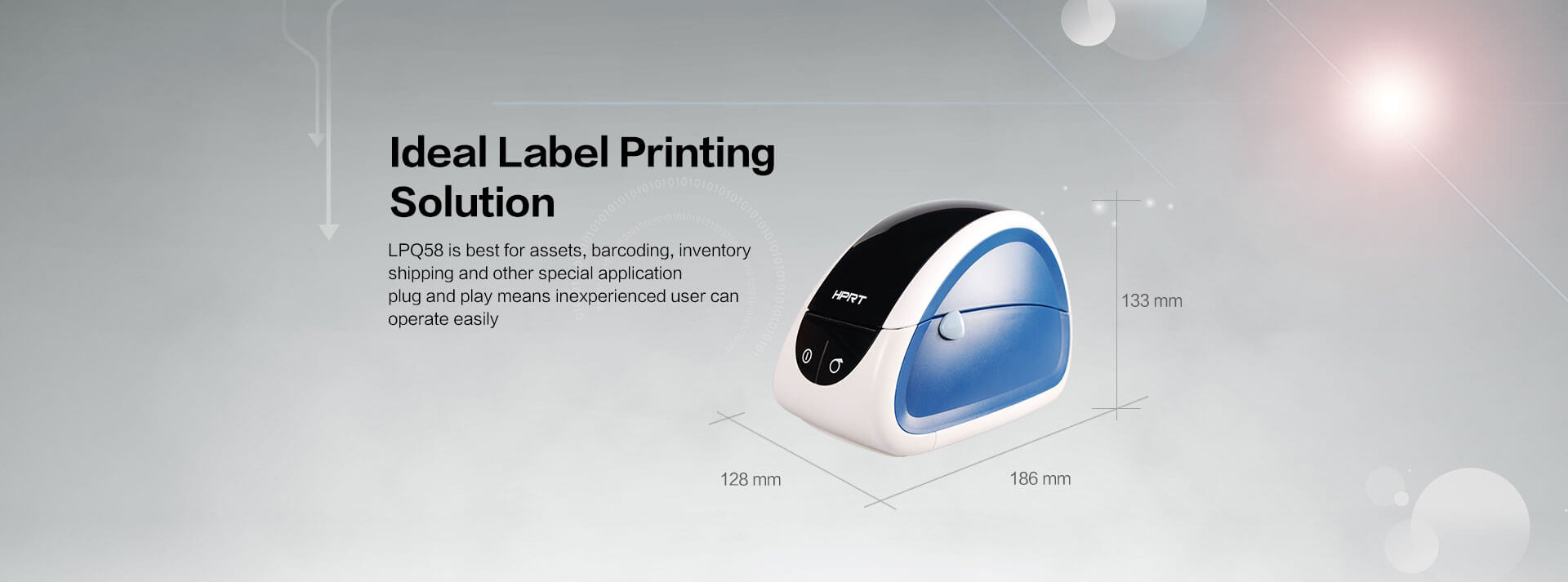

HPRT LPQ58 label printer

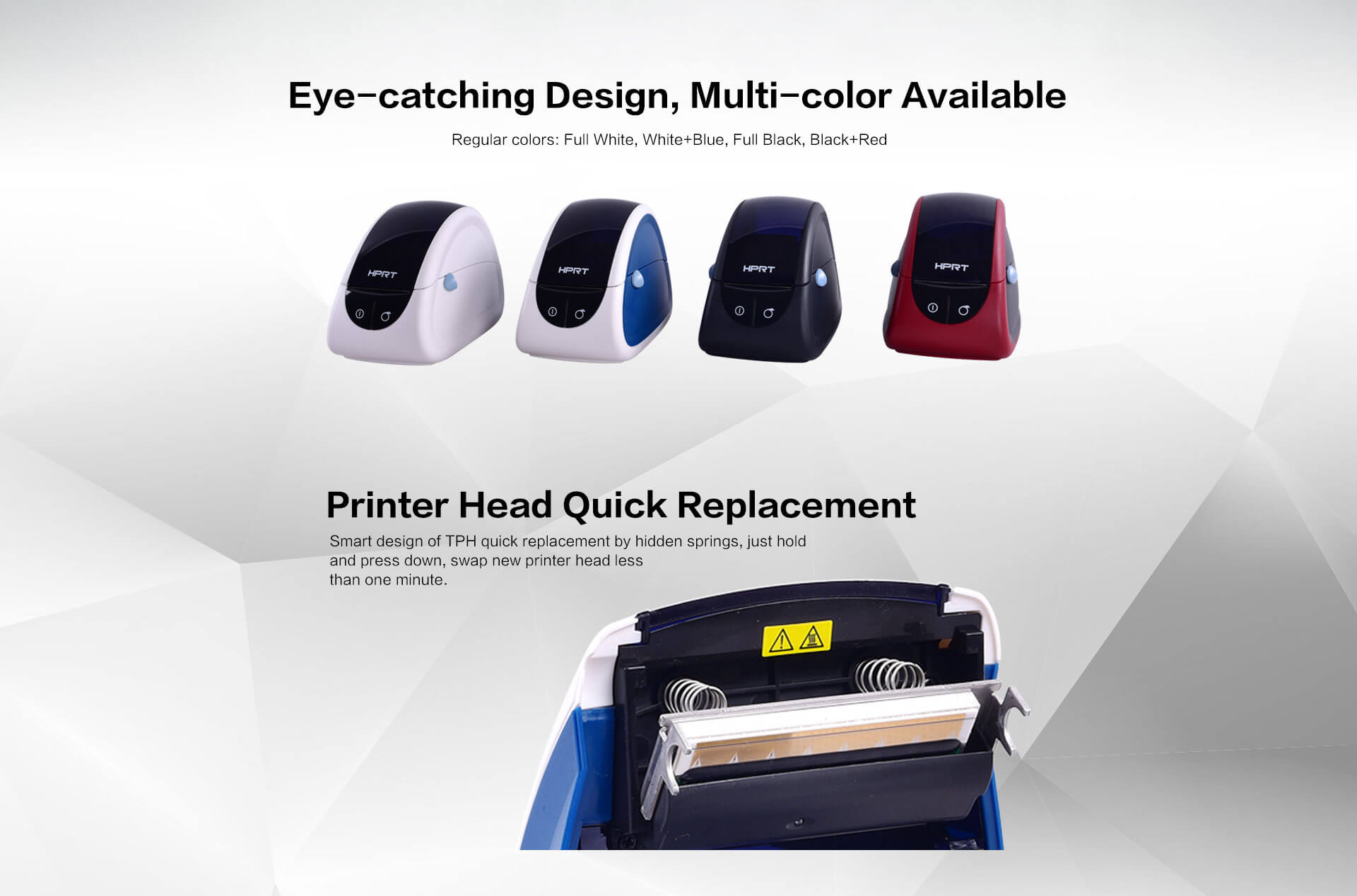

LPQ58 Fashionable design label printer

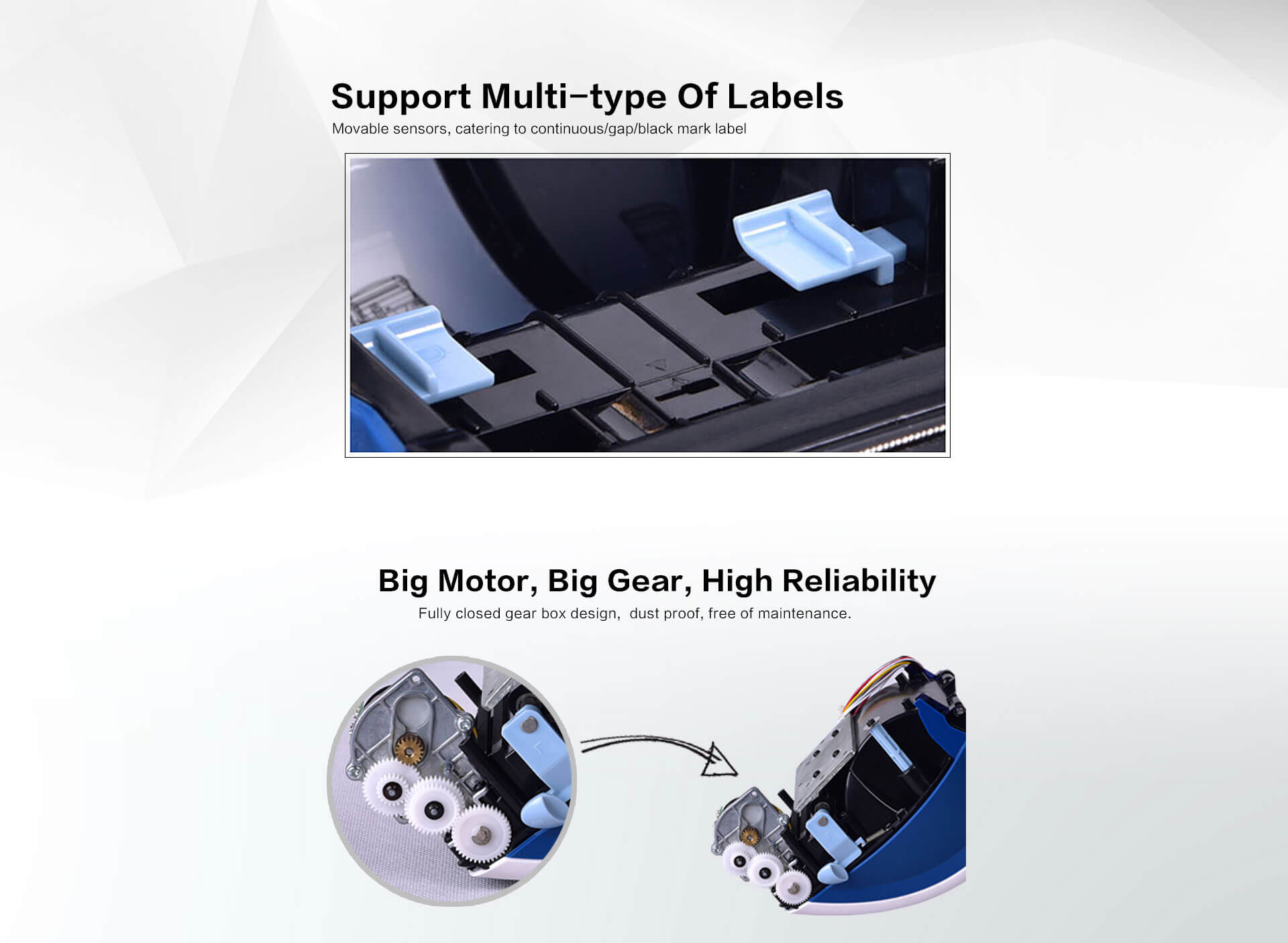

label printer internal design

external paper feeding label printer

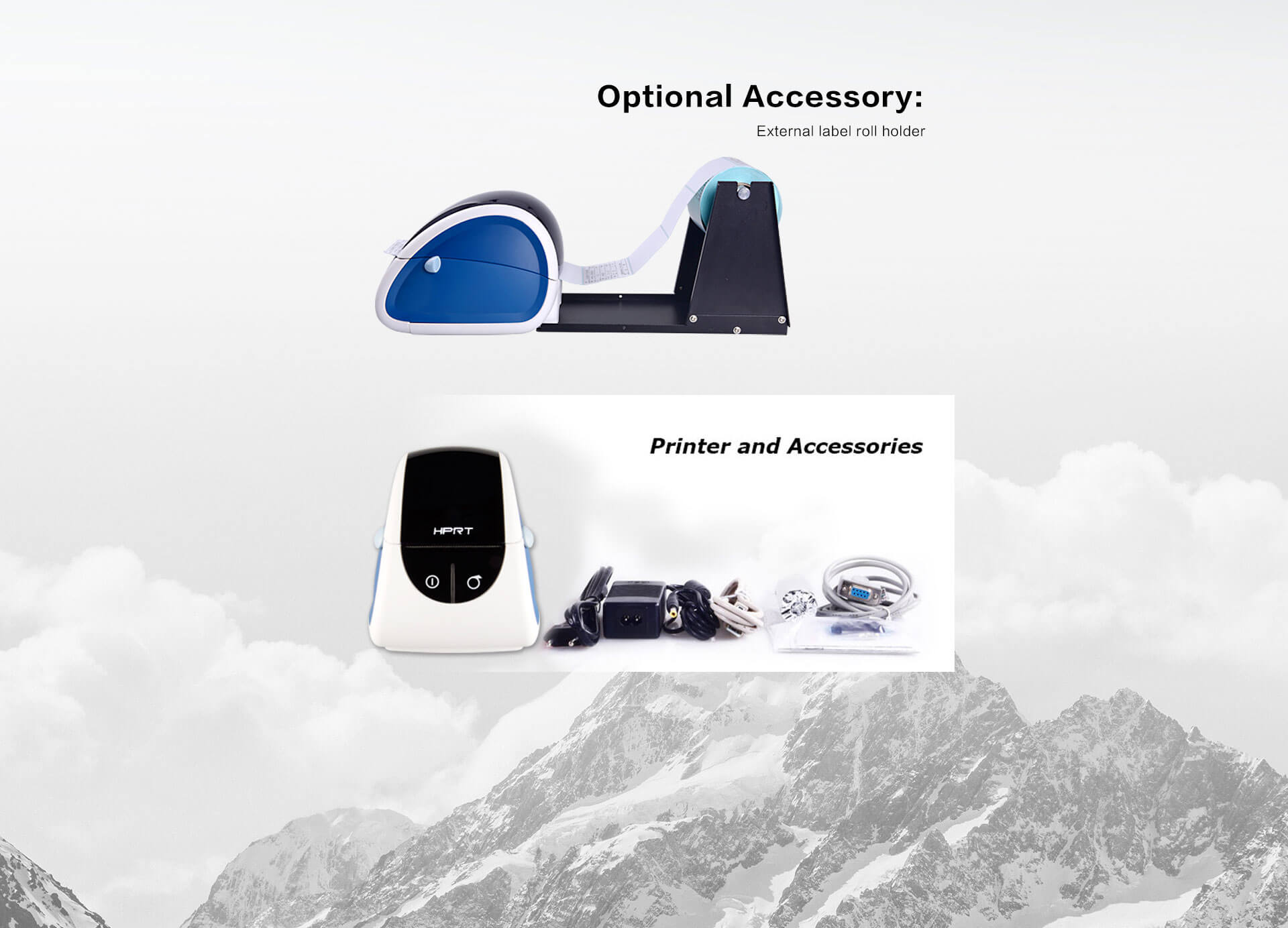

label holder and accessories for label printer

PrintingPrinting MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Printing Speed2 ips ~ 3 ips
Printing WidthMax. 56 mm
Printing Length15 mm ~ 400mm
MemoryRAM2 MB
Flash2 MB
SensorsGap SensorTransmissive (Fixed, Center)
Black Mark Sensor
Reflective (Adjustable, Full-Range)
OtherOut of paper detection, Notch detection, TPH temperature detection
MediaTypesFan-fed or Roll-fed, Die-cut or Continuous Label, Receipt
Width1"(25.4 mm) ~ 2.28"(58 mm)
Thickness0.003"(60 μm) ~ 0.007"(180 μm)
Label Roll Diameter90 mm
Core Diameter0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
Programming LanguageTSPL, ESC/POS
SoftwareLabel DesignerBartender Ultralite by Seagull
DriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
FontsBitmap Fonts6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
Code PagesPC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)
BarcodeBarcodeCODE39, CODE93, EAN-8, EAN-13 (with EAN-2 or EAN-5 add-on), UPC-A, UPC-E
2D CodeQR Code
InterfacesStandard
USB, Serial Port, Cashbox
Option
N/A
Control PanelPower button, Feed button
Power AdapterPower InputAC 100 ~ 240V, 50/60Hz, 1.5A
Power OutputDC 12V, 2A
EnvironmentOperation41 ℉ ~ 104 ℉ (5 ℃ ~ 40 ℃), 30% ~ 85%, no-condensing
Storage-4 ℉ ~ 122 ℉ (-20 ℃ ~ 50 ℃), 10% ~ 50%, no-condensing
Physical CharacteristicsDimension186(L)×128(H)×133(W) mm
Weight0.805 kg
Options and AccessoriesExternal label roll holder
Agency ApprovalsCCC, FCC, CE
