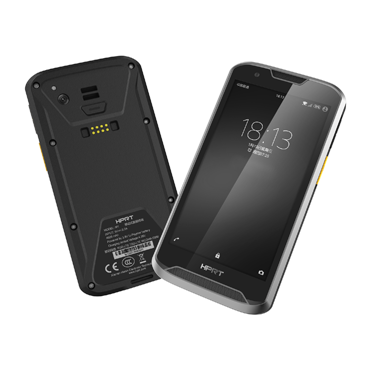

UHF RFID Data Terminal
Data Terminal

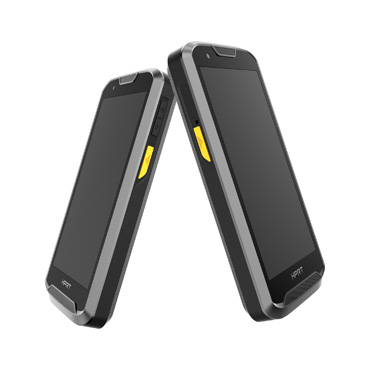

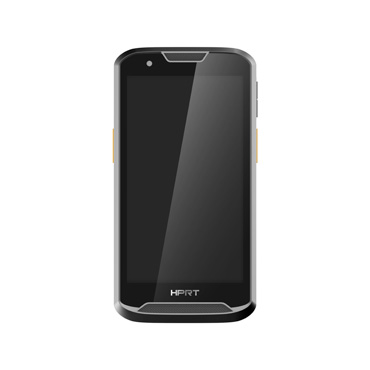

HPRT Mobile Data Terminal M1

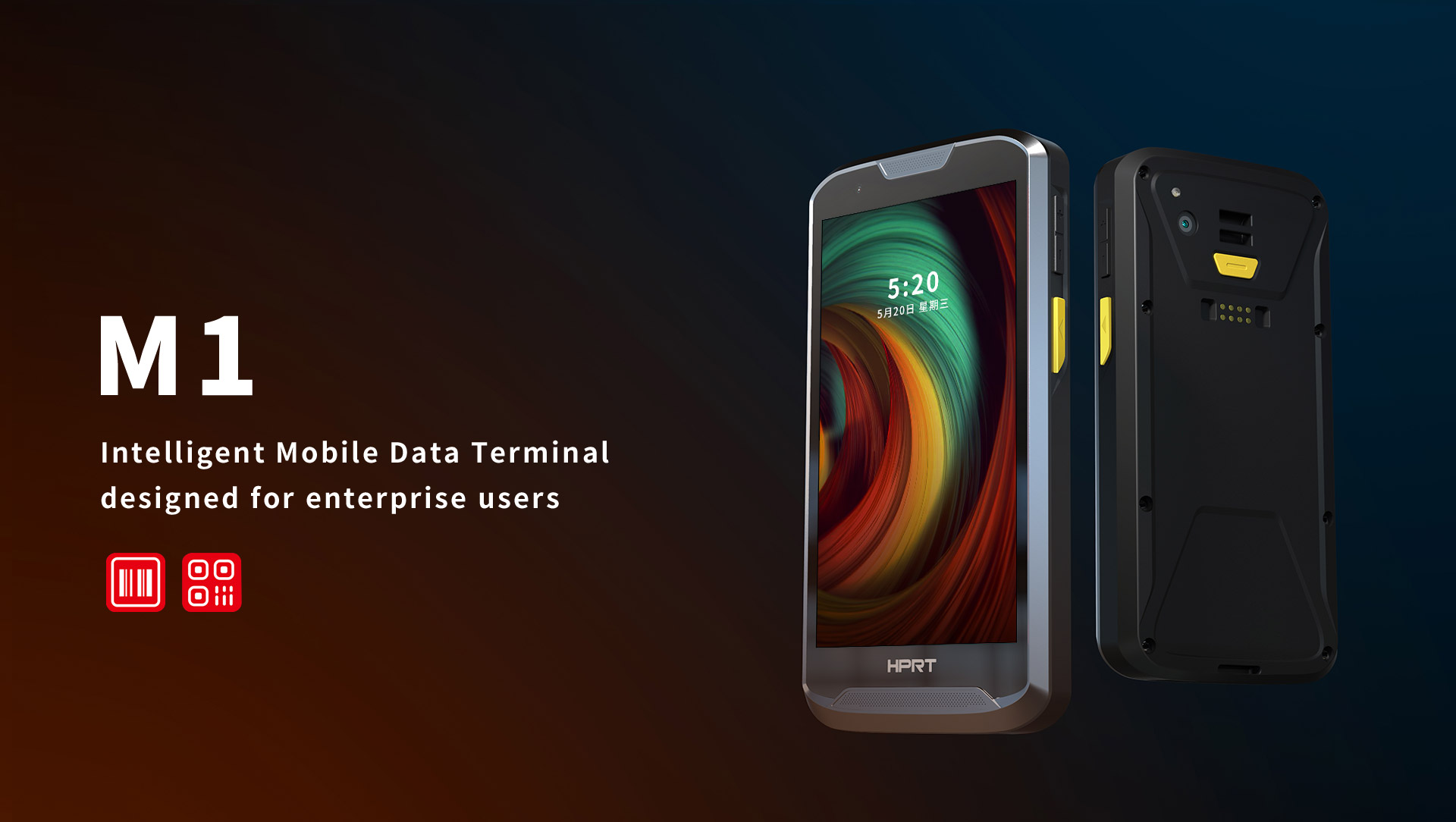

Intelligent Mobile Data Terminal

Intelligent Mobile Data Terminal

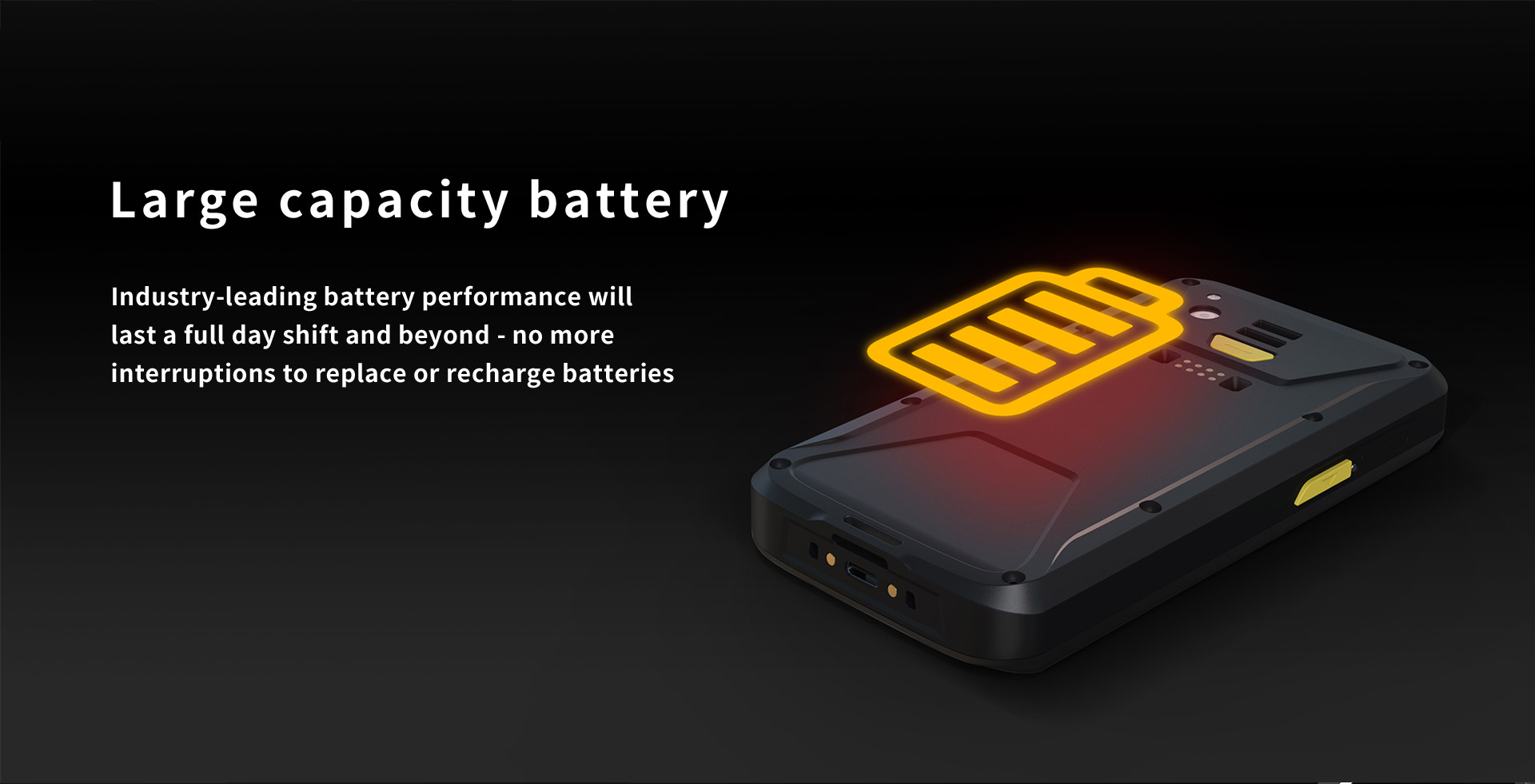

•  Powerful Battery Life

Use separate power supply method for mobile devices and RFID handle

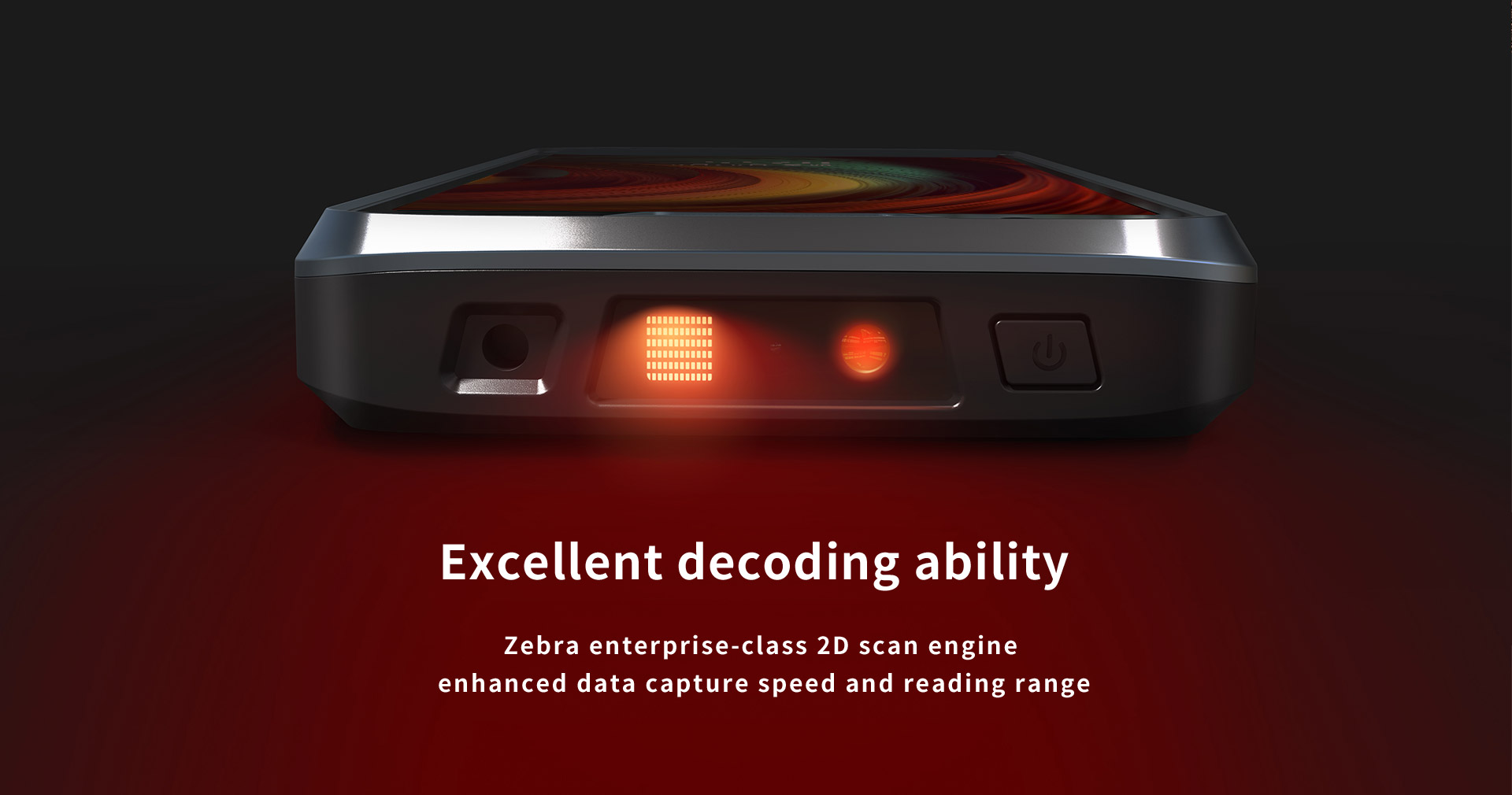

•  Professional 2D Scanning Engine

Support for 1D and 2D barcode scanning.

•  Powerful Handling Capacity and Superior performance

Apply Ultra Fast 2.0GHz Four core 64-bit high-speed processor with the latest Android 9.0 operating system.

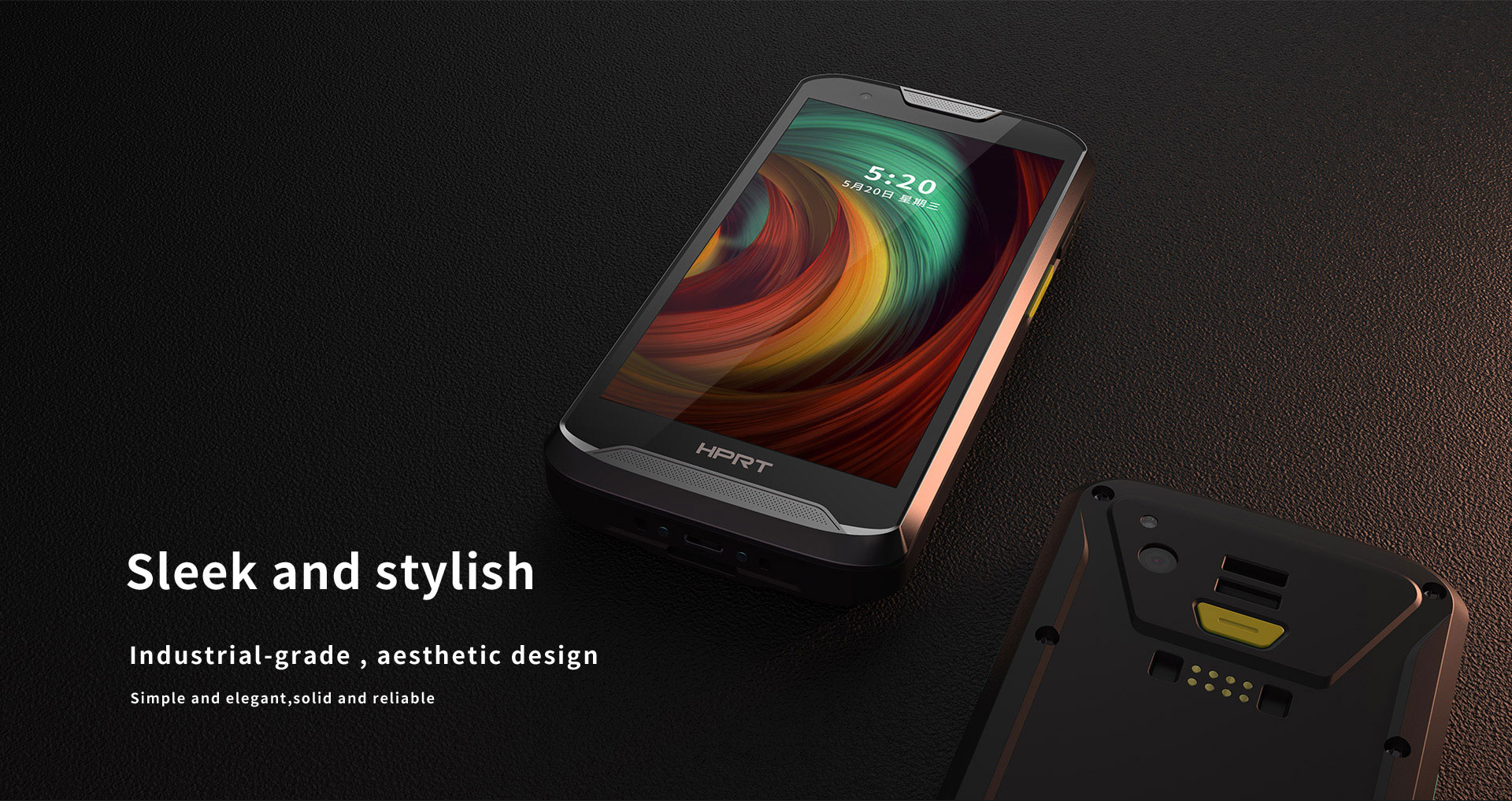

•  Simple and generous industrial-grade aesthetic design, rugged and reliable

•  Extremely Durable

•  Superior Wireless Performance

•  UHF RFID Recognition

UHF RFID Data Terminal
Data Terminal
HPRT Mobile Data Terminal M1
Intelligent Mobile Data Terminal

Intelligent Mobile Data Terminal

Data terminal parameter

Application scenarios of intelligent mobile data terminal

UHF RFID Data Terminal

Powerful 2D scanning engine for data terminal

HPRT Mobile Data Terminal M1

Bluetooth data terminal

Mobile data terminal battery

Intelligent Mobile Data Terminal

UHF RFID Mobile Data Terminal

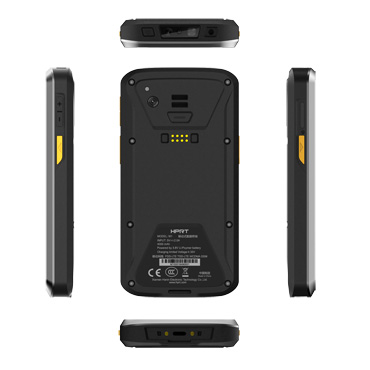

Mobile data terminal structure

Processor/CPUQuad-core Cortex- A53 2.0GHz
Flash Memory16GB
Operating SystemAndroid 9.0
Display5" 1280*720
Touch ScreenMulti-touch to support glove touch
Extensible StorageMicro SD card can be extended to 128GB

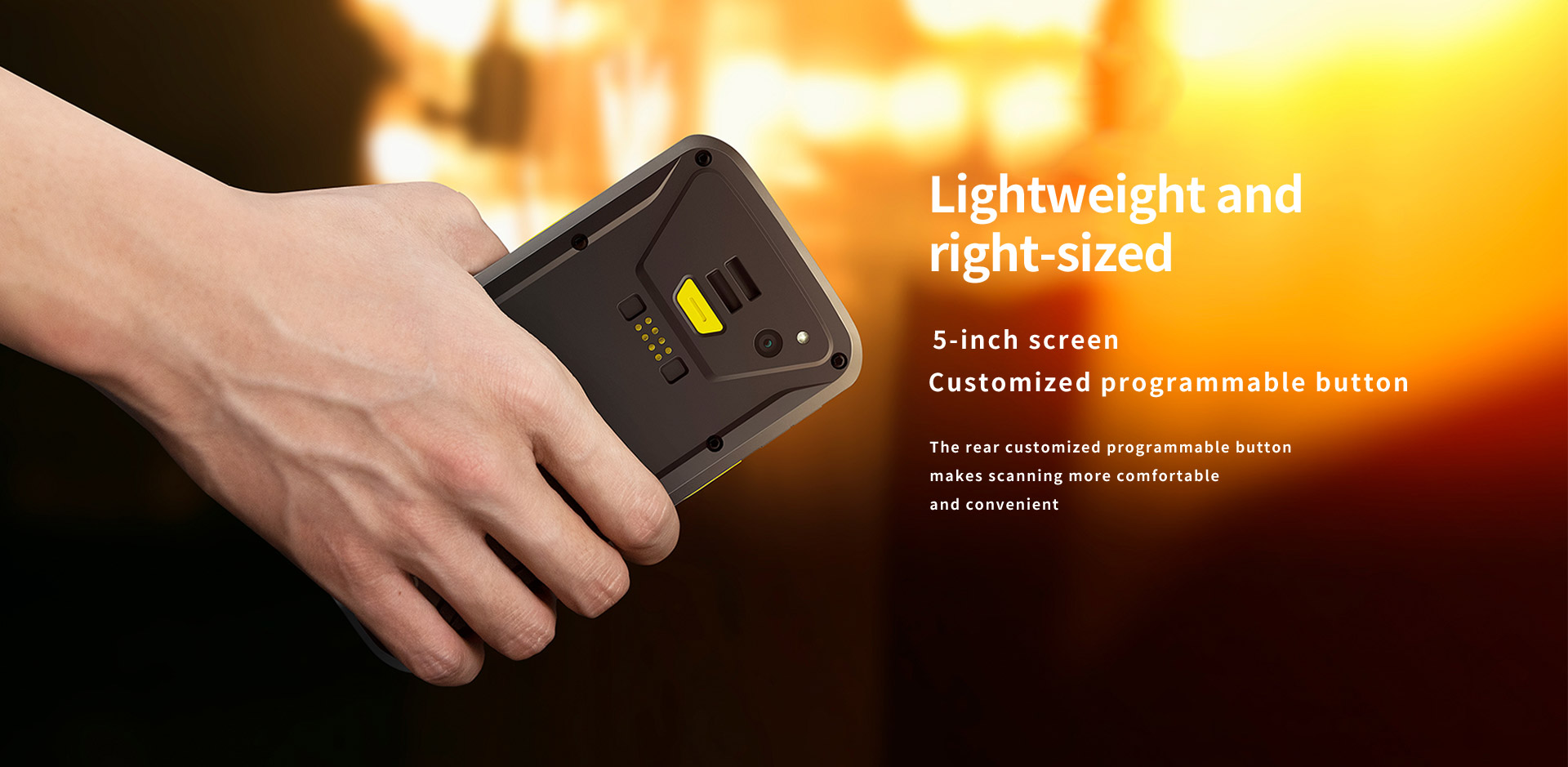

Power, Volume+, Volume-, Left and right side scanning keys, rear programmable key

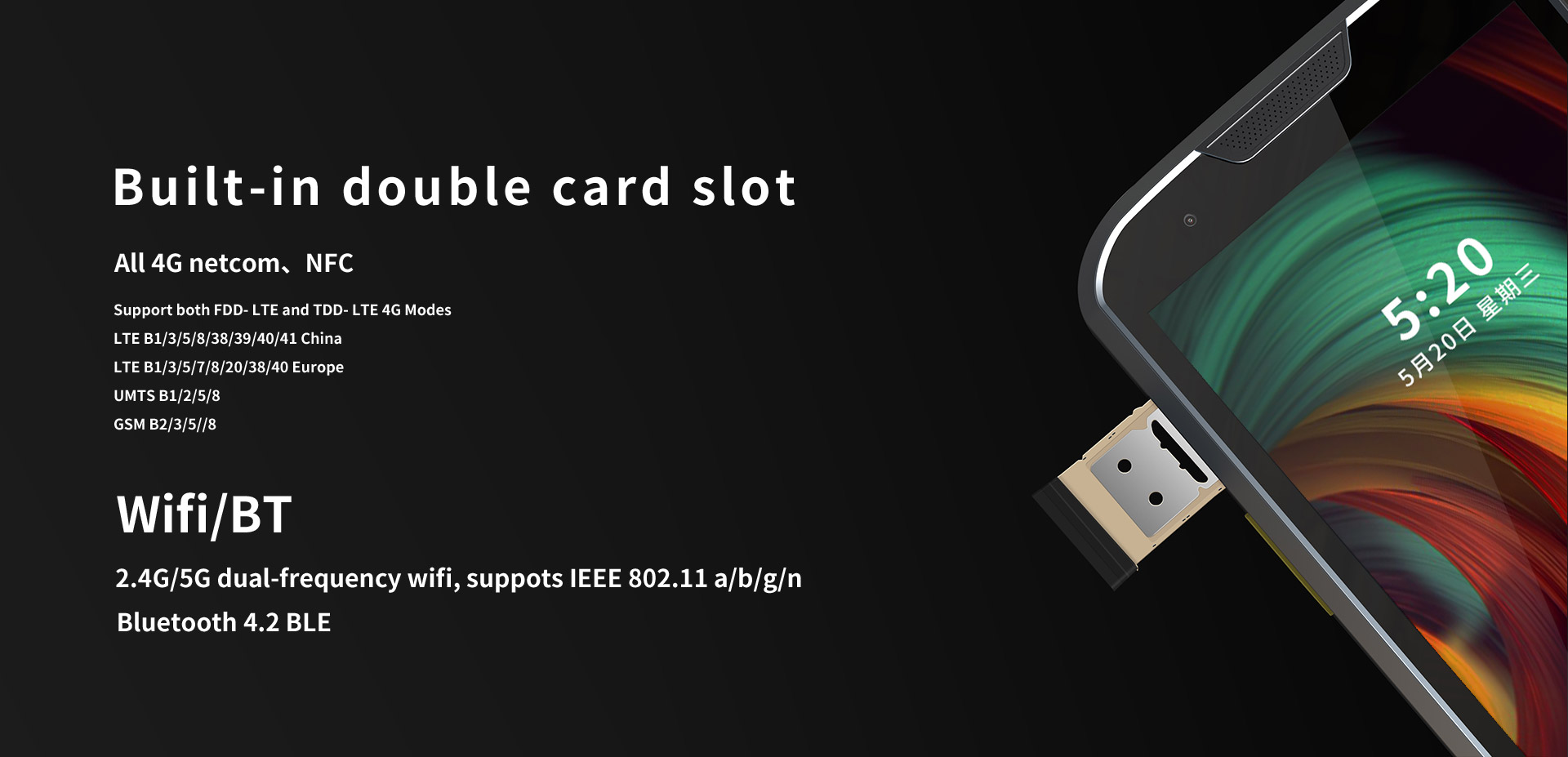

Mobile Network

Support both FDD- LTE and TDD- LTE 4G Modes

LTE B1/3/5/8/38/39/40/41 China

LTE B1/3/5/7/8/20/38/40 Europe

UMTS B1/2/5/8

GSM B2/3/5//8

Physical Interface

One Type- C USB(Support OTG), 3.5mm

(Audio Interface), POGO PIN

Wi-Fi2.4G/5G Wi-Fi(Multi-frequency) support IEEE 802.11 a/b/g/n
BluetoothBluetooth 4.2 BLE
EthernetEthernet IEEE 802.3 over USB
Audioloudspeaker, reproducer, speaker
GPSGPS & A- GPS High-accuracy
Sensor Acceleration sensor, light sensor, distance sensor

Front camera

5 megapixel color camera
Rear Camera8 megapixel color camera with flash, auto focus
Barcode Scanning

SE4710 Hanin 1D/2D imager s100k (compatible with Zebra SE4710), and optional SE4710.

It can recognize all international universal 1D and 2D barcode, screen barcode, color barcode, and can support camera scanning

NFC(Options)Support 13.56MHz, ISO14443 A&B, and ISO15693 protocol
RFIDSupport EPC Class 1 Gen 2 (ISO 18000-6c) protocol with RFID UHF handle
Card Slot TypeNano SIM Card, Micro SD(TF) Card
BatteryBattery is not removable, lithium battery can be charged, battery capacity 4000mAh

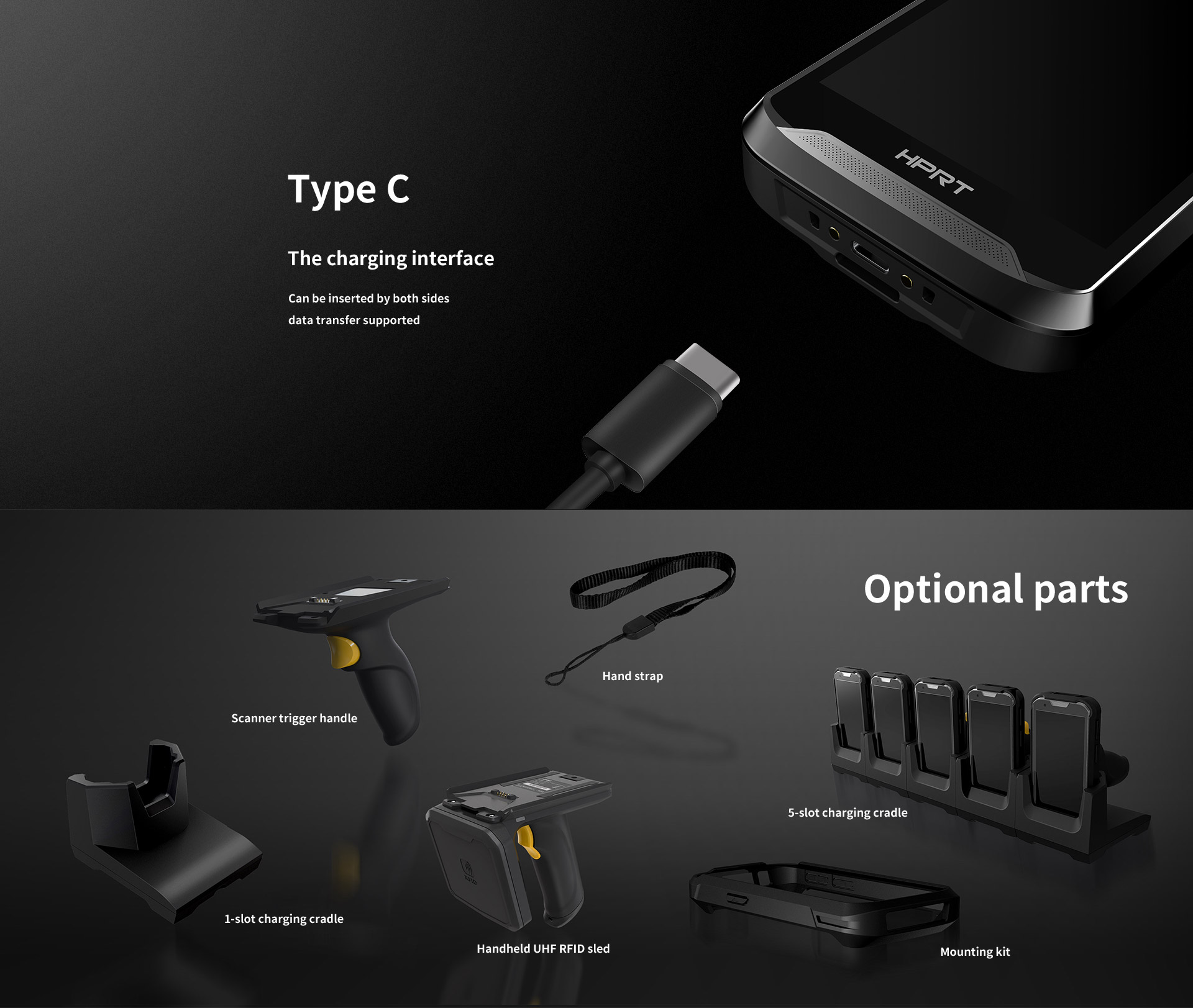

Optional Accessories

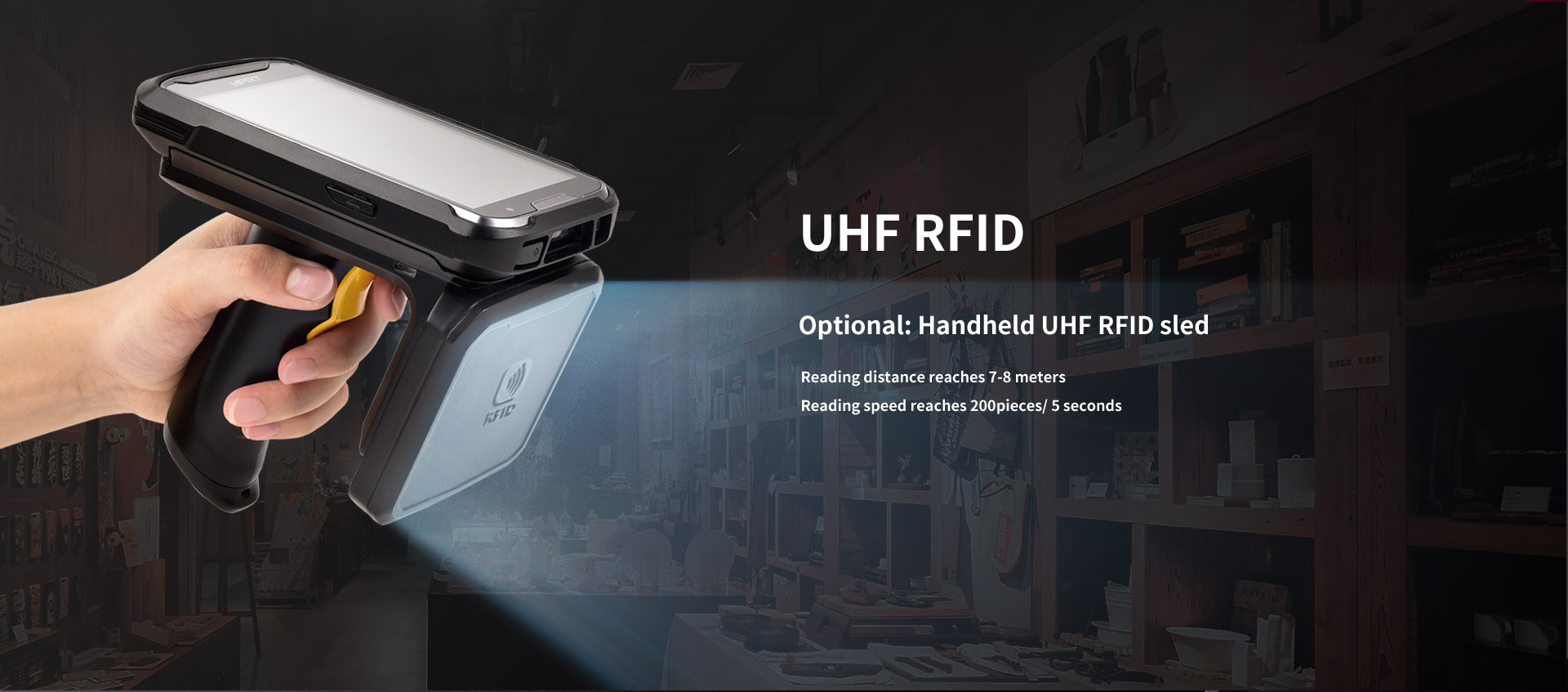

①RFID UHF handle

②Scanning code trigger handle

③Wristband Protective shell sleeve for the connection of handheld machines to handle

④Seat charging base for handheld and RFID handle to charge individually or simultaneously that include: single bit charging base, five-linked seat charging base

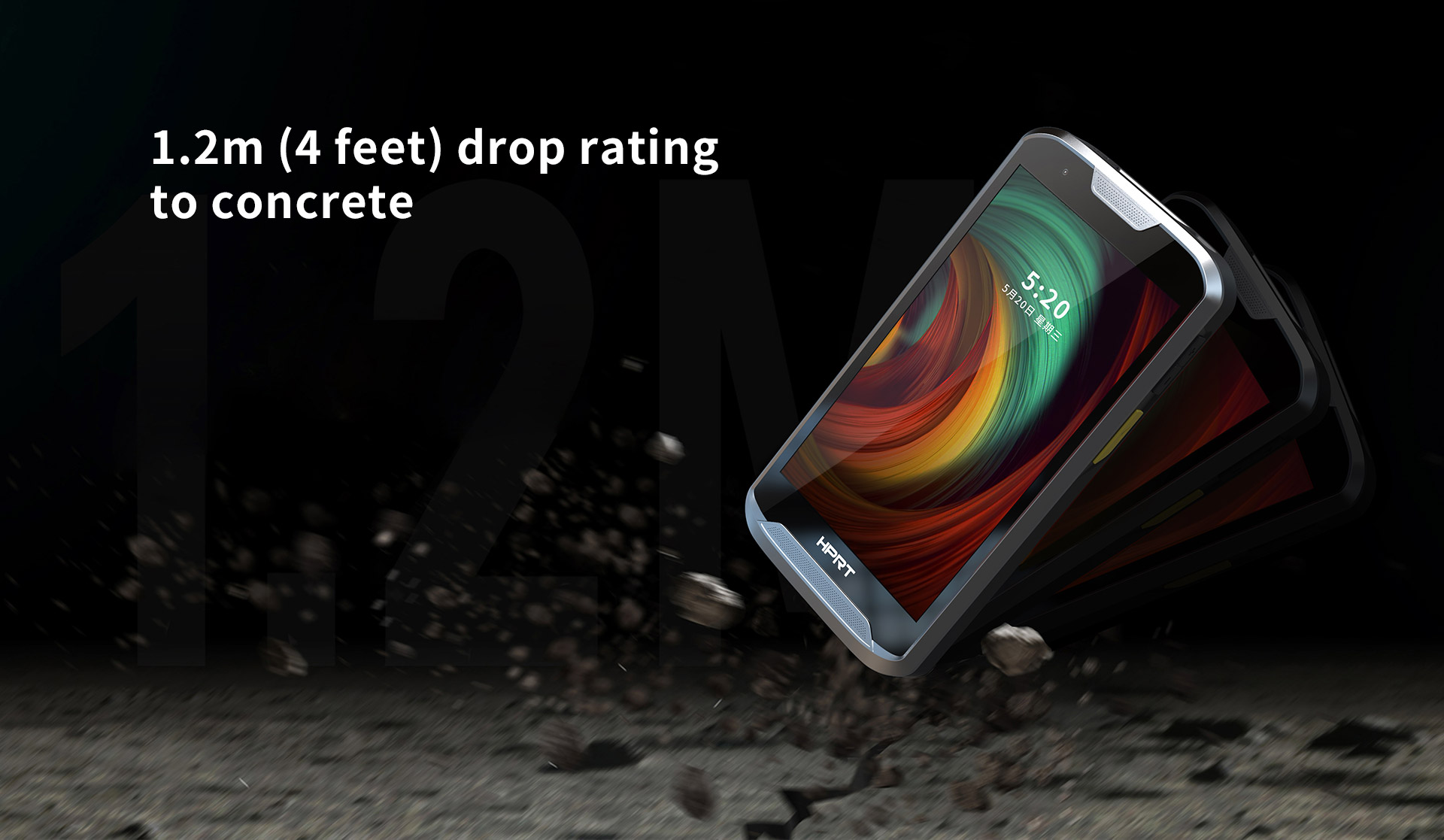

Anti-fall Drop Protection

At room temperature, it can withstand the impact of multiple drops from 1.2 meters to the concrete floor, which in line with the requirements of MIL-STD.

It can withstand the impact of 300 0.5 m rolling

Protection DegreeMore than IP54
Working Environment

Operating temperature-20°C to 50° C

Storage temperature-40°C to 60°c
