DA188S
OVERVIEW TECH SPECS DOWNLOADS

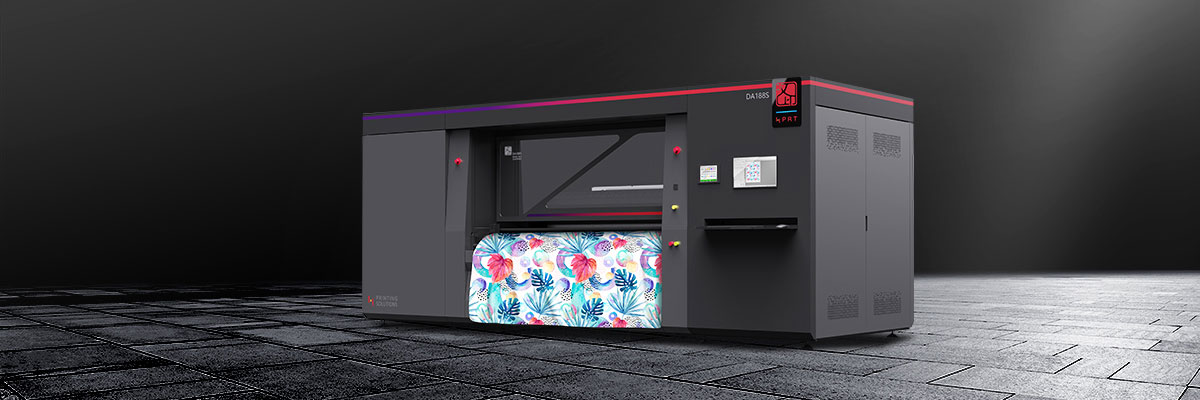

High-Speed Roll-TO-Roll Digital Fabric Printer

High-Speed Conveying-Belt Direct to Fabric Digital Textile Printer - HPRT DA188S Series

32 Kyocera industrial print heads, print speed up to 900㎡/h

The high efficiency, low cost and high precision create the excellent printing quality. The ultra-high cost-effective performance meets the demand of fast printing and high end customized design.

High speed and stability: to create production value against the clock

DA188S series textile printer adopts industrial high-speed Kyocera inkjet print head, and maximizes the inkjet print head productivity through the special combination and the control system, which enables you to fulfill the massive orders easily.

High-definition printing: good imaging comes the first

Through the unique driver design and ink supply system design, DA188S series textile printer can use various ink such as acid ink, reactive ink, high temperature dispersion ink, water-based paint ink, etc., making the print details clear, lifelike and vivid.

Smart and money saving: energy saving design shows intelligence everywhere

The design of automatic print head cleaning system, the moisturizing system as well as the automatic conveying-belt cleaning and maintenance system make the operation and maintenance simple, guarantee the equipment efficiency, and get it possible for only one person to operate the machine.

ModelDA188S
TypeRoll-to-roll digital textile printer
StructureScanning-type roll to roll
Max. Print Width(mm)1850
Max. Cloth Width(mm)1950
Resolution (dpi)600*600/600*1200/600*1800/600*2400
Max. Print Accuracy(dpi)2400
Maximum Allowable Roll Diameter of Internal Cloth Feed Holder(mm)Φ400
Maximum Allowable Weight of Internal Cloth Feed Holder(kg)100
Maximum Allowable Roll Diameter of External Cloth Feed Holder A(mm)Φ1600
Print Head FeaturesHigh-precision industrial print head/single channel/ variable point technology
Grayscale16
Variable Ink Drop Size4~72pL
Print Speed (m2/hr)600*600dpi: 900
600*1200dpi: 450
600*1800dpi: 300
600*2400dpi: 210
Color Mode4-color mode: 1*4, 2*4, 3*4, 4*4
6-color mode: 1*6, 2*6, 3*6, 4*6
8-color mode: 1*8, 2*8, 3*8, 4*8
Ink TypeActivity, acidity, coating, dispersion, high temperature dispersion
Ink ColorC, M, Y, K, O, B, Lk, FM
Print MediaCotton, linen, silk, nylon, polyester, blended, elastic fabrics and new fiber woven and knitted fabrics
Ink Supply System and Degassing SystemAutomatic ink supply system, automatic degassing and automatic pressure system
Print Head Cleaning and MaintenanceAutomatic cleaning and moisturizing system
Over High Detection and CorrectionAutomatic detection system of over-high media, adjustable system of
conveying-belt correction
Operating InterfaceDual touch screen (front and back)
PC Operating System and HardwareOperating system: windows 7 and above
CPU: Core i7 and above
HD: 500GB, 1G graphics
RAM: 16GB
Supported Image TypeJPG/TIFF/BMP/others
Color ModeCMYK/RGB
Printing DriverHPRT server
RIP SystemHPRT print, open
Dimensions: L*W*H(mm)4680*2200*2000
Weight(kg)4000
Power SupplyPrinter: AC380V±10%, three-phase five wire system| 40A (20KW) | 50Hz/60Hz
Compressed Air Supply0.6Mpa|3.5m3/hr (dry, no oil or water vapor)
Operating Temperature18-28°C (68-77°F)
Operating Humidity45-70% (non-condensing)
Drying OptionElectric heating/steam heating/natural gas heating and other drying rooms
Approval AgencyOEKO-TEX, AATCC
