3 Inch Mobile Receipt Printer
Mobile Receipt Printer
Bluetooth Receipt Printer

3" Mobile Receipt Printer

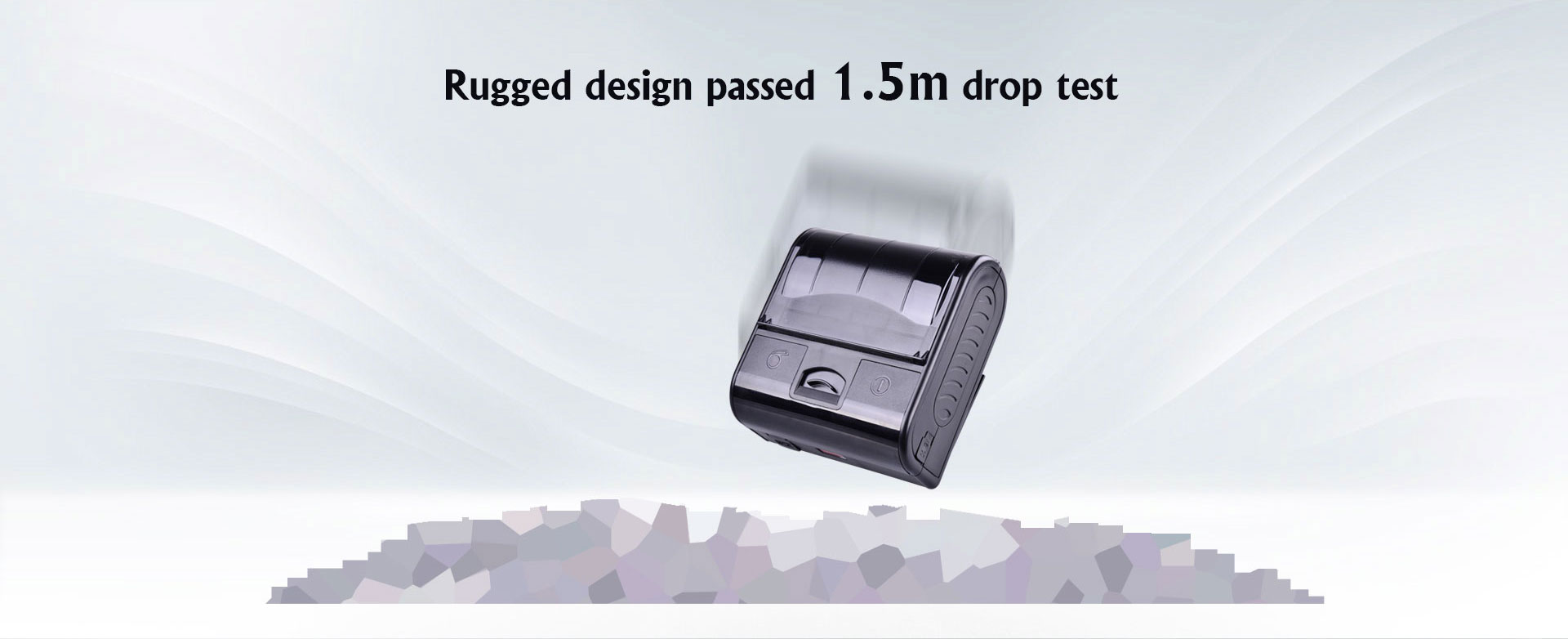

•  Rugged and durable design

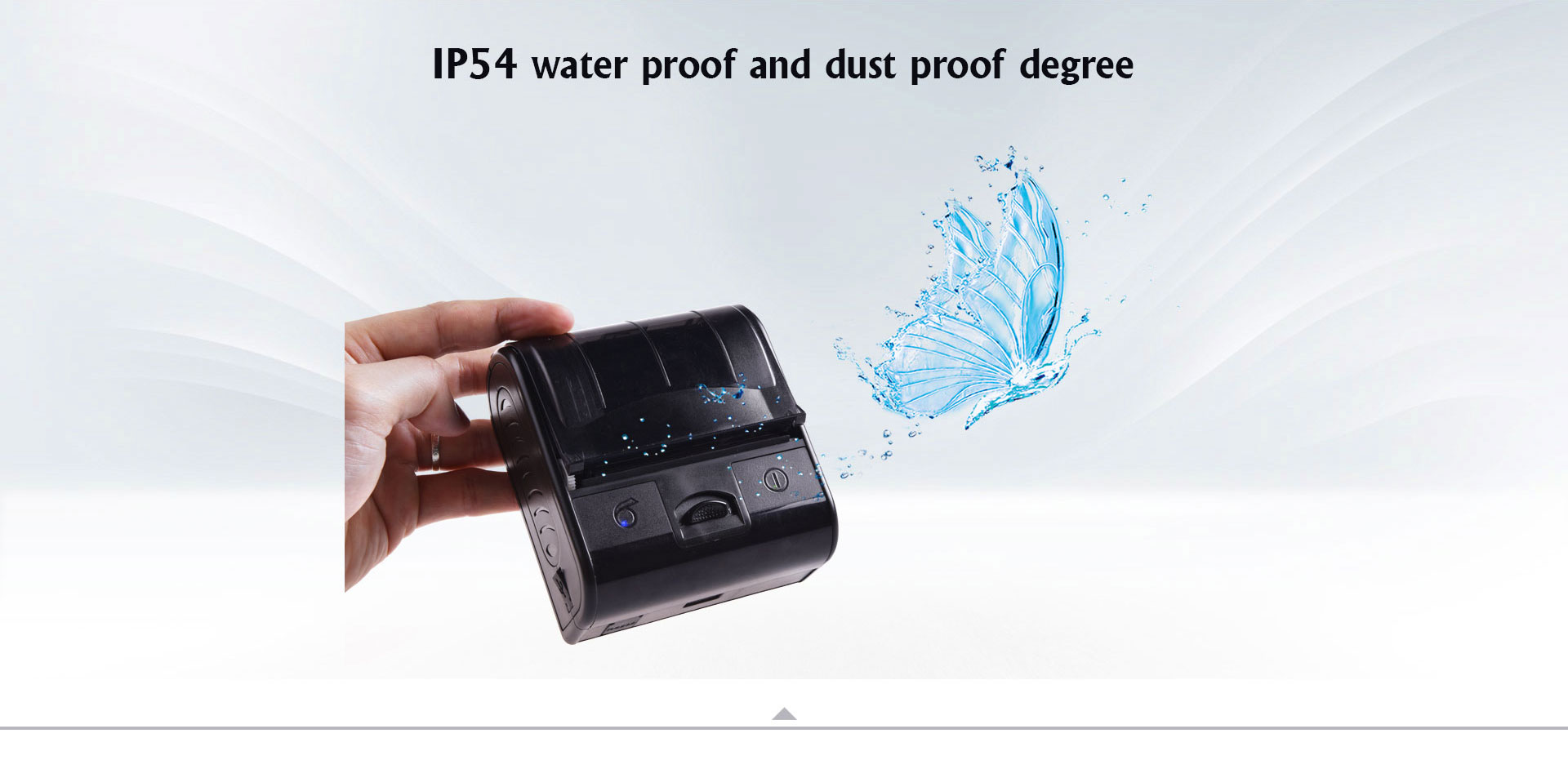

•  IP54 water proof and dust proof
•  Support Bluetooth communication
•  Provide WinCE and Android SDK

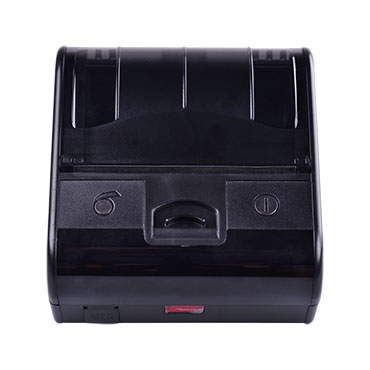

3 Inch Mobile Receipt Printer

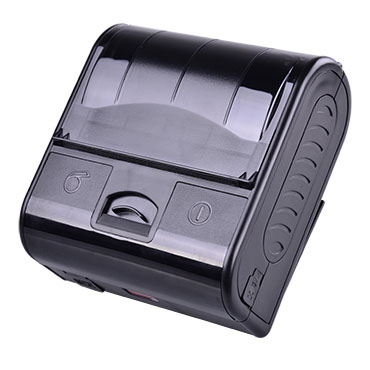

Mobile Receipt Printer

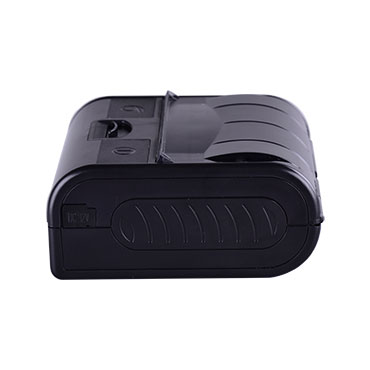

Bluetooth Receipt Printer

HPRT mobile receipt label printer MPT3

low power consumption mobile printer

portable ticket printer

IP54 portable printer

PrintingPrint MethodDirect Thermal
Resolution203 dpi (8 dots/mm)
Print SpeedMax.70mm/s
Print Width72 mm

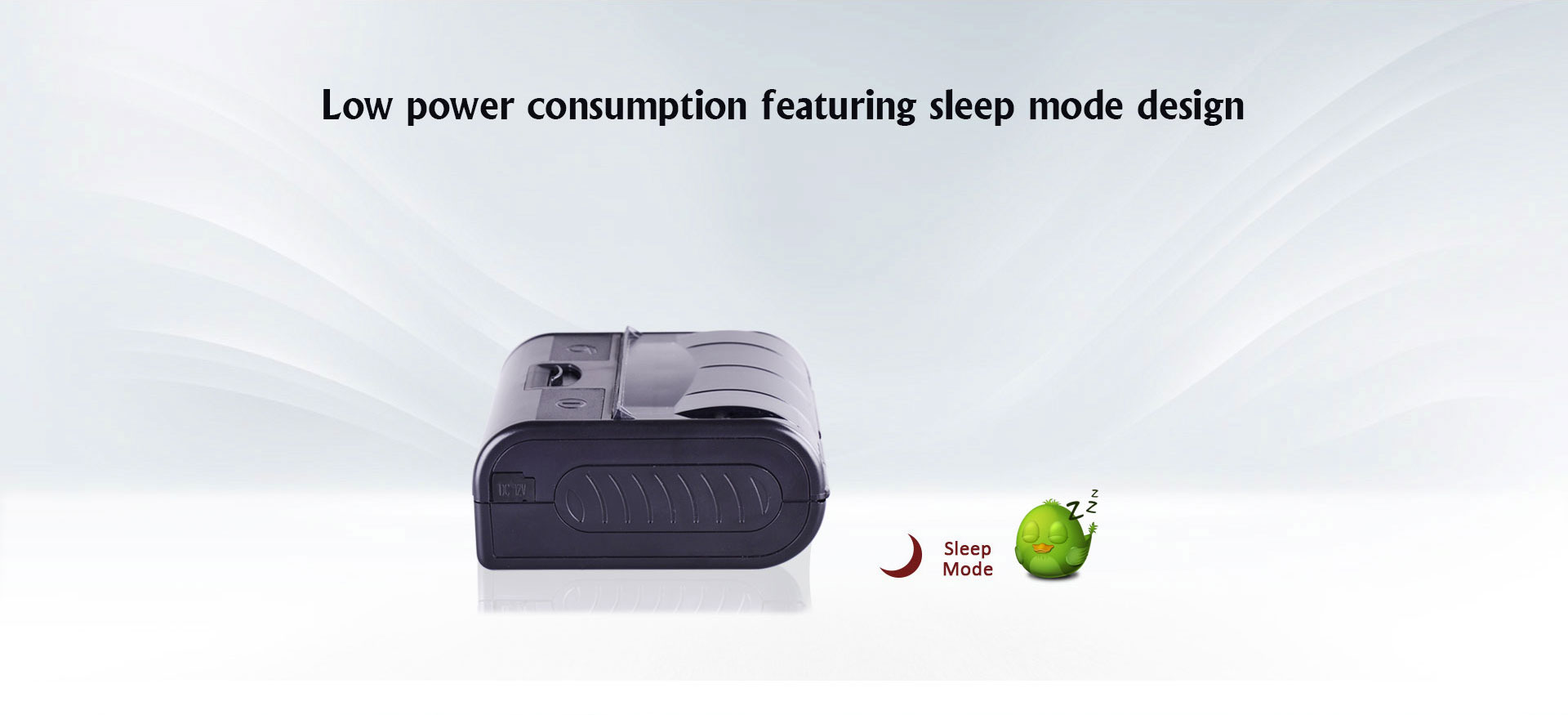

Power SavingSleep ModeYES
MemoryRAM48 KB
Flash
2 MB
Programming Language
ESC/POS
FontsAlphanumeric; Simplified Chinese, Traditional Chinese; 42 International Character Sets
BarcodeLinear BarcodesUPC-A, UPC-E, EAN-8, EAN-13, CODE39, ITF, CODEBAR, CODE 128, CODE 93
2D BarcodesQR Code
GraphicsSupport bitmap printing with different density and user defined bitmap printing (Max. 40 KB for per bitmap, and Max.64 KB for total)
Interface
Standard
MiniUSB, Serial Port, Bluetooth 2.1+EDR
Option
N/A
SensorsStandardPaper out Detector, Cover open Detector
Option
N/A
LED IndicatorPowerRed
ErrorBlue
PowerInputAC 100 ~ 240 V, 50/60 Hz
OutputDC 12V, 1.0A
Battery7.4V rechargeable Li-ion battery, 1500mAh
PaperPaper TypeThermal Receipt Paper
Paper Width80 mm
Paper Thickness0.05  ~ 0.12 mm
Paper Roller DiameterMax. 40mm
Paper LoadingEasy loading mechanism
EnvironmentOperating0 °C ~ 40°C , 20% ~ 85% R.H, no-condensing
Storage-20°C ~ 70°C, 5% ~ 95% R.H, no-condensing
Physical CharacteristicsDimension102.5(L)×110(W)×50(H) mm
Weight325 g
Options and AccessoriesSerial Cable, Paper Roll, Power Adapter, Belt Clip, Power Cord, Quick Start Guide, CD
SoftwareDriverHPRT Driver:Windows XP,Vista,7,8,10.Linux,Mac
SDKWinCE, Windows Mobile, Android

Drivers and Manuals

Stay up-to-date with the latest downloads for your HPRT Printer
