M300/M300C
OVERVIEW TECH SPECS DOWNLOADS

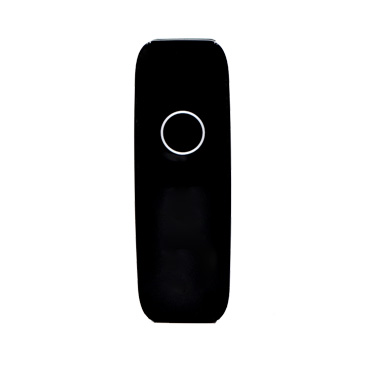

1D Bluetooth Barcode Scanner

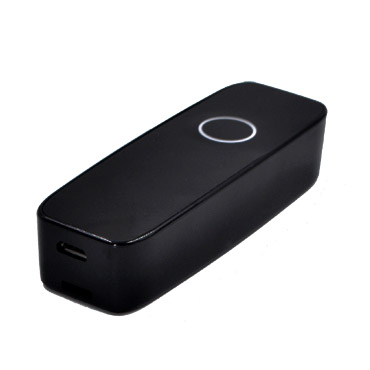

2D Bluetooth Barcode Scanner

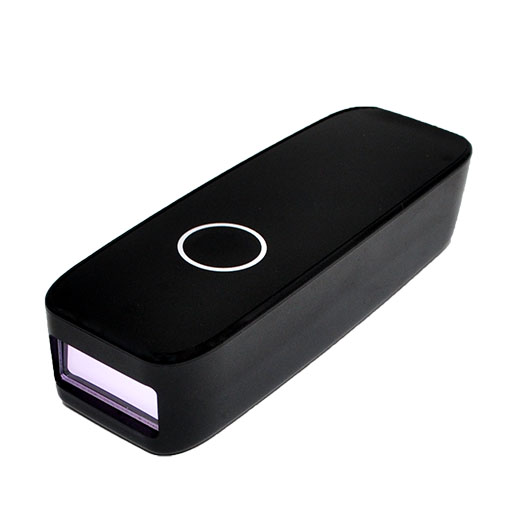

HPRT handheld scanner M300

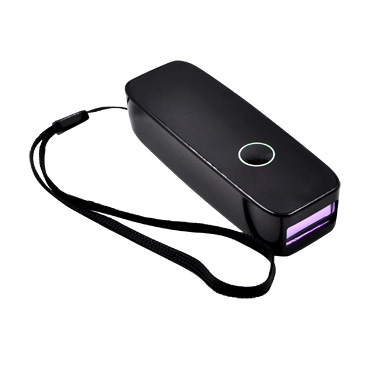

Mini Bluetooth scanning gun

1D/2D Bluetooth Barcode Scanner

•  Up to 500 scans/sec
•  1D CCD sensor, rapidly decodes 1D barcodes (M300)

•  2D CMOS sensor, rapidly decodes 1D & 2D barcodes (M300C)

•  Optical camera filter ideal for indoor & outdoor use
•  USB rechargeable, high capacity Lithium battery
•  Bluetooth 4.2 for real-time data transfer
•  HID, GATT protocol supported
•  SPP protocol supported (only available for M300S)
•  Audible & visible feedback after a successful scan
•  Free Android & iOS SDK allow customized scanning behavior

1D Bluetooth Barcode Scanner
2D Bluetooth Barcode Scanner
HPRT handheld scanner M300
Mini Bluetooth scanning gun

Bluetooth Scanner

small Scanner

Logistics ScannerPortable Scanner

ModelM300M300C
Barcode type support1D1D/2D

Real-time data upload functioin

Support

Maximum data staging storage

256
Bluetooth chip
ModelTLSR826X
Protocl versioin number4.2 BLE

Configuration protocol

HID, GATT

Scanning module

IlluminationWhite LED
Aiming
Red LED

Service frequency

8 MHz

Scanning frequency

500 scans/second
Ambient light0~10000 Lux

Sensor

1D Linear, CCD sensor

2D 640*480,CMOS
Data reading distancePCS 90%: 50cm (barcode density 220 miles/0.5mm), PCS 90%20~310mm
Contrast ratio

PCS 45% (barcode density 4 miles/0.1mm)

≥ 25%
Resolution ratioPCS 90% (barcode density 4 miles/0.1mm)PCS 90%, CODE 39: ≥ 4mil/0.1mm
Scanning angle5°~60°Roll 0-360°; Pitch ±60°; Skew ±60°
Symbologies1D
UPC/EAN/JAN, EAN128,Code39, Code32, Code128, CODABAR/NW7. Interleave 25, Industrial 25, Matrix25, MSI/PLESSEY, Telepen, Code26, LCD25, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded
2D-
QR Code, DataMatrix, PDF417, etc.
Firmware upgrade modeOTA
FilterAllocate
Software develoment kitAndroid, iOS

Battery performance

Charging time3 Hours
Scanning times20,000 times
Standby time30 days

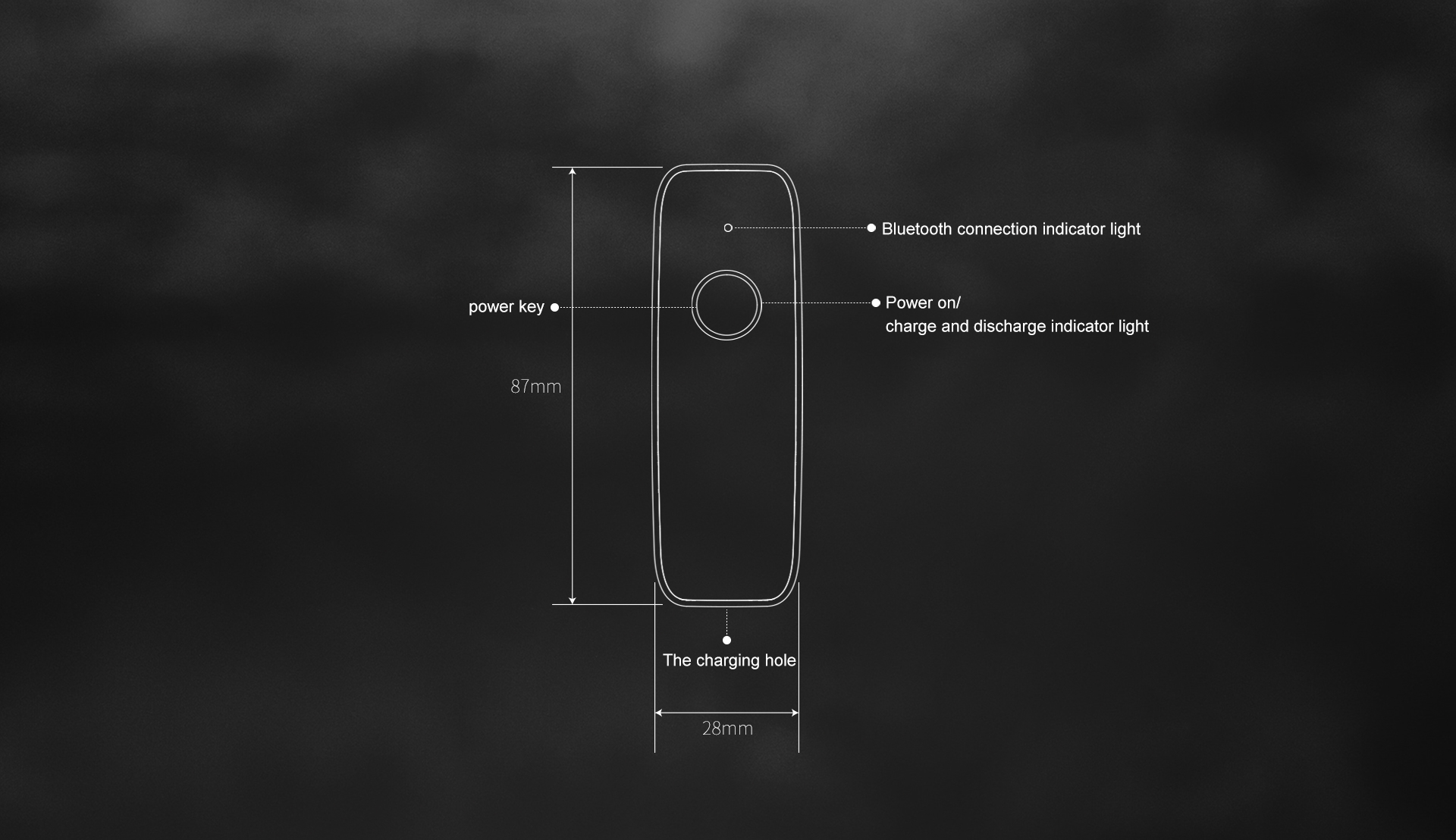

Physical ParameterSize80 X 30 X 20 mm
Environment Parameter

Operation


0 ℃~50℃(32°F~122°F), Relative humidity

Storage-20 ℃~70℃(-4°F~158°F), Relative humidity
